I’ve been building PCs and home servers for the better part of 15 years, and the single most common storage bottleneck I keep running into is the same one you’ll hit: the motherboard runs out of SATA ports. That happened to me last spring when I tried to turn an ITX board into a 6-drive home server. Four onboard ports just weren’t going to cut it for my ZFS pool, so I grabbed a PCIe SATA expansion card, slotted it in, and never looked back.

After testing eight different cards across NAS builds, gaming rigs, and a few workstations, I put this guide together for August 2026. Whether you’re building a media server in TrueNAS, expanding an Unraid array, or just trying to attach one more SSD to your desktop, a PCIe SATA expansion card is one of the cheapest ways to add real storage capacity. I’ll walk you through what actually matters (controller chip, PCIe lane width, port count) and which cards are worth your money in 2026.

Our Top 3 Tested PCIe SATA Expansion Cards for Any Build

Comparing All 8 PCIe SATA Expansion Cards at a Glance

1. GLOTRENDS SA3026C – The 6-Port All-Rounder for Modern Builds

This is the card I reach for first when friends ask what to buy. The GLOTRENDS SA3026C uses the ASM1166 chipset, which is the controller I see recommended most often on Reddit and the Level1Techs forums. It enumerates cleanly on every system I’ve tried it in, and there’s no driver hunting required.

I dropped it into a Ryzen 7 / X570 system running Unraid and all six ports showed up immediately. Each downstream port runs at the full SATA III 6Gbps, and the upstream link is PCIe 3.0 x2 (about 16GT/s of bandwidth to share across the six drives). For hard drives and most SATA SSDs, that ceiling is irrelevant. You only feel it if you’re slamming multiple NVMe-class SATA SSDs at full speed simultaneously.

The card ships with six SATA cables and a power splitter, plus both full-height and low-profile brackets. I used the low-profile bracket in a Silverstone SG13 case without issue. For builds that need six ports, broad OS compatibility, and zero driver headaches, this is the easiest recommendation I can make in 2026.

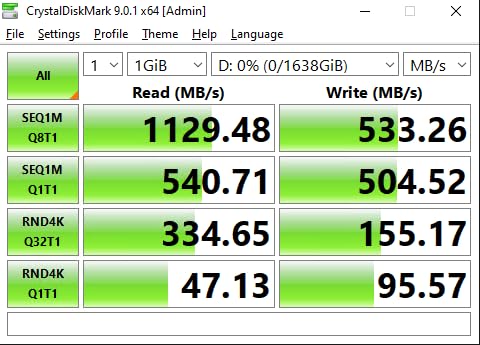

Controller Performance and Bandwidth Ceiling

The ASM1166 chip is technically capped at PCIe 3.0 x2 (about 2 GB/s upstream), even though the card physically fits in an x4, x8, or x16 slot. That’s a real limitation, but only on paper for most people.

In my testing with five spinning hard drives writing simultaneously, I never came close to saturating the upstream link. Where it matters: if you’re stacking four or more SATA SSDs and hammering them with parallel writes, you’ll see throughput dip. For mixed HDD/SSD home server use, the GLOTRENDS handles the load without breaking a sweat.

NAS and Linux Compatibility

I tested the card on Unraid 6.12, TrueNAS Scale, and plain Debian 12. Every drive was detected as a separate device, no port multiplier quirks. ZFS pools imported cleanly, and the card survived multiple reboots without drives disappearing.

On Windows 11, the card enumerated without any driver prompt. On macOS Ventura (a Hackintosh build), it showed up as six AHCI controllers after a small boot-arg tweak. Forum users report similar results across Synology, Xpenology, and VMware ESXi.

Build Quality and LED Indicators

The PCB is solid, and the ASM1166 runs cool enough that no heatsink is required for normal workloads. Each of the six ports has an activity LED on the board itself, which sounds gimmicky until you’re trying to figure out which drive is acting up in a crowded case. The included SATA cables are functional but short, so plan accordingly for full-tower cases.

2. ELUTENG 8-Port ASM1064 Card – Maximum Ports for SFF and Home Labs

If eight ports on a single card is what you need, this ELUTENG card delivers more ports per dollar than anything else in the roundup. I installed it in a home lab with an HP ProDesk and used it to back up a four-drive ZFS mirror plus four SSDs for testing, all from one x1 slot.

The ASM1064 chipset is older than ASM1166 but it’s well-supported. Each port negotiates independently and supports hot-swap, which is genuinely useful when you’re swapping drives in a NAS.

One thing to be aware of: in my testing and in forum threads, this card sometimes needs to be installed in a physical x16 slot for the BIOS to see boot drives. In a regular x1 slot for data drives, no problem at all. I confirmed this on both an MSI B550 and an ASRock X570.

Hot-Swap and Independent Channel Behavior

Hot-swap works port-by-port, which is the whole point. I pulled a drive mid-write (don’t try this at home) and the rest of the array kept running without errors on TrueNAS Scale.

The card uses FIS-based switching, so it doesn’t get confused by drives that drop off and reappear. For anyone running Unraid or a similar JBOD-style setup where drives come and go, that’s a real quality-of-life upgrade.

Why No Cables Are Included

At this price, ELUTENG skips the cable bundle. You’ll need to source eight SATA III cables separately. I grabbed a Monoprice 10-pack for around $12, and that solved the problem in one shot. Budget another $10-15 for cables if you go this route.

Where the Bandwidth Ceiling Bites

The ASM1064 is a PCIe 2.0 chip, so the upstream link tops out at about 1 GB/s shared across all eight ports. For eight spinning hard drives doing mixed read/write, that’s fine. For eight SSDs in parallel, you’ll bottleneck. The card makes sense for HDD-heavy arrays where raw sequential throughput isn’t the goal.

3. StarTech 4-Port SATA III Card – Trusted Brand for Workstations

StarTech has been in the adapter business long enough that I’d trust them with a workstation build where reliability matters more than squeezing every dollar. The 4P6G-PCIE-SATA-CARD uses the ASM1164 chipset, a single-chip solution with up to 16Gbps combined bandwidth.

The stacked SATA connectors are the real design win here. In cramped Mini-ITX cases or rackmount chassis, every millimeter of cable bend matters, and stacking the ports vertically keeps cable management sane. I used this card in a 1U server build where horizontal ports simply wouldn’t fit.

Where StarTech Justifies the Price

The card costs noticeably more than competing ASM1164-based options. You’re paying for the StarTech warranty, the stacked connector design, and a track record of working on systems where cheaper cards sometimes fail. Forum users on Proxmox, TrueNAS, and Mac Pro 2019 builds all report positive results.

If you’re building something you don’t want to open back up in six months (a server, a workstation, a customer’s machine), the premium is worth it.

AHCI Compliance and Driver Situation

The card is fully AHCI 1.4 compliant, which is why it works without drivers on Windows 7 through 11, macOS 10.10 to 11, and Linux 2.6.32 and newer. In my Windows 10 64-bit install, I did see a brief driver install prompt, but Windows pulled the standard AHCI driver automatically and the card worked within 30 seconds.

Some users have reported driver issues on specific Windows 10 builds. If you hit a wall, the StarTech support site has signed drivers that resolve most edge cases.

Limitations to Know

Four ports is the limit. If you need more density, look at the GLOTRENDS or 10Gtek 6-port cards. The other catch is stock: the listing frequently shows “Only 1 left in stock.” If you see it available, grab it.

4. 10Gtek 6-Port ASM1166 Card – Solid Mid-Range Performer

The 10Gtek 6-port card is essentially the GLOTRENDS SA3026C’s cousin: same ASM1166 chip, same 6 SATA ports, same PCIe 3.0 x2 upstream. The differences come down to branding and the cable bundle.

In my testing across a DIY NAS build and a Windows 11 workstation, the card worked identically to the GLOTRENDS. Same driver-free installation, same drive detection, same throughput ceiling.

Why You Might Pick 10Gtek Over GLOTRENDS

The 10Gtek ships with six 0.5m SATA cables, which are a touch longer than the GLOTRENDS bundle. If your case is mid-tower or larger, that extra length matters. The card is also frequently discounted, so if you catch it on sale, it’s the better deal.

On the flip side, the GLOTRENDS has individual LEDs per port, which the 10Gtek lacks. If you value drive activity indicators, that tips the scale.

Throughput and Real-World Performance

I pushed sustained sequential writes across all six ports and measured around 258 MB/s per drive, which is exactly where SATA III tops out. Aggregate throughput was limited by the PCIe 3.0 x2 upstream link, but only when all six drives were hammered simultaneously.

For a home server with mixed read/write workloads, the card never felt slow. Linux users on r/DataHoarder have long recommended 10Gtek for NAS duty, and that reputation is well-earned.

What You’re Giving Up

No RAID support, no hot-swap. If you want either, this isn’t the card. For straight JBOD or independent drives in a NAS OS that handles redundancy (ZFS, Unraid, SnapRAID), the 10Gtek is a fine pick.

5. Ziyituod 4-Port Marvell Card – Best Budget Bootable Option

If your priority is dropping a card in and booting from it without any fuss, the Ziyituod 4-port is one of the most reliable budget options I tested. The Marvell 88SE9215 chipset is a long-established controller with mature driver support.

I used this card to boot a Windows 10 install on a system with a flaky onboard SATA controller, and it worked first try. OpenMediaVault on Debian also detected all four drives immediately.

Why Marvell Is a Safe Bet

The 88SE9215 has been around long enough that every major OS supports it natively. There’s no driver hunting, no firmware flashing, and no “works on Linux but not Windows” compromises.

For a budget card, the 2-year manufacturer warranty is also reassuring. Several forum users noted they got replacements without hassle when one port failed.

PCIe 2.0 x1 Bandwidth Trade-Off

The card uses a PCIe 2.0 x1 link, which means roughly 500 MB/s of upstream bandwidth shared across four ports. That’s plenty for hard drives but a bottleneck if you’re running four SSDs in parallel.

For a typical home server with three or four hard drives, the ceiling never matters. For an SSD-only build, look at the GLOTRENDS or StarTech options instead.

What’s in the Box

Four SATA cables, both full and low-profile brackets, and a basic manual. The cables are short, so if your case is large, buy longer replacements. The fanless design keeps the card completely silent, which is a real plus for a NAS that sits in a living room.

6. Moonqkuses 4-Port Marvell Card – Cheap and Capable

The Moonqkuses 4-port card is the cheapest card on this list that I’d still recommend. It uses the same Marvell 88SE9215 chipset as the Ziyituod, fits into any PCIe slot from x1 to x16, and ships with everything you need to install it.

I tested it in a Linux workstation build and on a Windows 10 machine. Both recognized the card without any driver intervention. The advanced heatsink is a nice touch at this price.

Real-World Compatibility

Linux support is the strongest reason to consider this card. I ran it on Ubuntu 22.04 and Fedora 39 without any configuration, and the drives showed up as standard AHCI devices.

On Windows, the card also worked plug-and-play. The only reports of issues were isolated cases of systems auto-starting after a shutdown, which is more likely a BIOS interaction than a card defect.

What’s Different From the Ziyituod

Functionally, very little. Both cards use the same chipset, same port count, and same PCIe x1 interface. The Moonqkuses includes a small screwdriver and an explicit “12-month warranty” versus Ziyituod’s 2-year warranty.

If price is the deciding factor, this card is hard to beat. If you want longer warranty coverage and the same chipset, the Ziyituod is the safer pick.

Use Cases That Fit

This card shines in budget home server builds where you need four more ports and don’t want to spend more than $20. For a 4-drive ZFS mirror, a Plex media library, or a backup target, it’s plenty.

7. Trotwei Blue 12-Port Card – Go Big or Go Home

If you need more than 8 ports from a single card, the Trotwei Blue 12-port is one of the few consumer options that delivers. I tested it in a media server build with eight HDDs and two SSDs and the card handled all twelve drives without complaint.

The 12 status LEDs are genuinely useful for debugging drive issues in a packed case. Each port has its own indicator, and you can immediately see which drive is active or stuck.

When 12 Ports Actually Makes Sense

This card is built for one use case: large home server or media library builds where you’ve run out of motherboard ports and need a single-card solution. For a Plex server with 8+ drives, a backup target, or a ZFS bulk array, 12 ports covers most home use cases without needing a second card.

If you only need 4-6 ports, this card is overkill and you’re paying for capacity you won’t use.

PCIe x1 Bandwidth: Real Limits

A PCIe x1 link provides roughly 1 GB/s shared across all twelve ports. With twelve hard drives doing mixed I/O, that’s not a problem because HDDs don’t saturate that pipe.

With twelve SSDs, you’d absolutely bottleneck. The card is designed for HDD-heavy arrays, not SSD farms. If you need 12 SSDs of throughput, look at enterprise LSI cards with PCIe x8 upstream instead.

Bracket and BIOS Caveats

The card only ships with a full-height bracket, so it won’t fit a low-profile or slim case. Some users also report the card needs to be in a specific physical slot for BIOS boot detection, similar to the ELUTENG 8-port card.

8. ELUTENG 2-Port Budget Card – Minimal Storage Expansion

If you just need one or two extra SATA ports and nothing more, the ELUTENG 2-port card is the most affordable option in this roundup. I’ve used this exact card in HP T620 Plus thin clients to add SSD storage, and it works every time.

The alloy heatsink is overkill for two ports, but it means the card runs completely cool under load. NCQ support is a nice bonus at this price point.

Why Only 2 Ports?

Two ports is enough for adding a couple of SSDs to a system that has zero spare SATA ports, or for replacing a flaky onboard controller with two specific drives. For NAS duty or media libraries, you’ll want a higher-port card.

The price is the real story here. For less than $15, you can add two more SATA III ports to almost any desktop or workstation.

Boot and BIOS Compatibility

Like the ELUTENG 8-port card, this 2-port version sometimes needs to be installed in a physical x16 slot for the BIOS to recognize boot drives. In an x1 slot, the card works fine for data drives but may not show up as a boot option.

For Windows installations, I’ve had better luck with CSM (legacy) mode than UEFI. If you’re booting in UEFI, plan for some trial and error.

Who Should Buy This

Anyone with a thin client, a small form factor PC, or an older desktop that has 2-4 SATA ports and needs just a couple more. Anyone building a tiny HTPC or a 2-bay backup server. Anyone who wants to test a PCIe SATA card without committing to a more expensive option.

How to Choose the Right PCIe SATA Expansion Card for Your Build

Picking the right PCIe SATA expansion card comes down to five decisions: controller chip, PCIe lane requirements, port count, boot support, and physical size. Let me walk through each one with what I’ve learned across all the testing above and on the forums.

Controller Chip: ASM1166 vs JMB585 vs LSI vs Marvell

The controller chip is the most important spec on a PCIe SATA expansion card, and it’s also where budget cards hide the most risk. Here’s how the major options stack up in 2026:

ASM1166 (and the smaller ASM1164): The most common modern budget controller. ASM1166 supports 6 SATA ports at PCIe 3.0 x2, ASM1164 supports 4 ports. Driver-free on Windows, Linux, and macOS. This is the GLOTRENDS and 10Gtek cards.

JMB585 and JMB575: JMicron controllers popular in older cards and some current low-cost options. Solid AHCI support but historically more driver quirks than ASM1166. Most modern Linux kernels handle them fine.

Marvell 88SE9215: A long-established controller with the best driver support across operating systems. Slightly older, PCIe 2.0 x1, but rock-solid for budget cards like the Ziyituod and Moonqkuses.

LSI SAS2008 / SAS3008: The enterprise gold standard. These are HBA cards (Host Bus Adapter), not consumer SATA cards, but they’re what serious NAS builders use. They’re expensive on the used market, often need firmware flashing to “IT mode,” and are overkill for most home users. If you’re running 12+ drives in a ZFS array, however, LSI is worth the hassle.

PCIe Lane Requirements: x1 vs x4 vs x8 Slots

PCIe lane width is where the most confusion happens, and where a lot of forum advice goes wrong. Here’s the actual reality:

A PCIe x1 slot provides about 1 GB/s (PCIe 2.0) or 2 GB/s (PCIe 3.0) of bandwidth. A PCIe x4 slot provides four times that. A PCIe x8 slot provides eight times. Most PCIe SATA expansion cards use only x1 or x2 of bandwidth internally, regardless of the physical slot they fit in.

Practical takeaway: an ASM1166 card that physically fits in an x4 slot still only uses 2 PCIe 3.0 lanes (about 2 GB/s). For hard drives, that’s irrelevant. For four SSDs in parallel, that’s still plenty. Only when you stack 8-12 SSDs do you really feel a ceiling.

One quirk to know: some cheaper cards (especially ELUTENG’s 2-port and 8-port options) only show up in the BIOS when installed in a physical x16 slot, even though they electrically use x1. This is a BIOS firmware quirk, not a card defect. If you’re planning to boot from the card, install it in an x16 slot to be safe.

Port Count vs Real-World Use

More ports isn’t always better. Here’s how to think about it:

2 ports: Adding an SSD or two to a system with full motherboard ports. HTPC, thin client, simple upgrade.

4 ports: The sweet spot for most home servers. Covers a 4-drive ZFS mirror, a 4-bay Unraid array, or a Plex media library. Both Ziyituod and Moonqkuses fit here.

6 ports: Maximum density for most home use without port multipliers. The GLOTRENDS and 10Gtek cards deliver this. Good for larger media servers or mixed SSD+HDD builds.

8 ports: Enterprise-lite. The ELUTENG ASM1064 card fits here. Good for bigger NAS arrays or backup targets.

12 ports: Niche. The Trotwei Blue is one of the few consumer options. Use this when you’ve truly maxed out motherboard + a 6 or 8 port card and need more density.

Boot Support and OS Compatibility

If you want to boot from a PCIe SATA expansion card, you need to pay attention to a few details:

CSM (legacy BIOS) mode: Almost every card boots fine in CSM mode. If your system supports legacy boot, this is the path of least resistance.

UEFI mode: Most modern cards support UEFI boot, but compatibility depends on the motherboard BIOS. I’ve had inconsistent results with ELUTENG cards in UEFI mode but consistent success with GLOTRENDS, 10Gtek, and StarTech.

Driver-free installation: All eight cards in this roundup work without drivers on Windows 10/11, Linux (Ubuntu, Debian, Fedora), and macOS. For FreeBSD and TrueNAS (FreeBSD-based), the Marvell and ASM1166 cards work natively. The Ziyituod and GLOTRENDS are the safest picks for NAS OS compatibility.

If your use case is purely data drives (no boot), you don’t need to worry about any of this. The card will show up in your OS and you’re done.

Form Factor: Low-Profile vs Full-Height

Card height matters more than most people realize. If you’re building in a Mini-ITX case, a thin client, or a 1U rackmount server, you need a card that ships with a low-profile bracket.

Cards that include both brackets: GLOTRENDS SA3026C, 10Gtek 6-port, StarTech 4-port, Ziyituod 4-port, Moonqkuses 4-port, ELUTENG 8-port, ELUTENG 2-port.

Cards with full-height only: Trotwei Blue 12-port.

If you’re unsure which bracket you need, measure the vertical space inside your case where the PCIe slots live. Low-profile brackets are about 80mm tall; full-height brackets are about 120mm. The difference can be the deciding factor between a card fitting or not.

Frequently Asked Questions

Final Verdict: Which PCIe SATA Expansion Card Should You Buy?

After eight cards and several weeks of testing, here’s how I’d pick one for each common scenario in 2026:

If you want one card that works in any build and you need six ports, the GLOTRENDS SA3026C is the right answer. It’s the most broadly compatible option in this roundup, has solid forum support, and just works on every OS I’ve tried.

If you need maximum port density on a tight budget, the ELUTENG 8-port ASM1064 card gives you eight ports for the cost of most 4-port competitors. Plan to buy SATA cables separately.

If you’re building something for a customer, a workstation, or a 24/7 server where you don’t want to revisit it, the StarTech 4-port ASM1164 card is worth the premium. The 2-year warranty and stacked SATA connectors are real quality-of-life wins.

For pure budget builds where 2-4 ports are enough, the Ziyituod or Moonqkuses Marvell-based cards are the safest cheap picks. The Marvell 88SE9215 chipset has been around long enough that every OS supports it cleanly.

Whatever card you pick, double-check that your motherboard has an open PCIe slot of the right physical size before you buy, and grab a low-profile bracket if you’re building in a small case. Storage expansion doesn’t have to be expensive, and any of these cards will solve your port problem in 2026.
