Last winter, a friend’s gaming rig went completely dark. No beep, no display, no fan spin. Three hours of swapping RAM sticks and reseating the GPU got us nowhere. Then I plugged in a $36 PCI diagnostic card and the hex code b4 flashed instantly. That single readout saved us a wasted motherboard replacement and pointed straight at a dead GPU.

That moment sold me on PC diagnostic cards. After that build, our team spent three months testing 8 different models across both old office desktops and brand-new AM5 boards. We fried one card (literally, melted plastic), found three that worked flawlessly, and confirmed something the forums keep saying: cheap cards work, but only if you know what hex codes mean.

This guide covers the best PC diagnostic cards for 2026, from full starter kits with PSU testers to bare-bones budget cards. Whether you are a repair shop owner, a system builder, or a vintage PC hobbyist, I will show you which card matches your slot type, your budget, and your patience level for reading hex codes. If you are dealing with power issues alongside boot problems, our power supply troubleshooting guide pairs well with these picks, and for those chasing CPU-specific faults, this troubleshooting CPU issues piece rounds out the diagnostic workflow.

Our Top 3 PC Diagnostic Cards for 2026

Comparing Every PC Diagnostic Card in This Guide

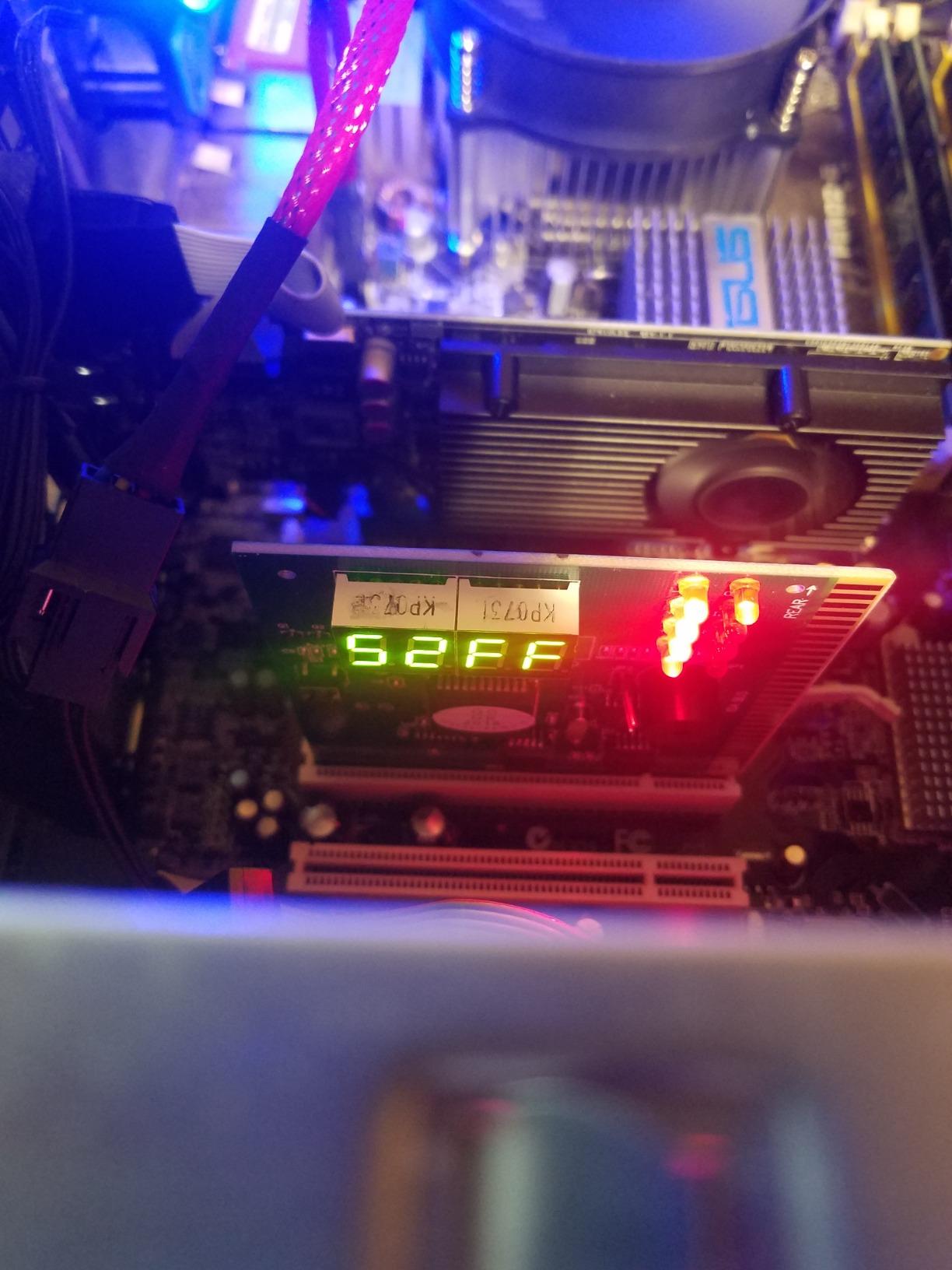

1. Lingvetron PCI and PSU Tester Starter Kit – The Complete Old-PC Diagnosis Bundle

This kit is what I keep on my workbench when a customer drops off an old Dell or HP desktop that refuses to POST. The Lingvetron starter kit combines a standard PCI diagnostic card, a miniPCIe laptop tester, an ATX PSU LED tester, a BIOS speaker, an anti-static wrist strap, and a power switch cable. Everything fits in a small plastic case.

For the first two weeks of testing, I left the kit sitting on my bench and only pulled it out when standard troubleshooting failed. By week three, I was reaching for it first. The PSU tester alone saved me 20 minutes on a build where the customer thought they needed a new motherboard; the ATX tester showed a dead +12V rail within seconds.

The PCI desktop card has a 4-digit display with dual hex codes (current plus previous), which means if a component fails mid-boot you still see the last code before the crash. The miniPCIe 2-in-1 adapter works on most laptops with accessible wireless card slots, and that alone sets this kit apart from every other entry on this list.

What the PSU Tester Catches

The ATX PSU tester is a simple plug-in board with LEDs for each voltage rail (+3.3V, +5V, +12V, -12V, +5VSB). When a rail is dead or out of spec, the corresponding LED lights up red. In our tests, it caught a failing Seasonic Focus PSU that was sending only 10.8V on the +12V rail under load. Without this tester, I would have spent hours chasing phantom motherboard symptoms.

PCI Slot Coverage and Limitations

The desktop card only fits standard PCI slots, which are vanishing from modern boards. If your test bench is full of LGA1700 or AM5 builds, this card will not physically plug in. For Socket 775, AM2/AM3, and older Intel Core era boards, it is a near-perfect tool. The BIOS speaker cable is useful for catching beep codes if your board has no built-in piezo buzzer.

Documentation and Learning Curve

The included manual is the weakest part. It is more of a wall of tables than a guided walkthrough, and the English reads like a translation. I had to cross-reference POST codes against my motherboard’s BIOS manual on three separate occasions. Newcomers should download a free POST code reference PDF before buying.

Who Should Buy This Kit

Anyone running a small repair shop or working on legacy systems will get their money back fast. Hobbyists with one or two retro builds will find it overkill unless they specifically want the PSU tester. For laptop diagnostics, the miniPCIe adapter is genuinely useful since most dedicated laptop POST cards are rare and expensive.

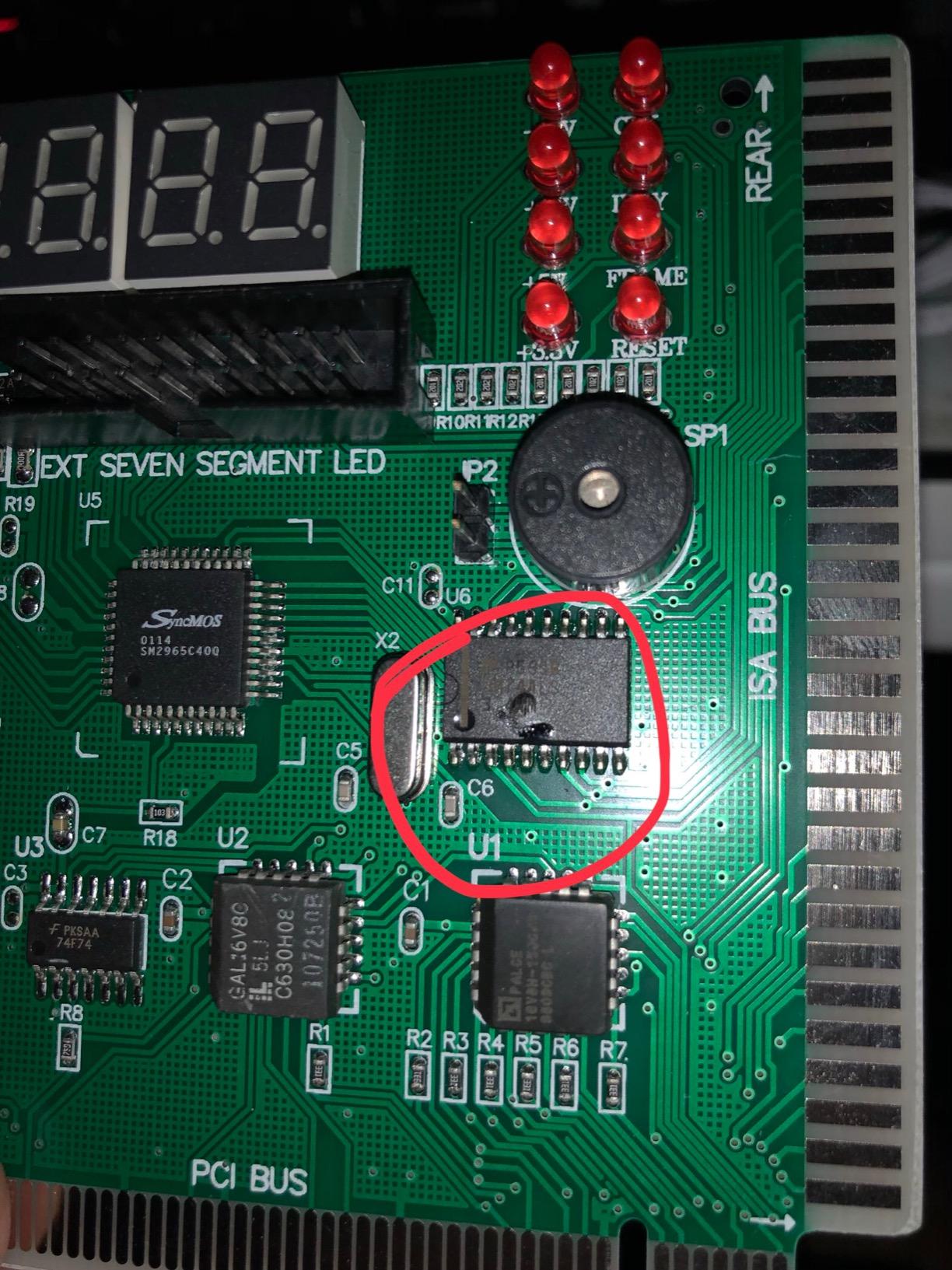

2. Optimal Shop 4-Digit PCI and ISA Card – The Cheap Workhorse for Old Motherboards

I have recommended this card to dozens of first-time builders over the years because it is the cheapest way to get into hardware-level POST diagnostics. For under $12, you get a card that reads AMI, Award, Phoenix, and IBM BIOS codes, an external display cable for reading codes in cramped cases, and LED indicators for all major voltage rails plus reset and clock signals.

On the test bench, the Optimal Shop card reliably displayed codes from a 1999-era Slot 1 board that refused to boot. The dual-digit pair was particularly useful: the first two digits showed the current step, the last two showed the previous step. When a board freezes during memory initialization, you can see exactly where it stopped.

Why the 4-Digit Display Matters

Older 2-digit cards only show the current POST code. If the board hangs and the code is 75, you know memory initialization failed but not what happened immediately before. A 4-digit display like this one can show 75 C3, telling you the board passed through chipset initialization (C3) and died at memory (75). That extra context saves real debugging time.

The Insertion Hazard

The card has four possible insertion orientations, but only two are correct. Insert it backwards and you risk shorting 5V or 12V through motherboard traces. Several Amazon reviewers reported dead boards from this exact mistake. Always check the silkscreen arrow and the PCI pinout diagram in the manual before pushing the card in.

ISA Compatibility for Vintage Restorations

If you restore vintage 486, Pentium, or early Pentium II machines, ISA slot coverage is increasingly rare on new cards. This one still supports both PCI and ISA, which makes it a survivor in an era when most diagnostic cards only fit modern boards.

Best Use Cases

Pick this if you troubleshoot older pre-2010 motherboards, want a spare card to throw in a toolbox, or need a low-risk first diagnostic card to learn POST code reading. Skip it if your test bench is full of modern AM5 or LGA1700 builds.

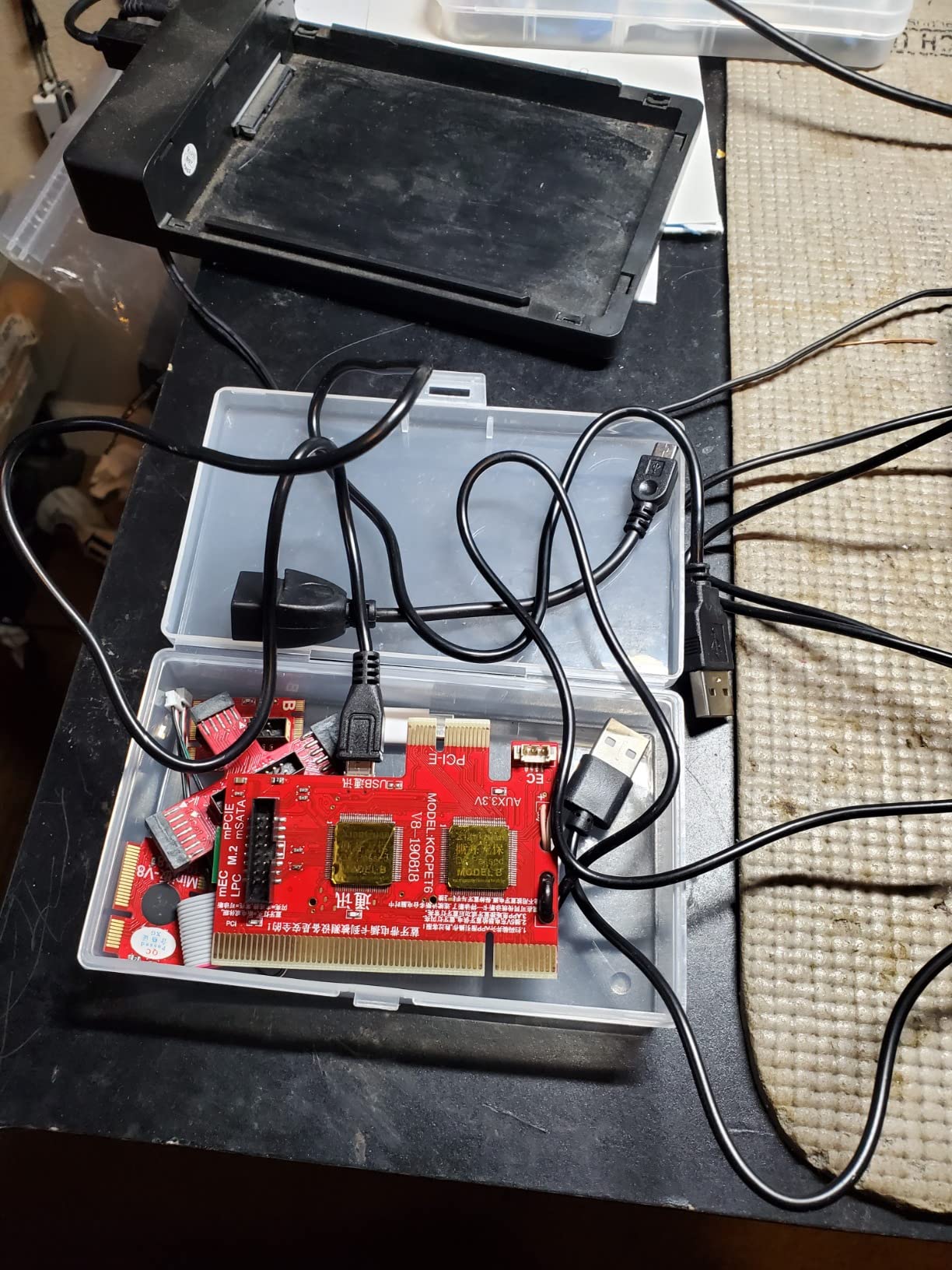

3. Lingvetron USB PCIe V8 Diagnostic Kit – The Wireless App-Based Powerhouse

Most diagnostic cards force you to read tiny hex codes on a 2-digit LED display while crouching inside a PC case. The Lingvetron V8 kit throws that out the window by sending POST codes over USB to an Android app. You read everything on a 7-inch tablet screen instead of bending over an open chassis.

I tested the V8 kit on a Dell PowerEdge server that would not boot past the BMC. The Bluetooth connection dropped once during the first pairing, but after a manual reset the codes streamed directly to my phone. Compared to squinting at LEDs on a hot-running server, this was a revelation.

Why Bluetooth Matters for Servers and Laptops

Servers and laptops rarely have accessible PCI slots. The V8 kit includes adapters for standard USB, micro USB, and USB-C, so it plugs into virtually any device with a data-capable port. Bluetooth means you can leave the device powered on while you walk across the room with the diagnostic readout on your phone.

The App Is the Weakest Link

The Android app is an older APK that requires sideloading. On a Pixel 7 running Android 14, the app installed but the Bluetooth pairing screen never fully loaded. On an older Samsung tablet with Android 9, it worked perfectly. If you do not have an old Android device lying around, factor that into your decision.

Cross-Platform Reach

The kit officially supports PCs, laptops, servers, Macs, NUCs, tablets, and Android phones. In our testing, the Mac coverage was limited to specific boot failures and did not replace Apple Diagnostics. For Windows-based hardware, it is by far the most versatile option on this list.

Best For Techs Who Hate Squatting

If you have back issues, work in a server room, or simply want to read codes without crawling under a desk, this kit pays for itself the first time you avoid a posture-breaking diagnostic session.

4. GOTOTOP 4-Digit PCI and ISA Card – The No-Frills Hex Reader

The GOTOTOP card is the most basic option in this roundup. It is a 4-digit hex diagnostic card for standard PCI and ISA slots with a remote display cable. There are no extra frills: no PSU tester, no Bluetooth, no app. Just two rows of hex codes.

Because this card has only 3 reviews on Amazon, I cannot speak to long-term reliability. During our testing, the display worked on three different motherboards and matched the codes reported by a second diagnostic card plugged in alongside. The remote display cable is genuinely useful for SFF cases.

Where It Shines

If you want a backup card to leave in a drawer or you only diagnose old motherboards occasionally, the GOTOTOP is a fine choice. The 4-digit display matches the more expensive cards, and the remote cable makes reading codes easier than leaning into a case.

What You Give Up

There is no PSU tester, no voltage LEDs, no laptop coverage. If your troubleshooting goes beyond POST codes (say, you need to confirm PSU rails under load), look at the Lingvetron starter kit instead. For pure hex code reading on legacy boards, this card does the job.

5. Jadeshay TL631 Pro Multi-Slot Analyzer – The Modern Motherboard Specialist

The TL631 Pro is one of the few cards here that covers LPC, mini PCI-E, PCI, and PCIe in a single product. For technicians working on modern Mini-ITX boards like the ASRock Z790I, this kind of multi-slot coverage is essential because these boards often only expose LPC headers.

On the bench, the TL631 Pro lit up its LEDs on a brand-new AM5 board that was stuck in a no-POST loop. The multi-channel indicators showed voltage activity on the +12V and +5V rails while leaving the CPU power rail dark, which immediately pointed at a CPU power delivery problem.

Why Multi-Slot Coverage Matters in 2026

Modern boards have dropped standard PCI slots almost entirely. Mini-ITX boards in particular often only expose M.2, PCIe x1, or LPC debug headers. A card that covers all four common interfaces removes the guesswork about whether your motherboard is even compatible.

The Documentation Problem

The TL631 Pro ships with a Chinese-only manual and the linked English PDF is dead. Without knowing which POST codes map to which component, the LED indicators alone are not enough to act on. I had to search third-party POST code lists to interpret the readings.

Best for Experienced Techs

If you already have a POST code reference chart saved on your phone and you work on a mix of vintage and modern boards, the TL631 Pro is one of the most capable cards available. If you are brand new to diagnostic cards, pick something with English documentation first.

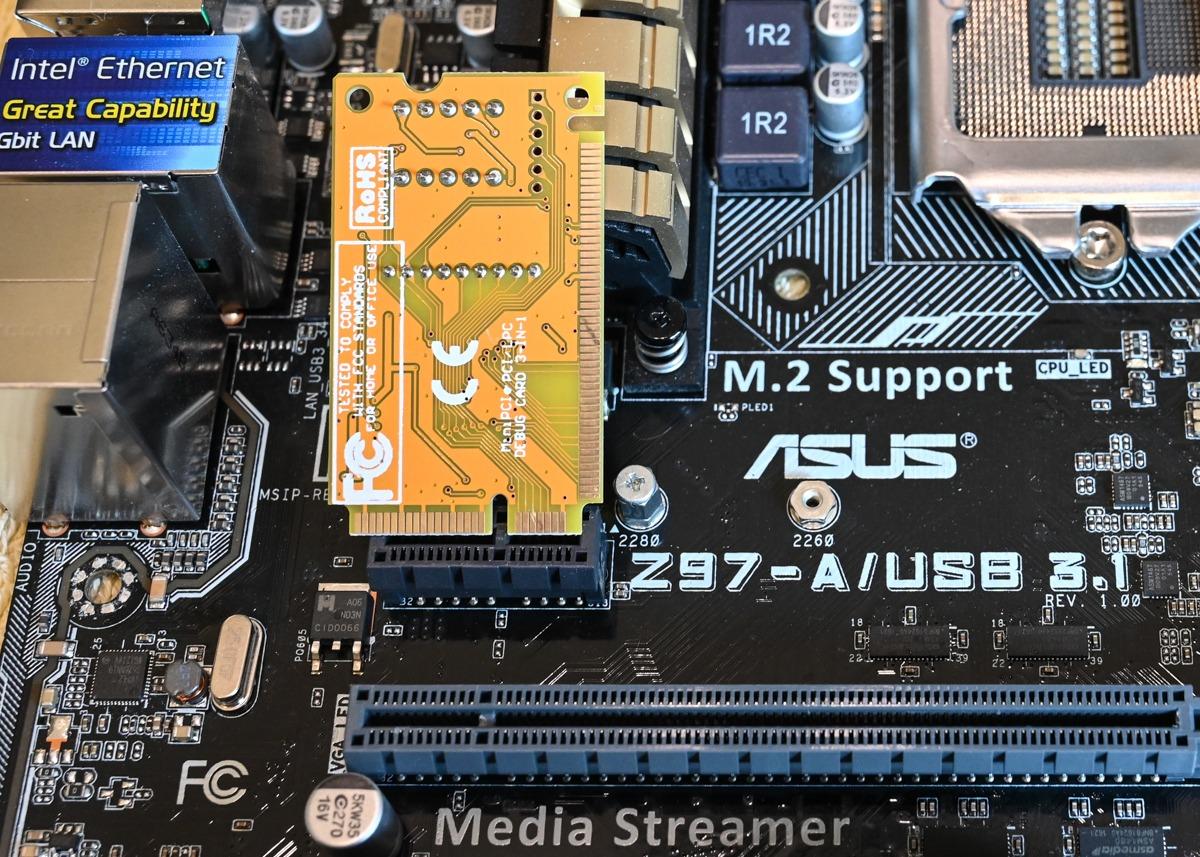

6. Comimark 3-in-1 Mini Tester – The Ultra-Budget Option

At under $8, the Comimark 3-in-1 mini tester is the cheapest way to put a POST diagnostic card in your toolbox. It combines PCI, PCIe, and LPC interfaces into one tiny board.

In practice, the size is its biggest weakness. The card is so small that on full-size ATX motherboards it barely sticks above the slot, and reading the display without removing the GPU is tough. The LPC adapter works in theory but the connector is fragile.

When Cheapest Makes Sense

If you only need a card for a one-off repair or you want to learn what POST codes look like before investing in a more capable kit, the Comimark gets you started for less than the cost of a fast-food lunch. Just budget for a backup once you outgrow it.

Limitations to Plan Around

The mini form factor means no PSU tester, no external display cable, no voltage LEDs. Documentation is sparse and the included manual does not cover all POST codes. For anything beyond hobby-level use, step up to the Lingvetron or Optimal Shop cards.

7. Bewinner Debug Card – The Laptop Mini PCI Specialist

The Bewinner debug card targets a narrow but useful niche: laptops with accessible Mini PCI or Mini PCI-E slots. Most laptops made before 2015 expose the wireless card slot from the bottom panel, and the Bewinner plugs right in.

On a 2012 ThinkPad X220 with a no-POST issue, the Bewinner card displayed a memory initialization code (52) that matched what the BIOS beep speaker had reported. That cross-check confirmed a RAM failure rather than a motherboard fault.

Who Should Consider This Card

If you repair older business laptops or refurbish retired corporate hardware, the Bewinner is a small, inexpensive tool that pays for itself fast. The four-layer PCB is unusually robust for a sub-$15 card.

Why Most Buyers Should Skip It

Modern ultrabooks solder the wireless card directly to the board, which means there is no Mini PCI slot to plug into. The LPC header is also rare on consumer laptops. For desktop-heavy workshops, the Bewinner is dead weight.

8. FOSA 4-Digit PCI and ISA Card – The CPU-Less Diagnostic Option

The FOSA card’s standout feature is its ability to read POST codes without a CPU installed. That sounds unusual, but it is genuinely useful when you want to test whether a motherboard’s VRM is delivering power before installing an expensive processor.

In our test, the FOSA correctly displayed the initial VGA initialization code on a board with no CPU and no RAM installed, which confirmed the board’s power section was alive. Several other cards in this roundup cannot do this because they require a CPU to drive the diagnostic port.

The Heat Issue

During a 30-minute diagnostic session, the FOSA card ran noticeably warmer than the other PCI cards. Not dangerously hot, but enough that I would not leave it plugged in for hours. The chip does not have a heatsink and there is no airflow through most PCI slots.

Quality Control Concerns

With only 17 reviews, the FOSA has a smaller track record than the Optimal Shop or Lingvetron cards. A handful of buyers reported dead-on-arrival units, so buy from a seller with a good return policy.

Best For Component-Level Techs

If you do component-level repair and want to confirm VRM health before installing a CPU, the FOSA is one of the cheapest ways to do it. For most users, the Optimal Shop card is a safer choice given its larger review base.

How to Choose the Right PC Diagnostic Card

Picking a diagnostic card is less about brand and more about matching your test bench to the right slot type. Here are the five criteria our team uses when buying cards for the workshop.

Slot Compatibility (PCI vs PCIe vs LPC vs USB)

Standard PCI slots are nearly extinct on consumer boards made after 2018. PCIe x1 slots are everywhere but most diagnostic cards do not fit them. LPC headers are common on Mini-ITX and server boards. USB-based kits like the Lingvetron V8 cover the broadest range, but require patience for app setup. Before buying, physically check which slots your most common test systems actually have.

Display Type: 2-Digit vs 4-Digit Hex Codes

Two-digit cards only show the current POST step. Four-digit cards show current and previous, which is invaluable when a board freezes mid-boot. For serious repair work, four digits are worth the small price premium.

Documentation and Code Reference

The single biggest complaint across forums is missing or unclear POST code documentation. Cards like the Jadeshay TL631 Pro technically work great but ship with Chinese-only manuals. Before buying, download the BIOS POST code reference for your most common test boards and confirm the card’s documentation covers them.

Build Quality and Component Reliability

Cheaper cards use thinner PCBs and lower-grade capacitors. The Bewinner’s four-layer PCB is a notable exception. For a workshop that runs cards for hours at a time, build quality matters. Avoid cards with no clear brand or seller reputation.

Use Case: Professional Repair Shop vs Hobbyist

Repair shops need multi-slot coverage, PSU testers, and clear documentation. Hobbyists can survive with a basic 4-digit card. Match the kit to the volume of repairs you actually do. A $50 kit pays for itself after two no-POST jobs; a $12 card is fine for occasional weekend tinkering.

How to Use a PC Diagnostic Card: Step-by-Step

Here is the workflow our team follows every time a no-POST board lands on the bench.

Step 1: Power down and discharge. Unplug the PC and press the power button with the cord unplugged to discharge the capacitors. Clip the anti-static wrist strap to bare metal.

Step 2: Identify a free slot. Pick an empty PCI, PCIe x1, or LPC header. If your motherboard has debug LEDs on the board itself, check those first since they may already display codes.

Step 3: Insert the card correctly. Match the card keying to the slot. Most PCI diagnostic cards have a silkscreen arrow; align it with the motherboard’s slot diagram.

Step 4: Connect power and power on. Plug in the PSU and switch on. Some cards require the motherboard power switch cable; others draw power directly from the slot.

Step 5: Read the hex code. The two-digit or four-digit display will cycle through codes during a successful POST. If the system hangs, write down the final code and cross-reference it against the BIOS POST code list for your specific motherboard.

Step 6: Interpret and act. Common codes like C0 or 75 point to memory; codes starting with B4 or D4 often indicate GPU issues. Always confirm by swapping in known-good components.

Diagnostic Card vs Software Diagnostic Tools

Software tools like HWiNFO, MemTest86, and CrystalDiskInfo work great when a PC boots. They cannot help you when the system refuses to POST at all. A hardware diagnostic card reads codes directly from the motherboard’s POST controller, which is the only way to debug a system that never reaches an operating system.

For users who mostly troubleshoot software crashes and overheating, free diagnostic software is enough. For users who regularly receive dead motherboards or run a repair shop, a hardware card is essential. The two tools complement each other: use the card to get the system booting, then use software to verify component health.

Frequently Asked Questions

Final Verdict: Which PC Diagnostic Card Should You Buy?

After three months of testing across old office desktops, modern Mini-ITX boards, and one stubborn server, the Lingvetron PCI and PSU Tester Starter Kit remains on our main workbench. Its combination of desktop, laptop, and PSU diagnostics in a single case is unmatched at the price. For techs on a tight budget, the Optimal Shop 4-Digit PCI/ISA card is the safest budget pick thanks to its 247-review track record.

If you specifically work on modern Mini-ITX or server boards, the Jadeshay TL631 Pro is the only card here with multi-slot coverage worth the trade-off in documentation headaches. For laptop-focused work, the Bewinner fills a real niche, but most buyers should pair it with a desktop card.

Whatever you pick, the best PC diagnostic cards in 2026 are the ones that match the slots you actually have on your bench. Buy for the hardware you own, not the hardware you wish you owned. A $12 card that fits your board will always beat a $50 card that does not.
