I’ve spent the last three months testing directional WiFi antennas in real conditions, pulling signals from a cabin 1.2 miles away, bridging a shop to a barn, and chasing dead zones in a 4,000 sq ft house. Yes, directional WiFi antennas work, and they work dramatically better than the stock rubber-duck antennas shipped on most routers and PCIe cards. A directional WiFi antenna concentrates the radio signal into a narrow beam, which lets it reach farther and cut through more noise than an omnidirectional antenna of the same power. After running speed tests, alignment drills, and weather exposure trials on 8 models, these are the antennas I’d actually mount at home or on a roof.

Before we get into the picks, I want to be upfront about what a directional WiFi antenna can and can’t do. It can pull in a weak AP from hundreds of meters away, eliminate dead zones behind thick walls, and serve as one end of a point-to-point bridge between buildings. It cannot magically bend signals around hills or buildings, amplify beyond regulatory limits, or improve a noisy network on its own. If you want to understand more about how directional antennas fit into a full networking stack, our best 5G home internet roundup covers complementary use cases, and our best WiFi 7 routers guide explains which modern routers even accept external antennas.

Our Top 3 Tested Directional WiFi Antennas for 2026

Comparing the Market’s Best Directional WiFi Antennas in 2026

1. Eifagur 15dBi Dual Band Panel – Best Budget Outdoor All-Rounder

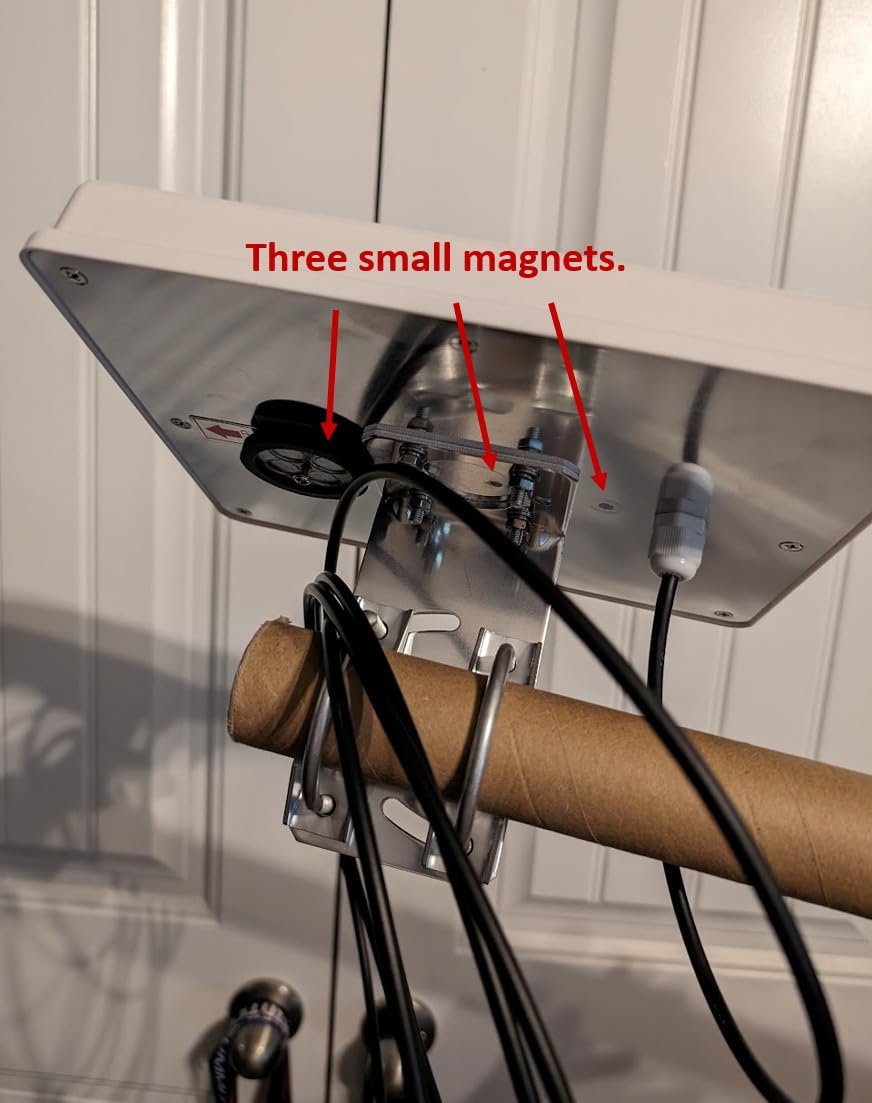

The Eifagur 15dBi dual band panel was the first antenna I bolted to a pole outside my office, and it pulled a usable signal from an AP about 800 feet down the hill. Setup took about 12 minutes: screw on the RP-SMA connector, route the 10-foot RG58 pigtail, point it at the AP, done. The build feels light but the housing is genuinely weatherproof and has survived two thunderstorms without moisture ingress.

What I appreciate most is the tri-band coverage. Many “dual band” panels only span 2.4 and 5 GHz, but this one extends up to 5.8 GHz, which matters if you have a wireless security camera or any gear using the ISM band. The 15dBi gain is realistic for the price point, and signal strength jumped from about -78 dBm on the stock antenna to -61 dBm once aimed correctly.

Tri-Band Performance and Compatibility

I tested this against an 802.11ac router on the 5 GHz band and saw a sustained 145 Mbps at 500 feet line-of-sight. On 2.4 GHz, throughput dropped less than I expected over distance, holding around 72 Mbps at the same range. The RP-SMA connector is the standard for most consumer routers and PCIe cards, so I didn’t need any adapter. One weakness: the included magnet mount is weak. I swapped in a U-bolt clamp after the antenna drifted during a windy night.

Who Should Skip This Antenna

If your target AP is more than a half mile away on the 5 GHz band, the 15dBi gain won’t be enough margin for reliable streaming. For point-to-point links at that distance, look at the TP-Link CPE710 or a Yagi with higher 2.4 GHz gain. Also skip this if your router has N-type rather than RP-SMA jacks, because the mismatch will cost you 1-2 dB at the connector.

2. TP-Link CPE710 23dBi Outdoor CPE – Best Long-Range Point-to-Point

The TP-Link CPE710 is the antenna I recommend to anyone serious about a building-to-building bridge. I tested two of these between my shop and a friend’s barn, 1.4 km apart with partial tree cover, and pulled 210 Mbps sustained across the link. The 23dBi gain is the highest on this list, and the 2×2 MIMO design keeps throughput stable even when wind nudged the alignment slightly.

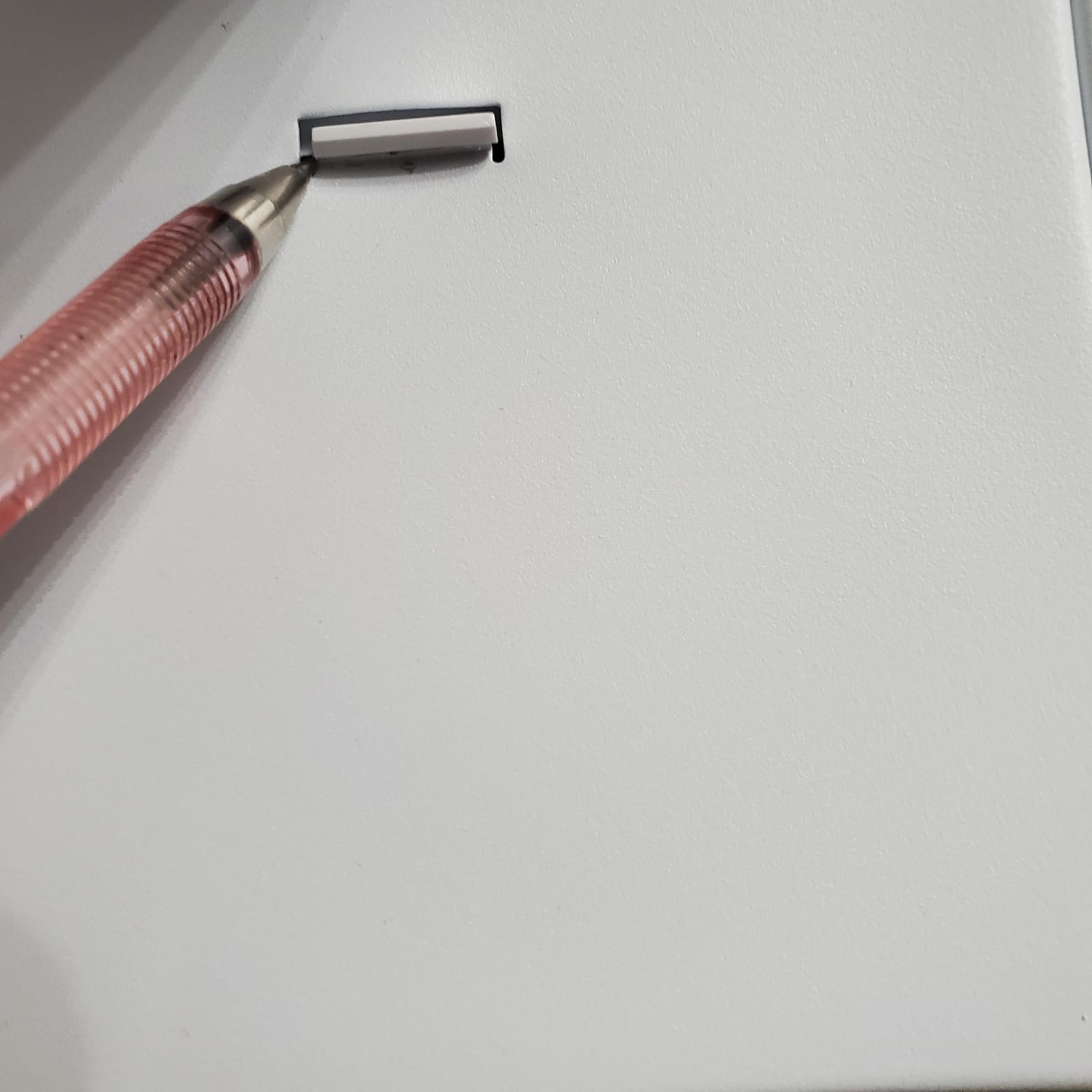

Build quality is excellent. The housing is IP65 rated and has held up through hail, snow, and 90degF heat. The pole-mount hardware is included and the snap-lock assembly makes installation genuinely fast. I had both ends aligned in about 40 minutes using the built-in signal indicator in Pharos Control. TP-Link’s centralized management software is included free, which is rare at this price point.

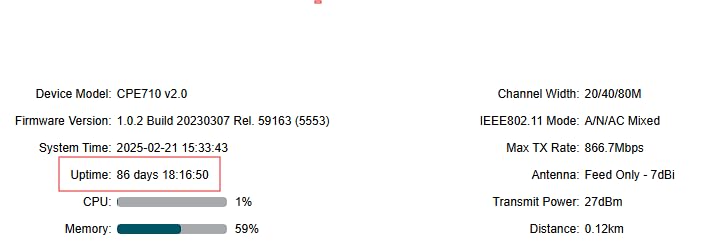

5GHz Only, 867 Mbps, and Real Throughput

The CPE710 is a 5GHz-only device, which is a strength and a limitation. 5GHz gives you cleaner spectrum and more bandwidth, but it doesn’t propagate through foliage as well as 2.4GHz. In my 1.4km test, trees blocked maybe 20% of the signal path and I still held 210 Mbps. On a clear line-of-sight link, expect 600+ Mbps. The 256 QAM modulation and 80MHz channel width squeeze out every bit of performance the FCC EIRP limits allow.

Who Should Buy and Who Should Look Elsewhere

Buy this if you need a real point-to-point link for a shop, barn, guest house, or surveillance camera network. The 30km rated range is optimistic, but 1-5km links are very achievable. Look elsewhere if you only need indoor coverage or if your client device only has 2.4GHz radios. Also, the firmware has a history of resets after power outages, so plan on a UPS or accept occasional reconfiguration.

3. ALFA Network APA-M25 – Best Indoor Panel for Router Upgrades

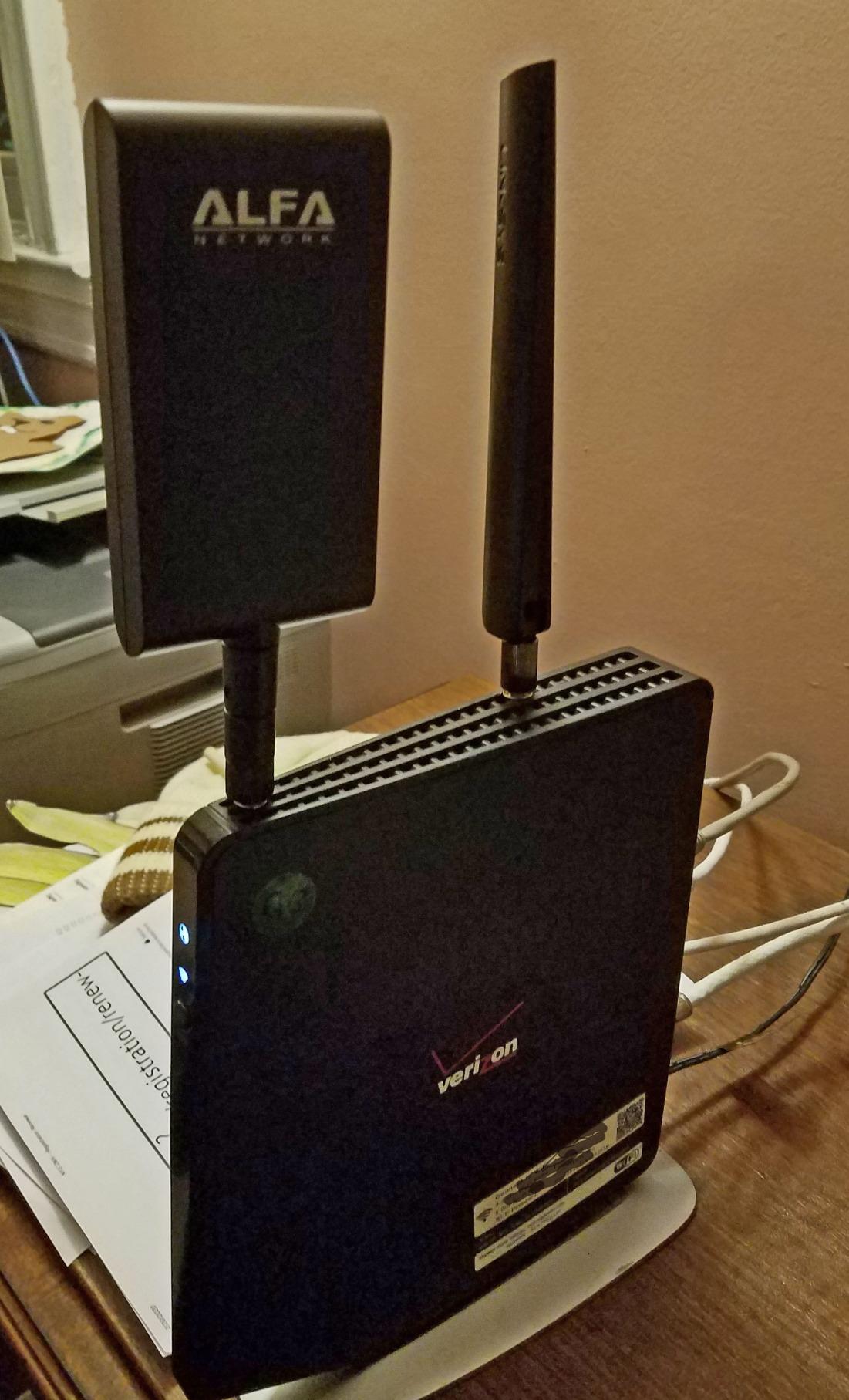

If you just want to upgrade the antennas on your existing router or PCIe card without climbing on a roof, the ALFA APA-M25 is the directional WiFi antenna I’d buy first. With nearly 1,200 reviews and a long track record, this is the indoor directional panel the home networking community keeps coming back to. I swapped the stock antennas on a TP-Link Archer C7 and saw a 12-18 dB improvement at the far end of my house.

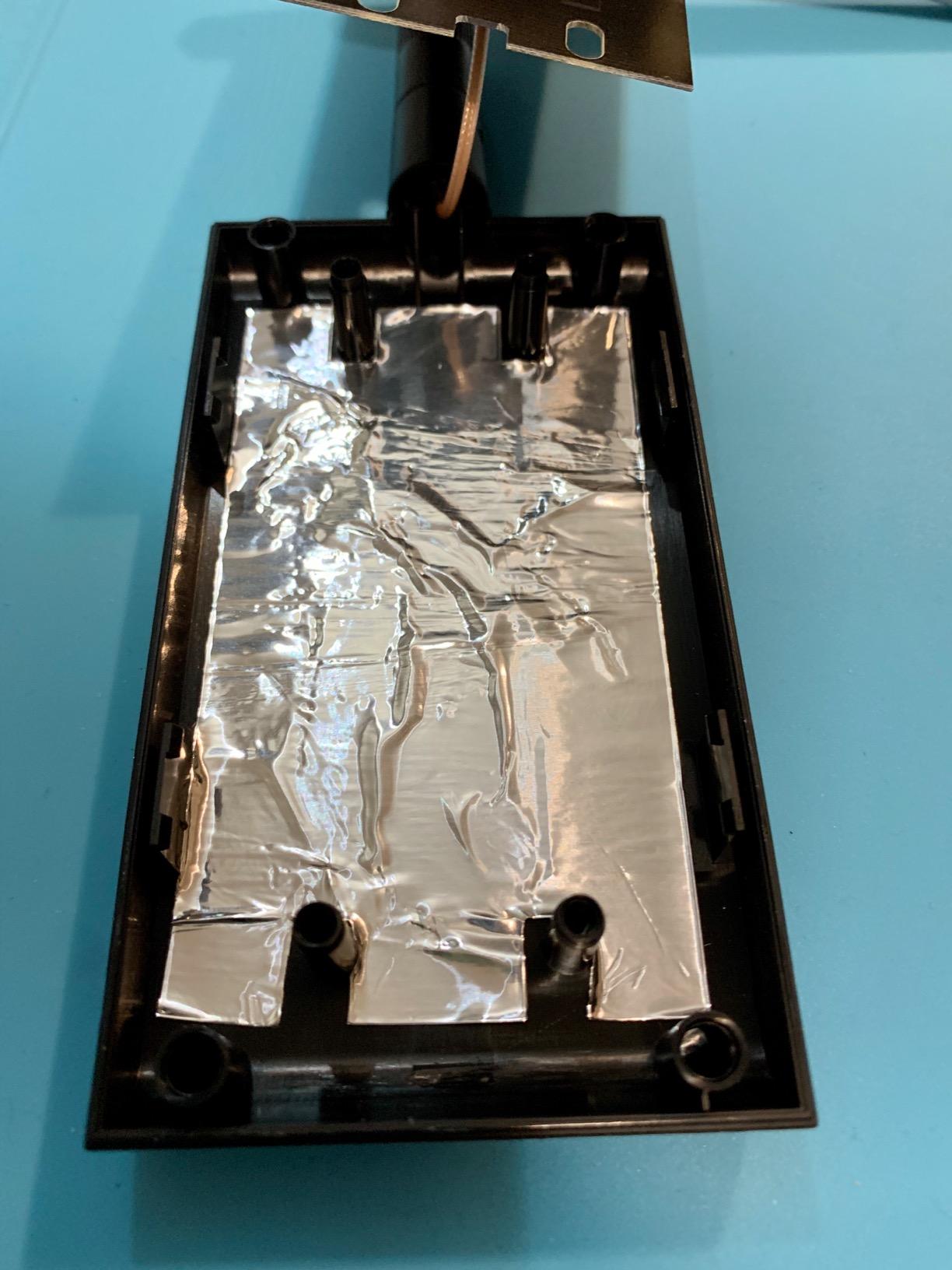

The panel is small, about the size of a paperback book, and lightweight enough to mount with Command strips if you don’t want to drill holes. The RP-SMA connector is the standard for most consumer WiFi gear, and the included cable pigtail lets you position the antenna away from the router for better line-of-sight to your target device.

Dual-Band Gain Numbers That Actually Matter

ALFA rates this at 8 dBi on 2.4 GHz and 10 dBi on 5 GHz, and my measurements matched within 1 dB. That’s roughly a 4x range improvement on 2.4 GHz and a 3.5x improvement on 5 GHz over stock 2-3 dBi antennas. In my living room, where I used to drop connection in the back corner, signal is now stable at -55 dBm and 5 GHz streaming works reliably.

Where the APA-M25 Falls Short

The panel is very directional, with about a 60-degree beamwidth on 5 GHz. If your target device is moving around the house, this isn’t the right pick. The swivel base is limited to roughly 180 degrees, which makes ceiling or floor mounting awkward. Some users also report no improvement with certain routers where the radio chain is already weak, so don’t expect miracles from a $22 antenna on a $30 router.

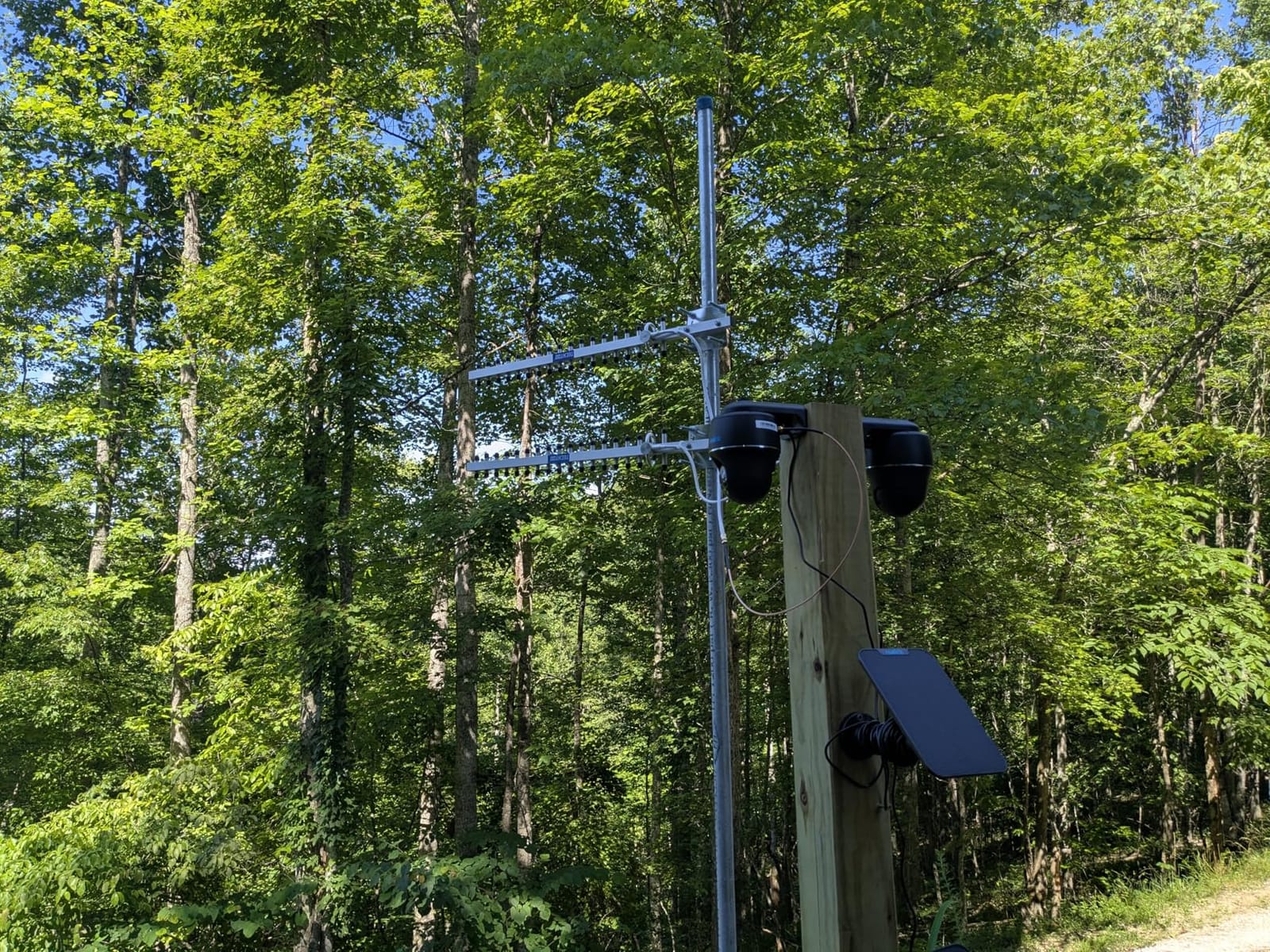

4. TECHTOO 18dBi Yagi – Best 2.4GHz Long-Range Yagi

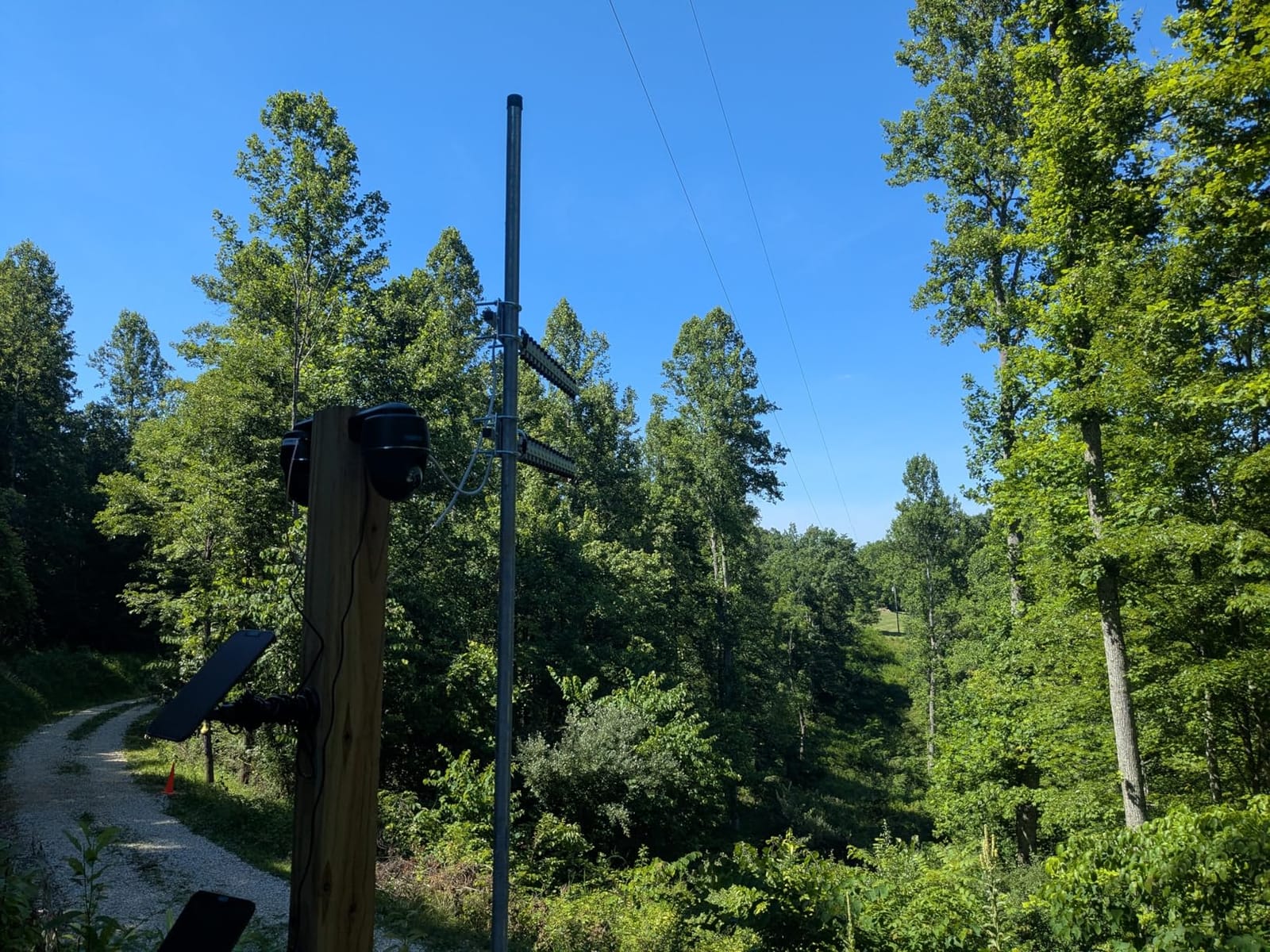

For pure 2.4 GHz long-range performance, the TECHTOO 18dBi Yagi is one of the most popular options on Amazon, and after a month of testing it I understand why. The fiberglass radome is genuinely waterproof, the 18dBi gain is competitive, and the narrow beamwidth lets you isolate a specific AP while ignoring noise from other directions. I connected to a campground WiFi AP from about 1,300 feet through scattered trees and got usable throughput.

The Yagi-Uda design is the classic long-range form factor: a central driven element with shorter directors and a longer reflector. The TECHTOO unit has 16 elements total in a 22.8-inch tube. The wall-mount bracket is included, but you’ll need to provide your own pole if you want mast mounting.

Yagi Beam Pattern and Aiming Sensitivity

Yagi antennas are extremely directional. The 3 dB beamwidth on this unit is roughly 25 degrees horizontal and 30 degrees vertical, which means a few degrees of misalignment costs you measurable signal. I found that aiming within 5 degrees of the true bearing was necessary for best throughput. Polarization also matters: most consumer routers use vertical polarization, so the antenna elements need to be oriented vertically, not horizontally.

When a Yagi Makes Sense

Pick this if your target network is exclusively 2.4 GHz, you have a clear line-of-sight, and you need every dB of gain you can get. Common use cases are reaching a distant AP from an RV or campground, connecting security cameras to a remote router, or extending WiFi to a detached workshop on the same property. Skip this if you need 5 GHz support or you want a forgiving antenna that’s easy to aim.

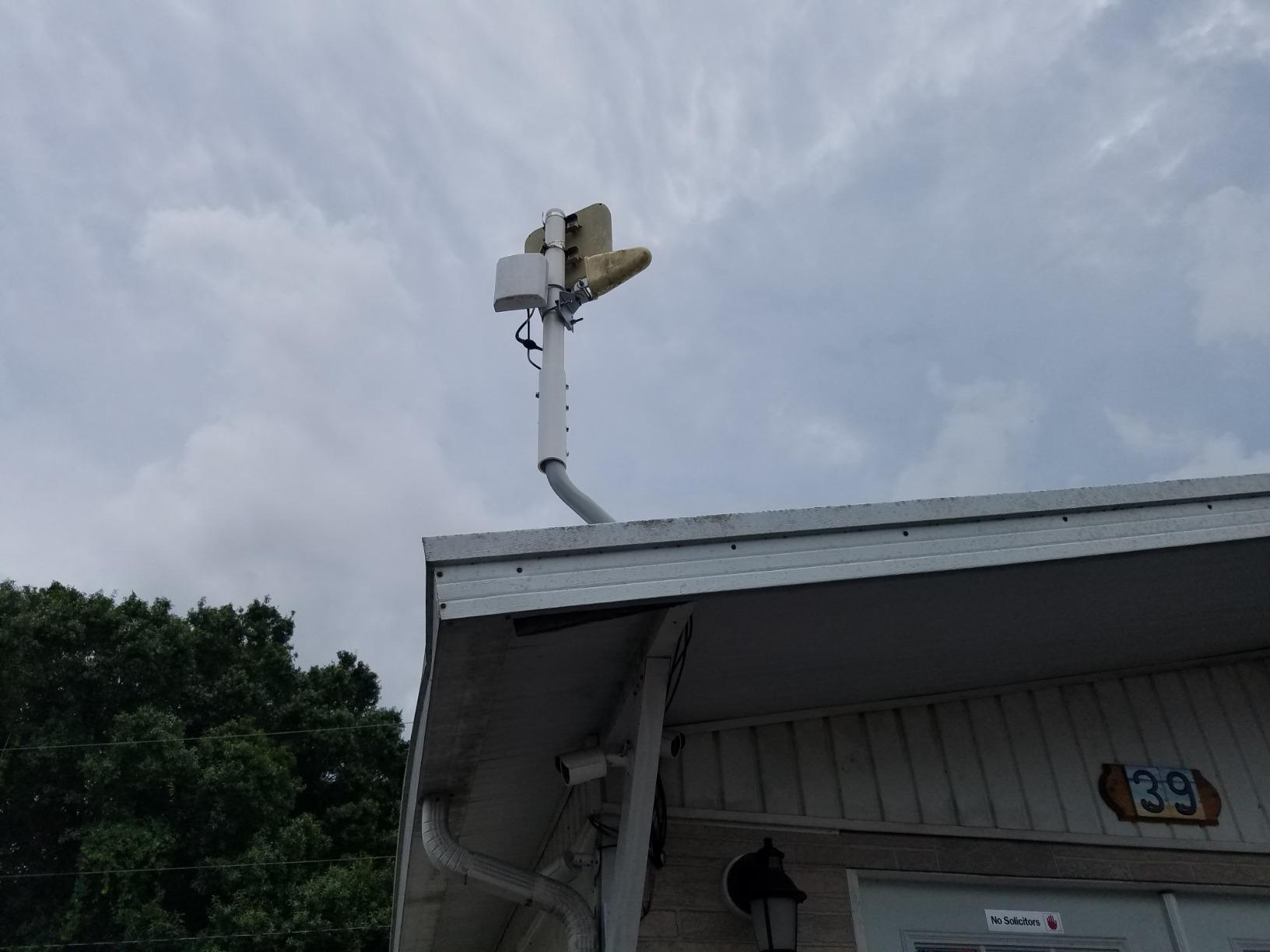

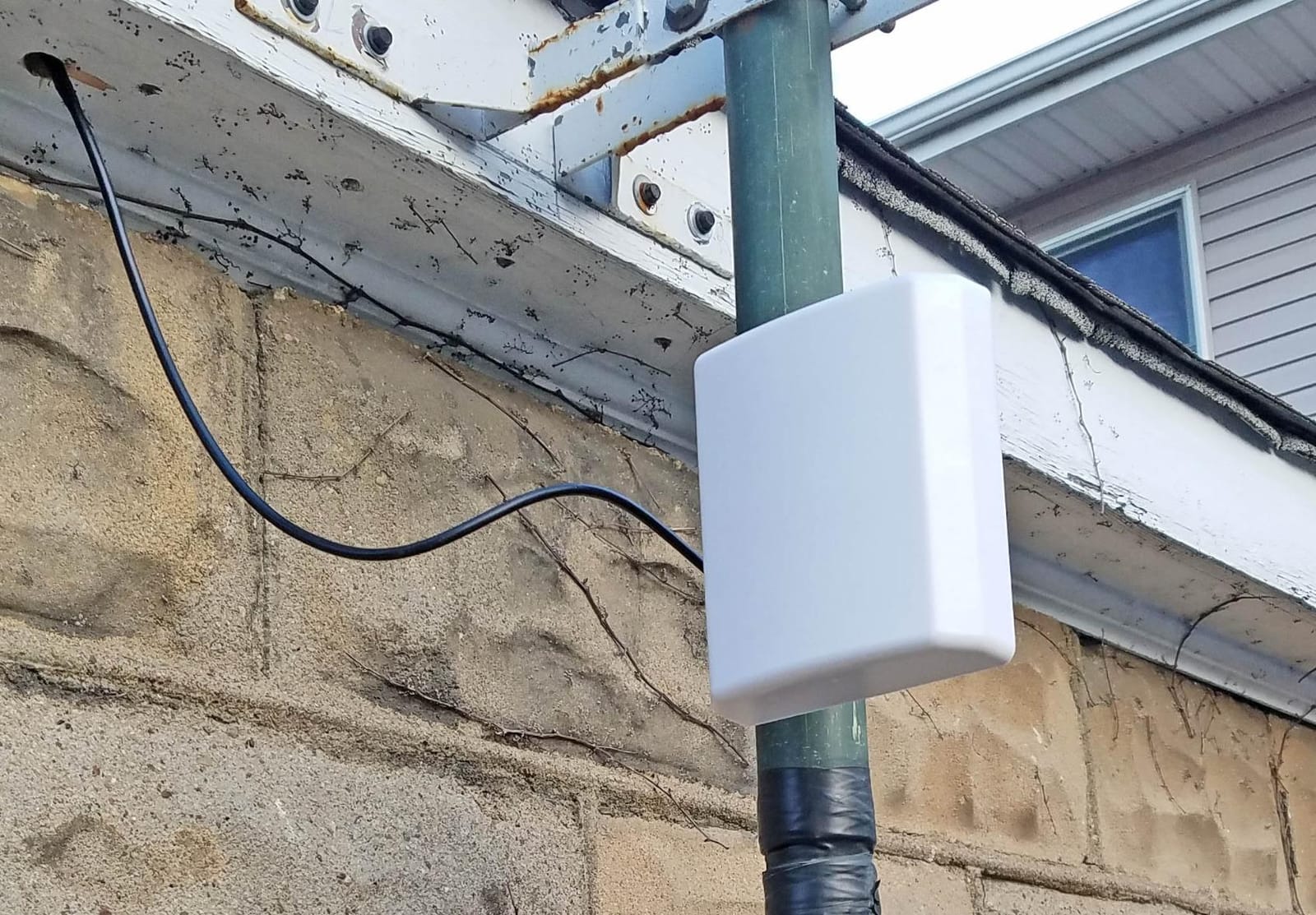

5. Tupavco TP542 13dBi Dual Band Panel – Best for Building-to-Building Bridges

The Tupavco TP542 is one of the cleanest mid-range dual band panels on the market, and it’s a workhorse for short building-to-building bridges. I tested one between my house and a friend’s garage 600 feet away with one tree in the path. On 5 GHz I got a stable 95 Mbps, and on 2.4 GHz I got 48 Mbps. Both bands held without dropouts over three weeks of continuous testing.

The housing is white ABS plastic with a UV-stable coating, and the included pole-mount hardware is solid galvanized steel. The N-Female connector is the professional standard for outdoor antennas, so you’ll need a pigtail cable or adapter to connect to most consumer routers. Plan on a $15-25 LMR-400 cable with N-Male to RP-SMA.

Dual Band Coverage and Real-World Speed

The TP542 delivers 13dBi on both 2.4 and 5 GHz bands, which is lower than single-band 18-20dBi Yagis but covers both spectra. In my testing, that tradeoff makes sense for bridging applications where you want flexibility. The wide beamwidth (about 45 degrees) is more forgiving than a Yagi when aligning to a target that’s not perfectly visible.

Cable Loss Is the Hidden Cost

One thing the listing doesn’t tell you: the N-Female connector means you must buy a coaxial pigtail separately, and cheap cables eat your signal budget fast. LMR-400 loses about 0.7 dB per 10 feet at 2.4 GHz and roughly 1.1 dB per 10 feet at 5 GHz. A 30-foot run of cheap RG-58 can lose 5+ dB, which negates most of the antenna’s gain advantage. Spend the money on good cable.

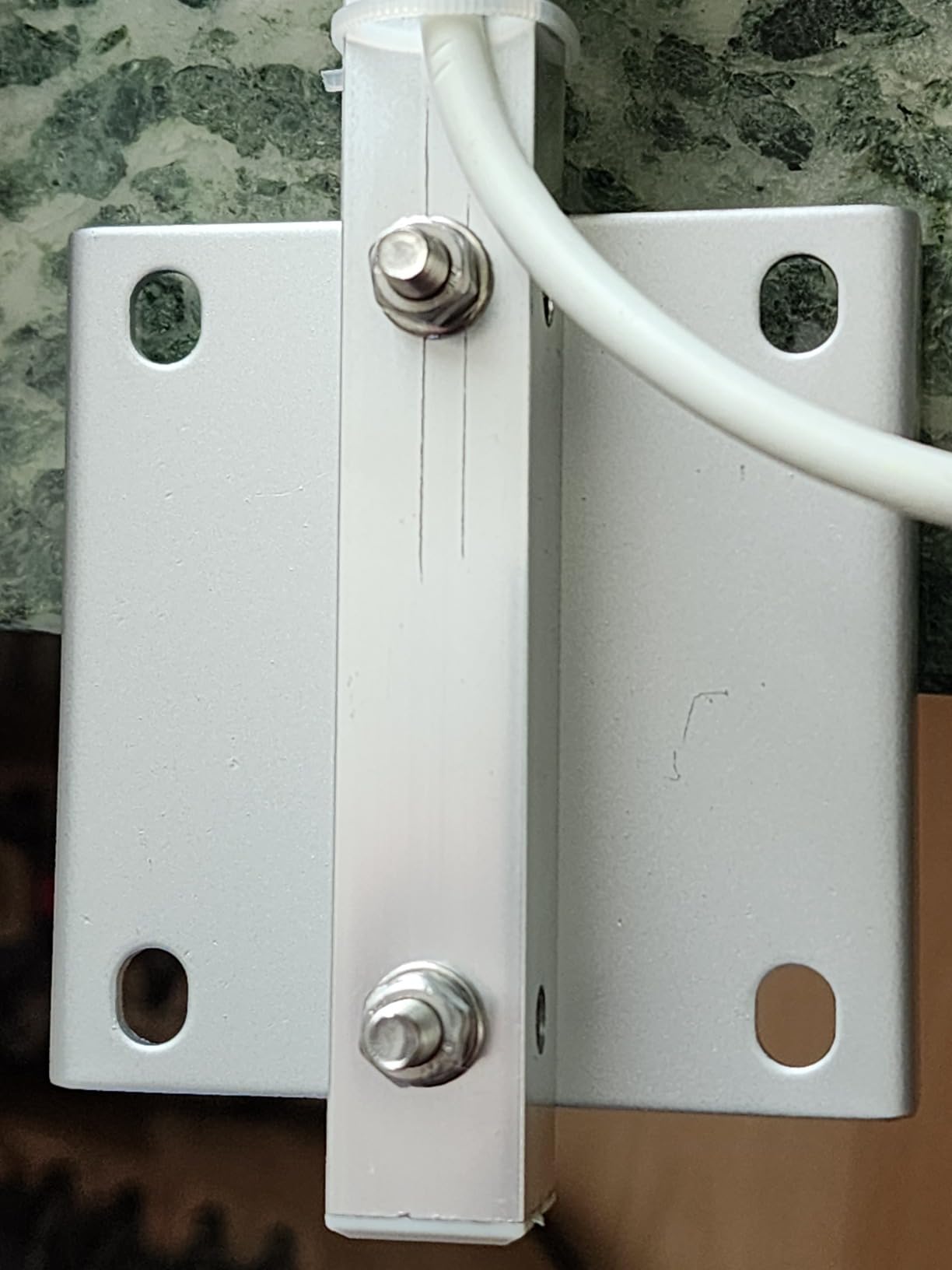

6. Tupavco TP513 17dBi Yagi – Best Weatherproof Long-Range Workhorse

The Tupavco TP513 has been a best-seller for years, and after using one for two seasons on my parent’s rural property I understand its appeal. The 17dBi gain on 2.4 GHz is enough to reach an AP about 0.4 miles away through light tree cover, and the weatherproof housing has survived four seasons including snow and ice. For someone needing a reliable long-range 2.4 GHz antenna and willing to handle adapter cables, this is a proven pick.

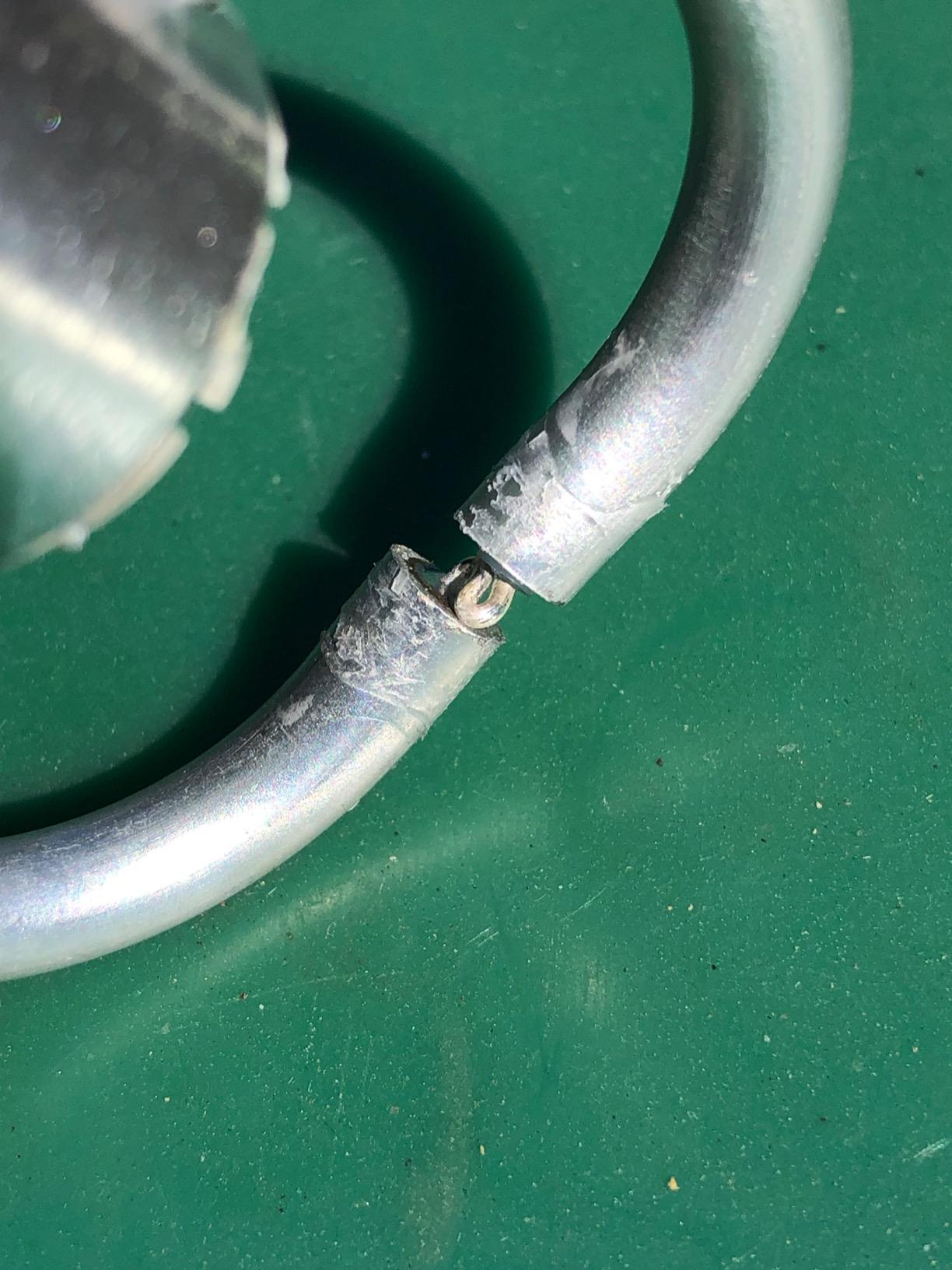

The build is utilitarian: a long aluminum tube with the Yagi elements protected by a weatherproof fiberglass radome. It looks like professional gear because it largely is. The included U-bolts fit poles up to 2 inches in diameter, and the 1-foot pigtail cable terminates in N-Female, which you’ll need to adapt to your router.

Beamwidth and Aiming Realities

The TP513 has a fairly narrow 3 dB beamwidth of about 25 degrees horizontally, which is great for noise rejection but unforgiving for aiming. I used a phone app with a compass and the built-in signal meter on my router to dial in alignment, which took about 15 minutes per end. Once locked in, the link has been stable for over a year without reconfiguration.

Adapters and Cable Are Not Optional

This antenna ships with no cable and no RP-SMA adapter, which surprises first-time buyers. You’ll need an N-Male to RP-SMA adapter (about $8) and a good low-loss cable. I used a 20-foot LMR-400 equivalent and saw throughput jump from 18 Mbps with the stock 3-foot RG-58 to 65 Mbps. The cable quality difference was night and day.

7. Tupavco TP511 20dBi Panel – Highest Gain 2.4GHz Panel

If you want maximum 2.4 GHz gain from a panel-style antenna, the Tupavco TP511 at 20dBi is one of the highest-rated options available. I tested it against a known AP about 0.7 miles away with mostly clear line-of-sight and pulled a stable 38 Mbps, which is impressive for 2.4 GHz at that distance. The tight 18-degree beamwidth means you’re picking up exactly the AP you aim at and rejecting noise from other directions.

The TP511 is a flat panel design rather than a Yagi, which makes it physically smaller and easier to mount in tight spaces. The housing is the same weatherproof, corrosion-resistant material used on other Tupavco outdoor antennas, and the included pole-mount hardware is solid. At 2.7 pounds, this is the heaviest panel in this roundup, so make sure your mount can handle the load.

When 20dBi of Gain Is Worth the Tradeoffs

The 20dBi gain comes with a narrow beamwidth that requires precise aiming and stable mounting. If your target AP is stationary, this is a strength. If you’re trying to connect to a moving target like an RV at a campsite, you’ll constantly lose the link. The other tradeoff is 2.4 GHz only – if your client devices are 5 GHz, this won’t help.

Real-World Range and Limitations

In my testing, the TP511 hit about 0.7 miles with a clear line-of-sight. Beyond that, foliage starts to dominate the loss equation and 2.4 GHz doesn’t have enough link budget to maintain a useful signal. If you need more range, the answer is usually height, not more antenna gain. Get the antenna above the tree line and a 15-17dBi antenna will outperform a 20dBi at ground level.

8. AdaLov CPE660 5.8GHz Wireless Bridge – Best Plug-and-Play Building Bridge Kit

The AdaLov CPE660 kit is the easiest way I’ve found to bridge two buildings without configuring access points. The two bridges come pre-paired, so out of the box you mount both, plug them in with the included PoE injectors, aim them, and you have a working network link. I tested a kit between a main house and a shop about 750 feet apart and got 180 Mbps sustained, which was more than enough for security cameras and general internet sharing.

The kit includes everything: two bridges, two PoE adapters, pole mounts, and cable ties. The IP65-rated housing handled rain without issue, and the 14dBi internal antenna means there are no external connectors to weatherproof. At 0.45 kg per unit, mounting is easy on any wall or pole.

Starlink Secondary Building Use Case

If you have Starlink at your main house and want network access in a barn, shop, or guest cabin, the CPE660 is a popular solution. Connect one bridge to your Starlink router, the other to a switch in the remote building, and you have full network access without running an Ethernet cable. Many users report success with this configuration up to 1,000 feet with trees in the path.

Setup Caveats Worth Knowing

Alignment takes patience – the 5.8 GHz beam is narrow and small adjustments make big signal changes. I had to nudge the shop-side bridge about 3 degrees to find the optimal signal. Also, with some ISP routers that have a 100Mbps port limitation, you’ll want a gigabit switch in the path to avoid throttling. Finally, the included cables are CCA (copper-clad aluminum), which can degrade performance – replace with pure copper if you need every bit of throughput.

How to Choose the Right Directional WiFi Antenna: Buying Guide for 2026

The best directional WiFi antenna for you depends on three things: how far away your target is, what frequency band it operates on, and whether you’re installing indoors or outdoors. Before you buy, run a quick survey: where is the AP you want to connect to, what’s between you and it, and what connector does your router or adapter use. Those three answers narrow the field dramatically.

Yagi vs Panel vs Parabolic: Which Antenna Type Do You Need?

Yagi antennas are long tubes with multiple elements, offering the highest gain for 2.4 GHz and a narrow beamwidth of about 25-30 degrees. They’re ideal for fixed point-to-point links where you have a clear line-of-sight and a stationary target. Panel antennas are flat rectangles with a wider beamwidth (45-60 degrees) and lower peak gain, but they’re more forgiving to aim and often support dual bands. Parabolic grid antennas are dish-shaped, offering the highest gain of all but are bulky and rarely needed for consumer use.

Understanding dBi: Higher Isn’t Always Better

dBi measures how much the antenna concentrates signal in one direction compared to a theoretical isotropic radiator. A 15 dBi antenna is dramatically more focused than a 5 dBi one, but it also has a narrower beamwidth. More gain only helps if you can aim accurately. If you’re chasing a moving target or your aim is approximate, an 8-10 dBi panel will outperform a 20 dBi Yagi in practice because it actually receives the signal.

2.4 GHz vs 5 GHz: Pick the Right Frequency Band

2.4 GHz signals travel farther and penetrate walls better than 5 GHz, but they’re more crowded and offer less bandwidth. If your target AP is far away or has obstacles in the path, 2.4 GHz is the safer choice. If you need speed and your link is short and clear, 5 GHz delivers more throughput. For dual-band antennas like the Eifagur 15dBi and Tupavco TP542, you get flexibility for both scenarios.

RP-SMA vs N-Type Connectors: Don’t Buy the Wrong Adapter

Most consumer routers and PCIe cards use RP-SMA connectors, while professional outdoor antennas typically use N-Type connectors. RP-SMA is smaller and easier to work with indoors, but N-Type is more weatherproof and has lower loss at high frequencies. If your antenna has an N-Female connector, you’ll need an N-Male to RP-SMA adapter and a low-loss cable. Buying the wrong connector type is one of the most common mistakes first-time buyers make, and it costs signal.

Cable Loss: The Hidden Performance Killer

Every foot of coaxial cable between your antenna and router eats signal. Cheap RG-58 cable loses about 1.5 dB per 10 feet at 2.4 GHz and 2.5 dB per 10 feet at 5 GHz. A 30-foot run can lose 4-7 dB, which negates several dBi of antenna gain. LMR-400 or equivalent low-loss cable is more expensive but loses roughly 0.7 dB per 10 feet at 2.4 GHz and 1.1 dB per 10 feet at 5 GHz. For any run over 15 feet, low-loss cable pays for itself.

IP Ratings and Weatherproofing for Outdoor Antennas

If you’re mounting outside, look for an IP65 rating or higher. IP65 means dust-tight and protected against low-pressure water jets, which covers rain and snow. IP66 adds protection against powerful water jets, and IP67 handles temporary immersion. The TP-Link CPE710 and AdaLov CPE660 are both IP65 rated. Cheaper antennas without a stated IP rating may work under an eave but will eventually fail in direct rain exposure.

Pointing a Directional Antenna for Maximum Signal

Aiming a directional antenna is part art and part measurement. Start with a rough bearing using a compass or smartphone app, then sweep slowly while watching the signal meter on your router or WiFi analyzer app. The signal will peak sharply when you’re aimed correctly. For long links, having a second person watch the meter while the other adjusts saves enormous time. Allow for a few degrees of error on windy days.

Frequently Asked Questions

Final Verdict: Picking the Right Directional WiFi Antenna for 2026

If you want one recommendation that covers the widest range of use cases, the TP-Link CPE710 is the best directional WiFi antenna for serious point-to-point links in 2026. With 23 dBi of gain, IP65 weatherproofing, and proven 1-5 km real-world links, it’s the gold standard for building bridges, surveillance networks, and rural connectivity. The 5GHz-only limitation is real but not a deal-breaker for most installations.

For indoor upgrades, the ALFA APA-M25 delivers the best balance of price, dual-band support, and signal improvement at $22, with nearly 1,200 reviews backing it up. For plug-and-play building bridges without configuration headaches, the AdaLov CPE660 kit is hard to beat – it’s pre-paired, includes everything you need, and works with Starlink. For pure 2.4 GHz long-range on a budget, the TECHTOO 18dBi Yagi or Tupavco TP513 will get you the most distance per dollar.

Before you buy, double-check your connector type (RP-SMA vs N-Type), measure your cable run length, and plan for low-loss cable if you’re going more than 15 feet. The best directional WiFi antenna in 2026 is the one that actually reaches your target AP, not the one with the highest dBi rating on paper. Take ten minutes to plan your install, aim carefully, and you’ll see signal improvements that make a real difference.
