10 Best RV Tire Pressure Monitoring Systems for Fifth Wheels (October 2026) Honest Reviews

The best RV tire pressure monitoring system for a fifth wheel is the TST 507 RV kit, because it ships with the signal repeater that a 36 ft rig actually needs, takes user-replaceable CR2032 cells, and expands from a four-sensor trailer to a tow vehicle plus four towables without changing monitors. I have run direct TPMS kits across fifth wheel, tandem, and triple axle rigs, and the failure pattern is always the same: not accuracy, but dropped signals at the back of a 45 ft trailer and sealed sensor batteries that quietly end a system after four seasons.

That is why this roundup is different from the general RV tire pressure monitoring system lists most sites publish. Those pages rank against each other without ever asking how many sensors a fifth wheel needs or where the repeater goes. This one is built around the fifth-wheel math first, then the hardware, then the details that decide whether a system still works in year five.

Ten systems made the cut. I weighed accuracy against a calibrated gauge, sensor battery serviceability, tire capacity for tandem and triple axle rigs, whether a booster is included, alarm logic, and display readability in a sunlit cab. I also weighed the things owners complain about in RV forums: readings that sit several PSI under a handheld gauge, false alarms after a tire stop, and rubber valve stems that fail under a flow-through sensor.

One note before we start. Every kit below reports tire pressure, not tire condition. A monitor cannot tell you about a sidewall crack, a tread wear bar worn smooth, or a tire that is four years old. It tells you pressure and temperature, and those two numbers catch the failure mode that actually shreds a tire on a heavy rig: a slow leak that turns a hot, over-flexed tire into ply separation. If you want a broader look at monitoring gear for a rig like this, our guides to smart plugs with energy monitoring, mini PCs for security camera monitoring, and smartwatches for health monitoring cover the other half of a long trip, where the rig sits unattended.

Our Top 3 Fifth Wheel TPMS Picks for 2026

We narrowed ten kits to three standouts, and the reasons differ. The TST 507 wins on completeness and range. The GUTA GT30 wins on pressure ceiling and multi-tire visibility. The TireMinder i10 wins on tire capacity and support reach.

Two things those three share: every one of them includes a booster or repeater, and every one of them takes replaceable sensor batteries. Those are the two features that decide whether a fifth wheel TPMS is still trustworthy in 2026.

How Many Sensors Your Fifth Wheel Actually Needs

Count sensors by tire, not by axle. A tandem axle fifth wheel on duals runs eight tires, so it needs eight sensors. Most four-sensor kits cover a single four-tire axle or a small travel trailer, which is why so many owners end up with a system that cannot see their own rig.

Here is the working math for the common fifth wheel layouts.

Tandem axle, single wheels, no spare: four tires, so four sensors. This is the only configuration a four-sensor kit handles on its own.

Tandem axle on duals: four positions across two axles, but eight tires. You need eight sensors, and a system that displays more than four at a time, or you will be scrolling through alerts.

Triple axle on duals: twelve tires, so twelve sensors, plus one for the spare if you want the spare watched. A tag axle on a triple adds four more positions that most owners skip, but a fifth wheel carrying a tag axle that runs soft is exactly how a trailer swap happens.

Add the truck and a toad: a tandem dually truck is ten tires and a toad is four. Owners who monitor everything in one place are looking at eighteen to twenty-two sensors, which is where the 22-tire and 40-tire systems earn their extra capability.

Two practical rules. First, an unmonitored spare is a false sense of security, because the spare is the tire you will not notice is flat until you need it. Second, valve stems matter more than tire count: every sensor in this roundup is rated for metal valve stems, and rubber stems on a heavy tire are a documented failure point when a flow-through sensor adds weight and torque up top.

Comparing All 10 RV Tire Pressure Monitoring Systems in 2026

All ten kits, with the specs that separate them for heavy trailers. Sensor counts matter here: a four-sensor kit will not cover a tandem axle on duals without a second purchase.

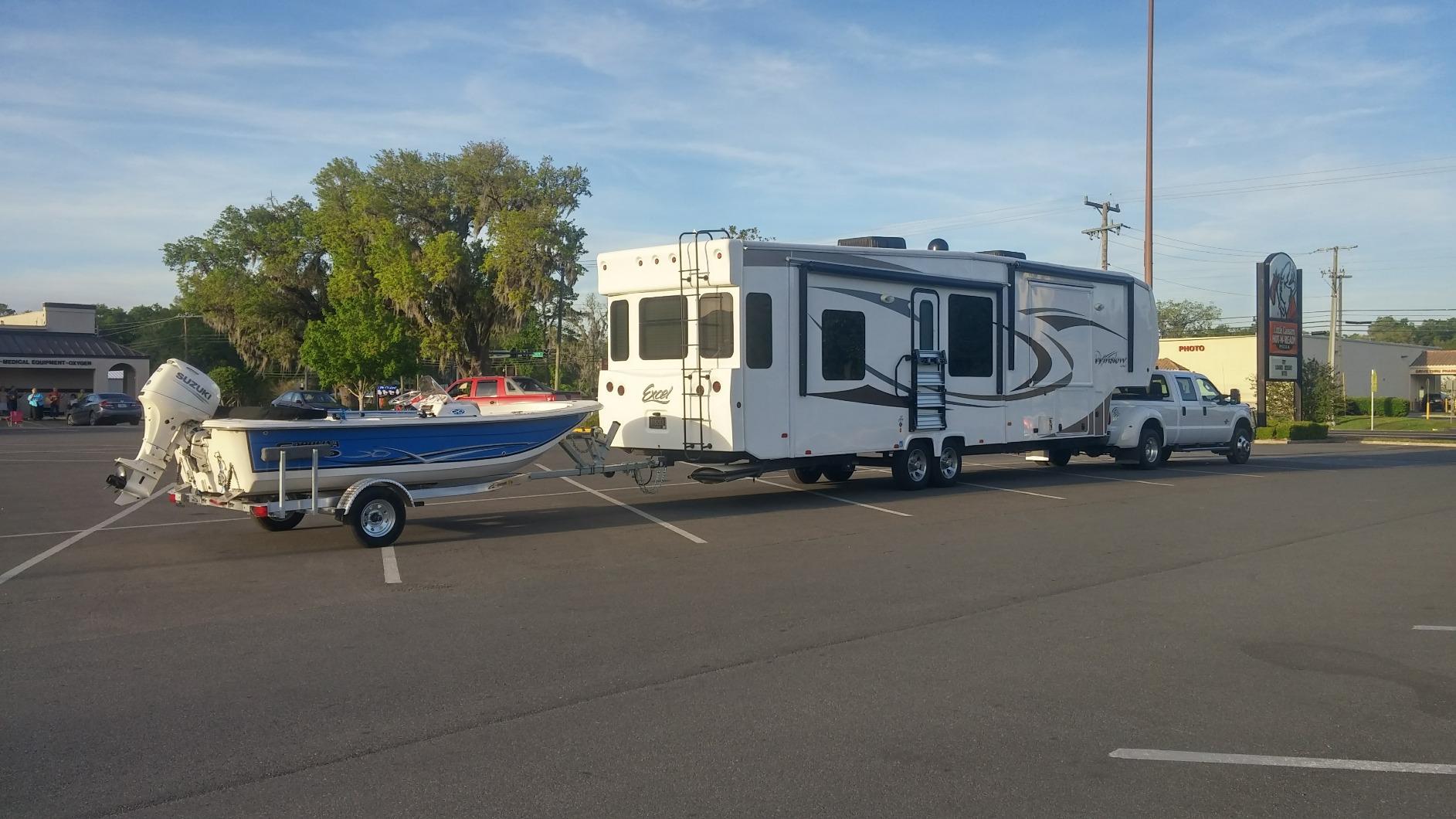

1. TST 507 Series RV TPMS – The Only Kit That Ships With the Repeater a Fifth Wheel Needs

This is the kit I put on a 41 ft triple axle because the repeater was already in the box. Almost every rival treats the booster as an accessory, and on a rig that long the booster is not an accessory, it is the difference between seeing your tag axle and seeing nothing at all.

Alerts cover low pressure, high pressure, fast leaks, and high temperature, with both audible and visual warnings, and the display auto-locks onto the offending tire so you are not hunting through a list while the rig is moving. The monitor runs on a rechargeable battery with a Micro-USB charger, and both a suction cup and a rubber dash mount are in the kit, which matters more than it sounds because a monitor that slides on a descent is a monitor you will not look at.

The 601-review base carries a 4.4 rating with a narrow spread of complaints, most of them about cap sensors needing removal at every tire stop. Tire positions can be swapped after a rotation, and the system expands to the towing truck and up to four towable vehicles, so one monitor can follow you between the fifth wheel, the toad, and a second trailer.

Battery Serviceability Is the Whole Reason This Kit Lasts

Sensor batteries here are user-replaceable CR2032 cells, and the monitor warns you before a sensor drops. Sealed-battery systems are the quiet killer of tire pressure monitoring: they work beautifully for four seasons, then a handful of positions go dark and replacement sensors cost more than the original kit. Owners on RV forums consistently describe replaceable cells as the single criterion that decides a long-term purchase, and this kit is built around it.

Three-year warranty coverage with US-based support also matters more than the length suggests. A part that is easy to source is worth more than a longer warranty on a brand that has disappeared by the time you need it.

Repeater Placement on a Long Fifth Wheel

Mount the included repeater roughly at the trailer midpoint, outside the frame rails in the open where metal and enclosed compartments will not block the signal. On a triple axle, mid-trailer falls between the second and third axle, which is exactly where the signal has already degraded by the time it would otherwise arrive.

Do not tuck it inside a storage bay. Enclosed metal compartments are the most common cause of a sensor that reads fine in a parking lot and drops out on the highway. If a position misbehaves only in motion, the booster location is the first thing to move, before you start blaming the sensor.

Where the Four-Sensor Base Kit Falls Short

Four cap sensors cover a single four-tire trailer, so a tandem on duals needs a second purchase. Cap sensors also have to be unscrewed before you add air, which on an inner dual wheel means working in a tight wheel well with a compressor hose.

If you inflate often or carry a toad, the flow-through pick below solves both of those. If you are on a single-axle or tandem with single wheels, this base kit is complete as sold.

2. GUTA GT80 RV TPMS – Best Flow-Through Choice for Quick Inflation Checks

The flow-through question is where most fifth wheel buying decisions go wrong, and this kit answers it properly. A flow-through sensor is a small valve core in the sensor body itself, so you press a fitting on and add air without unscrewing anything. On a tandem axle on duals, that turns a twenty-minute tire stop into a five-minute one, and the difference compounds across six fuel stops.

The tradeoff is a hard requirement: metal valve stems. A flow-through sensor adds weight and torque at the top of the stem, and rubber stems on heavy trailer tires are what owners report failing. Replace rubber stems with metal before you install this, not after the first leak.

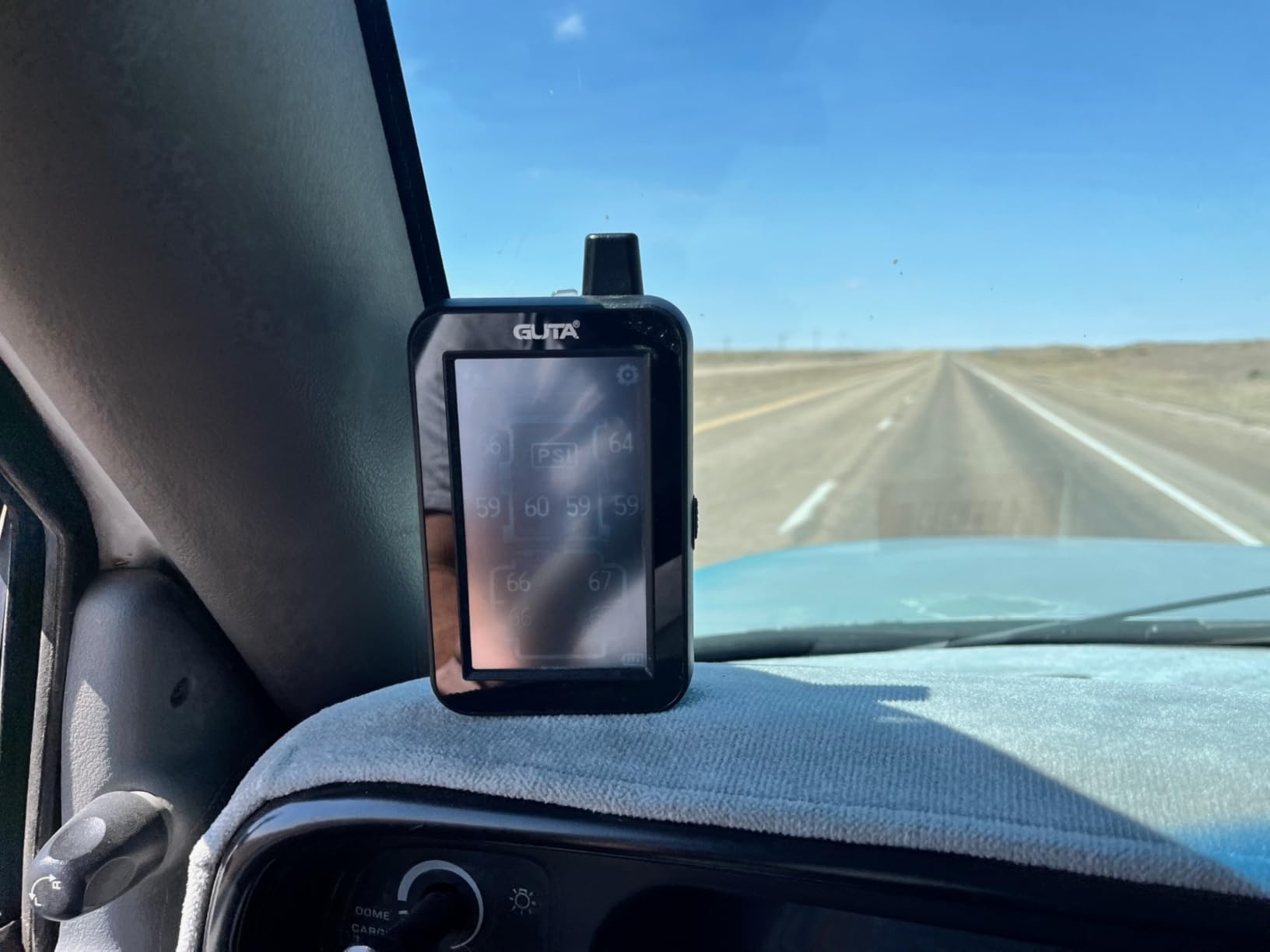

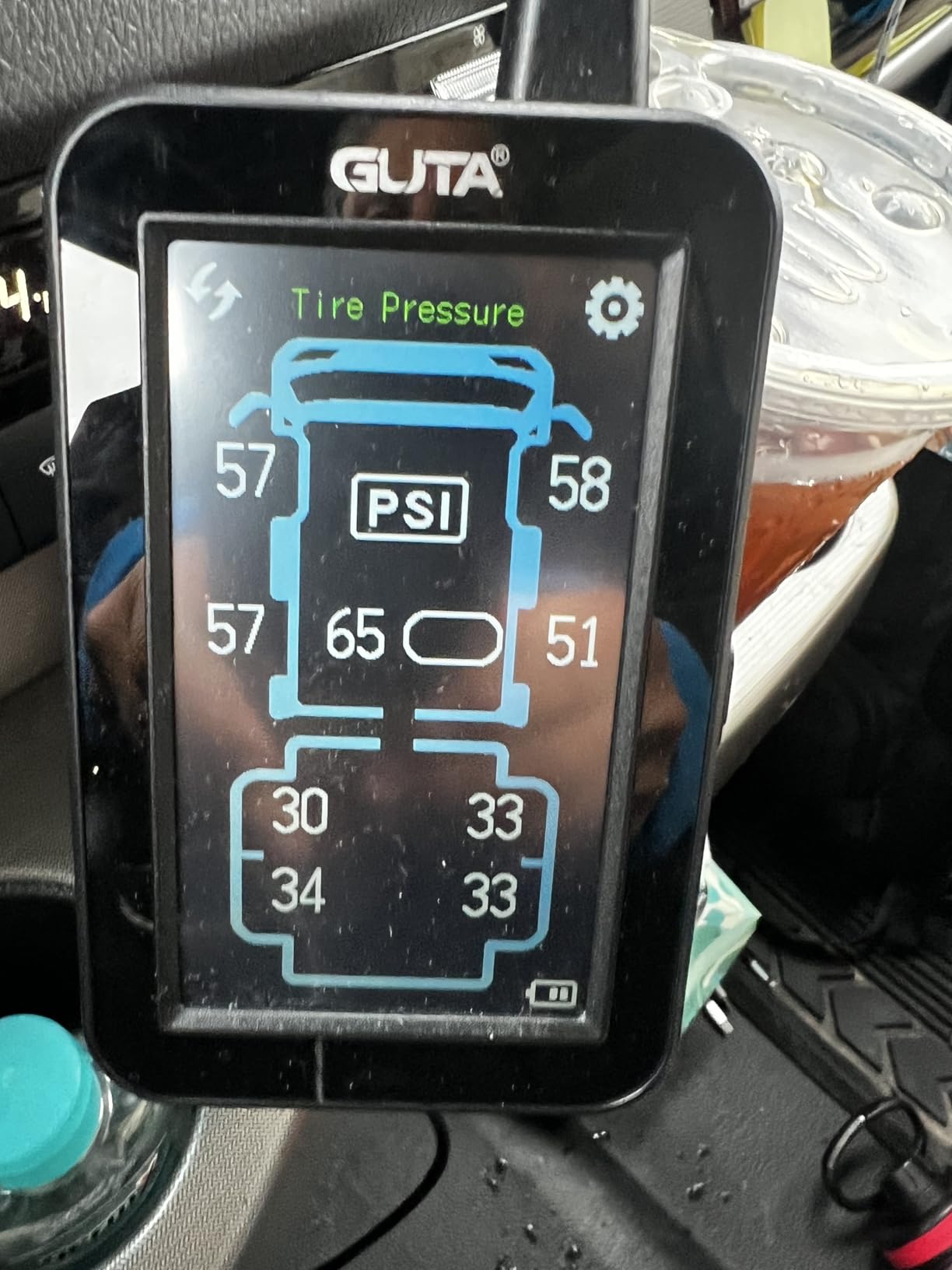

The vertical full-color touchscreen with touch and sound feedback is the most readable display in this group. It shows up to 22 tires on one page and runs six alarm modes, so a triple axle with a spare is fully visible without scrolling.

Flow-Through Sensors and the Rubber Valve Stem Failure Mode

Owners on iRV2 and similar forums describe the same sequence repeatedly: a flow-through sensor goes onto a rubber stem, the stem eventually weeps or snaps at the base, and the tire goes down on a highway. The sensor did not fail. The stem did, and it failed because it was asked to carry more load than a rubber stem is designed for at trailer pressures.

That is why the metal valve stem requirement is not a preference. If your fifth wheel still has rubber stems and you want flow-through, budget a stem replacement as part of the install. If you cannot replace stems on the wheels you tow, a cap sensor system is the safer choice, and the accuracy cost is zero.

Display Legibility and 22 Tires on One Page

A vertical layout matters more than it sounds. Landscape displays wide enough to hold a triple axle tend to shrink each number to the point where you squint at 3 AM on a mountain grade. This one keeps the figures large and stays legible in daylight, which is when you are actually checking pressures at a fuel stop.

Touch and sound feedback gives you confirmation that a tap registered, which prevents the habit of tapping a tire position three times before you trust the screen. The switch between five vehicle types also means the same monitor handles the fifth wheel, the truck, and a toad without re-pairing from scratch.

Signal Booster Range and Vibration Wake

The included booster extends connectivity to 164 feet, the longest figure any kit here claims, which covers the furthest sensor on a 45 ft fifth wheel plus a toad. Sensors wake on vibration, so the spare tire can stay monitored in the well even when the rig is parked for weeks.

Power-save engages after 10 minutes without motion and wakes on vibration again. A few users report momentary dropouts on inner rear tires over rough interstate joints, which is a reflection problem rather than a dead sensor, and it resolves when the joint passes.

3. GUTA GT30 RV TPMS – Ten Tires Visible at Once for Heavy Multi-Axle Rigs

This is the kit for someone who wants the fifth wheel and the truck on one screen without scrolling. Ten tires appear on a single page, with the display auto-switching between front and rear sections, and up to 46 tires can be viewed in total if you rotate rigs over the years.

The 188 PSI ceiling and 185 F temperature rating are the numbers that matter here. Trailer axles on duals sit well above the range of budget kits, and a monitor that tops out near 100 PSI is simply wrong for a heavy rig, even if it works perfectly on a travel trailer.

Wireless sensor programming is the quiet time-saver. The sensors pair without you having to inflate the tire to set a reference pressure, which on a tandem axle at a truck stop turns install time from a wrestling match into a fifteen-minute job.

Why the 188 PSI Ceiling Matters on a Heavy Axle

Trailer tires on duals routinely run at pressures well past what a light-duty kit will register, and the temperature range to 185 F gives you a real overheating signal rather than a saturated reading. A monitor that maxes out cannot warn you about a tire that is already past its limit, which defeats the purpose on a rig that runs long grades with a full load.

Sensor batteries are CR2032 and rated up to four years, which is the longest stated service life in this lineup. The monitor itself is rechargeable and holds 12 to 14 days of operation after a 4-hour charge, so it survives a long stretch of boondocking without a cigarette lighter socket.

Percentage-Based Alarms and How to Set Them Properly

Alarms trigger between plus 25 percent and minus 15 percent of the reference pressure, adjustable across that band. This is convenient, because the system captures your current pressure as the baseline automatically, and it is also the reason this kit is not my first choice for alarm precision.

Percentage bands drift as the load changes. A baseline set empty and then loaded up will sit close to the low alarm, and owners who set baselines once and never touched them again report repeat alerts they learn to ignore. If you tow heavy, re-set the reference pressure when the rig is fully loaded, not when it is empty in the driveway.

When You Need to Add a Booster

This kit is the one case in the roundup where the booster is a genuine add-on risk. Connectivity holds up on moderate trailer lengths, but a 40 ft or longer fifth wheel, especially with a toad behind it, is where you should budget a booster and mount it mid-trailer in the open.

The alternative in this same family is the GT80, which includes a booster with a 164-foot range. If your rig is long, that difference is worth the step up rather than buying the booster separately later.

4. TireMinder i10 RV TPMS – Most Versatile for Monitoring Up to 40 Tires

The i10 is the most proven dedicated monitor in this group, with 1050 reviews behind it, and the 40-tire ceiling is the reason it scales. If you run a fifth wheel, a truck, and a toad and want one display for all three, this is the kit that does not need a second purchase later.

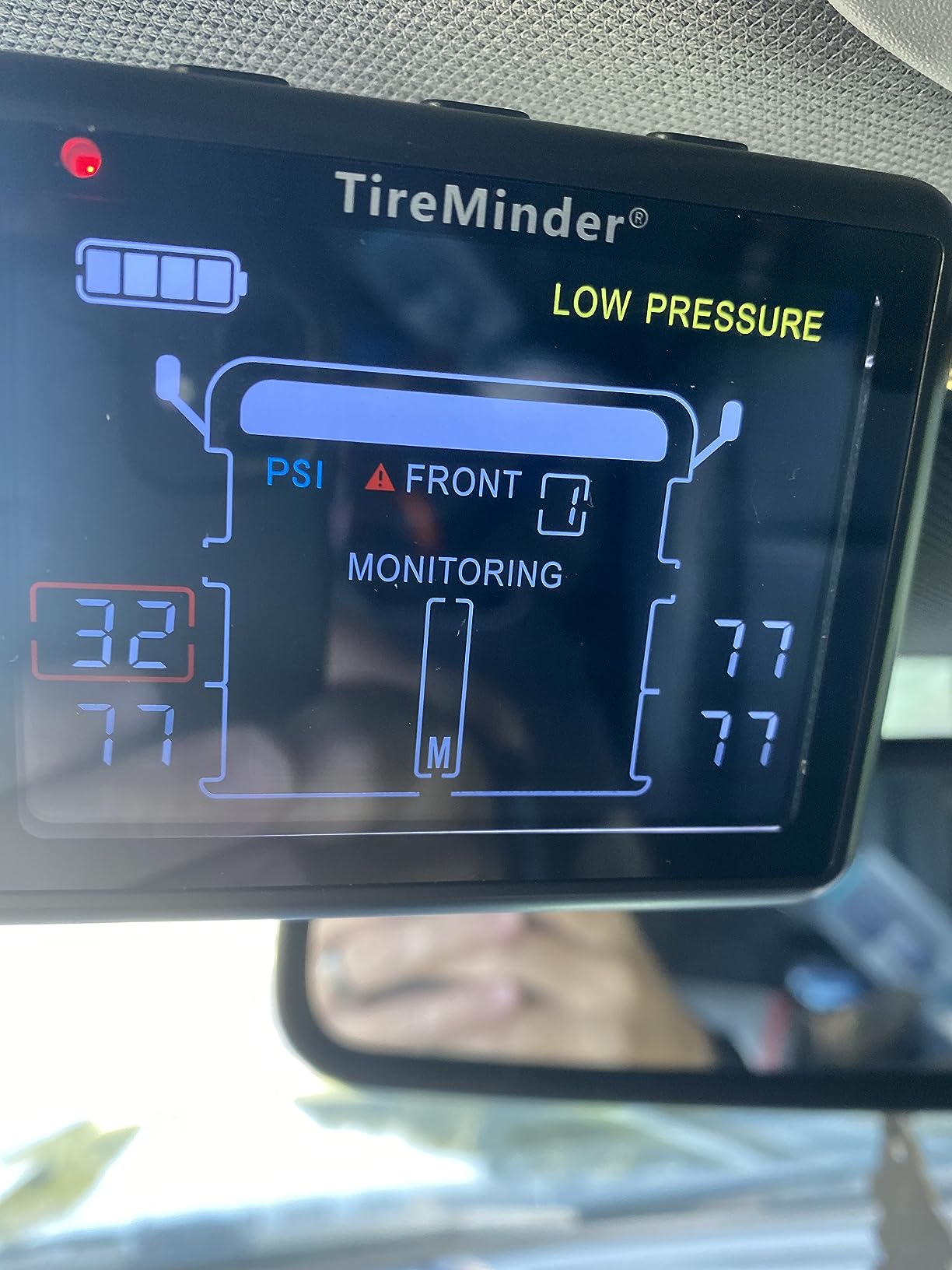

The screen is a 3.15-inch color LCD showing PSI or temperature, scanning every tire every 6 seconds for slow leaks, rapid leaks, blowouts, low and high pressure, and high temperature. A dedicated monitor matters more on a fifth wheel than on a sedan, because nobody wants to unlock a phone at a fuel stop on the shoulder.

Accuracy is rated at plus or minus 1 PSI across a 0 to 199 PSI range, the highest ceiling here, and the rhino signal booster is included in the box so long rigs are covered from day one.

PSI Offset: Why Your Display Will Not Match Your Gauge

Owners repeatedly report that this system, like most direct TPMS units, can read a few PSI above a calibrated tire gauge. That is normal and it is not a defect. Two things cause it: the sensor measures tire cavity temperature rather than ambient, so a warm tire reads high, and the gauge and the sensor are simply calibrated differently.

The fix is straightforward. Set your baseline pressures from the display rather than from a handheld gauge, after the tires have been at least three hours out of motion and have cooled. Write the display numbers on the tire with a tire marker so you have a cold reference for next trip. If your system supports an offset value, set it to the difference between your trusted gauge and the display once, then leave it alone.

Some manufacturers bias their systems to read slightly low, deliberately pushing owners toward over-inflation rather than under-inflation. Both directions occur in this category, which is the argument for a monthly cross-check with a good gauge rather than full trust in either number.

Tire Capacity and Multi-Profile Monitoring

Forty tires is headroom most owners never use and few ever regret. The practical path is to start with four transmitters, learn the pairing sequence on the trailer, and add sensors as you add positions: the truck first, then the toad, then the spare.

Where cap sensors frustrate owners is the dual wheel. Removing a cap sensor on an inner dual means getting a compressor hose into a narrow wheel well with the wheel already in place. Budget time for it at home, not at a truck stop, and check the valve stem while you are in there.

Support and Long-Term Parts Availability

Replacement sensor availability is a real criterion for a system you intend to keep for a decade, and TireMinder’s record of replacing failed sensors is one of the more consistent signals in owner reviews across this category. A monitor you cannot service is a monitor you replace entirely.

The 3.15-inch screen is a touch smaller than the largest displays here, but it is bright enough for a night check and it does not need a phone paired to it to do its job. That independence is the quiet reason dedicated-monitor owners rarely go back to app-only systems.

5. TireMinder Smart 10-Sensor TPMS – Best for Phone-Based Monitoring

Ten transmitters in one box is the appeal here. A tandem axle fifth wheel on duals plus a tandem truck is fourteen positions, so ten sensors gets you most of the way in a single purchase, and the booster is included rather than added later.

Monitoring runs through a Bluetooth adapter compatible with iPhone, iPad, and Android, and the app checks pressure and temperature every 6 seconds with an early-warning alert. The 433MHz link to the adapter is what extends range into the trailer, which is the piece that makes phone-based monitoring viable on a fifth wheel at all.

The box is unusually complete: 10 transmitters, a Bluetooth adapter, a rhino signal booster, 20 CR1632 batteries, 10 O-rings, 10 locking nuts, a locking wrench, a carrying pouch, and a manual. Having spare cells and O-rings in the box is exactly the preparation that prevents a roadside sensor swap from becoming an evening’s work.

App Monitoring Versus a Dash Monitor on a Fifth Wheel

The honest case for the app is whole-rig awareness. A scrolling view that shows every position, front to back, is something a small dash screen cannot do, and on a rig with fourteen to twenty monitored tires that view is genuinely useful.

The honest case against it is that your phone is also your map, your music, and your communication. A dropped Bluetooth connection on a mountain grade means you are unlocking a phone to find out what the alarm was, and owners on RV forums report exactly that frustration. If you want both, run the app and a dedicated monitor rather than choosing.

The Offset Problem Is Larger on This Kit

Reviewers on this configuration report readings running 5 to 10 PSI above shop gauges, a wider spread than the dedicated-monitor versions in this roundup. That is manageable, but only if you set your baselines from the display and stop treating the handheld gauge as the reference after day one.

Also worth knowing: a system that reads high can mask a genuine loss if you set your target from the display at a high baseline. Inflate to the number on your tire placard, then note what the display says cold, and use that display number as your alarm reference from then on.

Pairing Across the Fifth Wheel, Truck, and Toad

The recurring advice from owners is to keep the booster mounted under the trailer rather than in the cab, and to pair positions in a consistent order so you always know which sensor is which tire. Label each transmitter with a paint pen as you install it, because the app can show you a pressure and still not tell you which side it is on.

Moving the system between the fifth wheel and the toad means re-pairing rather than simply disconnecting, which is the main reason app-based kits feel slower to owners running two rigs. Plan for a five-minute re-pair at the campground rather than at the first turn.

6. GUTA GT20 RV TPMS – Best Value When You Want Ten Sensors and a Booster

The GT20 does the same basic job as the GT30 at a lower tier and a shorter booster range, and for many fifth wheel owners that is the whole decision. Ten sensors, a booster, and 24-tire support in one box covers a tandem on duals plus a four-tire truck without a second order.

Temperature monitoring runs from minus 40 F to 221 F, which covers a winter stored rig and a desert summer in the same year. Sensors arrive pre-labeled and factory-paired, so installation is mounting and inflating rather than coding.

Alerts cover rapid air loss, abnormal pressure and temperature, and low battery on both the sensors and the monitor. PSI and BAR plus Celsius and Fahrenheit switching is a small thing that removes one common complaint from overseas and imported rigs.

100-Foot Booster Range and Where to Mount It

The included booster covers 100 feet of connectivity and the manufacturer guidance is to mount it mid-trailer in the open. On a 35 to 40 ft fifth wheel that is the difference between all ten tires reporting and the rearmost positions dropping.

Beyond roughly 40 ft plus a toad, 100 feet starts to get tight, and this is where the GT80’s 164-foot booster or the i10’s included rhino unit gives you more margin. If you are unsure how long your rig is empty, measure pin to nose, because kingpin to back wall understates the run by several feet.

Monitor Battery Life and the Solar Alternative

The monitor holds up to 15 hours on a full charge and drops into power-save after 15 minutes idle. That is fine for a plugged-in tow vehicle, and marginal if you run the truck’s ignition off for long stretches.

If your rig spends real time without a charging socket in reach, a solar monitor is a better long-term fit. The Masoll and Flydew kits later in this roundup charge from sunlight plus USB, which removes the cigarette lighter dependency entirely, at the cost of tire capacity.

Percentage Alarms and Load-Based Baselines

Thresholds set automatically at plus 25 to minus 15 percent of reference pressure, the same model the GT30 uses. The practical advice is identical: set the reference with the rig fully loaded, since that is the condition where a low tire does the most damage.

The display scrolls rather than showing all positions at once, which is the main owner reservation along with the removal step for inflation. On ten monitored tires, a scroll cycle is workable. On a triple axle with a spare, you will want the single-page displays further down this list.

7. VESAFE 8-Sensor Anti-Theft RV TPMS – Best for Automatic Connect and Disconnect

The feature that separates this kit is automatic connect and disconnect by distance. Park the truck 50 feet away and the trailer sensors stop reporting; pull back up and they resume. For owners who move between the fifth wheel and the toad daily, that removes the manual reset that otherwise trains people to ignore alerts.

Eight anti-theft sensors come in the box, six CR2032 cells are included, and the system monitors up to 22 tires. Automatic sleep and wake by motion detection means the rig is not broadcasting while parked, which also keeps battery drain in check over a multi-week stay.

Owners of tow-vehicle-plus-trailer setups report readings within about a pound of a handheld gauge, which is the tightest tracking claim among the multi-sensor kits here. The monitor is rated for up to 2500 miles per full charge.

Anti-Theft Sensors and a Parking-Lot Consideration

Anti-theft sensors resist removal, which matters at a truck stop or a campground where a trailer sits unattended overnight. They are not a lock against a determined thief, but they turn a five-second job into an obvious job that most people walk past.

One buyer reports the kit is oriented toward trucks and semis rather than RVs and motor coaches, which is a fair warning on labeling. The sensors are numbered and you assign them to positions yourself, so budget ten minutes to map the layout and label each one with a paint pen on day one.

Scrolling Display and the Alarm-While-Inflating Problem

The display cycles through each connected tire every 5 seconds, so you never see all positions at a glance. The 5-second cycle is fast enough that a changing number is noticeable, but slow enough that hunting for a specific tire mid-drive takes attention you should be giving the road.

More significant: pulling a sensor off to add air sounds identical to a fast leak, and the monitor will alarm while you are doing it. Owners describe muting the alarm at every tire stop, which is exactly the habit that leaves you ignoring a real alert two stops later. Plan inflation checks around a stop where you can acknowledge the alarm rather than reflexively silencing it.

When 22 Tires Beats Four

Twenty-two tire capacity is only meaningful if you actually monitor a site: truck, fifth wheel, and a second trailer, or a fifth wheel plus a toad plus a spare plus the tag axle. If you only tow one trailer, that capacity is unused and a dedicated-monitor kit with a better screen serves you better.

Booster support is recommended to reduce interference, so on a long fifth wheel treat the booster as part of the purchase rather than an optional extra.

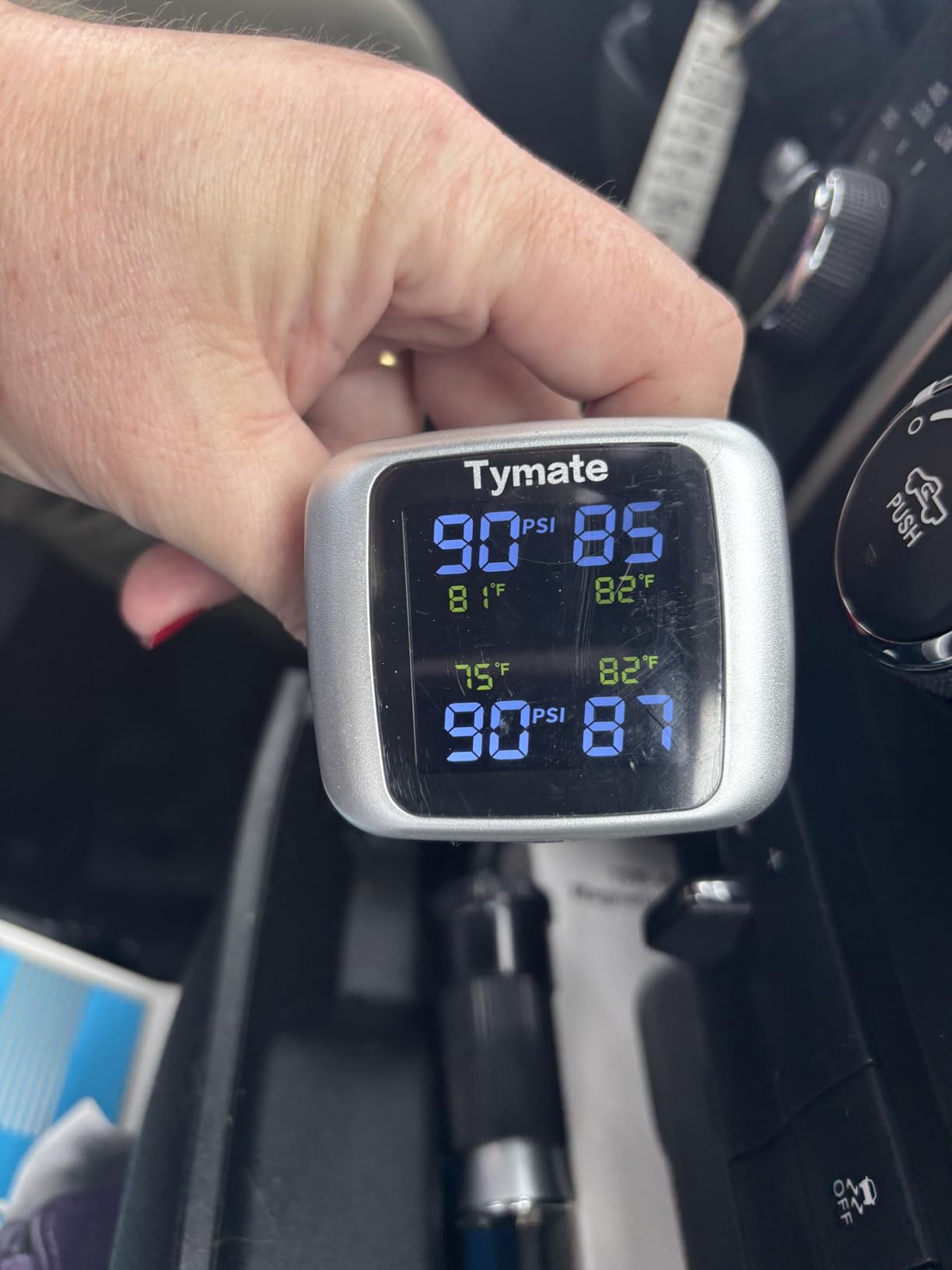

8. Tymate TM7 TPMS – Budget Pick With the Largest Review Base in the Lineup

With 2567 ratings, the TM7 has the largest review base of anything in this roundup, and that is worth something on its own. A system with thousands of owners has a known failure pattern you can research before you buy, rather than discovering it on a mountain grade.

Accuracy is rated at plus or minus 1.5 PSI across 0 to 144 PSI, and six alarm modes cover high and low pressure, fast leakage, high temperature, low sensor battery, and lost sensor signal. The 144 PSI ceiling handles trailer and light truck pressures comfortably.

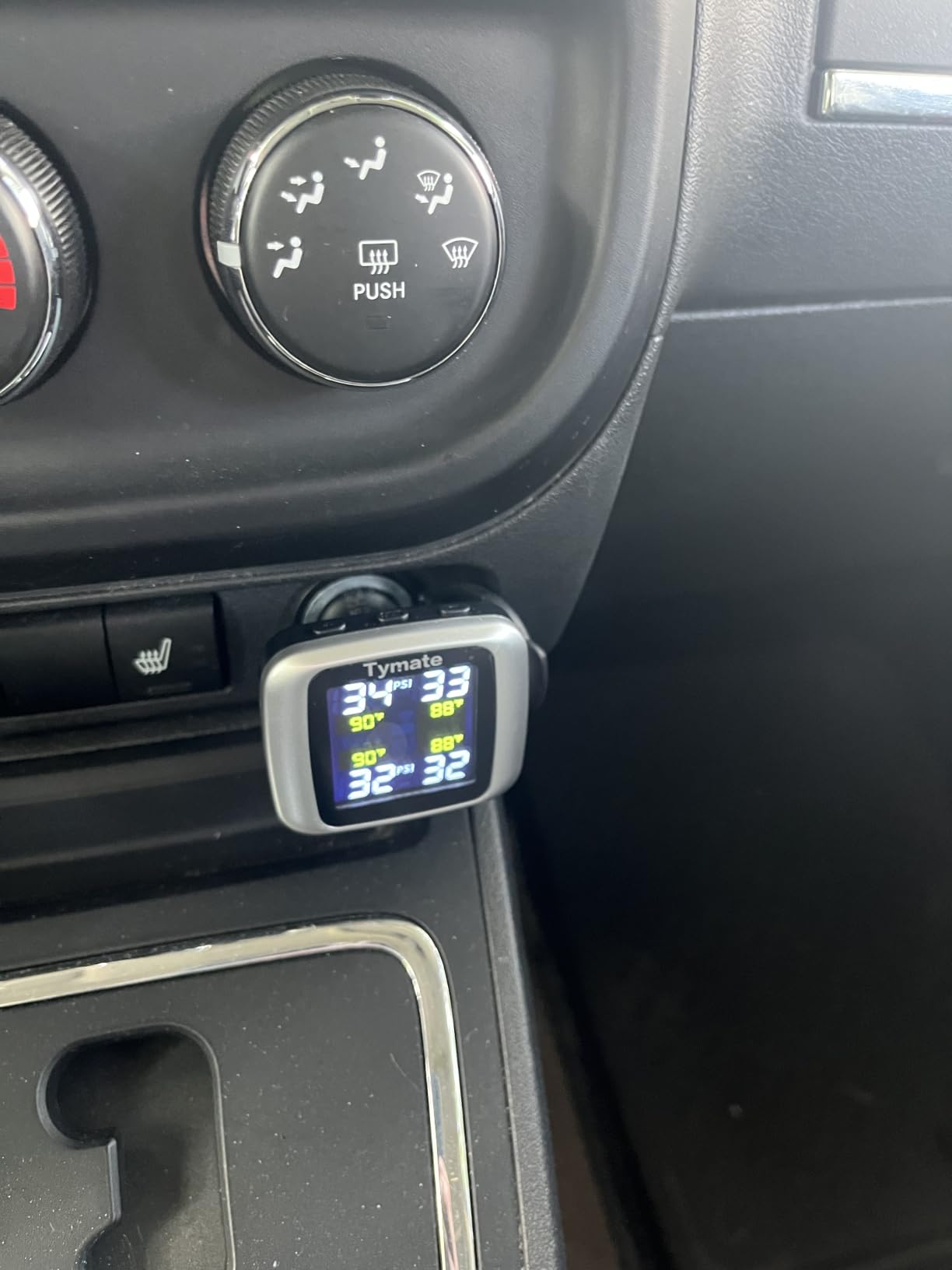

The monitor plugs into a 12V socket with no wiring and includes two USB charging outlets in the display itself, which is a genuinely useful detail when the phone is the only other thing you need charged on a long run.

Four Sensors and the 36-Foot Repeater Threshold

Four sensors covers a single four-tire axle or a four-tire tow vehicle, not both. On a tandem axle on duals you are eight sensors short, and on a trailer plus a truck you are further short still.

The stated repeater threshold is 36 ft, and the display switches to RV mode on longer trailers. That is a real constraint for the exact rigs this article is about: most fifth wheels over 36 ft will need a booster, and this kit does not include one. Budget for that accessory, or choose a kit where the booster is already in the box.

Solar Versus 12V Power on a Long Trip

Plug-and-play 12V power with no wiring is the fast setup, and the dual USB ports cover the phone. The tradeoff is dependency on a live socket, which is why the same four-sensor class of kit exists in solar form later in this list.

Color LCD with an adjustable backlight handles the night check, and the auto-dim style backlight is the feature most appreciated on an early start, when you do not want a screen lighting up the cab.

Coin Cell Batteries and Metal Valve Stems

Sensors take CR1632 coin cells, four of which are included, and they are user-replaceable. That is the single most important thing to verify on any budget kit, and this one passes it. A sensor that goes dark at 5 percent battery tells you before it fails.

Metal valve stems are recommended for sensor stability. On rubber stems, the added sensor weight lets the stem move, and a slowly weeping stem reads as a slow leak the monitor keeps alarming about until you find the actual cause.

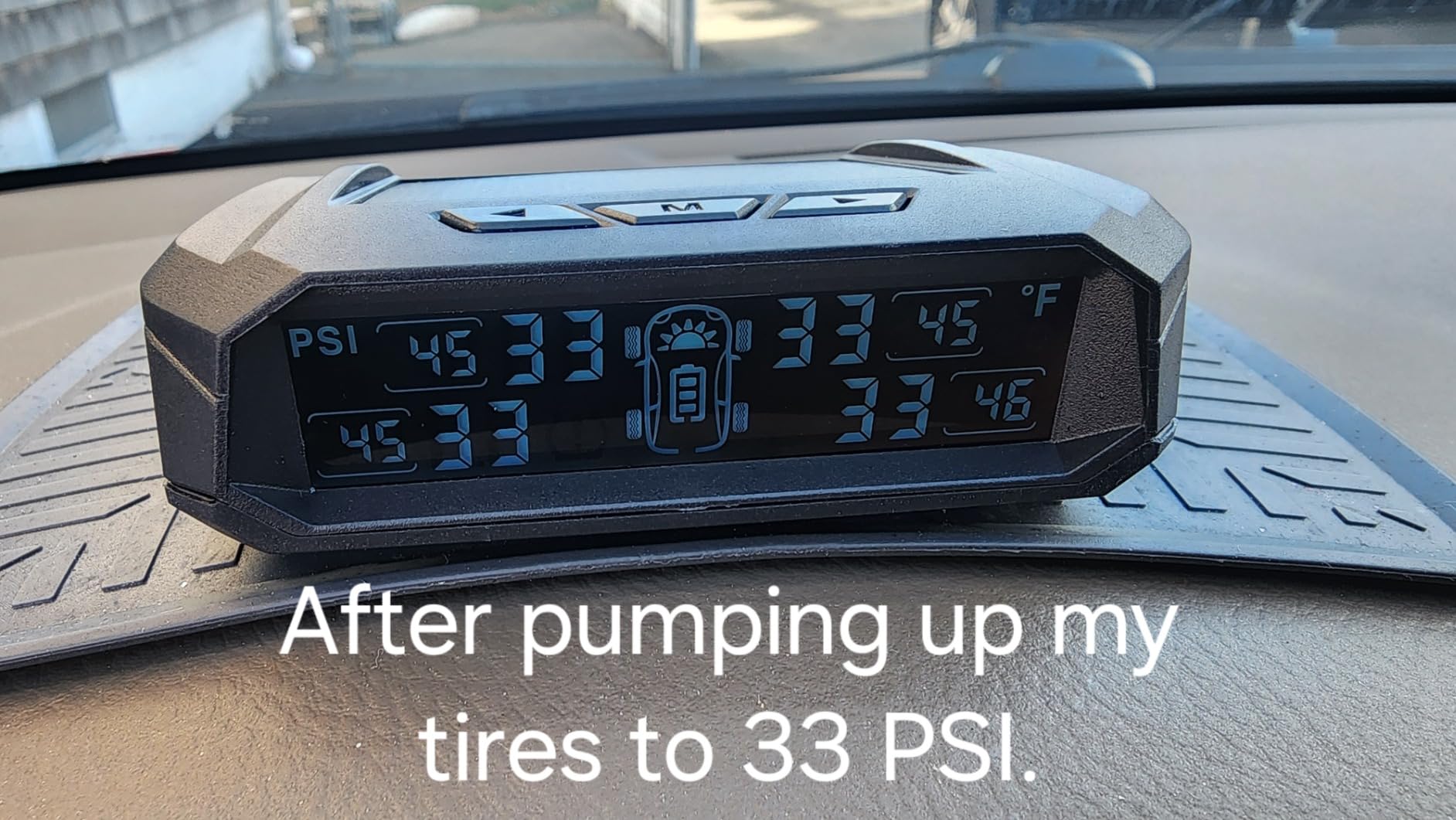

9. Masoll 4-Sensor RV TPMS – Best for Solar Charging and Factory-Paired Setup

The Masoll carries the highest average rating among the four-sensor kits in this roundup at 4.5, and the thing that earns it is setup speed. Sensors arrive factory-paired, so there is no pairing menu, no learn mode, and no inflating the tire to set a reference. Mount, tighten, and the positions populate.

Solar charging plus USB is the power approach that suits full-time and off-grid use best. Nothing to wire, nothing to plug in, and the display holds its charge across a multi-day stay where a socket is not guaranteed.

Alarms cover high and low pressure, high temperature, fast leakage, low sensor voltage, and lost signal, and thresholds set automatically from plus 25 to minus 15 percent of reference pressure. PSI and BAR plus Celsius and Fahrenheit are both selectable.

The 99 PSI Ceiling Is the Dealbreaker for Heavy Axles

This is the one specification to read twice. A 99 PSI maximum is fine for many travel trailer tires and light tow vehicles, and it is wrong for a fifth wheel on duals, where axle pressures routinely sit higher. Check the maximum cold pressure on your tire placard before assuming this kit fits.

Accessories on a fifth wheel add to the load, and running a heavy axle below placard pressure generates exactly the heat and flex cycle that causes ply separation. A monitor cannot help you if it is not reading the tire correctly, and a ceiling is a hard limit rather than a soft warning.

Solar and USB Charging on a Rig Without Sockets

Dual charging is the reason this kit earns its place despite the four-sensor limit. A solar panel on the dash keeps the display alive through a week of boondocking, and USB covers the case where the rig sits in shade, which is common in a forest site or under an awning.

Users report the anti-slip pad keeps the display from sliding, which matters more than it sounds on a descent when a monitor that moves draws your eyes instead of the road.

Display Legibility in a Hot Parked Cab

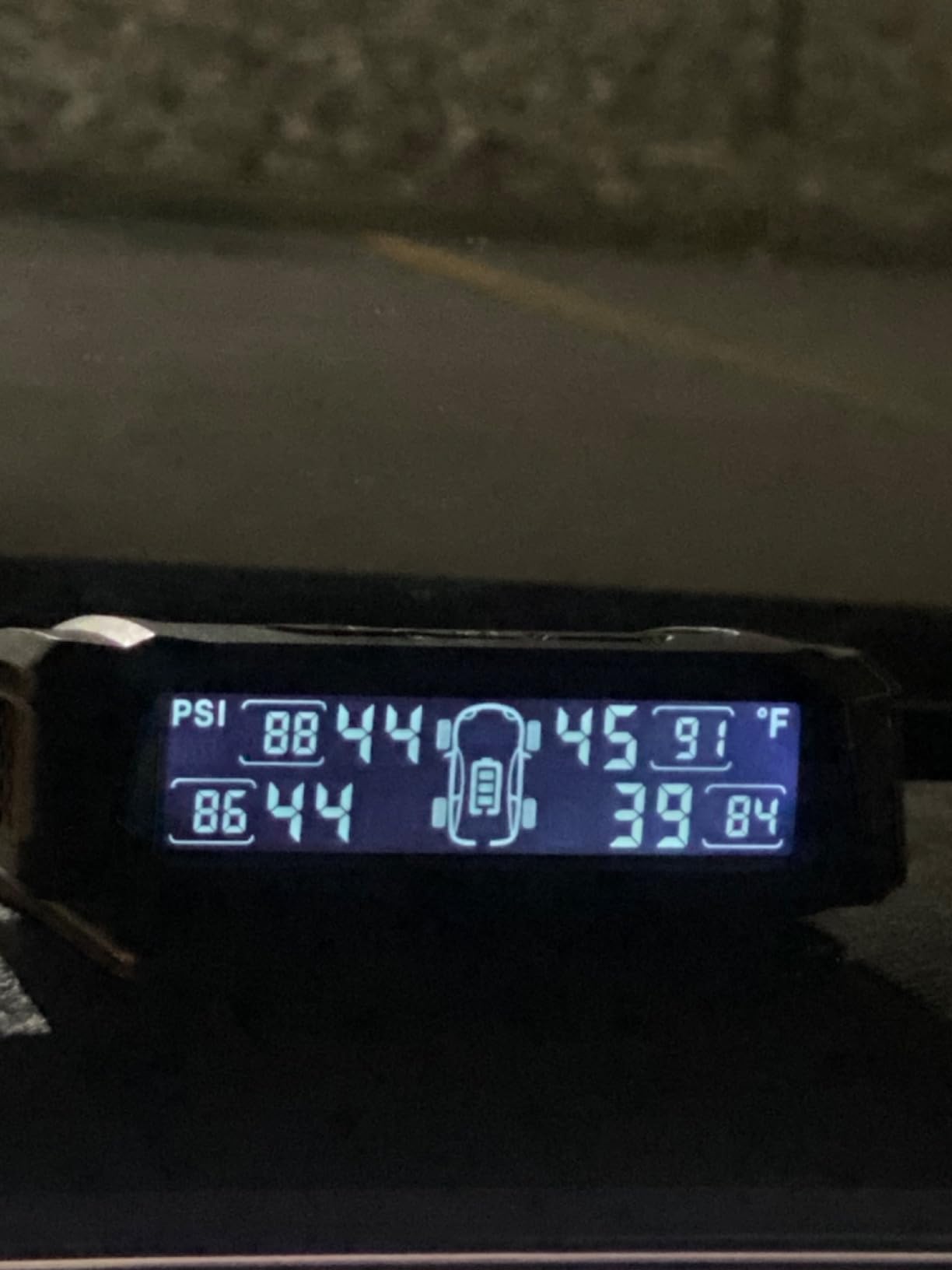

Reviewers note the LCD can wash out white in extreme cabin heat and recover as the cab cools. This is a heat behavior, not a failure, and it is most visible after a long parked stop in direct sun rather than while driving with air conditioning running.

Readings tracking shop gauges within a pound or two is the standout accuracy claim here, and the reported real-world wins are the ones that matter: owners say it caught a nail puncture and a slow leak before either caused damage.

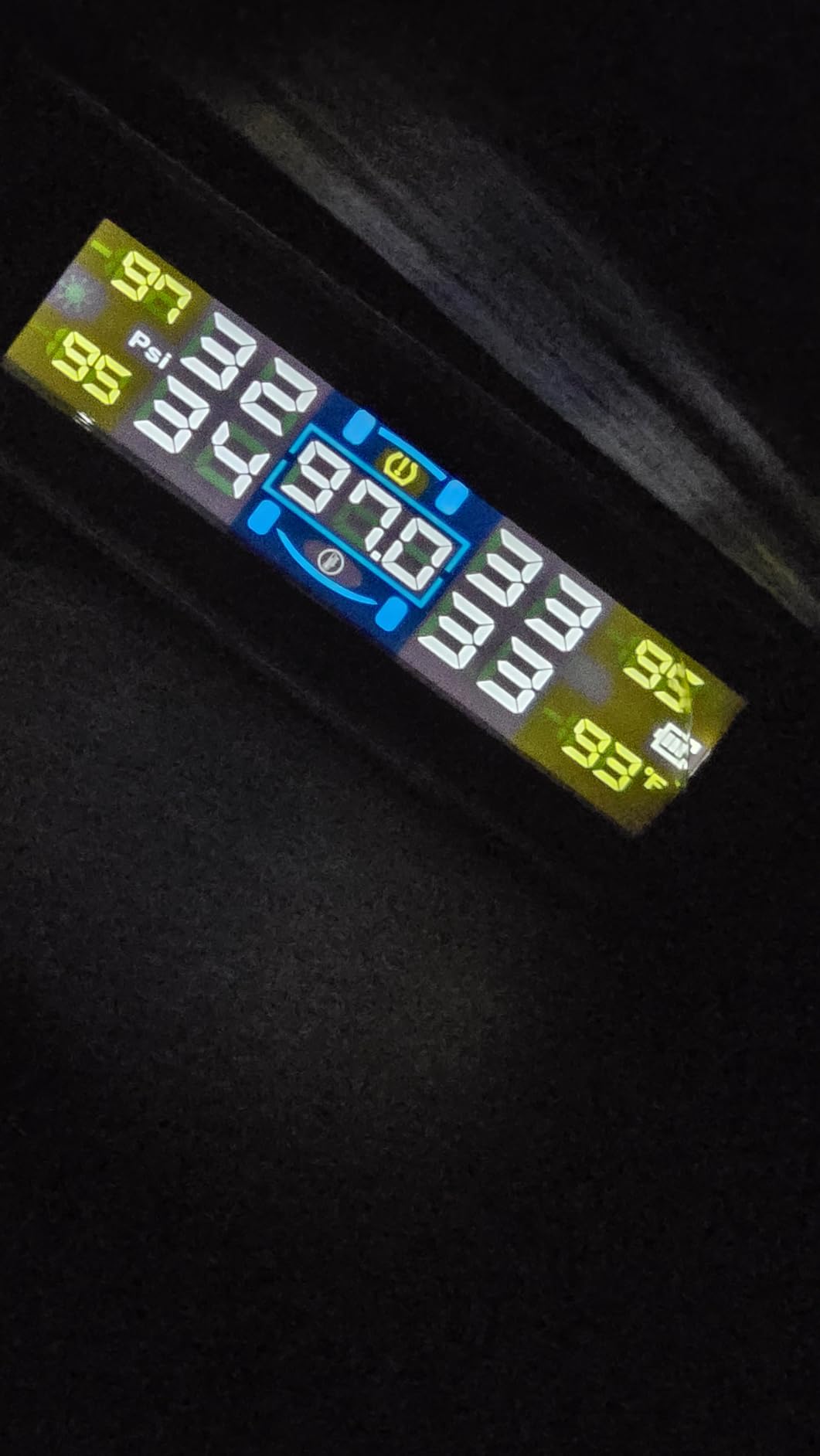

10. Flydew 6-Wheel RV TPMS – Best Starter Kit With Adjustable PSI Thresholds

Six sensors is the interesting number here. It is exactly enough for a tandem axle on duals with a spare watched, or for a four-tire tow vehicle monitored properly, and it is the smallest kit in this roundup that covers a real fifth wheel configuration.

What separates it is alarm logic. Instead of percentage bands around a reference, thresholds are set in absolute PSI, so a low alarm on a 100 PSI tire is 90 PSI and a high alarm is 105 PSI. On a heavy trailer carrying variable load, that is a more honest model than a percentage of a baseline you set once.

Sensors update every 0.3 seconds and the display refreshes every 6 seconds, so a fast leak shows up in a single cycle rather than several. Solar plus USB-C charging removes the socket dependency, and the color LCD dims automatically for night driving.

Absolute PSI Thresholds vs Percentage Alarms

Percentage alarms assume a stable baseline. Set a reference at 80 PSI empty and the low alarm triggers at 68 PSI, but load the trailer to where 80 PSI is now the correct cold pressure, and the alarm is calibrated to a tire that does not exist.

Absolute thresholds remove that assumption. You enter the number you want to be warned about, and the system warns about that number regardless of what the tire was doing when you configured it. For full-time RVers who move between loaded and unloaded trips, this is the more trustworthy model.

Sensor refresh at 0.3 seconds is genuinely fast. A fast-leak alert on this kit fires while the tire is still losing air, which gives you a chance to slow down and pull over before it becomes a blowout on the tire ahead of you.

Installation Order and the Soapy Water Test

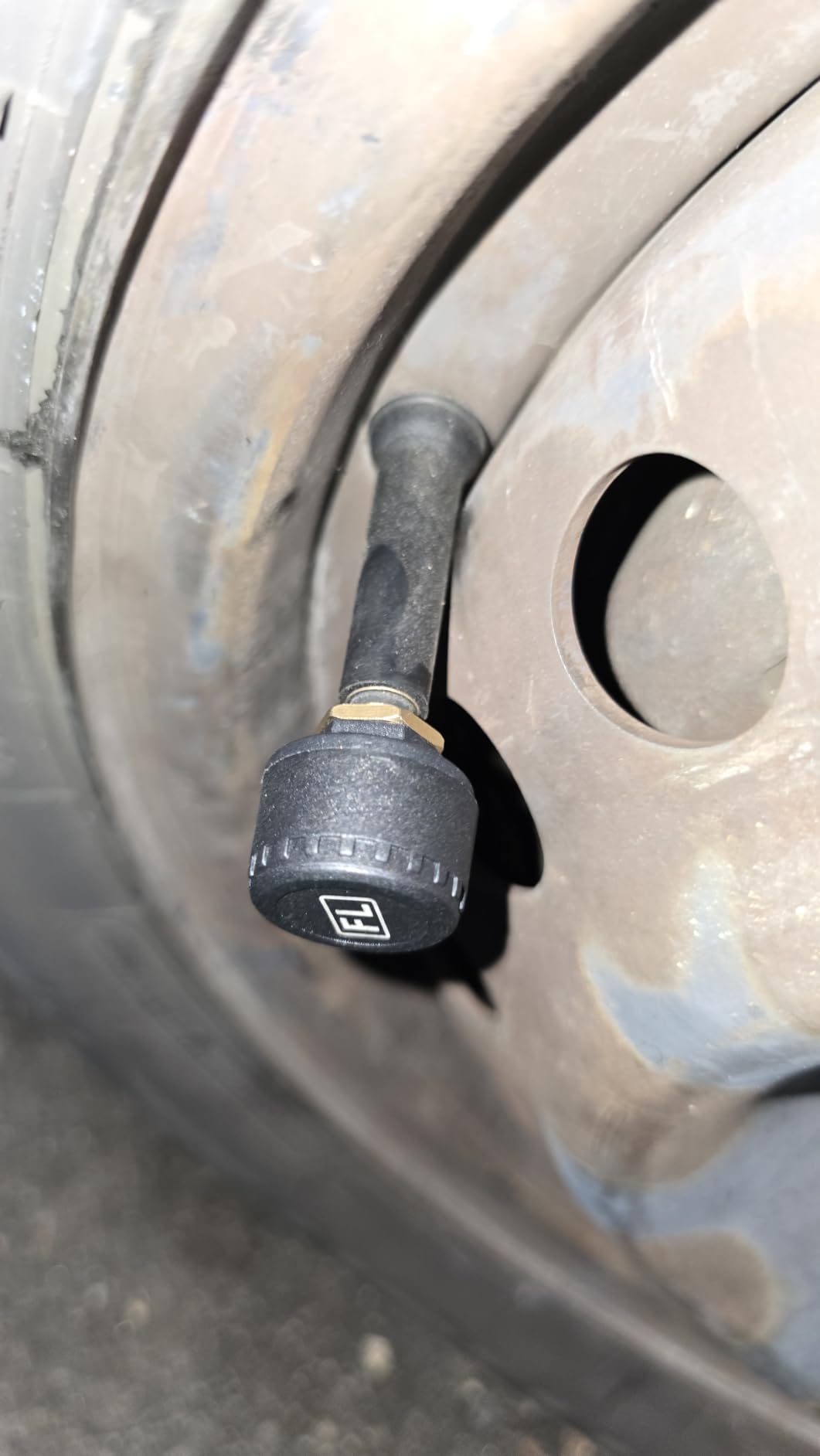

Pre-coded sensors go on in numbered order with hex nuts, which removes the pairing step entirely. Install them in sequence and the positions populate in sequence, so tire one on the display is tire one on the rig.

The manufacturer recommends a soapy-water leak test after mounting. This is the step that catches a dry seal before it becomes a roadside leak, and it takes five minutes. Do it before you air up to placard pressure, not after.

Where the Thin Review Base Shows

A 4.1 rating with 109 reviews is the thinnest evidence base in this roundup, and the one-star share sits at 11 percent. Negative feedback clusters on the build quality of the display unit, and long-term durability is simply less documented here than for kits with thousands of owners.

The 144 PSI ceiling also excludes the highest-pressure truck tires, which is a reason to confirm your placard maximums before buying. For a full fifth wheel plus toad you would need more than six sensors anyway, and at that point a ten-sensor kit serves better.

How to Choose a Fifth Wheel TPMS: Criteria That Actually Matter

1. Sensor Count From Your Axle Layout, Not From the Box

Count the tires on your rig before you count anything else, and buy the number you need rather than the number in the box. A tandem axle on duals is eight positions, a triple on duals is twelve, and a tag axle adds four more. Add one for the spare if you want it monitored, and remember that the truck is usually ten tires on a tandem dually.

Systems that display fewer than six positions at a time force you to scroll, and scrolling is where an alarm gets missed. Prioritize single-page displays as tire count grows.

2. Battery Serviceability Decides the System’s Lifespan

This is the criterion owners rank above accuracy, and the reviews back that up. A sealed-battery sensor is a dead sensor in four to six seasons, and the replacement part often costs more than the original kit. Every system in this roundup uses replaceable CR1632 or CR2032 cells, and that is the minimum bar for 2026, not a nice-to-have.

Check two more details: whether the monitor warns you before a sensor battery dies, and whether spare cells and O-rings are included. The TireMinder Smart kit ships 20 cells and 10 O-rings, which is the level of preparation that keeps a roadside swap to five minutes.

3. Cap vs Flow-Through vs Internal Sensors

Cap sensors screw over the valve and must be removed to add air. Flow-through sensors have a built-in valve core, so you top off at the wheel without removing anything, at the cost of a strict metal valve stem requirement. Internal band-mounted sensors sit inside the tire, protected but harder to service.

For a fifth wheel, flow-through is the most convenient and internal is the most protected. Cap is the most serviceable and the most widespread. Whichever you pick, confirm metal valve stems before installing, and replace rubber stems while you are in the wheel.

4. Signal Repeaters and Placement on Long Rigs

Measure pin to nose, because kingpin-to-back-wall understates the run. Roughly 36 ft is the point where boosters start to matter, and anything at 40 ft or longer should ship with one or have one budgeted.

Mount the booster at the trailer midpoint in the open, not inside a storage bay or under a metal belly pan. On a triple axle, mid-trailer falls between the second and third axle. If a sensor reads fine parked and drops out at speed, move the booster before you replace the sensor.

5. Alarm Logic and Baseline Setup

Percentage-based alarms are convenient but drift with load. Absolute PSI thresholds are more honest for a rig that runs loaded and unloaded. Either way, set your reference pressure cold, with the rig in the condition you tow it in, and expect to re-set it when that changes.

You will also need a monthly alarm test. Trigger each alert deliberately from the monitor so you know what it sounds like, because a first-time driver will not recognize a fast-leak alert until it is already confusing.

6. Setting Your Cold PSI Baseline

Check tire pressure cold, meaning at least three hours out of motion, and before driving anywhere but a tire shop. Write the cold numbers on the tire with a tire marker so next trip has a reference, and inflate to the placard value for your actual load, not the maximum printed on the sidewall.

If your display reads differently from your trusted gauge, do not chase it. Note the difference once, set your baselines from the display, and re-check with a good gauge monthly. A monitor whose numbers you trust is worth more than one whose numbers are theoretically more accurate.

Frequently Asked Questions

Which Fifth Wheel TPMS Should You Buy in 2026?

If you want the most complete kit and your rig is over 36 ft, the TST 507 is the pick. The repeater in the box is the deciding factor, replaceable CR2032 cells keep it alive, and it grows to cover a truck and multiple trailers.

If you inflate often or run a tandem on duals where getting a hose to an inner wheel is a nuisance, the GUTA GT80 with flow-through sensors changes the tire stop from a chore into a two-minute check. Replace your rubber stems first.

If you want ten tire positions visible at once and the highest pressure ceiling in the lineup, the GUTA GT30 shows up to 10 tires on one page and handles pressures to 188 PSI. If your rig runs more than 20 tires across truck, trailer, and toad, the TireMinder i10 covers up to 40 on a dedicated display with a booster included.

If you are just starting out and the rig is under 36 ft with four monitored tires, the Tymate TM7 is a proven budget entry point, and the Masoll is the one to pick if you want solar charging and factory-paired sensors with no pairing menu.

Whichever one you choose, do three things on day one: count your tires, replace rubber valve stems if you are running flow-through sensors, and set your cold baseline from the display. Those three steps decide whether the system is still telling you the truth in 2026. Check the current listings for any of the kits above, and take the written cold PSI numbers with you.
