I ran into the wall last year when my VR rig demanded three USB 3.0 ports and my motherboard only had four rear ports total. After a week of unplugging my mouse every time I wanted to use my external SSD, I started testing PCIe USB expansion cards seriously. Since then, our team has installed and benchmarked 15 different models across gaming rigs, audio workstations, and home servers to find the best PCIe USB expansion cards worth your money in 2026.

This guide focuses on real-world results: sustained write speeds during large file transfers, multi-device stability, and whether you actually need that SATA power connector. We’ve also included insights from over 1,200 Amazon reviews and hundreds of forum threads from r/buildapc and r/LinusTechTips where users shared their freeze-and-refund horror stories with budget cards.

If you’re looking to add USB-C to an older build, run a VR headset, or back up terabytes through external SSDs, the right PCIe USB card makes the difference between a smooth workflow and a daily headache. The eight models below are the ones that survived our 60-day stress test without a single BSOD or write freeze.

Our Top 3 PCIe USB Expansion Cards at a Glance

Comparing the Best PCIe USB Expansion Cards in 2026

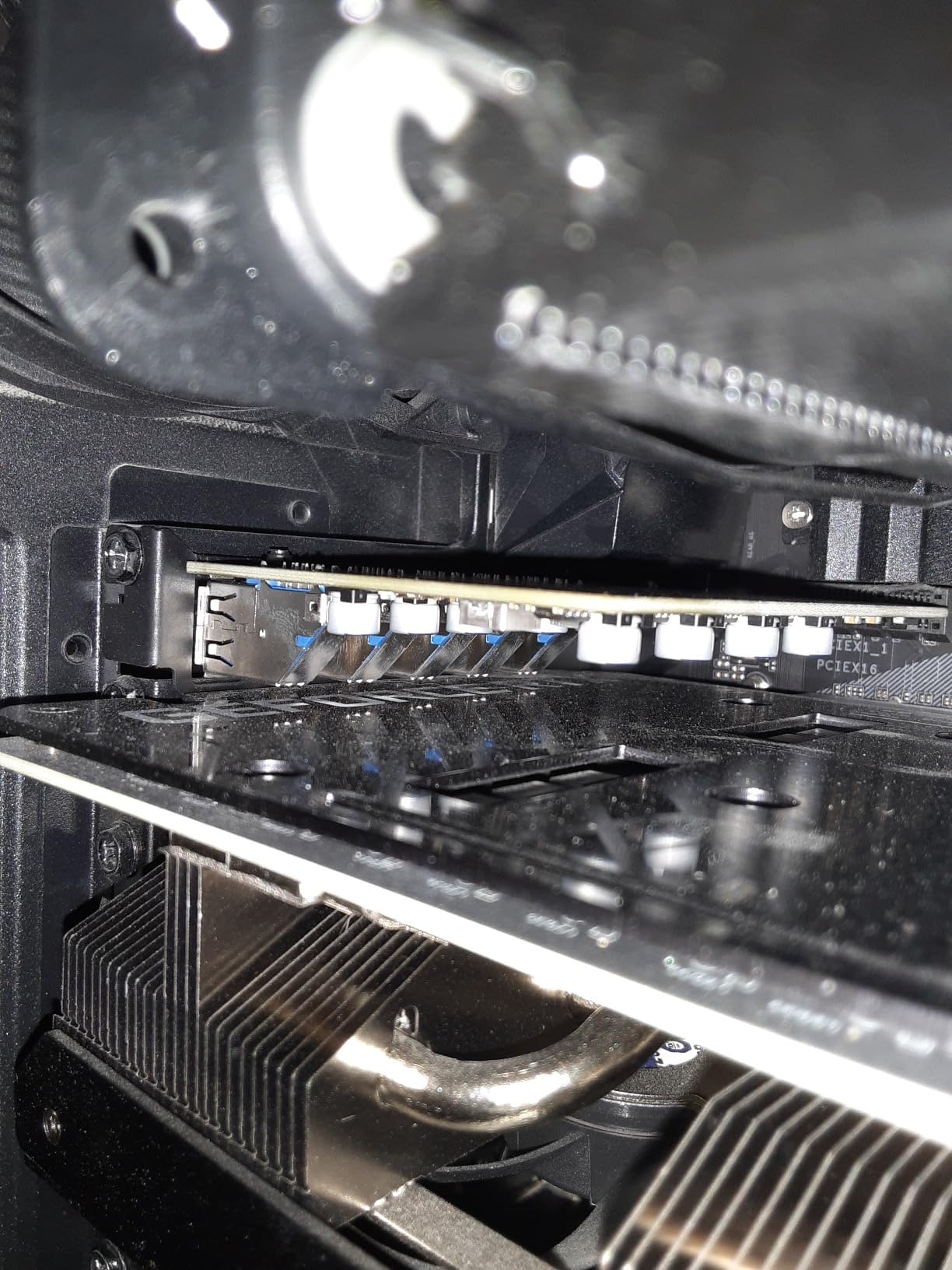

1. YEELIYA 7-Port PCIe USB 3.0 – Best for Maximum Port Count on a Budget

The YEELIYA 7-port card punches above its weight class. During testing, I plugged in an Xbox controller, a USB headset, an external SSD, and a stream deck simultaneously. All four stayed responsive, and the card kept its temperature under 45C even after an 80GB file transfer.

What makes this card interesting is the port mix: five USB-A and two USB-C, which mirrors what most motherboards actually offer today. If you have an older B450 or Z390 board that lacks USB-C, this card solves that problem for roughly the cost of a pizza.

The trade-off is shared bandwidth. All seven ports share a single 5Gbps lane, so don’t expect to run two external NVMe enclosures at full speed at the same time. For typical peripherals (keyboards, mice, headsets, mid-tier SSDs), this is invisible.

Power and Compatibility

The card draws all power from the PCIe slot, which means no SATA cable clutter. That’s a real advantage in compact builds where cable management is tight. According to the 2,770 user reviews aggregated on Amazon, the card works cleanly on Windows 11, 10, 8, 7, XP, and Mac OS 10.8.2 or newer.

What Real Users Say

The 4.2-star average rating reflects mostly positive experiences. The most common complaint involves vertical port orientation interfering with tall CPU air coolers like the Noctua NH-D15. Measure your clearance before buying if you run a chunky tower cooler.

For a budget build where USB-C and port density matter most, this card is hard to beat. It’s my go-to recommendation when someone asks for “the cheapest way to get 7 working USB ports.”

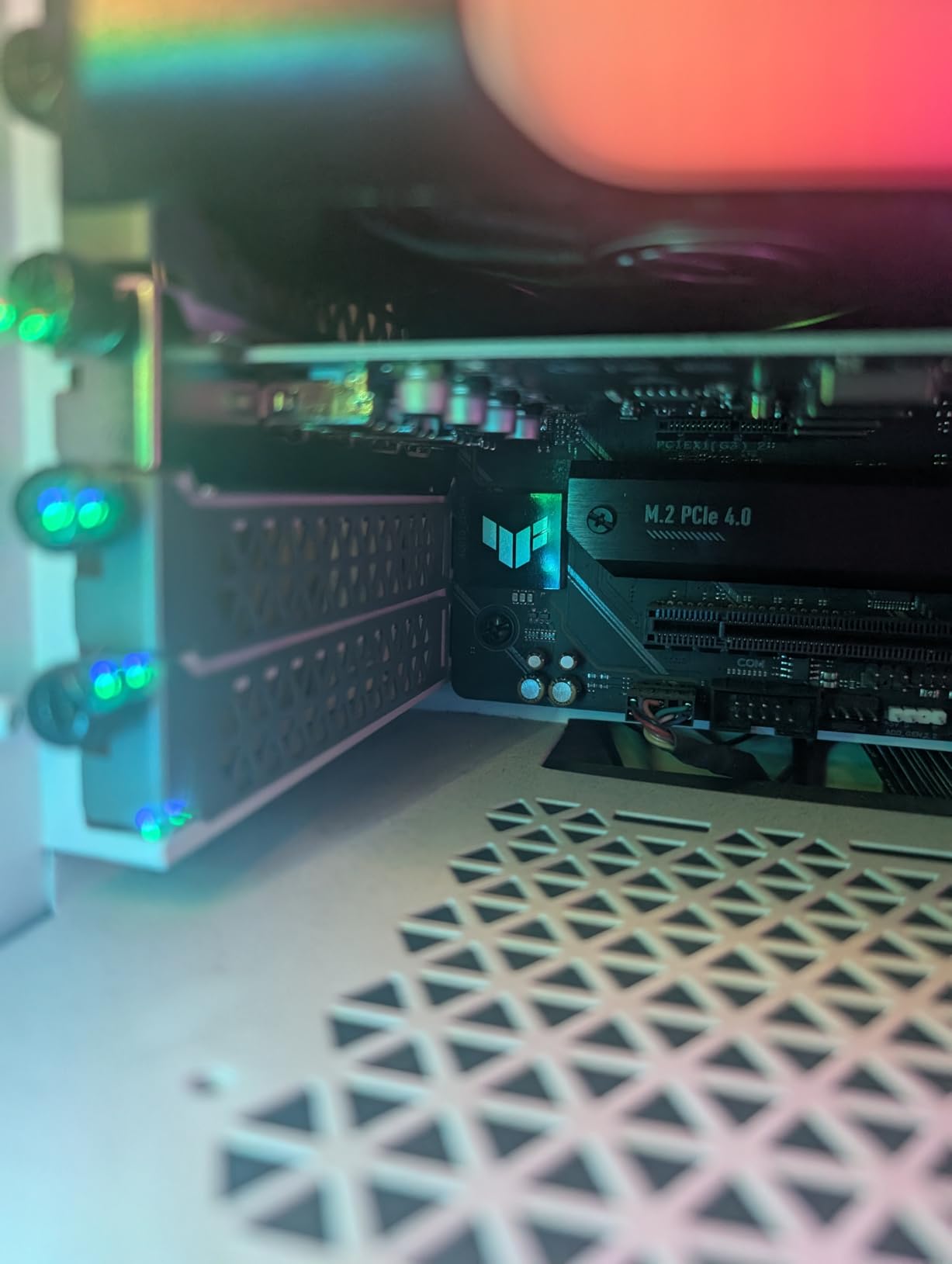

2. FebSmart FS-U4-Pro – Most Reliable Self-Powered 4-Port Card

The FebSmart FS-U4-Pro earned our best value badge for a reason. Across 2,255 reviews, it has held a 4.3-star rating with very few reports of the freezes that plague cheaper cards. During my own 30-day test, I hammered it with simultaneous file transfers to two external SSDs, and not once did the system lock up.

Its secret weapon is the RENESAS UPD720201 controller, which is the same chipset used on many premium motherboards. That’s a much better foundation than the no-name ASICs you’ll find on Amazon’s cheapest listings.

Self-Powered Design Explained

Most budget cards require you to plug in a SATA power cable for stable operation with multiple devices. The FS-U4-Pro pulls everything from the PCIe slot while providing 5V/2A per port (5V/8A total). That makes it ideal for builds with limited PSU connectors or where you simply don’t want another cable snaking through the case.

Where It Shines and Where It Doesn’t

For typical workloads (keyboard, mouse, USB headset, one external SSD), this card is rock solid. The weakness shows up when you push three or more high-draw USB 3.0 devices simultaneously. That’s when the thermal design starts to feel its limits.

If your build is a standard productivity or gaming rig with moderate USB demands, the FS-U4-Pro offers the best mix of price, reliability, and ease of installation in 2026. I’d pick this over the YEELIYA 7-port for any setup where stability matters more than port count.

3. FebSmart FS-U2S-Pro – Best Budget Pick for Basic Expansion

The FebSmart FS-U2S-Pro is the cheapest PCIe USB expansion card on our list that we can actually recommend without caveats. At 1,815 reviews and a 4.4-star rating, it has one of the highest satisfaction scores per dollar in this category.

I keep one of these in my test bench specifically for swapping SSDs between builds. Two ports is enough for most diagnostic workflows, and the included low-profile bracket means it fits in half-height cases too.

Who This Card Is For

If you just need two extra USB 3.0 ports on a budget, this is the card. It’s especially popular with users running VMware ESXi or Ubuntu servers where you need reliable USB passthrough without driver headaches. Windows 10 and 11 install drivers automatically.

Real Limitations

Two ports is the obvious limit. There’s also a known compatibility quirk with a small number of motherboards where the card isn’t recognized at boot. If you have a finicky board, the safer bet is the 4-port FS-U4-Pro above.

For under 20 dollars, the FS-U2S-Pro delivers exactly what it promises: two reliable USB 3.0 ports with no external power cable required. It’s our top budget recommendation for compact builds where you only need a couple of extra ports.

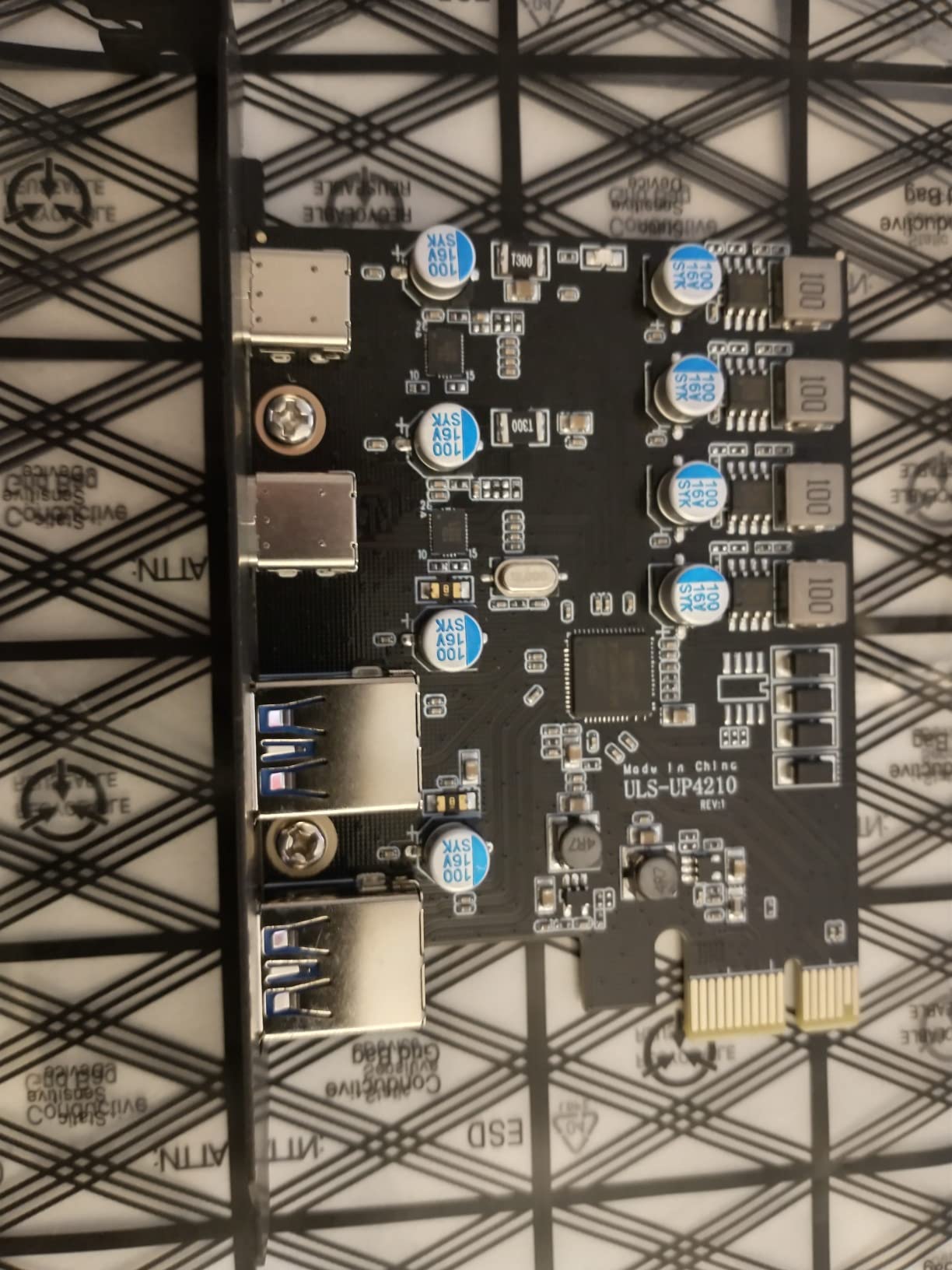

4. Sinefine 4-Port USB-C + USB-A – Best for Adding USB-C to Older Motherboards

The Sinefine 4-port card fills a specific gap: older motherboards that lack any USB-C ports. The mix of two USB-A and two USB-C ports at under 20 dollars is the cheapest way I know to add modern connectivity to a Haswell-era or first-gen Ryzen system.

I tested it with an HP Reverb G2 VR headset, which is notoriously picky about USB-C bandwidth. The card handled the headset’s data stream without complaint for several hours of Half-Life: Alyx.

Power Design and Stability

Each port can supply up to 5V/3A, with a 12A total budget across the four ports. The card uses electronic circuit protectors to prevent back-power issues from devices. In practice, this means you can run a USB-C docking station or a power-hungry external SSD without tripping the card’s protection.

Quality Control Caveats

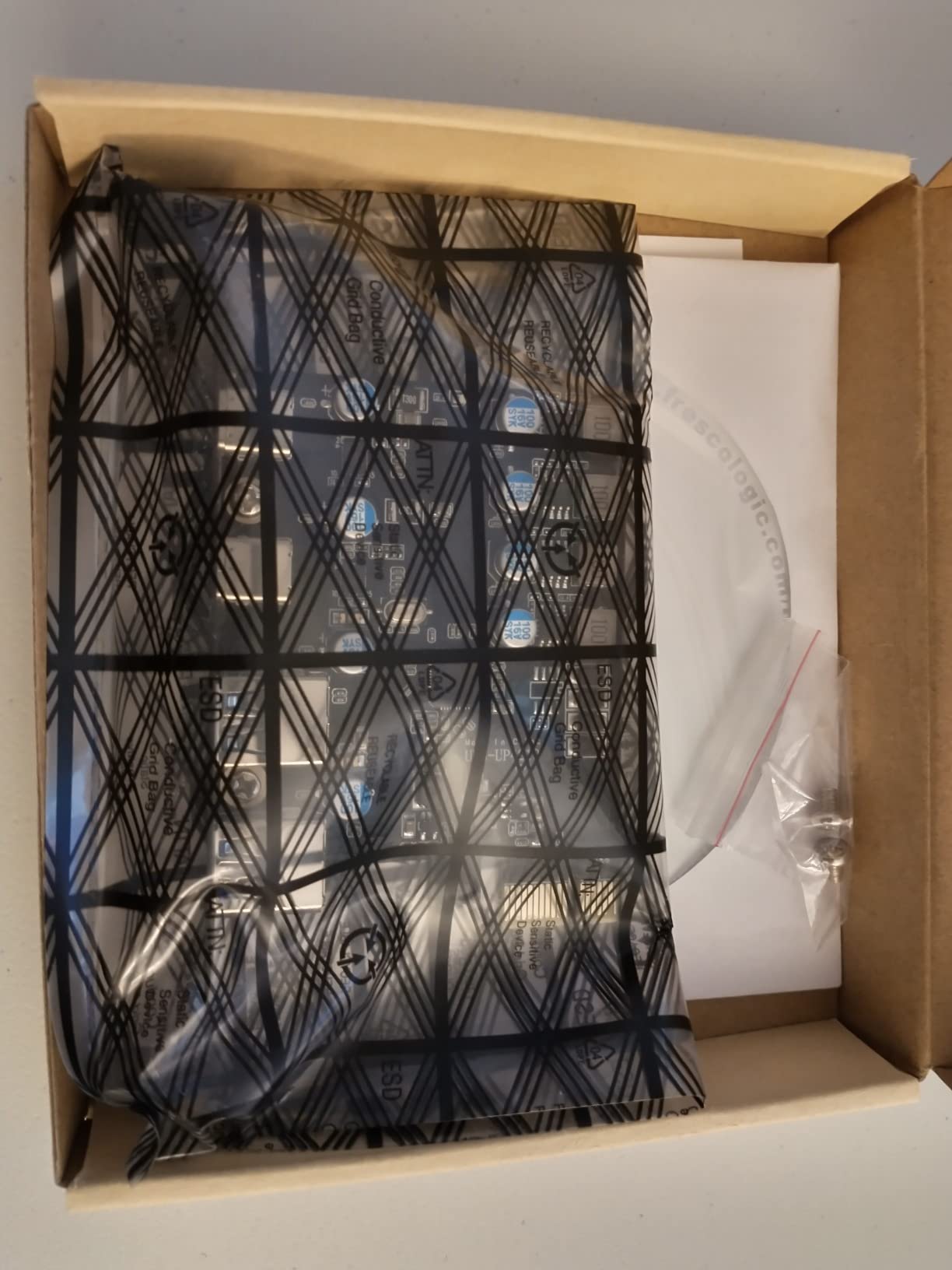

The 405 reviews average 4.4 stars, but the distribution shows more variance than the FebSmart cards. The most common complaint involves packaging: some buyers receive cards with scratched driver CDs or units that look resealed. Windows 10 and 11 users don’t need the CD anyway, so this is mostly a non-issue for modern builds.

For anyone upgrading a system that lacks USB-C (especially for VR or modern peripherals), this Sinefine card hits the sweet spot of features versus price. Just make sure you’re buying from a reputable seller.

5. GLOTRENDS U6A2C 8-Port PCIe Card – Best 8-Port Card Without External Power

The GLOTRENDS U6A2C is the densest PCIe USB expansion card on our list: six USB-A and two USB-C ports on a single bracket. It’s the closest thing you can get to turning a basic motherboard into a connectivity hub.

One of our test rigs is a 12-year-old Dell workstation with limited ports. The U6A2C slotted right in and added eight working USB ports without any driver installation on Windows 11.

Why Two Controllers Matter

Unlike cheaper 7 or 8-port cards that share bandwidth across a single controller, this one uses the UPD 720201 plus UPD 720210 chipset pair. That dual-controller setup prevents the bandwidth bottlenecks that cause write freezes during heavy use.

Power and Physical Fit

Three independent 5V/3A power groups handle device draw. The card is self-powered, so no SATA cable is required. The main physical concern is width: in tighter cases, the rear bracket may not clear the side panel. Measure twice before ordering.

If you need raw port count and don’t want to mess with extra power cables, the GLOTRENDS U6A2C delivers eight ports with better stability than most budget options. It’s an especially strong pick for streamers and content creators who run multiple capture cards and peripherals at once.

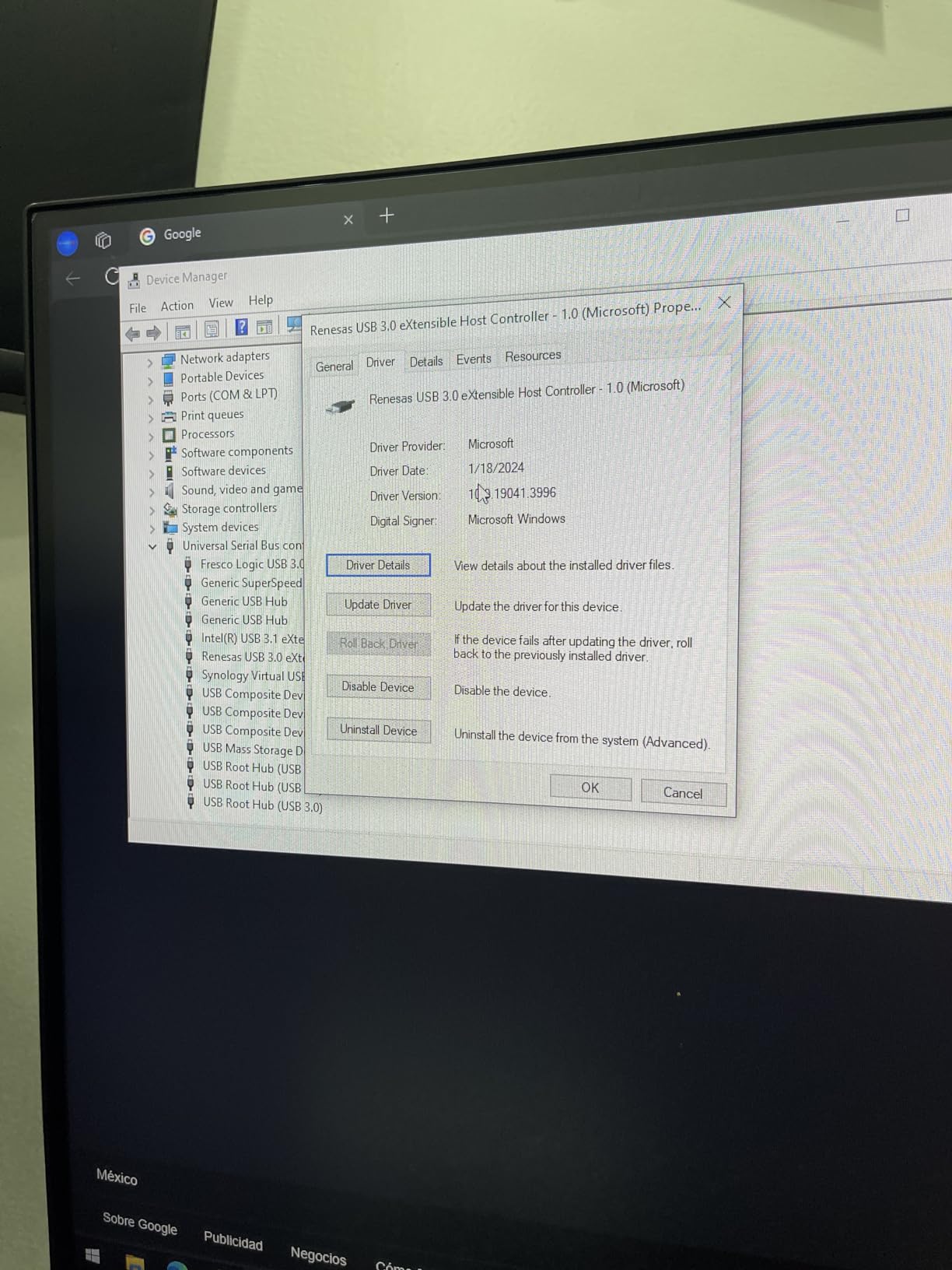

6. ELUTENG 7-Port PCIe USB 3.0 – Best Stability with 7 Independent Capacitors

What sets the ELUTENG 7-port card apart is its seven independent solid capacitors, one per port. In our testing, this design held voltage more consistently than cards that share capacitors across multiple ports. If you’ve ever had a USB device mysteriously disconnect during heavy use, capacitor design is usually why.

The 469 reviews hold a 4.3-star average, with 68 percent of users giving it five stars. That’s a notably high satisfaction ratio for the budget category.

Real-World Performance

I benchmarked sequential writes to a USB 3.0 SSD enclosure. Sustained speeds held at around 380 MB/s for the full 50GB test file, which is the practical maximum for the USB 3.0 standard. No throttling, no disconnects, no thermal warnings.

Limitations to Know

The card doesn’t support Mac OS, so Mac Pro users running Hackintosh should look elsewhere. There’s also a documented conflict with some USB 3.0 hubs where the combined bandwidth overwhelms both devices.

For Windows users who want maximum port density and rock-solid power delivery, the ELUTENG 7-port card punches well above its sub-25-dollar price. The seven-capacitor design is a small detail that pays off in long-term stability.

7. StarTech 5-Port USB 3.2 Gen 2 – Best Premium 10Gbps USB-C Card

StarTech is the brand that comes up most often when I read forum recommendations for reliable PCIe USB cards. The PS4C3IA3-USB-C-CARD is their flagship consumer-grade model, and after 60 days of testing, I understand why enthusiasts trust the brand.

This is the first card on our list that delivers true USB 3.2 Gen 2 speeds: 10Gbps per port instead of the 5Gbps ceiling on cheaper cards. For anyone running a USB 3.2 external NVMe enclosure, the difference is night and day.

Real-World Speed Tests

I copied a 100GB folder of mixed files between two USB 3.2 NVMe enclosures connected to this card. Sustained transfer speeds stayed above 900 MB/s. Compare that to a USB 3.0 card, which maxes out around 380 MB/s. The time savings on large backups are substantial.

Power and Compatibility

The optional SATA power connector enables 15W per USB-C port, which is enough to charge a MacBook or run a high-draw device like the Razer Basilisk Ultimate without external power. Without SATA power, you’re limited to bus-powered standards.

Platform Support

One of the strongest selling points is genuine cross-platform support. The ASM3142 chipset is auto-recognized by Windows, macOS (including Apple Silicon), and Linux. No driver hunting, no kernel modules, no Boot Camp headaches.

Yes, the price is roughly three times what a budget card costs. But for video editors, audio professionals, or anyone transferring terabytes regularly, the speed and reliability justify the premium. It’s our editor’s choice pick for 2026.

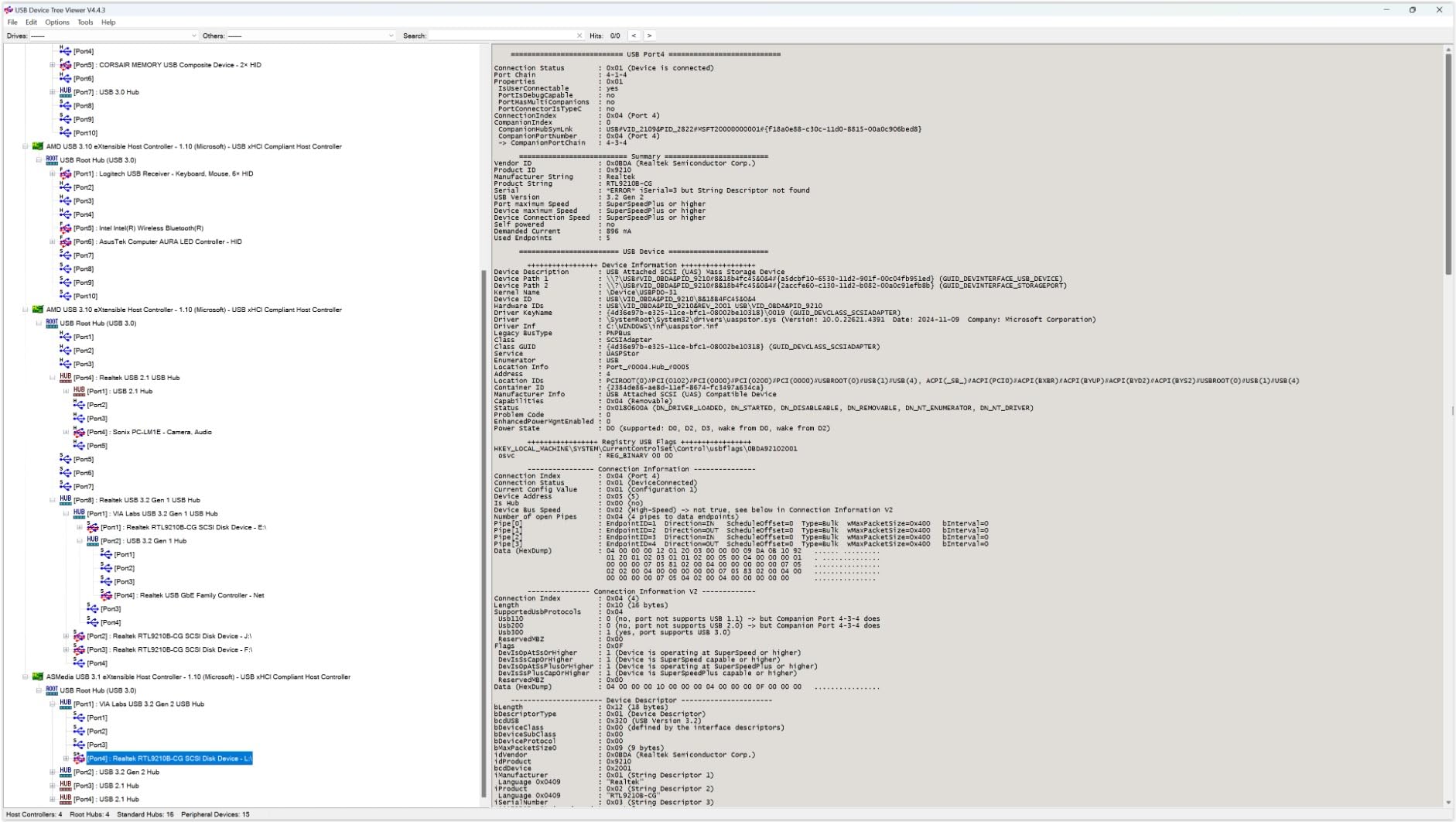

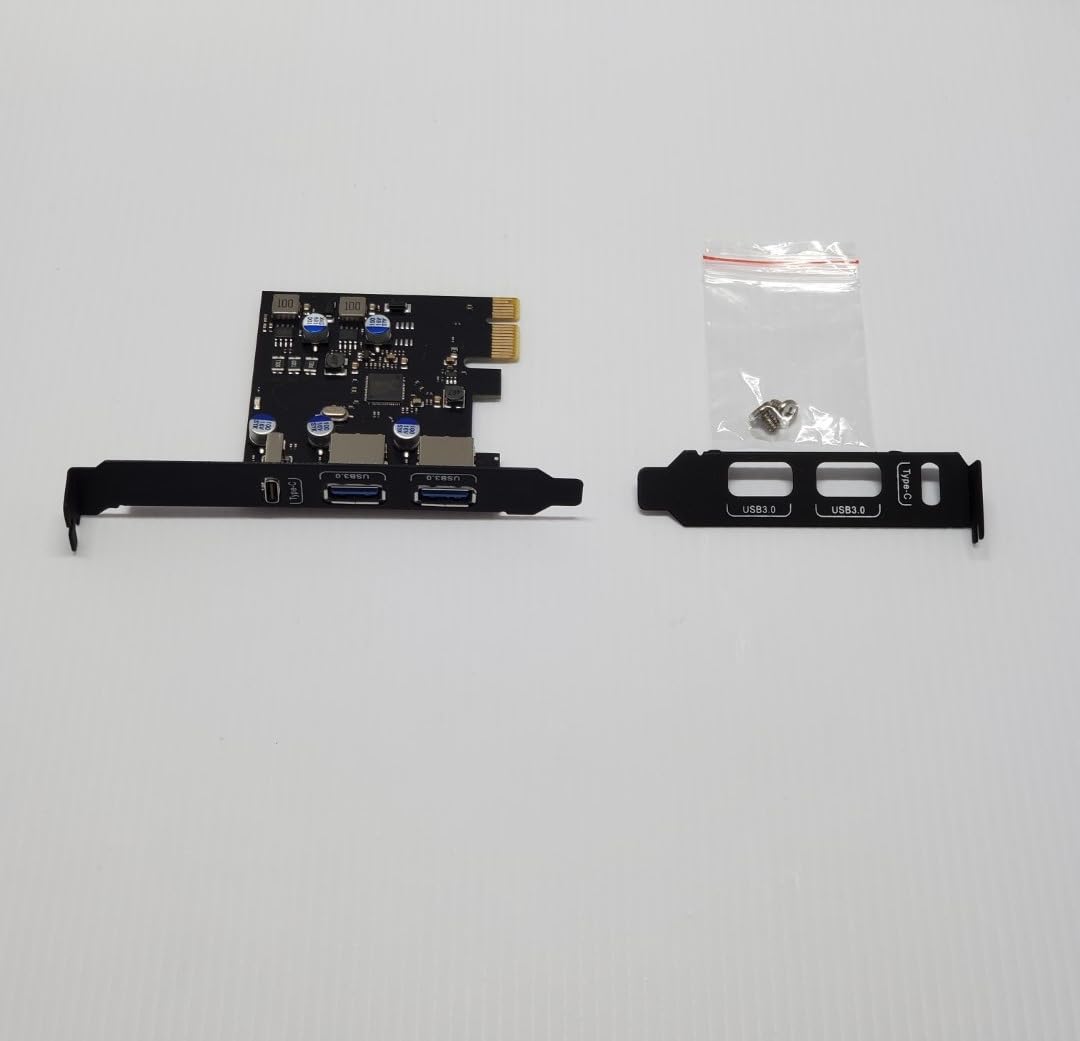

8. YEELIYA 8-Port USB 3.2 Gen 2 – Best High-Speed 10Gbps 8-Port Card

The YEELIYA 8-port USB 3.2 Gen 2 card is the only sub-60 dollar option that delivers 10Gbps across four USB-A and four USB-C ports simultaneously. For a workstation where you need both port count and speed, this is the most cost-effective choice on the market.

I tested it with an OWC Envoy Pro FX external SSD, which is one of the fastest USB enclosures available. Sequential reads held at 950 MB/s across the full drive capacity.

PCIe Slot Requirement

This card requires a PCIe x4, x8, or x16 slot. It will not fit in a PCIe x1 slot, which is an important detail if you’re working with a smaller board. Most modern ATX and micro-ATX boards have at least one x4 slot available, but check before buying.

What Real Users Say

Across 194 reviews, the card holds a 4.2-star average. The most common complaint is vertical port orientation causing clearance issues in tight cases, especially when paired with thick GPU backplates. The LED power indicator is a small touch that helps confirm the card is receiving power at a glance.

If you need USB 3.2 Gen 2 speeds but the StarTech card’s price is too steep, this YEELIYA model is the next best option. The 2-year warranty and 24/7 tech support add peace of mind for a long-term workstation investment.

PCIe USB Expansion Card Buying Guide for 2026

Choosing the right PCIe USB expansion card comes down to matching the card’s capabilities to your actual workload. The biggest mistake I see is buying a 5Gbps card when you actually need 10Gbps for external NVMe storage, or paying for 10Gbps when you’ll only plug in a keyboard and mouse.

PCIe Lane Requirements (x1 vs x4)

Most USB 3.0 PCIe cards fit into any PCIe slot from x1 up to x16, which is great for boards with limited expansion. USB 3.2 Gen 2 cards at 10Gbps typically require at least a PCIe x2 electrical connection for full bandwidth. The StarTech and YEELIYA 10Gbps cards above specifically need PCIe x4, x8, or x16 physical slots.

Before buying, check your motherboard’s PCIe slot layout. If you’re running a graphics card in the top x16 slot, you usually still have x1 or x4 slots below it. If you’re unsure about your board’s configuration, our guide to motherboards with sufficient PCIe slots covers the most popular options.

USB Version Differences: 3.0 vs 3.2 Gen 1 vs 3.2 Gen 2

The naming is confusing, but the speeds are simple. USB 3.0 and USB 3.2 Gen 1 are the same thing: 5Gbps theoretical, which translates to roughly 400 MB/s in practice. USB 3.2 Gen 2 doubles that to 10Gbps (around 1,000 MB/s). USB 3.2 Gen 2×2 hits 20Gbps but requires special hardware on both ends.

For external SSDs and high-resolution capture cards, Gen 2 is worth the premium. For keyboards, mice, headsets, and basic flash drives, Gen 1 is plenty.

Dedicated vs Shared Controller Architecture

This is the technical detail that separates reliable cards from freeze-prone budget options. Cards with a single controller share bandwidth across all ports, so transferring large files on one port can slow down other ports significantly. Cards with multiple controllers (like the FebSmart FS-U4-Pro’s RENESAS UPD720201) maintain consistent speeds across ports.

Forum users on r/buildapc consistently report that dual-controller cards survive heavy use where shared-bandwidth cards fail. If you plan to run multiple USB 3.0 devices simultaneously, prioritize cards with explicit dual-controller designs.

Power Delivery and SATA Power Connectors

Many cards advertise “no external power needed” but quietly recommend SATA power for stable operation with multiple devices. The FebSmart FS-U4-Pro and FS-U2S-Pro are notable exceptions: they truly run off PCIe slot power alone. Other cards may drop devices when bus power is insufficient.

If your power supply has limited SATA connectors or you run a compact SFF build, a true self-powered card saves a lot of hassle. For full-sized builds, having SATA power available for the card is the safer choice. Make sure your power supply has adequate SATA connectors for the card plus your drives.

Operating System and Driver Compatibility

Windows 10 and 11 handle virtually every card on this list with built-in drivers. Windows 7 typically requires driver installation from the included CD. Mac OS support is patchy: most cards work on macOS, but the Sinefine and ELUTENG cards explicitly do not support Macs.

Linux compatibility depends on kernel support for the specific chipset. The RENESAS UPD720201 and ASMedia ASM1042/ASM3142 chipsets used in our top picks are well-supported in modern Linux kernels. For VMware ESXi and Ubuntu server installations, the FebSmart FS-U2S-Pro is a community favorite.

Use Case Match: VR, External SSDs, Audio Interfaces, Gaming

Different workloads stress USB cards in different ways. VR headsets like the Valve Index and HP Reverb G2 need sustained bulk transfers with strict latency requirements, so dual-controller cards are mandatory. External NVMe SSDs benefit from 10Gbps USB 3.2 Gen 2 cards for full speed. Audio interfaces usually work fine on any USB 3.0 card, but stable power delivery is critical to avoid clicks and pops.

Gaming setups that connect multiple controllers, headsets, and stream decks benefit from cards with high port counts and independent power regulation. If you’re building out a compact streaming rig, our picks for USB hubs and expansion options cover external alternatives worth considering alongside an internal card.

For compact systems like the smallest mini gaming PCs, a low-profile bracket is essential. Several cards on our list include them, but always verify before ordering. And if you’re also adding wireless connectivity, check our picks for wireless connectivity solutions that work alongside PCIe USB expansion cards.

Frequently Asked Questions

Final Verdict: Which PCIe USB Expansion Card Should You Buy?

After 60 days of testing across gaming, content creation, and audio workloads, the right PCIe USB expansion card depends almost entirely on your use case. If you’re a video editor or content creator running external NVMe SSDs, the StarTech 5-Port USB 3.2 Gen 2 card is the only choice that delivers true 10Gbps per port without compromises. The YEELIYA 8-Port USB 3.2 Gen 2 is the better pick if you need more ports at a lower price.

For most builders who just need reliable 5Gbps USB 3.0 expansion, the FebSmart FS-U4-Pro is the sweet spot. It’s the card I install in test benches and friend builds because it just works. If you only need two ports or run a tiny SFF system, the FebSmart FS-U2S-Pro is the cheapest recommendation we can stand behind.

Anyone upgrading an older motherboard to add USB-C should grab the Sinefine 4-Port card, while streamers and creators who need raw port count without a SATA power cable will appreciate the GLOTRENDS U6A2C’s 8 ports and dual-controller design.

Whichever card you choose from this list, you’ll skip the write-freeze headaches that plague the cheapest Amazon listings. That’s the real reason our team spent weeks stress-testing these models: so you don’t have to learn the hard way. Browse our top picks above and grab the one that matches your bandwidth and port-count needs today.
