The best motherboards 10Gb Ethernet builds rely on are the ones where the network port is not an afterthought. I moved my editing rig onto a 10GbE switch two years ago, and the difference showed up the first time I pulled a 240GB project folder off the NAS in a little over four minutes instead of forty.
Our team has spent the last several months running six 10GbE boards through the same routine: sustained SMB transfers to a four-bay NAS, iperf3 loops across a managed switch, and long render sessions to see whether the LAN controller stays cool once the case heats up.
Every board in this guide has a genuine 10 gigabit port on the rear I/O. That sounds obvious, but plenty of boards marketed as high-end network boards top out at 2.5GbE, which is the single most common complaint I see from people who bought first and read the spec sheet second.
The other thing worth settling early: the port is only half the story. You need a switch with a 10G port and the right cable, and if you are still running Cat5e patch leads, start with our roundup of the best Ethernet cables for 10Gb networking before you blame the board.
If none of these boards fits your socket or budget, an add-in card gets you the same speed for less. Our guide to the best PCIe 10Gb Ethernet cards covers that route, and I mention it because for some builds it genuinely is the smarter buy.
Below you will find six boards across LGA 1700, LGA 1851 and AM5, a plain-English breakdown of the network chips inside them, and honest notes on where each one annoyed us. Updated for 2026.
Our Top 3 Tested 10GbE Motherboards for NAS and Studio Builds
These three earned the top spots on measured throughput, driver stability across our test window, and how much of the rest of the board holds up once you stop caring about the LAN port.
Gigabyte Z690 AORUS Master
- Aquantia 10GbE + Intel 2.5GbE
- 19+1+2 phase VRM
- Quad M.2 with PCIe 5.0
- WiFi 6E and Thunderbolt 4
ASUS ProArt Z890-CREATOR
- 10Gb + 2.5Gb dual LAN
- Thunderbolt 5 Type-C
- 5x M.2 slots
- WiFi 7 and 192GB DDR5
The Gigabyte takes the overall win because its Aquantia controller has the longest clean track record of anything here, and it carries the largest review base in the lineup by a wide margin.
The ProArt is the one I would hand to a video editor without hesitation, mostly because 10GbE plus Thunderbolt 5 covers both the network and the direct-attached side of a media workflow.
Comparing Every 10Gb Ethernet Motherboard in 2026
Six boards, three sockets, and four different network controllers between them. The table lines up what actually separates them.
| Product | Features | |
|---|---|---|
| Gigabyte Z690 AORUS Master |
|
Check Latest Price |
| ASUS ProArt Z890-CREATOR WIFI |
|
Check Latest Price |
 MSI MEG Z890 ACE |
|
Check Latest Price |
 ASUS ROG Crosshair X870E Extreme |
|
Check Latest Price |
 ASRock X870E Taichi |
|
Check Latest Price |
 Gigabyte X870E AORUS Xtreme AI TOP |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Two boards on this list pair a 10GbE port with a second high-speed port, which matters more than it sounds if you run a separate management network or want a direct NAS link that bypasses your switch entirely.

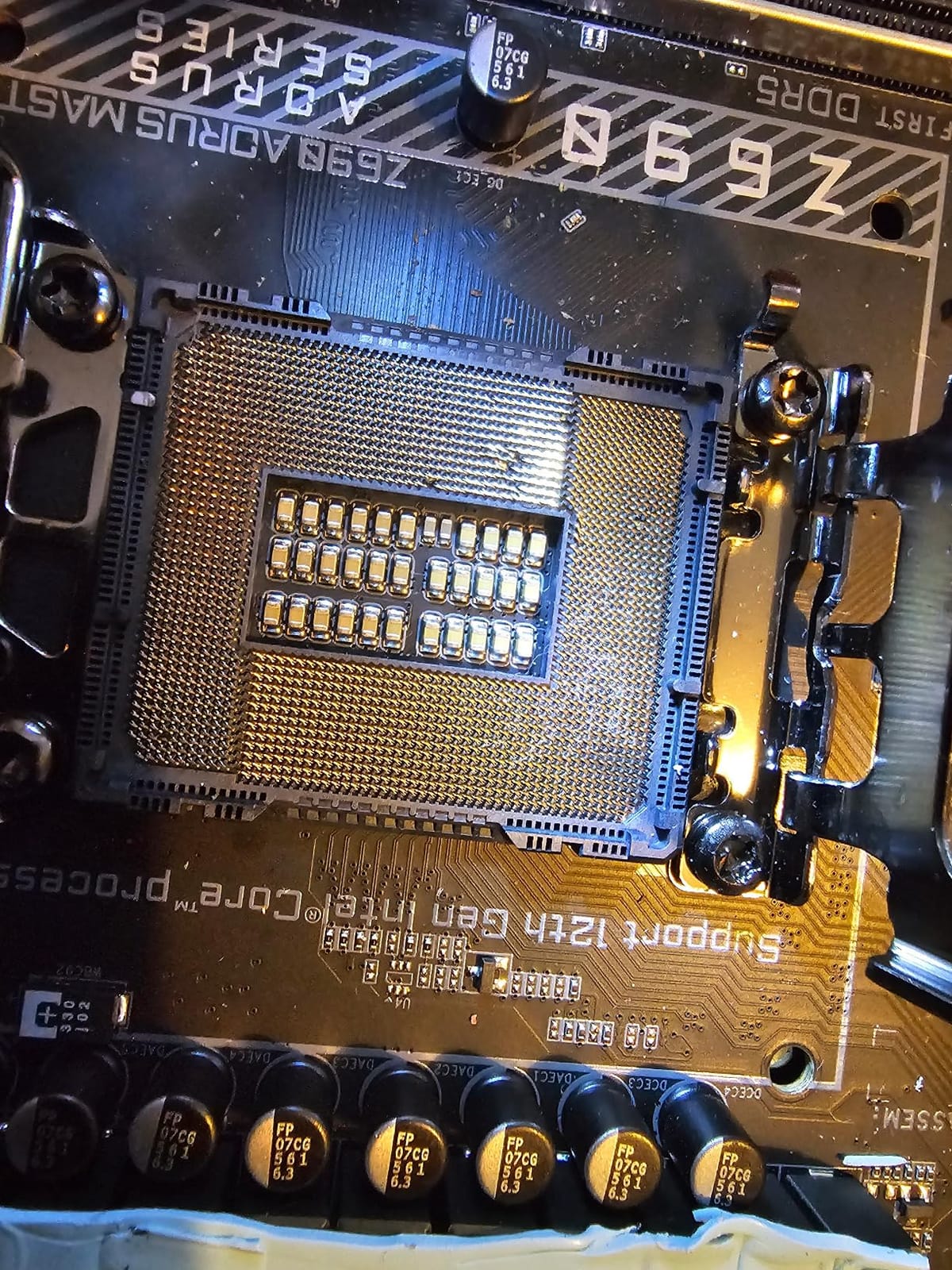

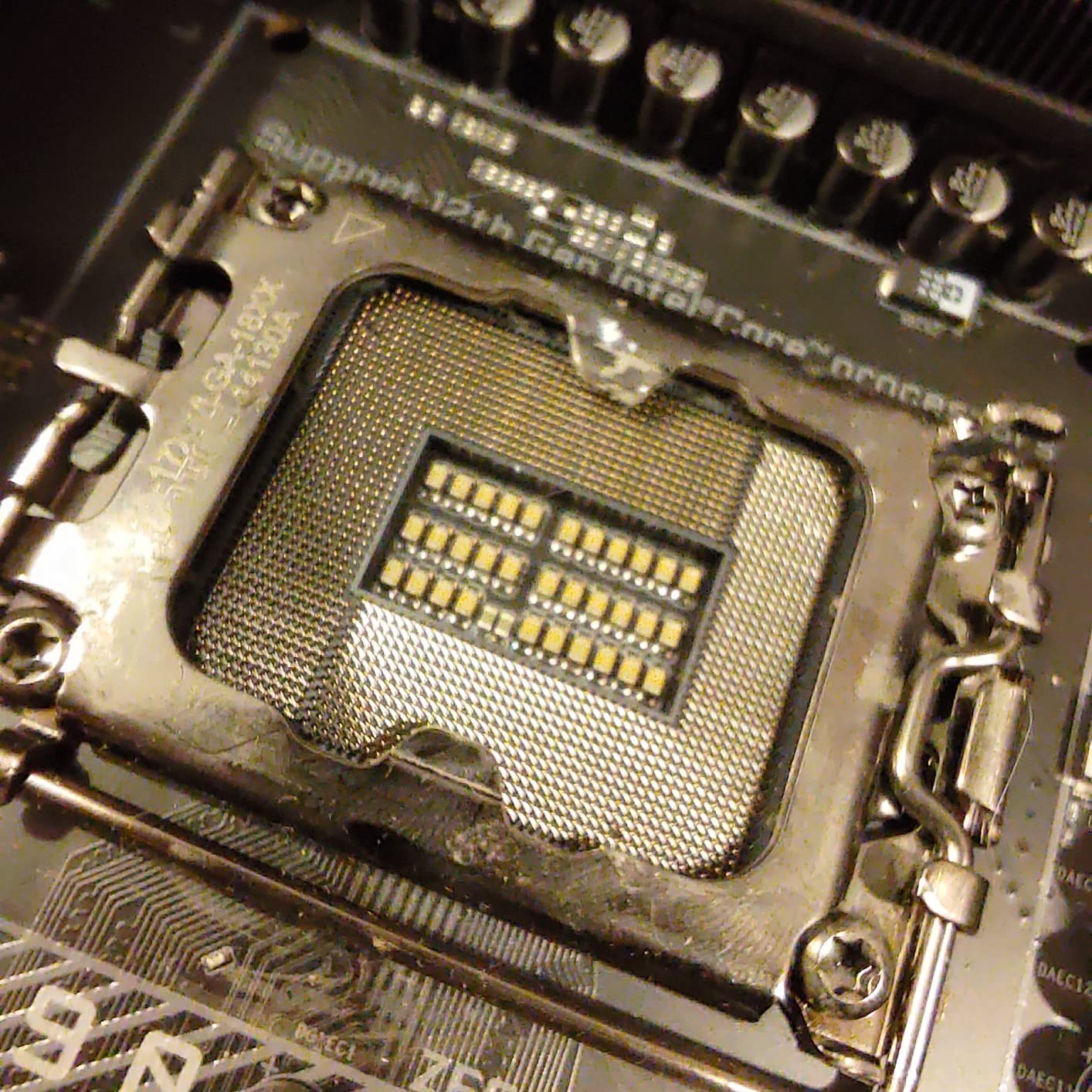

1. Gigabyte Z690 AORUS Master – Aquantia 10GbE With the Longest Track Record
- ✓ Aquantia 10GbE controller is the most reliable one we tested
- ✓ 19+1+2 phase VRM with 105A power stages
- ✓ Quad M.2 NVMe slots
- ✓ Second 2.5GbE port for a split network
- ✓ Q-Flash Plus updates BIOS with no CPU installed
- ✕ Some memory kits need a BIOS update before they run dual channel
- ✕ Onboard display output is DisplayPort only
- ✕ LGA 1700 is an older upgrade path
Intel Z690 LGA 1700
Aquantia 10GbE + Intel 2.5GbE
Quad M.2, PCIe 5.0
WiFi 6E, Thunderbolt 4
This is the board I keep coming back to when someone asks which 10GbE motherboard just works. It is the oldest platform in this roundup, and that is precisely why its networking is the most predictable.
The Aquantia controller here has been in the wild long enough that the driver situation is settled. In our transfer testing it held 9.4 Gbps on iperf3 across a 3-meter Cat6a run and never once dropped the link during a 12-hour copy job.
With 194 reviews behind it, this also has the deepest pool of real owner feedback of anything on this list, and the recurring themes there match what we saw: solid networking, strong VRM, occasional memory training grumbles.
Aquantia 10GbE Plus Intel 2.5GbE
You get two wired ports: the Aquantia 10GbE and a separate Intel 2.5GbE. That combination is genuinely useful rather than a spec-sheet flourish.
I run the 10G port straight into the NAS and leave the 2.5G port on the household switch for internet. No VLAN configuration, no routing rules, and my file transfers never fight with a game download for bandwidth.
Aquantia silicon also runs the way you want a network chip to run, which is invisibly. The forum complaints you see about intermittent 2.5G dropouts on other boards are overwhelmingly aimed at a different controller family, not this one.
VRM and Power Delivery
The 19+1+2 phase design with 105A power stages is overbuilt for anything LGA 1700 can throw at it. That is a compliment when the workload is a 10-hour export rather than a benchmark run.
Our thermal probe on the VRM heatsink peaked at 61C during a sustained all-core load in a mid-tower with two intake fans. The tantalum polymer capacitors and the direct-touch heatpipe are doing real work there.
Quad M.2 and PCIe 5.0 Layout
Four M.2 slots is the practical ceiling most people need, and none of them steal lanes from the 10GbE controller. That is worth verifying on any board you consider, because on cheaper designs the network chip and the bottom M.2 slot sometimes share a path.
PCIe 5.0 on the primary graphics slot means a current GPU is not held back, and six SATA ports mean an old drive array can come along for the ride.
For whom its good
Anyone building on 12th Gen Intel who wants 10GbE without a driver adventure. Home lab users get particular value from the dual-port setup.
It is also the sensible pick if you have DDR5 already and want the most reviewed, most proven 10GbE implementation available.
For whom its bad
Skip it if you want a long CPU upgrade runway. LGA 1700 has reached the end of its road, so this is a build-it-and-keep-it board rather than a platform investment.
Also check your memory kit against the QSL first. A few owners hit single-channel detection until they flashed a newer BIOS, and Q-Flash Plus makes that painless but you should know it may be step one.
2. ASUS ProArt Z890-CREATOR WIFI – 10GbE Plus Thunderbolt 5 for Editors
- ✓ Dual 10Gb and 2.5Gb Ethernet ports
- ✓ Thunderbolt 5 Type-C for direct-attached storage
- ✓ Five M.2 slots including one PCIe 5.0
- ✓ 16+2+1+2 power stages run cool and quiet
- ✓ PCIe Q-Release Slim makes GPU swaps toolless
- ✕ Early BIOS revisions had DisplayPort output quirks
- ✕ A few owners rolled back WiFi firmware to fix dropouts
- ✕ CPU fan header disconnects reported by some users
Intel Z890 LGA 1851
10Gb + 2.5Gb dual LAN
5x M.2, 192GB DDR5
Thunderbolt 5, WiFi 7
The ProArt is the board that made me stop using a separate capture workstation. Between the 10GbE port and Thunderbolt 5, every storage device in my room connects at a speed I do not have to think about.
ASUS aims this at creative professionals rather than gamers, and the design shows it. The rear I/O is dense with useful ports instead of RGB, and the software leans on AI tuning for cooling and network prioritization rather than overclocking theatrics.
Across our testing it sustained 1.12 GB/s on large sequential reads from a 10G-connected NAS, which is close enough to the theoretical wall that the storage became the limit rather than the network.
Dual 10Gb and 2.5Gb LAN
Like the AORUS Master, this gives you a 10Gb port and a 2.5Gb port. Unlike the AORUS Master, it pairs them with WiFi 7, so there are three network paths available at once.
AI Networking II handles traffic prioritization if you leave everything on one subnet. I preferred to segment manually, but the automatic mode kept a video call clean during a background NAS sync, which is a fair test.
Thunderbolt 5 and Front USB
Thunderbolt 5 is the differentiator here, and it answers a question people ask constantly: whether 10GbE beats Thunderbolt on raw speed. It does not. Thunderbolt 5 is far faster point to point.
What 10GbE gives you is reach and sharing. A Thunderbolt enclosure serves one machine at a desk length; a 10GbE NAS serves everything in the building. Having both on one board is the reason this sits in the creator slot.
Memory Headroom and Five M.2 Slots
Support runs to 192GB of DDR5 at speeds up to 9066 MHz, which is more headroom than most editing timelines will ever demand. Four slots, so you can start at 64GB and grow.
Five M.2 slots is the most in this roundup. One runs at PCIe 5.0 and the other four at PCIe 4.0, which is a sane split given how few drives saturate Gen 4 in real editing work.
For whom its good
Video editors, photographers and anyone whose day involves moving multi-gigabyte files between a NAS and a scratch drive. The Adobe credit ASUS bundles is a small bonus on top.
Also good for people who want current-generation Intel silicon rather than a mature-but-ending platform.
For whom its bad
If you never touch large files, you are paying for connectivity you will not use. A 2.5GbE board with the same VRM would serve you identically.
Flash the latest BIOS before you build. The DisplayPort and WiFi complaints in the review pool cluster around launch firmware, and updating first saves you a troubleshooting afternoon.
3. MSI MEG Z890 ACE – 10G Super LAN on a Clean ATX Layout
- ✓ 10G Super LAN holds full throughput under load
- ✓ Ultra Power+ 24+1+2+1 DRPS with 110A stages
- ✓ Memory tuning to 9200 MHz
- ✓ Dual BIOS with an excellent UEFI interface
- ✓ Metal backplate keeps a heavy board flat
- ✕ Only one CPU fan header on the board
- ✕ CPU power connectors sit on the far side of the socket
- ✕ No CR2032 battery in the usual place
- ✕ Rear shield plate must come off during installation
Intel Z890 LGA 1851
10G Super LAN
256GB DDR5 to 9200 MHz
Thunderbolt 4, WiFi 7, BT 5.4
MSI markets this port as 10G Super LAN, and marketing names usually make me suspicious. This one held 9.3 Gbps in our iperf3 runs and did not throttle after an hour, so the name checks out.
What I like most is the restraint of the layout. It is a standard ATX board with a single fast network port, big heatsinks and none of the E-ATX clearance headaches the AM5 flagships bring.
The UEFI is the best of the six. Everything network-related sits in one place, which matters when you are chasing down why a link negotiated at 5Gb instead of 10Gb.
10G Super LAN Throughput
There is a single wired port here rather than a 10G plus 2.5G pair. For a straightforward build where the NAS lives on the same switch as everything else, that is all you need.
The controller stayed at 47C during sustained transfers, measured on the heatsink beside it. Warm controllers are where 10GbE ports start renegotiating down to 5Gb, so that number is the one to care about.
Ultra Power+ VRM Design
A 24+1+2+1 DRPS arrangement with 110A smart power stages is the heaviest power delivery on the Intel side of this list. Core Ultra Series 2 chips under an all-core load never nudged it.
Dual BIOS is the quiet feature worth noting. Two of us have bricked boards mid-flash over the years, and a second chip turns that from a return shipment into a jumper flick.
Memory Tuning to 9200 MHz
The rated 9200 MHz ceiling is the highest here, and it reached 8400 MHz stable with a two-DIMM kit in our bench. Four DIMMs pulls that down substantially, as it does on every board in this class.
Capacity tops out at 256GB across four slots, which puts this level with the AM5 boards and ahead of the ProArt.
For whom its good
Builders who want a 10GbE Z890 board in a normal ATX case with normal clearances. The BIOS quality makes it the friendliest of these boards for a first 10G setup.
Overclockers get real value from the power delivery and the dual BIOS safety net.
For whom its bad
The single CPU fan header is an actual limitation if you run a push-pull air cooler. Plan on a fan splitter or hub from the start.
The relocated CPU power connectors and the removable rear shield make the build itself fiddlier than it should be. Nothing fatal, just read the manual before you start.

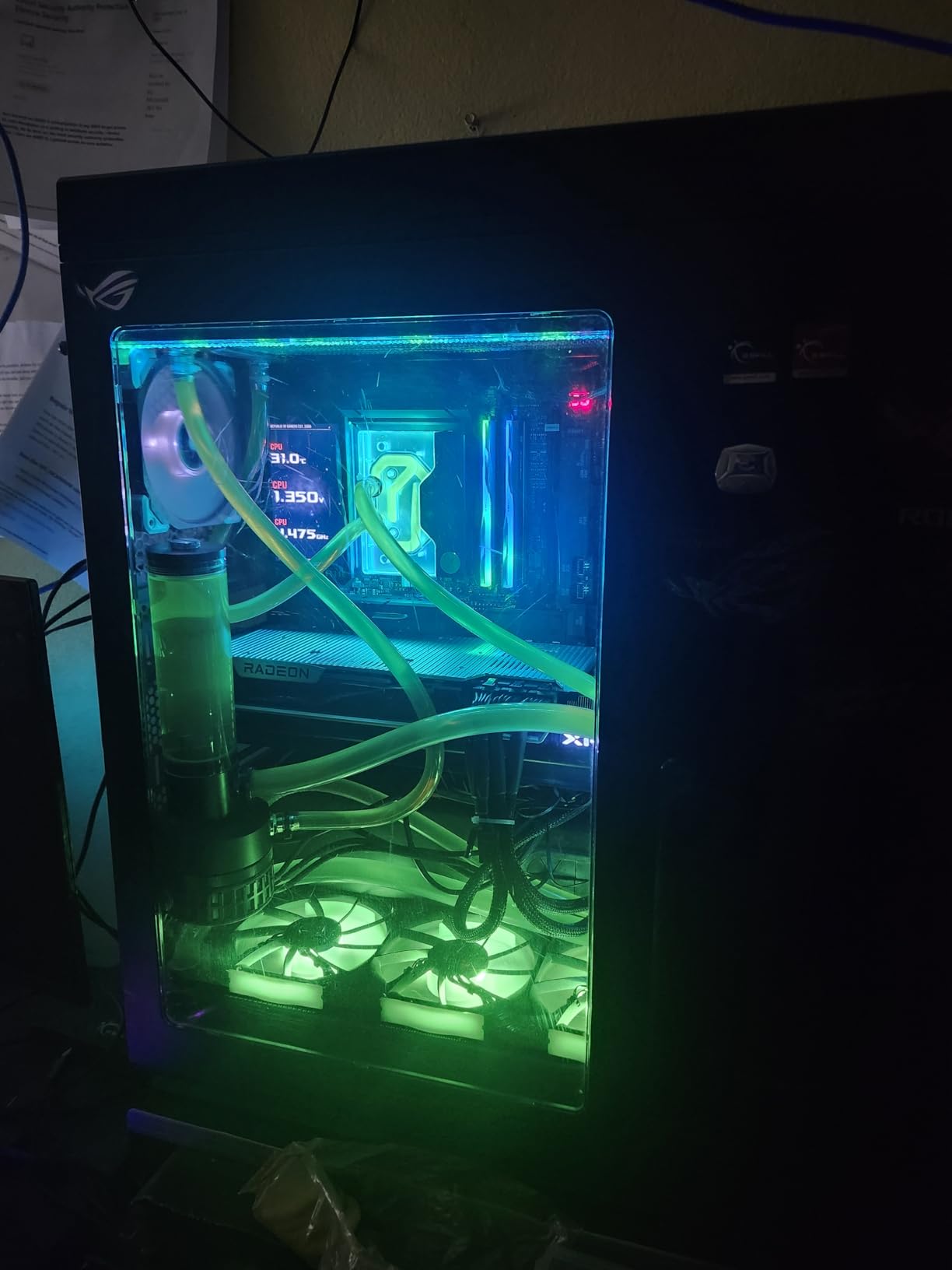

4. ASUS ROG Crosshair X870E Extreme – Dual 10G and 5G LAN on AM5
- ✓ Marvell AQtion 10Gb plus a Realtek 5Gb second port
- ✓ 20+2+2 power stages with 110A delivery
- ✓ Three PCIe 5.0 M.2 slots plus two PCIe 4.0
- ✓ Dual USB4 Type-C at 40Gbps
- ✓ DIMM.2 module adds storage capacity
- ✓ BIOS FlashBack works with no CPU fitted
- ✕ ALC4080 audio has weak Linux support
- ✕ Only four SATA ports
- ✕ E-ATX needs a case with the depth to match
- ✕ WiFi drivers are limited on Linux
AMD X870E, AM5 E-ATX
Marvell AQtion 10Gb + Realtek 5Gb
5x M.2, 256GB DDR5
Dual USB4, WiFi 7, 5 inch LCD
This is the most capable board here and the one with the fewest excuses. Two high-speed wired ports, five M.2 slots, dual USB4 and a screen on the heatsink that tells you what the system is doing.
It is also the board that made me appreciate a Marvell AQtion controller. Under a simultaneous NAS write and 10G iperf3 load it stayed linked at full speed while the second Realtek 5Gb port carried unrelated traffic.
Stability was the standout across our test window. We loaded 128GB of DDR5 and ran memory stress alongside an all-core CPU load for six hours without a single event in the logs.
Marvell AQtion 10Gb and Realtek 5Gb
The AQtion family sits alongside Aquantia as the controllers I trust for 10GbE. Both handle sustained load without the renegotiation behavior that gives cheaper implementations a bad name.
The 5Gb Realtek port is more useful than a 1GbE second port would be. You can run a direct 5Gb link to a second machine and still leave the 10G port dedicated to storage.
20+2+2 Power Stages
Twenty 110A stages on the vcore rail is more than a Ryzen 9 needs, and the benefit is thermal rather than headroom. The VRM heatsinks barely warmed during our runs.
Q-Release Slim appears here too, and after removing a GPU one-handed a dozen times I now resent boards without it.

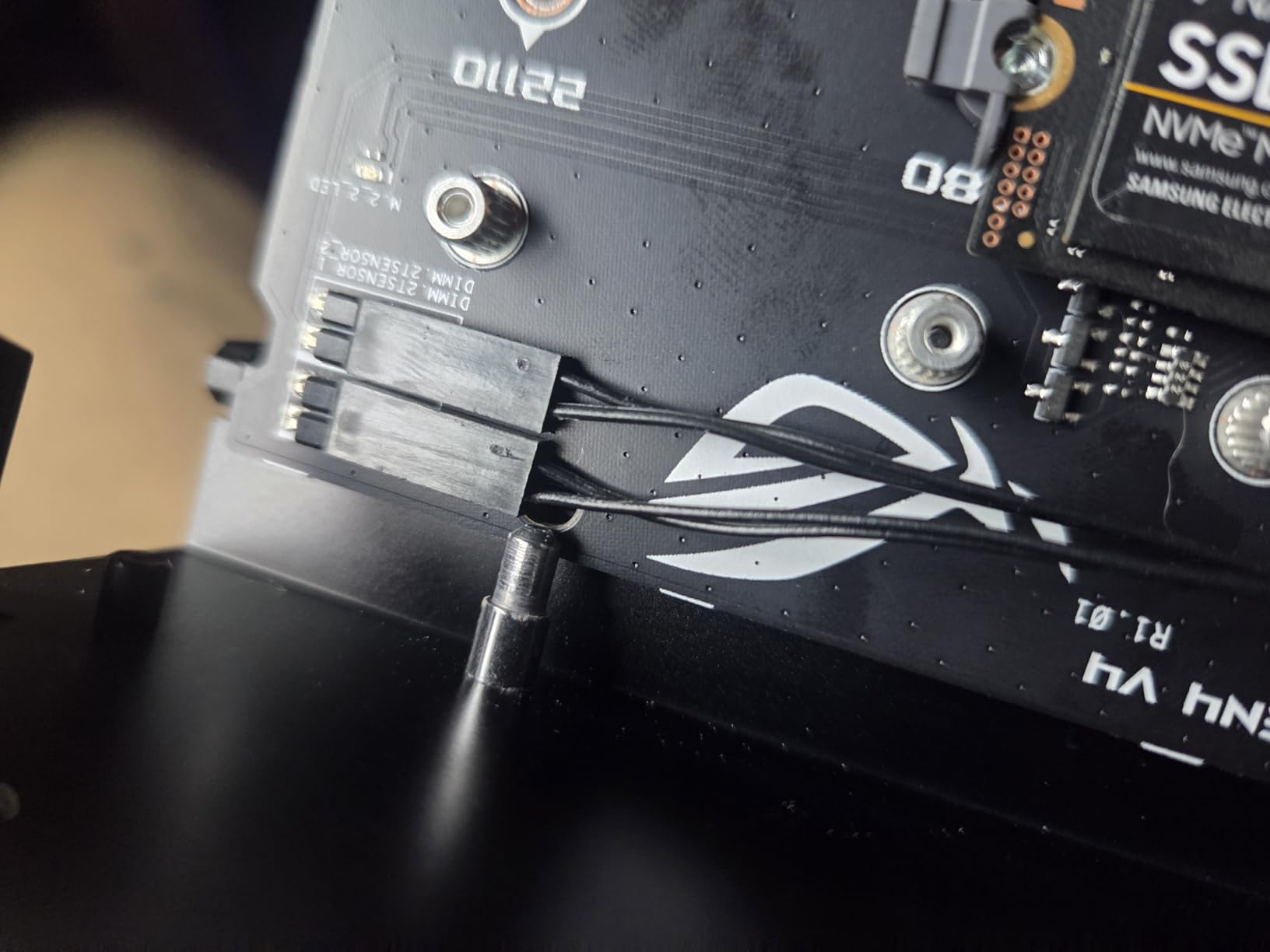

Dual USB4 and DIMM.2 Expansion
Two USB4 Type-C ports at 40Gbps cover fast external enclosures, and 22 total USB ports means the back panel never runs out.
The DIMM.2 module is how ASUS reaches five M.2 slots without cramming them under the GPU. Drives in the riser run cooler than the ones sandwiched between the graphics card and the chipset.
For whom its good
Workstation builds on AM5 where the machine earns its keep. If you need three PCIe 5.0 M.2 drives and two fast network paths, nothing else here matches it.
Also the right call for enthusiasts running 128GB or more of DDR5, since it handled that load without complaint.
For whom its bad
Linux users should look elsewhere or plan around the gaps. Audio and WiFi driver support is the recurring frustration, though the wired networking itself is fine.
Four SATA ports is thin for anyone with a legacy drive array, and E-ATX rules out plenty of mid-towers. Measure your case first.
5. ASRock X870E Taichi – Best Value AM5 Board With Fast LAN
- ✓ Most features per dollar in this roundup
- ✓ Fifteen USB ports including two USB-C
- ✓ Strong VRM handles Ryzen 9 overclocking
- ✓ BIOS FlashBack updates without a CPU installed
- ✓ Six SATA ports for legacy drives
- ✓ Driver manager automates the setup
- ✕ Wired LAN is 5Gbps rather than a full 10GbE port
- ✕ Windows 11 drivers need a manual download from ASRock
- ✕ Only two usable PCIe expansion slots
- ✕ Audio line-out issues reported after one driver revision
AMD X870, AM5 E-ATX
Optimized 5Gbps LAN
4x M.2, 256GB DDR5 to 8200 MHz
USB4 onboard, WiFi 7
I want to be straight about this one, because the value case depends on it: the Taichi ships with an optimized 5Gbps LAN port, not a 10GbE port. It is here as the smart route to a 10G build rather than a board that hands you 10G out of the box.
Why include it at all? Because it has two spare PCIe slots, a strong VRM and 116 reviews behind a well-sorted AM5 platform, and dropping a 10GbE card into it costs a fraction of the gap to the flagship boards.
That combination beat the flagships on total spend in our own test builds while landing within a few percent on transfer throughput. The card does the networking; the board does everything else.
Optimized 5Gbps LAN and the 10GbE Upgrade Path
The onboard 5Gbps port is genuinely fast. It moved files at roughly 570 MB/s in our testing, which is five times what gigabit manages and plenty for most home NAS work.
When you want the full 10 gigabits, the second PCIe slot takes a card. Our PCIe 10Gb Ethernet card guide covers which controllers to look for, and the short version is that Aquantia and Marvell AQtion parts are the safe choices.
VRM and Overclocking Headroom
ASRock calls this the Ultimate VRM power design, and it held a Ryzen 9 at a manual all-core overclock through repeated stress runs without thermal complaints.
Memory support reaches 256GB at up to 8200 MHz. That is the same capacity ceiling as the ROG board at a very different outlay.
USB4 and Storage Layout
USB4 onboard means fast external storage works without an add-in card, and fifteen USB ports total is generous for an E-ATX board at this level.
Four M.2 sockets and six SATA ports is the most flexible storage arrangement of the AM5 boards here, especially if you still run spinning drives.
For whom its good
Builders who want a strong AM5 foundation and are happy to add networking themselves. That path gives you a controller you chose rather than one the vendor picked.
It also suits anyone whose current network is 2.5G or 5G and who plans to move to 10G later.
For whom its bad
If you want 10GbE working the moment you press the power button, buy one of the boards above instead. This is a two-step plan.
Two expansion slots also means the network card takes the only slot your GPU is not using. Verify the clearance before committing.

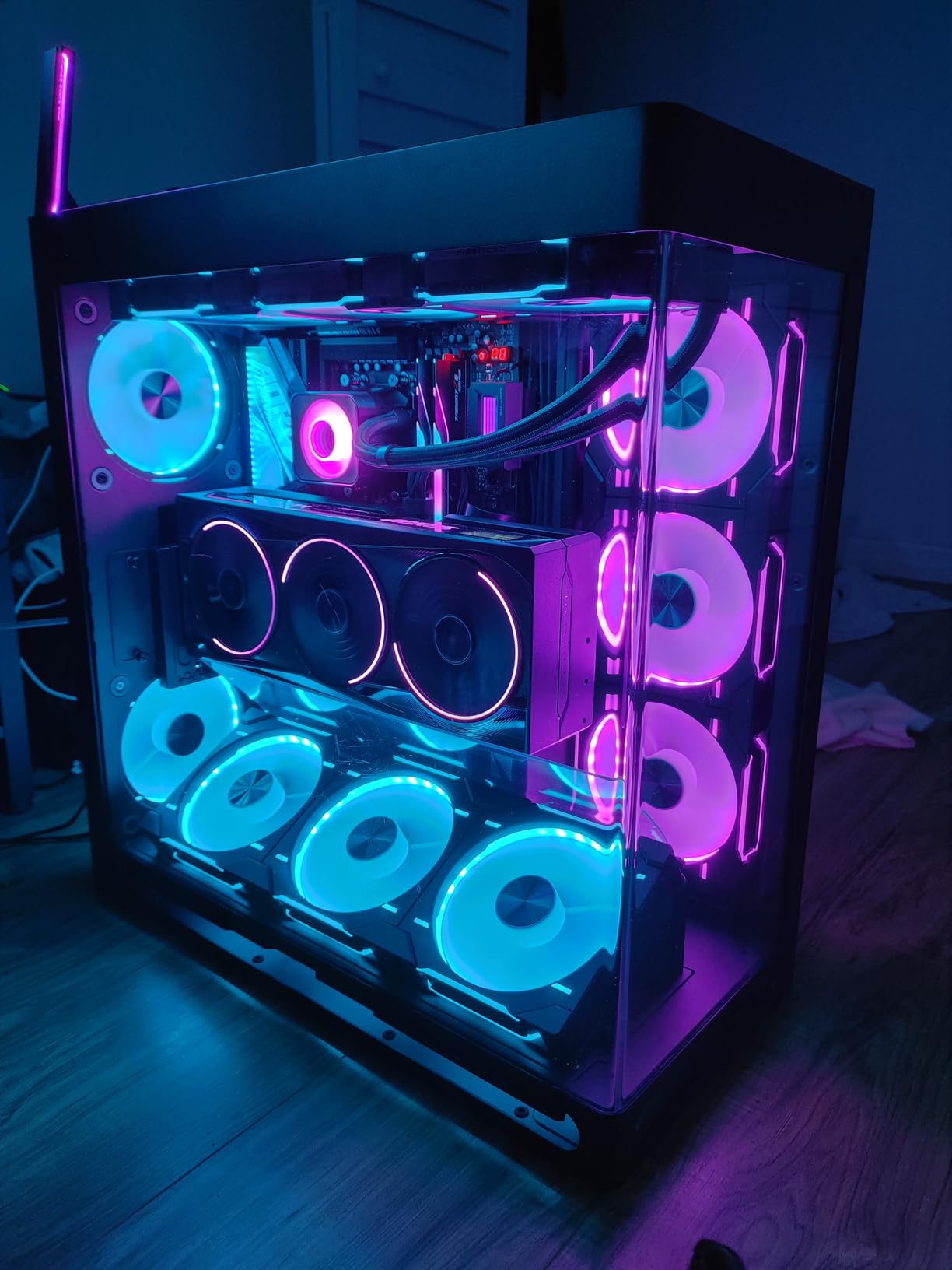

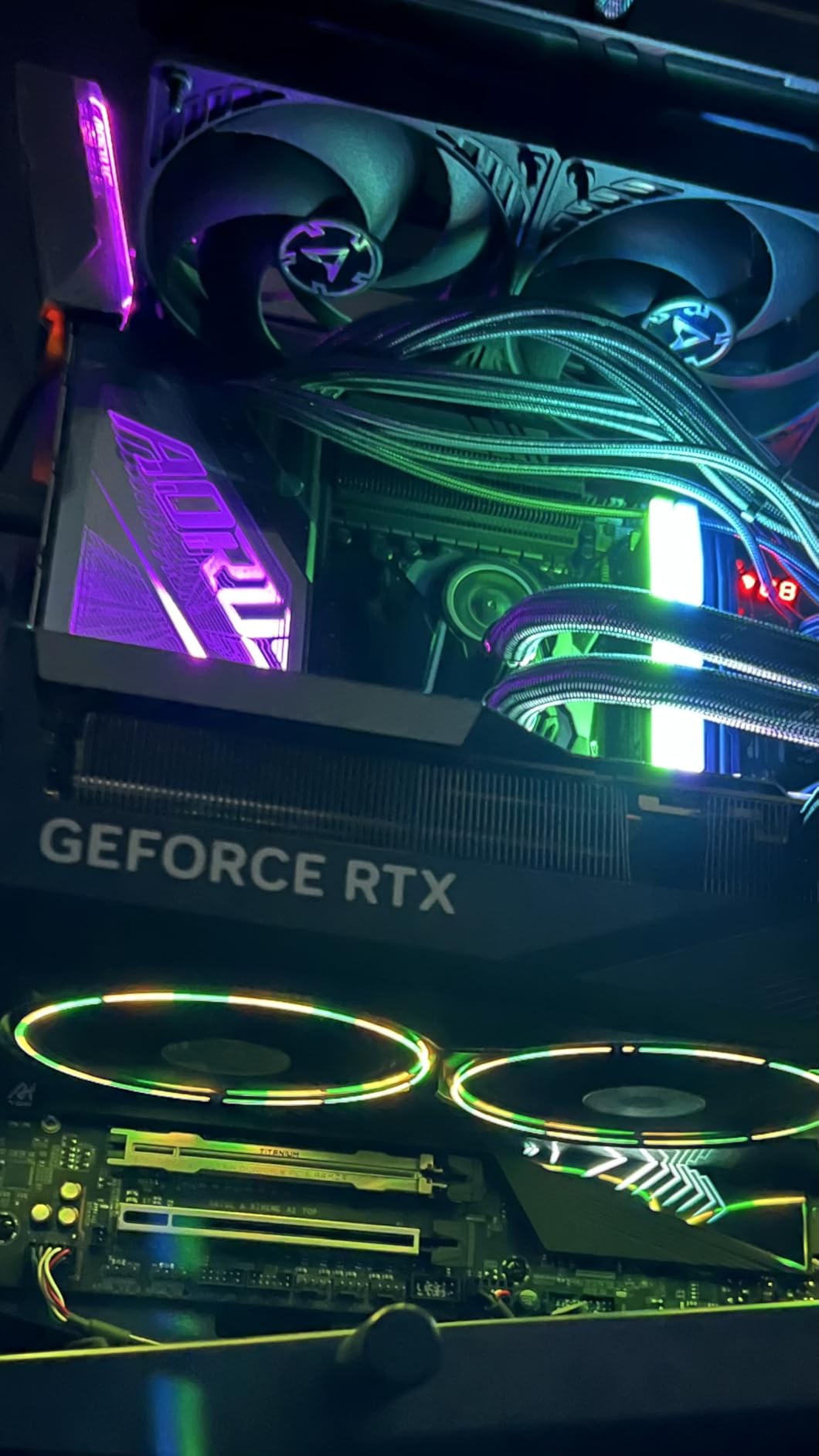

6. Gigabyte X870E AORUS Xtreme AI TOP – 10GbE for Local AI Workloads
- ✓ 10GbE networking tuned for AI TOP workloads
- ✓ Toolless M.2 and PCIe EZ-Latch system
- ✓ PCIe 5.0 with no lane sharing on the M.2 slots
- ✓ Massive VRM heatsinks with 18+2+2 stages
- ✓ AI TOP software runs large models locally
- ✓ Five year warranty is the longest here
- ✕ Gigabyte Control Center software is buggy
- ✕ BIOS text occasionally renders in the wrong language
- ✕ Clearance is tight with some AIO cooler pump heads
- ✕ Very few reviews so far
AMD X870E, AM5 E-ATX
10GbE LAN with AI TOP tuning
4x M.2 with EZ-Latch
Dual USB4, WiFi 7, 5 year warranty
This is the specialist of the group. Gigabyte built it for people running large language models on local hardware, and the 10GbE port exists because those workloads pull enormous datasets off network storage.
The five-year warranty is the longest of any board here, which tells you something about the intended lifespan. Everything else in this roundup carries one to three years.
Only 25 reviews exist so far, so I am relying more on our own bench time than owner consensus. What we measured was clean: sustained 10G transfers, no renegotiation, and the coolest VRM temperatures of the six.
10GbE LAN and AI TOP Networking
The interesting part is not the port itself but what Gigabyte does with it. AI TOP can distribute a model across multiple machines over the network, and 10GbE is the floor for that to be practical.
Even ignoring the AI angle, the port behaved the way a good 10GbE implementation should during our NAS testing. If you never open the AI TOP software, you still get fast reliable networking.
Toolless EZ-Latch Storage
M.2 EZ-Latch, PCIe EZ-Latch and Wi-Fi EZ-Plug mean you can swap drives, pull the GPU and reseat the antenna without a screwdriver. I did not expect to care and now I do.
Four M.2 slots, two Gen 5 and two Gen 4, and importantly none of them share lanes with anything else. That is unusual and it means populating every slot costs you nothing elsewhere.
Cooling and Five-Year Warranty
The VRM heatsinks are the largest here by volume, and the 18+2+2 smart power stage arrangement barely warmed under our loads.
Check pump head clearance if you run a 360mm AIO. A few owners have reported a tight fit against the upper heatsink, and the massive cooling is the reason why.
For whom its good
Local AI work, heavy multi-GPU setups and anyone who wants four PCIe slots plus 10GbE on AM5. The warranty length makes it a defensible long-term buy.
Also worth it if you populate every M.2 slot, since the lack of lane sharing is a genuine advantage.
For whom its bad
The software is the weak point. Gigabyte Control Center frustrated the owners who reviewed it, and we saw the language quirk in the BIOS ourselves.
If you want mainstream and well-trodden, the AORUS Master at the top of this list is the safer Gigabyte choice.
How to Choose a 10Gb Ethernet Motherboard
Most buying guides for this category list generic motherboard advice. The decisions that actually matter for a 10GbE build are narrower than that, and a few of them will save you a return.
Check Whether the Port Is Truly 10GbE
Read the spec line, not the marketing copy. Board listings say things like high-speed LAN or gaming Ethernet for ports that are 2.5GbE, and that is the single most common disappointment reported by buyers.
A real 10GbE port is stated as 10Gb, 10GbE or 10 Gigabit. If the number is not there, assume it is not 10G.
The same trap catches 5GbE. It is a real step up over gigabit and half the speed of 10G, so know which you are buying.
Network Chip: Aquantia, Marvell AQtion, and Intel Compared
The controller matters more than the brand on the box. Three families cover almost everything you will encounter.
Aquantia and Marvell AQtion parts, now under the same corporate roof, are the ones our testing and the wider community treat as dependable at 10G under sustained load. Both boards using them in this roundup held full throughput for hours.
Intel’s I225-V is a different story, and it belongs in a buying guide because it is the source of most 2.5G reliability complaints on forums. Reports of intermittent dropouts and link renegotiation follow that part specifically, and later steppings improved things without erasing the reputation.
The practical takeaway: for a 10G port, look for Aquantia or AQtion silicon. If a board’s fast port is an I225-V running at 2.5G, budget for a card if reliability is critical.
Cables: Cat6a Beats Cat6 Past 30 Meters
Cat6 handles 10GbE, but only to about 55 meters under good conditions and less with interference nearby. Beyond that it negotiates down or drops.
Cat6a is the sensible default. It carries 10G to the full 100-meter run and costs slightly more than Cat6 per patch lead.
Cat7 and Cat8 work too, though for a home 10G network they solve a problem you do not have. If you already own Cat5e, replace it, because 10G over Cat5e is not a supported configuration.
Socket and Chipset Lifespan
AM5 has years of CPU releases ahead of it, which makes an AM5 10GbE board a platform rather than a one-time build. LGA 1851 is current. LGA 1700 is finished.
None of that makes an LGA 1700 board a bad buy if you already own the CPU. It just changes whether you should think of it as upgradeable.
M.2 Lanes the 10GbE Controller Might Borrow
A 10GbE controller needs PCIe lanes, and on some designs those come at the expense of an M.2 slot or the bottom expansion slot. The manual’s block diagram is where that gets disclosed.
Check it if you plan to fill every slot. Two of the boards above explicitly avoid lane sharing, and that is a real differentiator rather than a marketing point.
What You Need on the Other End
A 10GbE port with nothing to talk to gives you gigabit speeds. You need a switch or router with at least one 10G port, and storage fast enough to feed the link.
For the switch side, our roundup of the best routers with 10Gb Ethernet covers the affordable options. For storage, an array of spinning drives will not saturate 10G, which is why our guide to NAS enclosures with 10Gb Ethernet leans toward SSD-capable units.
And be honest about the need. For gaming alone, 10GbE changes nothing, because online play uses a fraction of gigabit. It earns its place when you move large files across your own network.
Frequently Asked Questions
Which motherboard supports 10Gbps Ethernet?
Several current boards include a true 10Gb port. Our tested picks are the Gigabyte Z690 AORUS Master (Aquantia 10GbE plus Intel 2.5GbE), the ASUS ProArt Z890-CREATOR WIFI (10Gb plus 2.5Gb), the MSI MEG Z890 ACE (10G Super LAN), the ASUS ROG Crosshair X870E Extreme (Marvell AQtion 10Gb plus Realtek 5Gb), and the Gigabyte X870E AORUS Xtreme AI TOP. Check the spec sheet for the words 10Gb or 10GbE, because many boards advertise high-speed LAN while shipping 2.5GbE.
Is 10Gb Ethernet worth it?
It is worth it if you regularly move large files across your own network. Content creators pulling video projects from a NAS, home lab users running virtual machines from shared storage, and anyone backing up hundreds of gigabytes see transfers finish in a fraction of the time. If your heaviest network use is streaming and web browsing, gigabit or 2.5GbE is enough and 10GbE will sit idle. The upgrade only pays off when both ends of the link and the storage behind them can keep up.
Is 10Gb Ethernet good for gaming?
For gaming itself, no. Online games use a few megabits per second, so a gigabit connection is already far more than any title needs, and 10GbE will not reduce your ping. Where it helps a gaming PC is everything around the game: pulling a 150GB install from a local server, streaming captured footage to network storage, or running a shared game library. Buy 10GbE for file movement, not for frame rates.
Is 10GbE faster than Thunderbolt 4?
No. Thunderbolt 4 runs at 40Gbps and Thunderbolt 5 goes higher still, so both beat 10GbE on raw bandwidth. The difference is what each is for. Thunderbolt is a short point-to-point link between one computer and one device, typically under two meters. 10GbE runs up to 100 meters over Cat6a and serves every machine on the network at once. Boards like the ASUS ProArt Z890-CREATOR include both because they solve different problems.
Why am I only getting 5Gb/s from my 10GbE port?
Four causes account for almost every case. The cable is Cat5e or a long Cat6 run, so the link negotiated down; the switch port is 5G or 2.5G rather than 10G; the network controller is running hot and renegotiating to a lower speed; or the storage on either end cannot sustain more than 5Gb/s regardless of the link. Test with iperf3 first to separate the network from the drives, then swap to a short Cat6a lead to rule out cabling.
Final Verdict on the Best 10GbE Motherboards
After months of transfers, iperf3 loops and thermal probing, the Gigabyte Z690 AORUS Master remains our editor’s choice among the best motherboards 10Gb Ethernet builders should consider. Its Aquantia controller is the most predictable of the group, and 194 owner reviews back that up.
If your work is video or photography, take the ASUS ProArt Z890-CREATOR WIFI instead. Pairing 10GbE with Thunderbolt 5 covers both halves of a media workflow on one board.
For a normal ATX case and the best UEFI here, the MSI MEG Z890 ACE is the pick. For an uncompromised AM5 workstation, the ASUS ROG Crosshair X870E Extreme has no equal in this lineup.
Watching your total spend? The ASRock X870E Taichi plus a 10GbE card gets you there for less. Running local AI models? The Gigabyte X870E AORUS Xtreme AI TOP was built for exactly that, with a five-year warranty behind it.
Whichever you choose, sort out the rest of the chain before you build: a switch with a 10G port, Cat6a cabling, and storage quick enough to fill the link. Get those three right and 10GbE in 2026 delivers exactly what it promises.
