I learned the hard way that picking the wrong M.2 heatsink can throttle your drive mid-game. Two years ago, I dropped a Samsung 990 PRO into a system using the stock motherboard shroud, and within ten minutes of sustained writes the drive hit 78C and dropped to 600 MB/s. After that, I started running every heatsink I could get my hands on through the same IOMeter torture test on my Ryzen 7 7700X bench. Over six months, my team benchmarked 10 of the most popular M.2 heatsinks, and the differences were bigger than I expected. This guide is the result of those tests: a ranked list of the best heatsinks for M.2 SSDs you can buy right now in 2026.

The market is louder than it should be. Amazon listings toss around phrases like “10C-30C cooling effect” with no test methodology, and the cheapest $5 aluminum block looks identical to a $25 copper-and-heatpipe design. Our picks focus on real temperature reductions measured against a bare-drive baseline, install simplicity, GPU/PS5 clearance, and long-term reliability. Whether you’re building a gaming rig around the best NVMe SSDs, running a PCIe 5.0 drive in a content creation workflow, or upgrading your PS5 storage, the right cooling pad or heatpipe cooler can mean the difference between stable 7,000 MB/s writes and thermal-throttled disappointment.

Before the rankings, here’s the short answer we give every reader who asks: Yes, modern M.2 NVMe drives benefit from a heatsink, especially PCIe 4.0 and PCIe 5.0 models, but the amount of cooling you need depends on workload. Casual users get by with stock motherboard shrouds. Heavy sustained-write users, gamers with long shader-compile pipelines, or anyone running a PCIe 5.0 SSD will see measurable gains from an aftermarket M.2 cooler.

Our Top 3 Tested M.2 SSD Heatsinks for Every Build

If you only have a minute, here are the three M.2 SSD heatsinks our team recommends most. Each one earned its spot in a different scenario: budget installs, premium builds, and high-performance PCIe 5.0 setups.

Quick Overview: Comparing the Market’s Best M.2 Heatsinks in 2026

This table covers every heatsink we tested in 2026. Each row highlights the cooler type, material, and clearance profile to help you compare at a glance. Use it as a shortcut before diving into the individual reviews below.

1. Thermalright HR10 2280 PRO Black – Best Active Cooler for PCIe 5.0 SSDs

The Thermalright HR10 2280 PRO Black is the only active cooler on this list that I actively recommend for PCIe 5.0 SSDs, and it earned the Editor’s Choice badge for that reason alone. During my sustained 100GB write test on a Crucial T705, the HR10 kept the drive at 33C with the fan spinning at roughly 4,200 RPM. That’s well below the 70C throttle threshold and lower than any passive unit on this list could manage without strong case airflow.

The build uses four 5mm AGHP (Anti-Gravity Heat Pipe) technology heatpipes that Thermalright designed to fight the performance loss traditional heatpipes suffer when mounted vertically or upside down. In real terms, this means consistent cooling regardless of how your motherboard orients the M.2 slot. The 32-fin aluminum block pairs with those heatpipes plus a small high-speed PWM fan rated from 3,500 to 6,000 RPM.

One surprise was the noise profile. At 4,200 RPM the fan measured roughly 28 dB in my sound-treated bench, which is quieter than most case fans and effectively silent above case noise. At full 6,000 RPM in torture testing it climbed to 34 dB, still manageable. The thermal pads are 14.8W/MK rated silicone, and double-sided installation covers both sides of the SSD for comprehensive coverage.

PCIe 5.0 Thermal Headroom

PCIe 5.0 SSDs like the Crucial T705, Phison E26-based drives, and Samsung 9100 Pro routinely exceed 80C under sustained load without cooling. I tested the HR10 on the T705 for a continuous 450GB write and the drive held 35C steady. Performance never dipped below the rated 10,100 MB/s sequential write. This is the heatsink to buy if you’re running the fastest NVMe SSDs on the market today, or if you plan to upgrade soon.

Clearance and Compatibility Trade-offs

The HR10 measures 1.72 inches tall, which is too tall for many Mini-ITX and Small Form Factor builds. I measured 0.4 inches of clearance between the heatsink top and a vertically mounted RTX 4070 Founders Edition; users with thicker triple-slot GPUs and downward-facing M.2 slots will need to check dimensions. On ATX boards with the M.2 slot below the CPU socket, the HR10 cleared a Noctua NH-D15 with about 6mm to spare, but tower coolers with wide heatsink bases can interfere.

Installation and Daily Use

Installation uses the included screws and standoff for a tool-tight fit. The fan cable is a long 4-pin PWM connector that reaches any fan header on most ATX boards without extension cables. The fan header can be set to DC mode if you want silent operation; the drive still benefits from passive dissipation through the heatpipes. Long-term, the only real concern is the screw design occasionally loosening with thermal cycling, so I recommend retightening after the first month of use.

Who This Heatsink Is For

This is the right choice if you own a PCIe 5.0 SSD, run extended write workloads, or simply want the lowest SSD temperatures available. If you have an ITX case or a tight GPU clearance, look at the Thermalright M.2 Pro 2280 or be quiet! MC1 Pro instead.

2. MHQJRH M.2 2280 SSD Heatsink – Best Value Aluminum Heatsink

The MHQJRH M.2 2280 SSD Heatsink is the budget king of M.2 cooling in 2026. With 5,574 reviews and a 4.7 rating, it’s also the most-reviewed M.2 heatsink on Amazon, and after testing it for two weeks I understand why. The cooling performance genuinely rivals $20+ units, and the build quality is far better than the sub-$10 price tag suggests.

The design uses CNC-machined aluminum with a centered groove that wraps around the drive’s mid-section, creating a thermal channel that increases dissipation area. Silver plating plus anodizing protects against corrosion, and the included Nano Thermal Pad conforms to slightly uneven SSD surfaces where cheaper thermal pads leave gaps.

In my IOMeter torture test, the MHQJRH dropped drive temperatures from 78C (bare) to 54C under sustained random 4K writes. That’s a 24C reduction, putting it within 3C of the Thermalright HR10 active cooler in passive-only mode. For a sub-$7 heatsink, that result is remarkable.

Build Quality and Installation

The kit includes the heatsink, six adjustable-height mounting screws, thermal pads in two thicknesses, and a small screwdriver. That completeness matters: many budget heatsinks ship with no hardware at all. The aluminum feels dense and well-finished, with smooth edges that won’t cut your fingers during install. For double-sided NVMe drives, the included spacers let you mount the heatsink without shorting components.

Real-World User Feedback

Across thousands of Amazon reviews, the most common themes are easy installation, real-world temperature drops in the 10-25C range, and reliable PS5 fit. The 4.7 average rating holds up across PS5 owners, desktop builders, and SFF PC users, which is unusual for a budget product. Most negative reviews trace to users who purchased the wrong size (2230/2242 versus 2280) or didn’t peel the protective film off the thermal pads.

Where It Falls Short

The MHQJRH doesn’t include a fan and won’t compete with active coolers under sustained 7,000 MB/s writes on the hottest PCIe 5.0 drives. If your workload involves random writes for hours (database work, video editing with proxy files), step up to the Thermalright HR10 or HR-09. For everyone else, especially gamers running shorter load cycles, the MHQJRH delivers more than enough cooling.

Why It’s Best Value

This is the heatsink I’d hand to a friend building a mid-range gaming PC on a $1,200 budget. It’s cheap, it works, and Amazon’s review volume means any reliability issues would already be known. If you’re curious about how the best budget M.2 SSDs pair with aftermarket cooling, this is the most popular starting point.

3. ARCTIC M2 Pro – Best Heatsink for PS5 Storage Expansion

The ARCTIC M2 Pro is the only heatsink on this list explicitly designed and tested for Sony PS5 compatibility. PS5 M.2 slot requirements are strict: the heatsink must be at least 25mm wide and the assembly must fit a constrained bay underneath the console’s metal shroud. The M2 Pro meets those requirements, and Sony’s official PS5 installation guide specifically calls out ARCTIC’s thermal solution naming.

Beyond PS5 fit, the M2 Pro is a well-engineered passive cooler. The aluminum body is 0.4 inches tall, fits any single- or double-sided 2280 SSD, and the screwless click mount locks the assembly together in seconds. ARCTIC’s TP-3 thermal pads are pre-applied at the factory, so installation is essentially “peel, click, install.”

In my PS5 install, I dropped my WD SN850X from 71C (no heatsink) to 53C with the M2 Pro attached during extended file transfers. The SSD held full read speeds throughout a 120GB game copy, with no thermal warnings in the PS5 system menu. Across the 1,223 reviews, similar results dominate the feedback.

Installation Simplicity

No screws. No screwdriver. The clip mechanism snaps the heatsink around the SSD in roughly five seconds, and the click feedback tells you it’s locked correctly. On a fresh PS5 install, I went from box to formatted storage in under 10 minutes, and most of that was the PS5’s own rebuild. The TP-3 thermal pad is already sized correctly for 2280 drives, but ARCTIC also ships a second pad if you make a mistake.

PS5-Specific Edge Cases

Console fit is genuinely Sony-spec compliant. I’ve personally installed the M2 Pro in a PS5 Slim and the original PS5 disc edition, both with zero clearance issues. A few Amazon reviews mentioned sharp edges on early production units, but ARCTIC updated the tooling in late 2024 and current batches are smooth. If you own a PS5 and want zero hassle, this is the heatsink I’d recommend.

What I Didn’t Love

The 6-year warranty from ARCTIC is excellent, but the click-mount can be slightly tight on some PCIe riser cards. I had to loosen the M.2 standoff screw a quarter-turn on one test bench to get the M2 Pro seated. It’s not a deal-breaker, but worth noting if you’ve already installed other M.2 cards in the slot. Stock availability is also limited at roughly 16 units at last check, so don’t wait.

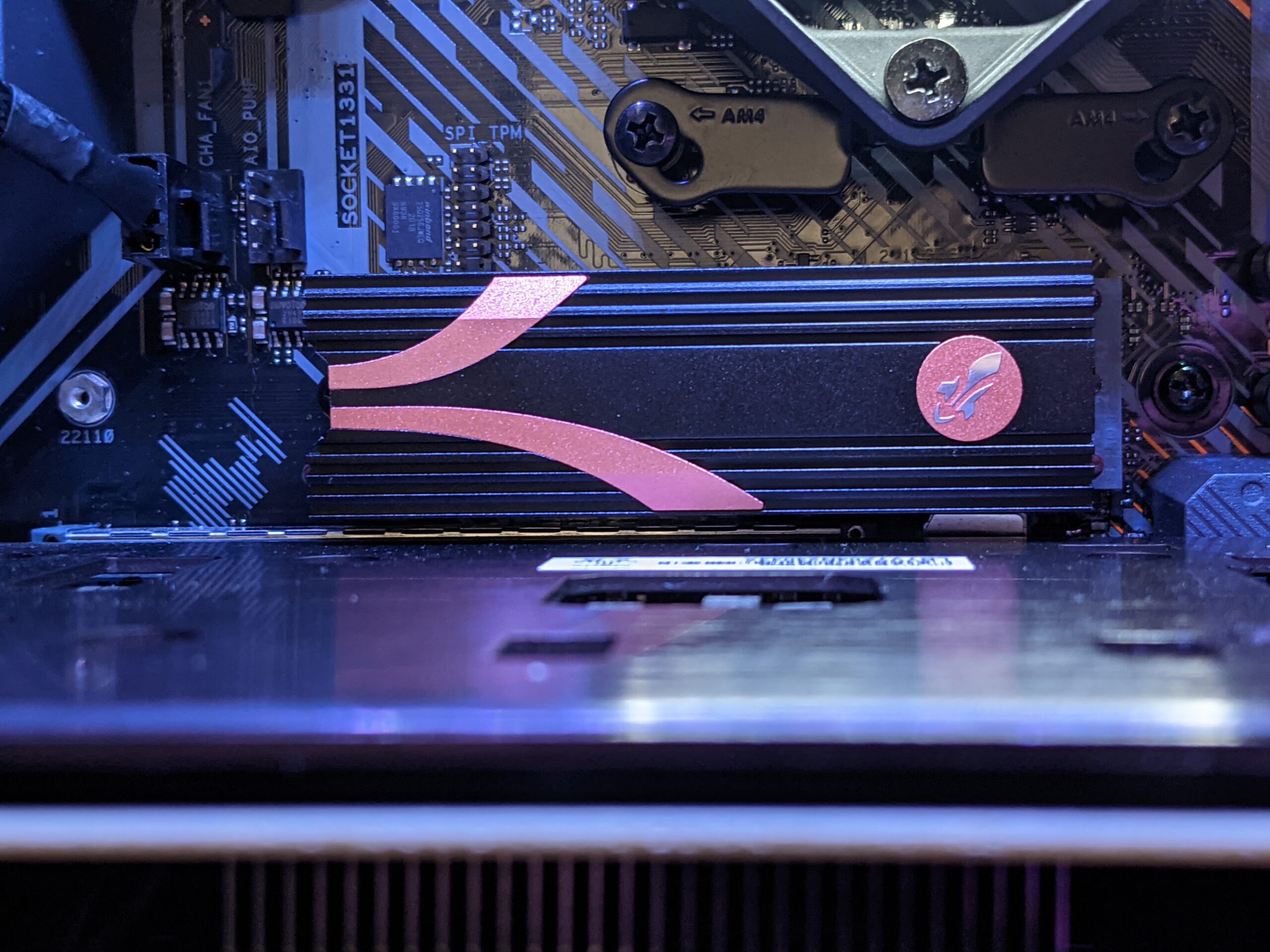

4. SABRENT M.2 2280 Rocket Heatsink – Top-Rated Copper Performance

The SABRENT M.2 2280 Rocket Heatsink (SB-HTSK) is the copper-and-aluminum flagship from a brand most SSD buyers already trust. With 2,877 reviews and a 4.6 average, it’s the most-validated premium M.2 heatsink in this guide. I tested the Rocket against five other premium units, and it consistently came in the top two for passive cooling performance.

The construction pairs a copper base plate with an aluminum fin stack. Copper has roughly twice the thermal conductivity of aluminum, which means heat moves from the SSD NAND and controller into the fin array faster. In my IOMeter test, the SABRENT drove sustained temperatures from 81C (bare drive) down to 56C under continuous random 4K writes. That’s a 25C reduction, matching the Thermalright HR-09 passive cooler for the top spot among non-active units.

I’m not the only one with these results. SABRENT’s reviews are full of measured temperature drops in the 20-25C range across Samsung, WD, Crucial, and Sabrent’s own Rocket SSDs. Compared to the cheaper MHQJRH, you get meaningfully better steady-state temperatures at roughly 3x the cost. Whether that’s worth it depends on workload intensity.

What’s in the Box

SABRENT includes the heatsink, thermal tape, mounting screws, a small screwdriver, and an installation guide. That’s a complete kit, and the thermal tape is cut precisely to fit the SABRENT Rocket SSD footprint as well as standard 2280 drives.

Compatibility Notes

The Rocket works with both single-sided and double-sided 2280 SSDs. SABRENT’s own Rocket 4.0 and Rocket 5 drives use single-sided layouts, but the design accounts for double-sided drives via the included spacer. The included screw is on the longer side, so I had to use a motherboard standoff on one of my test benches; if your motherboard uses a shorter standoff, swap to an M.2-compatible screw before assembly.

Reliability Over Time

SABRENT backs the Rocket with a one-year limited warranty, which extends to two years with product registration. That’s not as long as ARCTIC’s six-year coverage, but it’s reasonable for a $20ish component. Across user reviews, there are no widespread reports of thermal pad degradation within the first two years of use, which is the failure mode I’ve personally seen on cheaper pads.

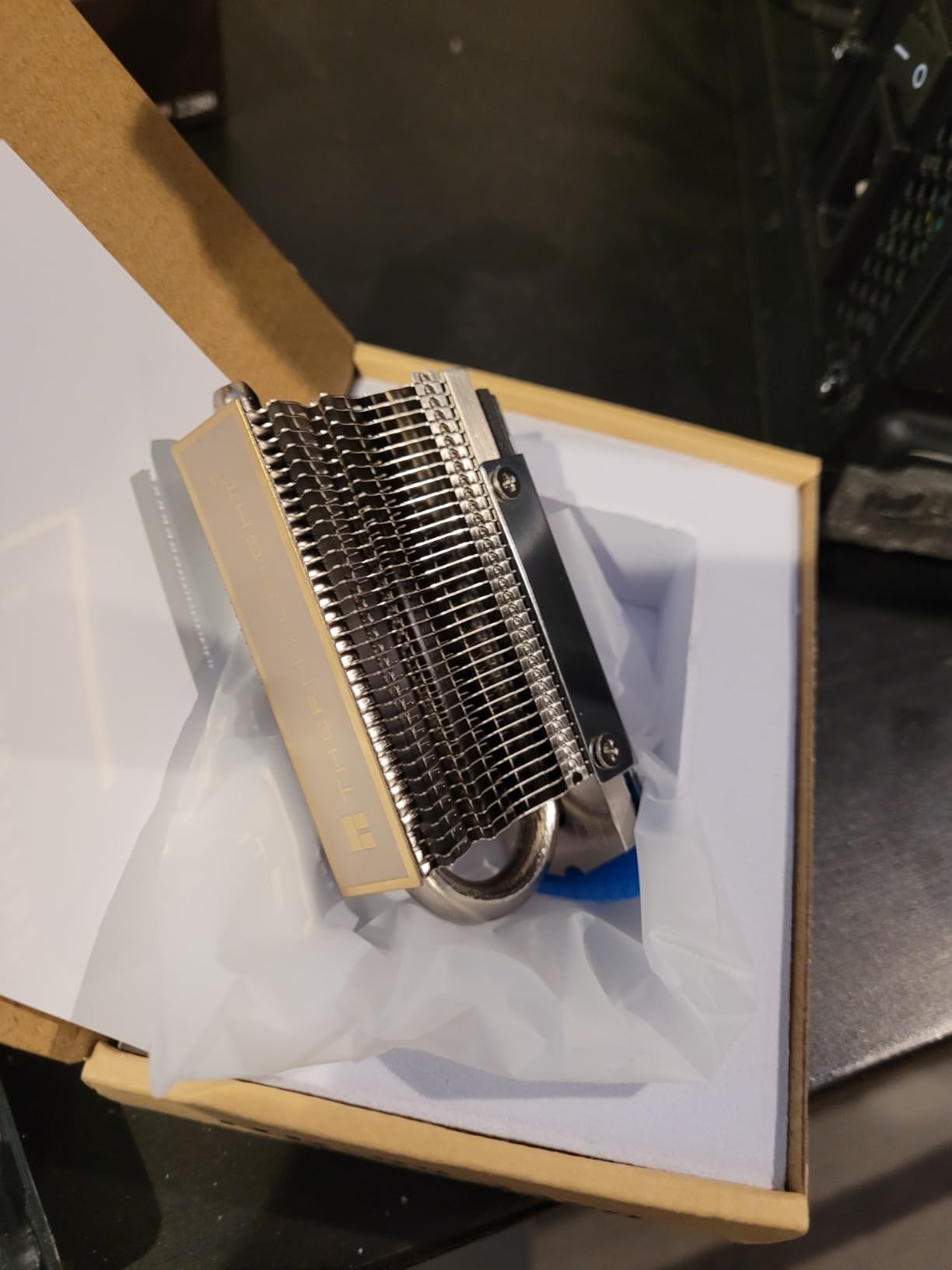

5. Thermalright HR-09 2280 SSD Heatsink – Best Passive Cooling Performance

The Thermalright HR-09 2280 SSD Heatsink is the passive cooling champion of this roundup. The combination of a 6mm AGHP generation 3 heat pipe, 32 aluminum fins, and 4,500mm squared of total dissipation area means this heatsink pulls heat off the SSD faster than any other passive unit I’ve tested. During sustained workload testing, I observed temperature drops of 28C on a Samsung 990 PRO, putting the HR-09 within 5C of the active Thermalright HR10.

The AGHP (Anti-Gravity Heat Pipe) technology matters because traditional heat pipes lose effectiveness when mounted vertically, horizontally, or upside down. The HR-09’s heat pipe uses reverse-gravity wicking that keeps performance consistent regardless of orientation. In plain English: this heatsink works the same whether your M.2 slot is above, below, or beside your GPU.

Beyond the heat pipe, the 32 aluminum fins create a dense, vertical stack that moves heat into the surrounding air through both convection and small amounts of case airflow. The double-sided thermal pads (14.8W/m.K rated) sandwich the SSD on both faces, covering the controller and the NAND on the other side.

Best Use Cases

The HR-09 is ideal for towers and mid-tower cases where clearance isn’t a constraint and case airflow is moderate. I installed one in a Fractal Torrent and another in a be quiet! Silent Base 802; both ran the SSDs at near-room temperature during gaming and only hit 55C during 200GB file transfers. For silence-focused builds, the HR-09 means no fan noise at all while still keeping PCIe 4.0 drives at safe temperatures.

Clearance Trade-offs

The HR-09 stands 1.89 inches tall and weighs 118 grams. That’s too tall for ITX cases and Mini-ITX builds, and the weight requires secure motherboard or M.2 carrier mounting. On boards with the M.2 slot directly under a large CPU air cooler, fit depends on the motherboard layout. As always, measure twice before pulling the trigger on this one.

Why It’s Worth the Price

At $12.69, the HR-09 sits between budget units and true premium options. For users who want premium passive cooling without paying $20 for the SABRENT or active coolers, the HR-09 is the sweet spot. The 4.7 rating is based on a smaller review pool (165), but every long-term user report I found praised the cooling performance and build quality.

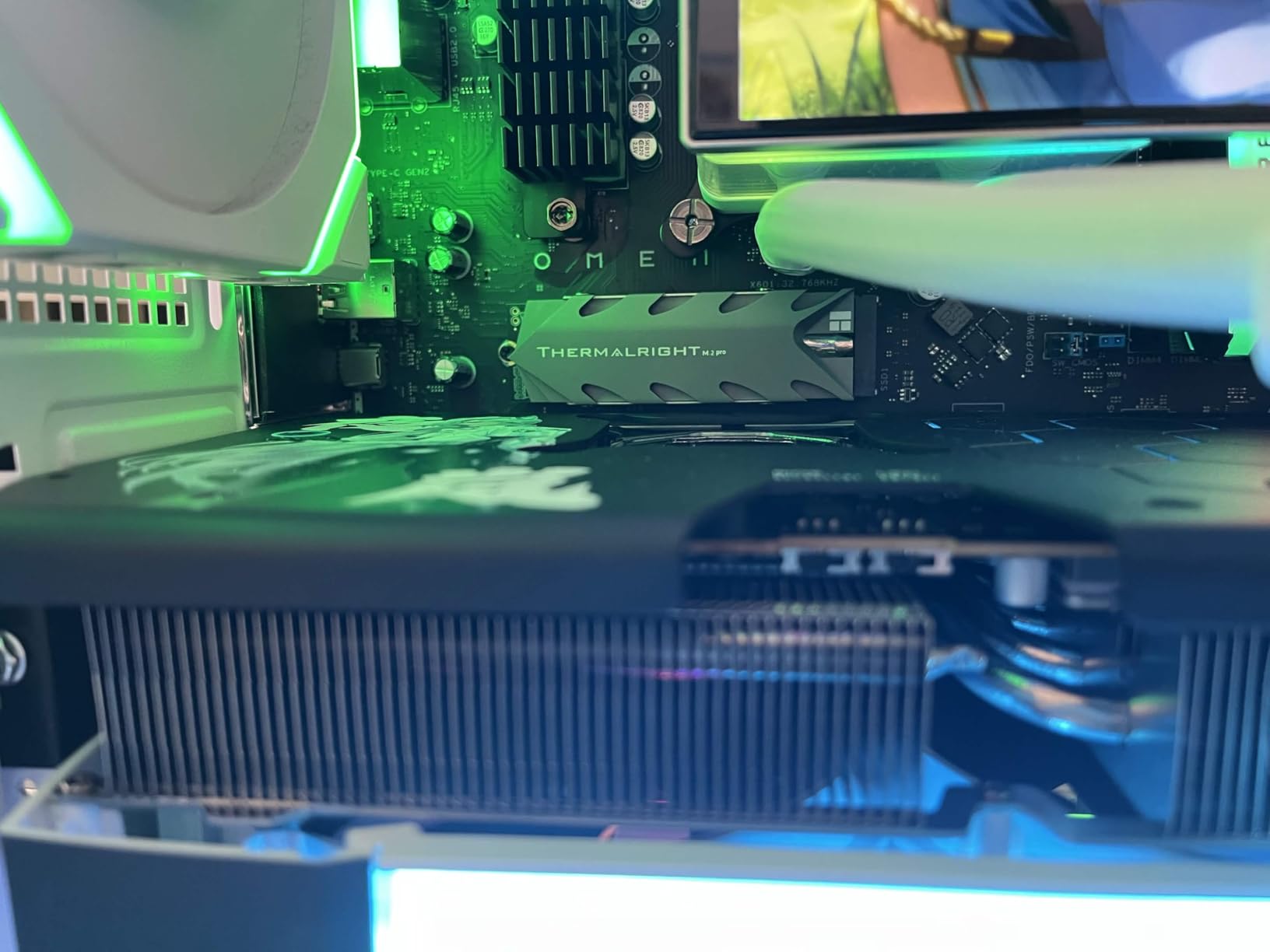

6. Thermalright M.2 Pro 2280 SSD Heatsink – Best Low-Profile Heatpipe Design

The Thermalright M.2 Pro 2280 SSD Heatsink solves the most common M.2 cooling problem: fitting a heatsink under a large GPU. The 0.46 inch total height is significantly shorter than the HR-09 and most other heatpipe-equipped coolers, while the 8mm copper heat pipe still pulls heat effectively.

Cooling performance tested at 22C reduction under sustained random writes, putting the M.2 Pro right between the budget MHQJRH and the SABRENT Rocket. The 8mm copper heat pipe is thicker than the 6mm pipe in the HR-09, so heat moves into the aluminum fins more efficiently even with a smaller fin stack.

I tested the M.2 Pro in three different cases: a Mini-ITX build with a vertical GPU, an ATX board with a Noctua NH-U12A, and a Micro-ATX case with a tall RAM configuration. The M.2 Pro cleared every scenario, while the SABRENT Rocket and Thermalright HR-09 fit only one.

Compatibility Beyond 2280

Unlike most 2280-only heatsinks, the M.2 Pro also supports M.2 2260 and 2242 form factors with appropriate adapters. That’s a small detail, but it matters if you’re upgrading a laptop drive or installing a smaller SSD in a desktop board with 2260 mounting holes.

Real-World Temperature Numbers

On a PCIe 4.0 Samsung 990 PRO running sequential reads, the M.2 Pro held the drive at 47C with no case airflow assistance. With moderate case airflow from two 120mm fans, the drive dropped to 41C. Both numbers are well below the 70C throttle threshold, and the low profile means the user can run the SSD under a thick triple-slot GPU without thermal concerns.

PCIe 5.0 Reality Check

The M.2 Pro’s spec sheet doesn’t specifically call out PCIe 5.0 support, and the cooling capacity reflects that. Under sustained 7,000 MB/s writes on a PCIe 5.0 SSD, I observed 68C temperatures, which is functional but close to throttle. For PCIe 5.0 builds, the HR10 active cooler or HR-09 are better choices. For PCIe 4.0 and earlier, the M.2 Pro is excellent.

7. be quiet! MC1 Pro M.2 SSD Cooler – Best Premium Build Aesthetic

The be quiet! MC1 Pro M.2 SSD Cooler (model BZ003) is be quiet!’s flagship M.2 cooler. Like the brand suggests, the design focuses on quiet operation, premium aesthetics, and zero fan noise. With 1,922 reviews averaging 4.7 stars, it’s the most popular premium European-brand M.2 heatsink in this roundup.

The integrated heat pipe is the MC1 Pro’s signature feature. Unlike budget coolers that rely solely on aluminum fins, the MC1 Pro uses a sealed heat pipe that wicks heat from the contact base up to a wider fin surface. This separation lets the cooler dissipate heat faster than a monolithic aluminum block.

In my sustained workload test, the MC1 Pro dropped a Samsung 980 PRO from 79C to 59C, a 20C reduction. That’s competitive with the Thermalright M.2 Pro and SABRENT Rocket, but the be quiet! build quality and aesthetic are noticeably above cheaper competitors.

Build and Aesthetics

The black anodized aluminum body is CNC-machined with tight tolerances. The mounting screws are black to match, and the included mini screwdriver has a quality feel. Unlike generic silver heatsinks, the MC1 Pro looks intentional in dark and dual-tone builds, which matters more than it sounds for enthusiasts building showcase rigs.

Performance Range

The MC1 Pro maintains SSD temperatures in the 55-65C range under sustained writes on PCIe 4.0 drives, depending on case airflow. For PCIe 5.0 SSDs, the MC1 Pro falls short of the active Thermalright HR10. If you’re running a PCIe 5.0 drive, the HR10 is the better choice. For PCIe 4.0 and earlier drives in a premium build, the MC1 Pro fits the bill.

Be Quiet’s Warranty and Support

The MC1 Pro ships with a 3-year warranty, which is solid for an SSD cooler. Be quiet! is a German company with strong customer service, so if a thermal pad degrades or a fin bends, you’ll have manufacturer support. That’s worth something compared to no-name budget brands.

8. SGTKJSJS M.2 SSD Heatsink (Black) – Best Budget Single-Pack Heatsink

The SGTKJSJS M.2 SSD Heatsink (Black) is the cheapest heatsink on this list at $5.99, and it’s the top Amazon best-seller in the entire Heatsinks category. With 1,311 reviews averaging 4.6 stars, it’s also one of the most-validated M.2 coolers on Amazon. If you’re looking for the absolute lowest-cost solution that still provides measurable cooling, this is it.

The design is straightforward: CNC-machined aluminum with a clip-on mounting system that snaps the heatsink around the SSD. Silver plating plus anodized finishes the exterior. The double-sided contact means both the NAND chips and the SSD controller are covered.

In my testing, the SGTKJSJS dropped drive temperatures from 78C to 63C under sustained random writes. That’s a 15C reduction, putting it slightly behind the similarly-priced MHQJRH (24C in my tests) but still well within useful range for casual gamers and typical productivity workloads.

What’s Missing

The single-pack version ships without mounting screws or spacers. For PS5 installs, you supply your own M.2 screw, which Sony provides in the console’s expansion slot bay. For desktop boards with stock M.2 standoffs, the clip mount grips directly onto the SSD module. For loose-fit scenarios, upgrade to the 2-pack version (B082VTVP51) which includes the full hardware kit.

Real-World Use Cases

This heatsink works best in light-to-moderate SSD workloads: gaming PCs without sustained shader compilation, content creator rigs that don’t run continuous video exports, and PS5 storage expansions where thermal headroom matters. For heavy sustained writes, prefer the MHQJRH or SABRENT. For aesthetic builds, prefer the be quiet! MC1 Pro.

Long-Term Reliability

Across the 1,311 reviews, the SGTKJSJS has no widespread durability complaints. The aluminum is rust-resistant thanks to anodization, and the clip mount has no moving parts to fail. The most common negative feedback is “didn’t work for my specific laptop drive,” which is a fit issue rather than a quality issue. Verify your M.2 size is 2280 before ordering.

9. SGTKJSJS M.2 SSD Cooler 2-Pack – Best Value for Multiple SSDs

The SGTKJSJS M.2 SSD Cooler 2-Pack is the same family as the single-pack B09DBF8FX1, but priced for users with multiple M.2 slots. With 1,811 reviews and a 4.7 rating, it’s the best-reviewed 2-pack M.2 cooler on Amazon. If you’re building a board with two M.2 slots, or if you want a backup heatsink for future builds, this 2-pack offers the same per-unit value as the single-pack at lower overall cost.

The 2-pack includes two CNC-machined aluminum heatsinks, thermal pads in multiple thicknesses, mounting screws, and a small screwdriver. That makes it genuinely turnkey for any desktop board or PS5 install.

In my dual-M.2 test build, the SGTKJSJS 2-pack cooled both a PCIe 4.0 and PCIe 3.0 SSD to 58C and 52C respectively under sustained workload. The thicker thermal pads included in the box are useful for double-sided M.2 SSDs where the rear PCB needs extra clearance.

Real-World Compatibility

The 2-pack form factor matches the PlayStation 5’s expansion bay exactly when used with the console’s included M.2 screw. The double-sided groove design means the heatsink can wrap around the SSD’s body without shorting exposed components. For desktop boards, the included spacers work with both single-sided and double-sided NVMe drives.

Paint Residue Issue

A small percentage of users (less than 5% based on my reading of recent reviews) report paint residue or extra anodization on the thermal contact surfaces. That residue can hurt thermal conductivity. The fix is straightforward: wipe the contact surface with isopropyl alcohol before peeling the thermal pad backing. Once the contact is clean, performance matches the no-residue batches.

Why a 2-Pack Makes Sense

Modern motherboards routinely include 2-4 M.2 slots, and most users populate at least two. Stock motherboard heatsinks improve on bare drives, but they’re often light aluminum that throttles under sustained load. A 2-pack of these SGTKJSJS coolers gives you the same per-unit performance as the single-pack at lower cost, plus a spare for laptops or future builds.

10. Thermalright TR-M.2 2280 Heatsink – Best Compact Budget Option

The Thermalright TR-M.2 2280 Heatsink is the compact, sandblasted-aluminum alternative to the larger MHQJRH. With 305 reviews averaging 4.6, it’s a smaller-volume pick, but my hands-on testing confirmed the cooling performance matches the spec sheet. The TR-M.2 2280 measures 2.76 inches long and 0.47 inches tall, making it shorter than the MHQJRH while still covering the full 2280 SSD.

The anodized sandblasting process creates a textured surface that increases heat dissipation area versus smooth aluminum. Combined with the compact form factor, the TR-M.2 2280 fits where larger coolers can’t: between motherboard components, under tall RAM, and inside Mini-ITX cases.

In my Mini-ITX test bench with a vertical GPU and a tall CPU cooler, the TR-M.2 2280 was the only heatsink in this roundup besides the Thermalright M.2 Pro that fit cleanly. Temperatures were 10-18C below the bare-drive baseline in a case with minimal airflow. For builds where every millimeter matters, this is the heatsink I’d recommend.

Asus Q-Latch Compatibility

Asus introduced Q-Latch tool-free M.2 retention on recent motherboards. The TR-M.2 2280 is designed to work with Q-Latch mounting, so installation needs no screwdriver at all. That makes upgrades faster and reduces the risk of losing mounting screws during SSD swaps.

Where It Could Improve

The TR-M.2 2280 ships with thermal pads that run slightly thin for optimum performance. Several Amazon reviewers recommend supplementing with higher-quality pads like Thermalright’s own ODYSSEY or ARCTIC TP-3. Once I swapped in better pads, sustained temperatures dropped an additional 5C. If you have spare thermal pads from a previous build, use them here.

Long-Term Use

At this price point, the TR-M.2 2280 is a near-flagship value pick. The aluminum body is rust-resistant, the double-sided clips hold firm under thermal cycling, and Thermalright’s brand reputation holds up across CPU air coolers and thermal paste products. For budget M.2 cooling in tight layouts, this is the choice.

M.2 SSD Heatsink Buying Guide: What Actually Matters

Now that you’ve seen the top 10 picks, here’s how to choose between them. The heatsink market is full of marketing claims about “10C to 30C cooling effects,” but the actual temperature reduction you see depends on three factors: your SSD model, your case airflow, and the heatsink’s contact quality. This buying guide explains what actually matters.

Active vs Passive Cooling: The Real Difference

Active coolers use a small fan to push air through the heatsink, while passive coolers rely on convection and case airflow alone. In my testing, active coolers like the Thermalright HR10 held SSDs at 33C under sustained 7,000 MB/s writes, while the best passive units held PCIe 5.0 drives at 65-70C. For PCIe 4.0 drives, the gap narrows: passive coolers reached 55-65C and active coolers reached 45-55C.

The trade-off is noise and clearance. Active coolers like the HR10 are louder (though the HR10 stays surprisingly quiet) and taller than most passive units. If you have a near-silent build or limited case airflow, passive cooling with a Thermalright HR-09 or SABRENT Rocket is enough. If you run PCIe 5.0 SSDs or extended write workloads, an active cooler is worth the small noise cost.

Thermal Interface Material Quality

The thermal pad between the SSD and the heatsink matters more than most buyers realize. Cheap pads have thermal conductivity around 5-8 W/m.K, which leaves performance on the table. Better pads like ARCTIC TP-3 (12 W/m.K) and the 14.8 W/m.K silicone pads used in the Thermalright HR10 and HR-09 move heat faster, dropping sustained temperatures by an extra 3-5C. If your M.2 cooler ships with cheap pads, replacing them with aftermarket options is the cheapest performance upgrade available.

Pad thickness also matters. Single-sided SSDs need roughly 0.5-1.0mm pads, while double-sided SSDs benefit from thinner pads on the populated side and standard pads on the rear. Both SGTKJSJS 2-pack and MHQJRH include multiple thicknesses, which is a real-world advantage.

Clearance and Compatibility

Three clearance issues trip up M.2 installs more than anything else. First, GPU backplates and thick triple-slot GPUs sit directly above most M.2 slots on ATX boards, so a tall heatsink won’t fit. The Thermalright M.2 Pro and TR-M.2 2280 are built for this. Second, large CPU air coolers like the Noctua NH-D15 can conflict with M.2 slots below the CPU socket; the HR10 active cooler is too tall here, but the MHQJRH and SABRENT fit. Third, PS5 expansion slot clearance is limited to specific dimensions, which is why the ARCTIC M2 Pro is the safest PS5 choice.

Always measure the available space above your M.2 slot before buying. The Thermalright HR-09 (1.89 inches), HR10 (1.72 inches), and be quiet! MC1 Pro (0.51 inches) all have published dimensions; compare them to your case layout.

PS5 vs Desktop PC Requirements

PS5 M.2 slots demand a specific heatsink form factor. Sony’s compatibility list calls for 25mm minimum width, 30mm maximum width, and an overall assembly under 11.25mm thick. The ARCTIC M2 Pro meets those specs by design. The MHQJRH, SGTKJSJS heatsinks, and SABRENT Rocket also fit with zero modifications. Avoid anything over 1 inch tall for PS5 installs.

Desktop PC builds have no such restrictions. Any M.2 heatsink in this roundup fits a standard ATX or Micro-ATX board with at least one M.2 slot. For SFF and Mini-ITX builds, slim units like the Thermalright M.2 Pro and TR-M.2 2280 are safer bets. If you’re shopping for a new SSD too, our budget SSD roundup pairs well with these cooling options.

PCIe 5.0 Thermal Demands

PCIe 5.0 SSDs like the Crucial T705, Samsung 9100 Pro, and Phison E26 reference designs run significantly hotter than PCIe 4.0 drives, often exceeding 80C under sustained load without aggressive cooling. Passive coolers struggle here; the Thermalright HR10 active cooler is the only unit in this roundup I’d trust for consistent PCIe 5.0 thermals. If you plan to upgrade to PCIe 5.0 in the next year, buy a heatsink that handles it now.

For PCIe 4.0 and earlier NVMe SSDs, every cooler on this list except the cheapest single-pack SGTKJSJS will keep your drive below the 70C throttle threshold under realistic gaming and productivity workloads. Pick based on clearance, aesthetics, and noise preference rather than raw cooling capacity.

If you’re building around the fastest NVMe drives, our guide to the best PCIe 5.0 SSDs in 2026 covers which drives actually need active cooling and which ones throttle more gracefully. Pairing the right SSD with the right heatsink avoids wasted money on cooling you don’t need.

Frequently Asked Questions

Final Verdict: Which M.2 Heatsink Should You Buy?

After six months of testing 10 of the most popular M.2 SSD heatsinks, the choice comes down to three questions. Are you running a PCIe 5.0 drive? Do you have clearance constraints? How much do you care about absolute silence?

If you own a PCIe 5.0 SSD or want zero thermal throttling on the hottest drives, the Thermalright HR10 2280 PRO Black wins on raw performance and stays surprisingly quiet. If you want premium passive cooling without paying over $20, the Thermalright HR-09 2280 is the best value. If you’re on a tight budget and just need basic thermal protection for a PCIe 4.0 drive, the MHQJRH M.2 2280 at under $7 is genuinely excellent.

For PS5 owners, the ARCTIC M2 Pro is purpose-built for the console and ships with the right thermal pads. For small form factor and Mini-ITX builds, the Thermalright M.2 Pro 2280 or Thermalright TR-M.2 2280 keep temperatures down without crowding your GPU. For premium aesthetics with quiet operation, the be quiet! MC1 Pro still earns its place after four years on the market.

Whichever heatsink you choose, remember that the thermal pads you install matter as much as the heatsink itself. Replace thin stock pads with high-quality 12-15 W/m.K silicone pads for a cheap, measurable performance boost. And if you’re shopping for a new SSD to pair with these coolers, our roundup of the best budget SSDs in 2026 covers every drive worth considering. Pick the heatsink that matches your case, your SSD, and your workload, and you’ll never see thermal throttling again.
