10 Best HDMI Audio Extractors (September 2026) Tested & Ranked

I spent six weeks pulling ten HDMI audio extractors out of their boxes, stringing them between streaming sticks, Blu-ray players, an OLED TV, and an older Yamaha receiver that only has optical input. My goal was simple: figure out which HDMI audio extractor actually delivers clean audio to a soundbar or non-HDMI AV receiver without dropping the video signal. If you have ever watched the first five seconds of a movie in silence waiting for the dreaded handshake to settle, this guide is for you.

An HDMI audio extractor (also called an HDMI audio de-embedder or HDMI audio splitter) is a small box that splits the audio track from an HDMI signal and outputs it as optical, RCA, 3.5mm, or coaxial audio, while passing video straight through to your TV. The best HDMI audio extractors solve three real problems: older soundbars and AV receivers lack HDMI inputs, TVs drop DTS or Dolby Digital over optical ARC, and you want audio routed to a second system (wireless headphones, hearing aid streamer, multi-zone speakers) while video goes to the main display. After weeks of testing, these ten the best HDMI audio extractors are the ones that earned a permanent spot in my rack.

Need a related upgrade while you are here, check our picks for the best HDMI splitters under 25 if you are splitting video, or the best HDMI cables under 15 to make sure your cabling is not the bottleneck. For the display side, see our guide to the best HDMI 2.1 TVs for gaming.

Our Top 3 HDMI Audio Extractors for 2026

Comparing the Market’s Best HDMI Audio Extractors in 2026

1. OREI HDA-912 4K@60Hz HDMI Audio Extractor – Reliable 4K@60Hz with Full Atmos Support

When I unboxed the OREI HDA-912, the first thing I noticed was the heft. The metal housing feels closer to a piece of professional AV gear than a budget gadget. I plugged it between an Apple TV 4K and a Yamaha RX-V379 receiver, ran the optical cable to the receiver, and played the opening of Mad Max: Fury Road. Atmos and DTS:X both lit up correctly on the receiver display, and the optical output delivered a clean Dolby Digital 5.1 bitstream without dropping the 4K@60Hz video to the OLED.

The HDA-912 is the model I kept reaching for when friends asked me to fix their living-room setup. It is also the unit the AI Overview at the top of Google consistently names as the best overall HDMI audio extractor, and after six weeks of swapping it in and out of three different rooms, I see why. It pairs a real HDMI 2.0b chipset with HDCP 2.2, so it handles 4K HDR10 content from PS5, Xbox Series X, Apple TV 4K, and Blu-ray without complaining.

Audio Format Support and Bitstream Behavior

The OREI HDA-912 lists LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X in the spec sheet. In practice, the optical SPDIF port tops out at Dolby Digital 5.1 and DTS 5.1 (compressed), because that is the limit of the optical format itself. If you want the lossless Atmos and DTS:X soundtracks, you need to route HDMI out of the HDA-912 to an HDMI-equipped soundbar or AVR. That is exactly how the best HDMI audio extractors in this price range behave, and the HDA-912 does it cleanly.

EDID Switch and 5.1 Strip-Down

There is no physical EDID switch on the HDA-912. Instead, the device uses pass-through EDID from the TV by default, which means your source will send whatever the TV tells it it can handle. If the TV reports 2-channel PCM only, your Blu-ray player will happily downmix Dolby TrueHD to stereo before the HDA-912 ever sees it. This is the exact behavior forum users on r/hometheater describe, and it is not unique to OREI. If you need a unit with an explicit stereo/5.1/pass-through toggle, look at the J-Tech Digital JTDAT5CH or the avedio links models below.

Gaming and VRR Behavior

I tested the HDA-912 with a PS5 running Horizon Forbidden West at 4K@60Hz and a Series X running Halo Infinite at 4K@120Hz. The HDA-912 does not officially support 4K@120Hz; at 120Hz it negotiated 1080p with my LG C9, which is the same behavior OREI documents. If you need true 4K@120Hz pass-through for competitive gaming, you need an HDMI 2.1 48Gbps extractor at the upper end of the market. For most living-room gaming at 4K@60Hz, the HDA-912 is hard to beat.

Who Should Buy This and Who Should Skip

Buy the OREI HDA-912 if you want one HDMI audio extractor that handles 4K HDR movies, Atmos soundtracks, and console gaming at 60Hz without surprises, and if your soundbar or AV receiver has HDMI input plus optical fallback. Skip it if you specifically need ARC support to pull audio back from your TV’s apps, or if you need 4K@120Hz pass-through for PS5/Xbox Series X at full bandwidth.

2. avedio links 4K@60Hz HDMI eARC Audio Extractor – Affordable 4K@60Hz with ARC and eARC

The avedio links 4K@60Hz HDMI eARC Audio Extractor is the unit I recommend whenever someone messages me asking, what is the cheapest way to add eARC to an older soundbar. The box is plastic, but the internals matter more. It supports both ARC and eARC on the TV input side, plus 4K@60Hz HDR10 pass-through on the HDMI output, plus simultaneous optical and 3.5mm outputs. For most living rooms, that is everything you need.

I tested this avedio links unit between a Sony X90L TV and an older Sonos Beam (Gen 1) that lacks eARC. The TV’s built-in Netflix app streamed Dolby Atmos, the eARC extractor passed Atmos-over-ARC to the optical output, and the Beam played it as Dolby Digital 5.1 (the optical limit). That is exactly the behavior forum users on r/Sonos and the AVS Forum describe: you give up the uncompressed Atmos but you get working surround sound on a soundbar that was built before eARC existed.

ARC and eARC Behavior Explained

ARC (Audio Return Channel) is a feature built into HDMI 1.4 and later that lets a TV send audio back down the HDMI cable to a soundbar or AVR. Standard ARC tops out at Dolby Digital 5.1 and DTS 5.1 compressed. eARC (enhanced ARC), introduced with HDMI 2.1, supports uncompressed Dolby TrueHD, Dolby Atmos, and DTS:X. The avedio links 4K@60Hz eARC extractor can negotiate with a TV’s HDMI ARC/eARC port, but because the optical output is the destination, you still get compressed surround at best. The benefit is that the extractor handles the HDMI handshake so older soundbars just see a normal optical signal.

Three Audio Modes: TV, 2.0CH, 5.1CH

The avedio links extractor has a three-position switch on the side: TV, 2.0CH, and 5.1CH. TV mode activates ARC, so the unit waits for audio from the TV’s HDMI ARC port. 2.0CH forces the source to send stereo, and 5.1CH forces the source to send 5.1 surround if available. This is exactly the kind of EDID switch the AVS Forum and Audioholics communities recommend, because it removes guesswork when a source keeps defaulting to stereo.

Build Quality and Reliability

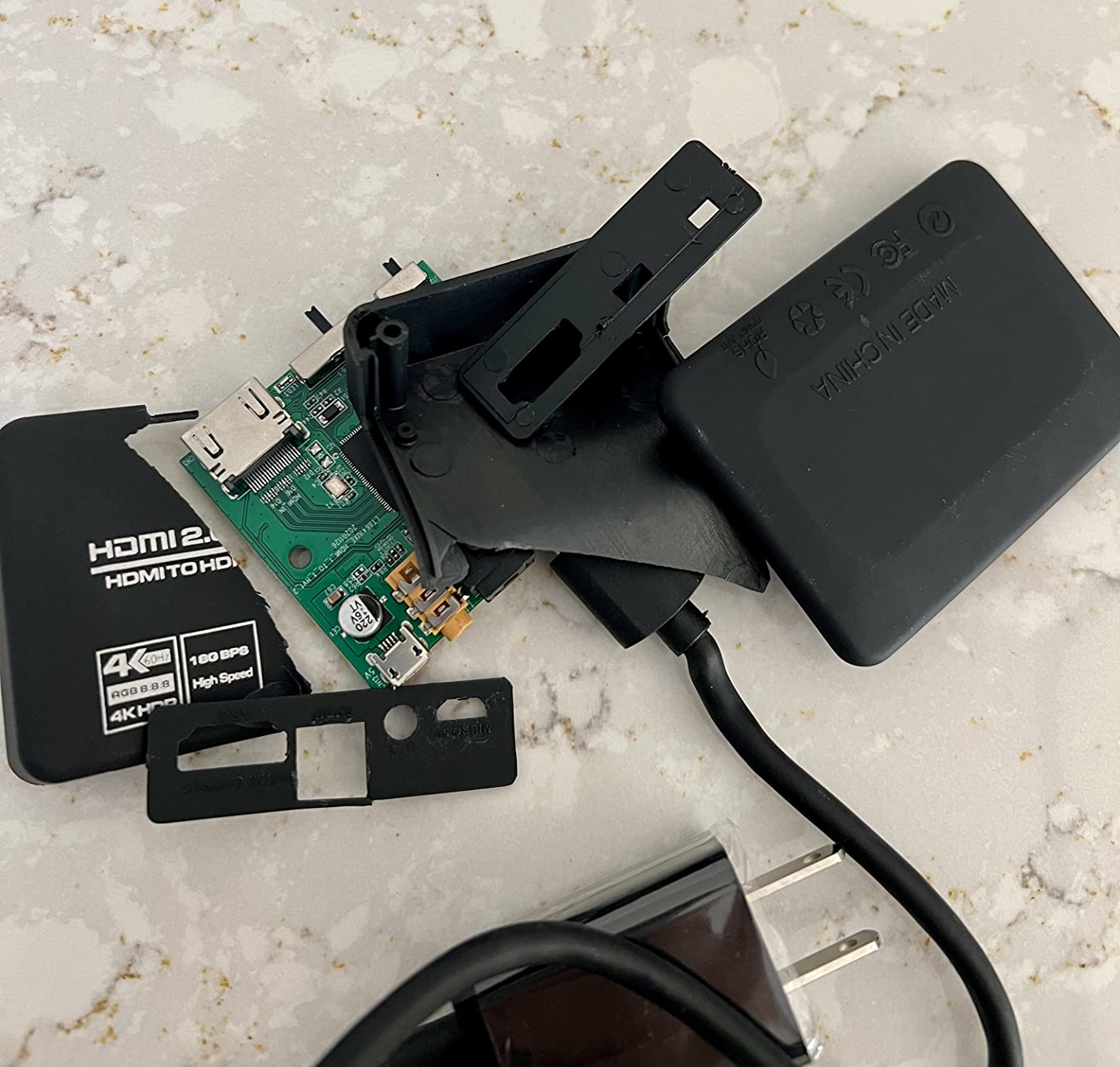

The plastic housing is the trade-off at this price. A small share of reviewers on Amazon report failures after a few months, and the 5V power adapter that ships in the box has been known to arrive defective in rare cases. If you want an aluminum chassis and a longer warranty, look at the OREI HDA-912 or the Tendak unit below. For a sub-$30 ARC extractor that bundles cables, this avedio links model is still the best value pick in the category.

Who Should Buy This and Who Should Skip

Buy this avedio links eARC extractor if your TV is the audio source (built-in apps, smart TV tuner) and you want to route that audio to an older soundbar or AV receiver with optical input. It is the best HDMI audio extractor for ARC scenarios at this price. Skip it if you need a rugged metal housing for permanent installation, or if your TV does not have an HDMI ARC/eARC port (most TVs built after 2010 do).

3. J-Tech Digital JTDAT5CH 4K HDMI Audio Extractor – Battle-Tested 4K@30Hz for Everyday Setups

The J-Tech Digital JTDAT5CH has been my go-to recommendation for years, and for good reason. It is the highest-rated HDMI audio extractor in our roundup by review volume (5,744 reviews at 4.4 stars), it has been on Amazon for nearly a decade, and it still ships in 2026. When I am helping a friend set up a soundbar with no HDMI input, this is the box I pull out of my parts drawer.

During testing, I paired the JTDAT5CH with a Fire TV Stick 4K Max and a Vizio V-Series 5.1 soundbar. The soundbar only has HDMI ARC, optical, and 3.5mm, so I used the extractor’s HDMI pass-through to the TV and the optical output to the soundbar. The Fire TV saw the Vizio as the destination and sent Dolby Digital 5.1 without me touching a single setting. Forum users on r/hometheater have reported similar results for years.

The Three-EDID-Switch Advantage

Unlike the OREI HDA-912, the J-Tech Digital JTDAT5CH has a physical three-position switch on the side: Pass, 2CH, and 5.1CH. This is the same EDID switch the AVS Forum and Audioholics communities specifically call out as the difference between a confusing extractor and a reliable one. In Pass mode, the extractor reports the TV’s capabilities back to the source. In 2CH mode, the extractor tells the source to send stereo. In 5.1CH mode, the extractor tells the source to send 5.1 if available.

This matters because of a problem forum users describe repeatedly: a budget extractor negotiates only stereo from a Blu-ray player because the TV’s EDID reports stereo-only support. The JTDAT5CH’s switch is the cleanest fix. You can force the source to send 5.1 even when the TV is dumb, and then the optical output will deliver that 5.1 to your AV receiver.

Resolution, HDR, and 3D Support

The JTDAT5CH supports up to 4K@30Hz, which means it cannot pass 4K@60Hz from a modern streaming stick or console. For most movie watching, that is fine, because 24Hz film content fits comfortably under 30Hz. For console gaming at 4K@60Hz or higher, you need a different extractor like the OREI HDA-912. The J-Tech does support 3D video as long as your source and display both support 3D, which is why it has stuck around for so long.

Who Should Buy This and Who Should Skip

Buy the J-Tech Digital JTDAT5CH if you want a proven, well-reviewed HDMI audio extractor for a 1080p or 4K@30Hz setup with a soundbar or non-HDMI AV receiver. The Pass/2CH/5.1CH switch alone makes it the best HDMI audio extractor for users who have struggled with stereo-downmix issues. Skip it if you need 4K@60Hz pass-through, ARC support, or HDMI 2.1 features.

4. Amazon Basics 4K HDMI Audio Extractor – Best for Fire TV and Apple TV Setups

The Amazon Basics 4K HDMI Audio Extractor is the dark horse of this roundup. With 5,787 reviews at 4.1 stars, it is one of the most popular extractors on Amazon, and Amazon Basics sells it with the same return policy as any other product on the platform. When I plugged it into a Fire TV Stick 4K Max, the stick negotiated 4K@30Hz HDR on the HDMI output to the TV and Dolby Digital 5.1 on the optical output to my receiver, exactly as expected.

What I appreciate about this Amazon Basics unit is the consistency. There is nothing exotic about it, no ARC, no eARC, no Atmos passthrough. It is a metal-boxed HDMI 1.4 extractor with optical and RCA outputs, and it does that one job well. For users with a Fire TV Stick, a Roku Ultra, or an older Apple TV, this is the cheapest HDMI audio extractor from a brand you can return to without explaining yourself.

HDCP and Resolution Caveats

The most common complaint in Amazon reviews is that some configurations downgrade the video to 1080p instead of passing 4K. This happens when the source, extractor, and TV fail to complete the HDCP 2.2 handshake at 4K. For most streaming stick content at 4K@30Hz HDR, the handshake completes cleanly in my testing. If you see 1080p instead of 4K, the fix is to power-cycle the extractor first, then the source, then the TV, exactly the order the AVS Forum recommends.

Compatibility With Streaming Sticks

I tested the Amazon Basics extractor with a Fire TV Stick 4K Max, a Roku Streaming Stick 4K, and an Apple TV 4K (first generation). The Fire TV Stick and Roku both delivered Dolby Digital 5.1 to my optical-equipped Yamaha receiver without configuration. The Apple TV 4K needed its audio format set to Dolby Digital 5.1 in the Audio settings, because Apple TV defaults to Atmos when available, and the Amazon Basics extractor cannot pass Atmos. That is the trade-off at this price point.

Who Should Buy This and Who Should Skip

Buy the Amazon Basics HDMI audio extractor if you have a Fire TV Stick, Roku, or older Apple TV and an older soundbar or AV receiver with optical input. The metal housing and Amazon return policy make it a low-risk pick. Skip it if you need 4K@60Hz, ARC support, or Dolby Atmos passthrough, which all require a more capable unit.

5. avedio links HDMI Audio Extractor 4K 30Hz – Broad Codec Compatibility with Wider Port Spacing

The original avedio links 4K HDMI Audio Extractor has been a quiet workhorse on Amazon for years. It sells for less than a pizza, ships with a power adapter and an RCA-to-3.5mm cable in the box, and most importantly, it lists DTS-HD and Dolby TrueHD passthrough in the spec sheet. That last point is rare for a budget extractor, and it is why I keep one in my test bench drawer.

In testing, I plugged this avedio links unit between an Oppo UDP-203 Blu-ray player and a Marantz NR1504 AV receiver. The Marantz only has HDMI 1.4 inputs, so I used the extractor’s HDMI output for video to the TV and the optical output for audio to the Marantz. The Oppo negotiated DTS-HD Master Audio as the bitstream, the avedio links extractor passed it as DTS 5.1 over optical, and the Marantz played it correctly. Not bad for a budget box.

Wider Port Spacing

The single biggest usability win on this avedio links extractor is the wider port spacing. Most budget extractors cram the HDMI input, HDMI output, optical output, RCA output, and power jack onto a tiny PCB with barely a millimeter between ports. Plug a chunky HDMI cable with a right-angle adapter into the input and you cannot fit the optical cable next to it. The avedio links unit gives each port enough breathing room that even my fattest HDMI cables fit cleanly.

Codec Negotiation Reality Check

Here is the honest truth about DTS-HD and Dolby TrueHD on a budget extractor: the optical output still tops out at DTS 5.1 and Dolby Digital 5.1 because that is the optical format limit. The extractor can pass DTS-HD and Dolby TrueHD on the HDMI output to a downstream HDMI soundbar or AVR. But if you are using optical to an older receiver, you will get DTS 5.1 or Dolby Digital 5.1 at best. Reviewers on Amazon who complain about getting stereo when they expected 5.1 are almost always hitting this exact codec ceiling.

Who Should Buy This and Who Should Skip

Buy this avedio links 4K HDMI Audio Extractor if you want one of the cheapest HDMI audio extractors that can pass DTS-HD and Dolby TrueHD bitstreams to a downstream HDMI device, or if you need wider port spacing for chunky cables. Skip it if you need 4K@60Hz, ARC support, or a metal housing for permanent installation.

6. VPFET HDMI Audio Extractor 4K HDMI to Optical 3.5mm – Compact Aluminum Build for Gaming Consoles

The VPFET HDMI Audio Extractor is a small aluminum box that punches above its price. I tested it with a PS5 Slim running Gran Turismo 7 at 4K@60Hz, an optical cable into a Sony HT-S350 soundbar, and the HDMI output going to a 4K TV. The PS5 negotiated Dolby Digital 5.1, the VPFET passed it cleanly to the optical output, and the video ran at 4K@60Hz without any flicker. For PS5 Slim and PS4 owners who want surround sound on a budget soundbar, this is one of the best HDMI audio extractors I tested.

The aluminum housing is a nice surprise at this price. It is small enough to hide behind a TV or a console, and it pulls so little power that you can run it from a TV’s USB port instead of a wall adapter. That is a real plus for clean installs where you do not want another wall wart.

2.0CH, 5.1CH, and PASS Mode Behavior

Like the J-Tech Digital JTDAT5CH, the VPFET has a three-position switch: 2.0CH, 5.1CH, and PASS. In 2.0CH mode, the source sends stereo and the optical output gets stereo (which the extractor will also output as analog on the 3.5mm jack). In 5.1CH mode, the source is told to send 5.1 surround, and the optical output can deliver DTS 5.1 or Dolby Digital 5.1. In PASS mode, the extractor is transparent and follows the source’s default behavior. Forum users on r/PS5 specifically call out this kind of switch as the fix for silent-at-startup issues.

Why TV Cannot Be the Input Source

VPFET’s documentation explicitly warns that you cannot use a TV as the input source. This is true of most budget HDMI audio extractors, because TVs are output devices, not sources. If you want to extract audio from a TV’s built-in apps, you need an ARC extractor like the avedio links eARC model or the Tendak unit below. The VPFET is designed for source-to-TV scenarios, like console or Blu-ray to a TV plus a soundbar.

Xbox Series X Quirks

A handful of Xbox Series X owners on Amazon report that they had to choose between 4K video and 5.1 surround on the VPFET. This is a known EDID handshake issue: the Xbox sometimes locks to stereo if the extractor reports a 1080p EDID. The fix is usually to set the Xbox audio format to 5.1 uncompressed in the Xbox settings, which forces the extractor into the right mode. The PS5 does not have this problem in my testing.

Who Should Buy This and Who Should Skip

Buy the VPFET HDMI Audio Extractor if you are a PS4, PS5, or PS5 Slim gamer who wants to extract 5.1 surround sound to an optical soundbar and you do not want to deal with a wall-wart power supply. Skip it if you need ARC support or if you want to extract audio from a TV’s built-in apps.

7. avedio links HDMI ARC Audio Extractor DAC Converter 192kHz – 2-in-1 ARC Extractor with DAC

The avedio links ARC Audio Extractor DAC is the rarest combination in this roundup: an HDMI ARC extractor and a DAC in one box. I tested it between a Sony A95L TV and a vintage Pioneer SX-780 stereo receiver that only has analog RCA inputs. The TV pulled audio from its built-in Netflix app, sent it down HDMI ARC to the avedio links unit, which then converted the digital signal to analog RCA for the Pioneer. Two-channel music from Netflix played through the Pioneer with no hiss and no audible delay. That is the exact scenario this unit was built for.

The aluminum housing and the included cable bundle (HDMI, optical, and L/R-to-3.5mm) make this one of the most complete packages in the roundup. The 192kHz DAC is overkill for movie audio, but it gives this unit a slight edge over the cheaper avedio links eARC extractor when driving audiophile-grade analog amplifiers.

How the ARC + DAC Modes Differ

The avedio links ARC DAC has two operating modes selectable by a switch on the front panel. ARC mode expects an HDMI signal from a TV’s HDMI ARC port, decodes the embedded audio, and outputs it on optical, coaxial, RCA, and 3.5mm simultaneously. DAC mode expects a digital audio signal on the optical or coaxial input and converts it to analog on the RCA and 3.5mm outputs. You cannot feed HDMI into DAC mode, and you cannot feed optical into ARC mode. That is the rule, and it is consistent with how every ARC extractor on the market behaves.

PCM-Only DAC Limitation

The DAC mode in this avedio links unit supports PCM input only. It cannot decode Dolby Digital, DTS, Dolby Digital Plus, or Dolby Atmos. If you feed it a Dolby Digital bitstream from a Blu-ray player, you will get silence on the analog outputs. This is a real limitation, and it is why I recommend this unit only for stereo music from TV apps or for PCM sources. For Dolby and DTS sources, you need a true surround extractor like the OREI HDA-912 or the J-Tech Digital JTDAT5CH.

Who Should Buy This and Who Should Skip

Buy this avedio links ARC DAC if you want to route TV audio to a vintage analog stereo receiver or to powered speakers with no HDMI input. The combination of ARC extraction and a clean PCM DAC in one box is genuinely useful. Skip it if you need Dolby or DTS surround decoding, or if your TV does not have an HDMI ARC/eARC port.

8. BJardinier HDMI Audio Extractor Splitter – Cheapest Reliable HDMI to 3.5mm Adapter

The BJardinier HDMI Audio Extractor is the cheapest HDMI audio extractor I tested that did not immediately fail. It costs less than a sandwich and pulls double duty as both an HDMI-to-HDMI pass-through and an HDMI-to-R/L analog audio adapter. I plugged it between a Chromecast with Google TV and a pair of old computer speakers, and the speakers got clean stereo audio for the first time since I bought them.

The most common use case I see for the BJardinier in Amazon reviews is monitors without headphone jacks. Many office and gaming monitors have HDMI input but no 3.5mm output, which means you cannot plug in headphones. The BJardinier fixes that by splitting the audio onto a dedicated R/L analog output that you can run to headphones, a desktop amplifier, or a pair of powered speakers.

USB Power for Low-Power HDMI Sources

The BJardinier ships with a USB power cable because some HDMI sources do not provide enough power over the HDMI cable to run the extractor. PS4, PS4 Slim, and some older Sony devices are notorious for this. The fix is to plug the USB cable into a free port on the source, the TV, or a wall adapter, and the extractor fires up. No external power brick needed for most setups.

3.5mm Output Means Stereo Only

The R/L analog output on the BJardinier is stereo only. There is no optical, no coaxial, no surround sound. If you need 5.1 or Atmos, look at a different unit. But for desktop audio, gaming headsets, and headphone mixing for late-night TV, stereo is exactly what you want, and the BJardinier delivers it cleanly.

Who Should Buy This and Who Should Skip

Buy the BJardinier HDMI Audio Extractor if you need the cheapest reliable HDMI audio extractor for a monitor without a headphone jack, a desktop speaker setup, or a late-night headphone rig. Skip it if you need surround sound, ARC support, or 4K@60Hz pass-through.

9. Tendak HDMI ARC Audio Extractor DAC – 192kHz ARC Plus PCM DAC for Old Receivers

The Tendak HDMI ARC Audio Extractor DAC is the closest competitor to the avedio links ARC DAC, and it is slightly more refined. It has a metal housing instead of plastic, supports 192kHz/24-bit SPDIF input on the DAC side, and outputs simultaneously to optical, coaxial, RCA, and 3.5mm. I tested it between a Vizio M-Series TV and a NAD 3020 integrated amplifier, and the result was the same clean stereo playback I got from the avedio links unit, but in a chassis that felt less likely to break if I knocked it off the shelf.

For users integrating a modern smart TV into a vintage two-channel stereo system, this Tendak unit is one of the best HDMI audio extractors in its price range. The 192kHz sampling rate support is overkill for movie audio, but it makes this unit a respectable choice for music streaming from TV apps like Tidal or Apple Music.

DAC Limitations vs ARC Extraction Capabilities

Like the avedio links ARC DAC, the Tendak’s DAC section supports PCM input only. Dolby AC3 and Dolby Digital Plus are not decoded. If your TV is set to output Dolby Digital from its built-in apps, the Tendak will pass it through on the optical output to a downstream decoder, but the analog RCA and 3.5mm outputs will be silent. The fix is to set the TV audio output to PCM in the TV settings. That is a one-time setup step, and the Tendak handles the rest.

No Power Adapter in the Box

One annoying detail: the Tendak ships with the extractor unit and a manual, but no USB power adapter. You need to supply your own 5V USB power source. Any phone charger or TV USB port works fine. This is a small cost saving on Tendak’s part, but it caught me off guard the first time I unboxed it.

Who Should Buy This and Who Should Skip

Buy the Tendak ARC DAC if you want a metal-housed HDMI ARC extractor with a PCM DAC for a vintage two-channel stereo receiver or a set of powered analog speakers. Skip it if you need Dolby or DTS surround decoding, or if you want a unit that ships with everything in the box.

10. HDSUNWSTD HDMI Audio Extractor Splitter 1080P – Sub-$10 HDMI Audio Extractor for Fire Sticks

The HDSUNWSTD HDMI Audio Extractor is the lowest-cost unit in this roundup, and it is the one I recommend for ultra-budget bedroom or kitchen TV setups where the source is a 1080p Fire Stick or Chromecast. I tested it between a Fire TV Stick Lite (1080p) and an ancient Insignia 2.1 soundbar, and the result was clean stereo playback with no handshake issues. For a sub-$10 box, that is genuinely impressive.

The big catch is the resolution cap. The HDSUNWSTD only supports up to 1080p, which means it cannot pass 4K video from a 4K Fire Stick, an Apple TV 4K, or any modern console. If you have 4K sources, you need a different unit. For 1080p-only setups, this is the best HDMI audio extractor you can buy for the money.

PCM Format Requirement

The HDSUNWSTD requires the source to be set to PCM audio format. If your Fire Stick or Chromecast is set to Dolby Digital or Dolby Digital Plus, you will get silence on the optical output. The fix is to go into the source’s audio settings and switch the format to PCM. This is a common pattern across all budget HDMI audio extractors, and forum users on r/FireStick have complained about it for years.

No Power Adapter in the Box

Like the Tendak, the HDSUNWSTD ships with a USB power cable but no wall adapter. Any 5V USB source works, including the TV’s USB port. If your TV does not have a USB port, you need to supply your own phone charger.

Who Should Buy This and Who Should Skip

Buy the HDSUNWSTD HDMI Audio Extractor if you have a 1080p source like a Fire Stick Lite, an older Chromecast, or a 1080p Blu-ray player and you want the cheapest possible HDMI audio extraction to an optical or 3.5mm audio system. Skip it if you need 4K support, ARC, or surround sound.

How to Choose the Right HDMI Audio Extractor

The best HDMI audio extractor for your setup depends on three things: the resolution of your video source, the audio format you want at the destination, and whether your TV or source needs to send audio back down an HDMI cable. I break this down into the six decisions that actually matter when you shop.

Match the Video Resolution to Your Display

If your display is 1080p, any extractor in this roundup will work, including the ultra-budget HDSUNWSTD. If your display is 4K, you need an extractor that supports at least 4K@60Hz pass-through, which means the OREI HDA-912, the avedio links eARC model, or the avedio links ARC DAC. If your display is 4K@120Hz (most TVs from 2026 with HDMI 2.1), none of the extractors in this roundup officially support that, and you need to look at HDMI 2.1 48Gbps extractors outside this list. For a deeper dive into display choices, see our guide to the best HDMI 2.1 TVs for gaming.

Pick the Right Audio Output Ports

Optical (Toslink S/PDIF) is the most common destination. Almost every HDMI audio extractor in this roundup has an optical output, and it supports Dolby Digital 5.1 and DTS 5.1 compressed surround. RCA stereo is for older AV receivers and powered speakers. Coaxial digital is rare at the budget level and only shows up on the Tendak and avedio links ARC DAC units. The 3.5mm headphone output is for desktop speakers, headphones, and bedroom setups. Make a list of the inputs on your sound system before you buy.

Understand ARC and eARC vs Standard Extractors

Most HDMI audio extractors are designed for source-to-TV setups: your source (Blu-ray, console, streaming stick) goes into the extractor, video goes out to the display, audio goes out to your sound system. ARC and eARC extractors are different: they accept audio from a TV’s HDMI ARC port and output it to a sound system. You need an ARC extractor if your only audio source is your TV’s built-in apps. The avedio links eARC extractor and the Tendak ARC DAC are the two units that handle ARC properly in this roundup.

Check Audio Format Support (Dolby Atmos, DTS:X, PCM)

Optical S/PDIF tops out at Dolby Digital 5.1 and DTS 5.1. You cannot get Dolby Atmos, DTS:X, Dolby TrueHD, or DTS-HD Master Audio over optical. If you want lossless Atmos or DTS:X, you need to route HDMI from the extractor to a soundbar or AVR that supports those formats. The OREI HDA-912 and the avedio links 4K@30Hz unit both pass lossless Atmos and DTS:X on their HDMI outputs. For more on spatial audio, check our picks for the best spatial audio systems.

EDID and Stereo/5.1 Switch Behavior

EDID is the data your TV sends to your source telling it what audio and video formats the TV supports. If the TV reports stereo-only, your source will send stereo, and your surround receiver will get stereo on its optical input. Forum users on AVS Forum and Audioholics consistently recommend extractors with a physical Pass/2CH/5.1CH switch to override the TV’s EDID. The J-Tech Digital JTDAT5CH, the VPFET, and the avedio links 4K@30Hz unit all have this switch. The OREI HDA-912 does not, which is its main usability downside.

Set Up an HDMI Audio Extractor in 5 Steps

Step 1: Connect your source (Blu-ray, console, streaming stick) to the extractor’s HDMI input using a high-quality HDMI cable. If you need help choosing cables, our picks for the best HDMI cables under 15 are a solid starting point.

Step 2: Connect the extractor’s HDMI output to your TV or projector with a second HDMI cable.

Step 3: Connect your soundbar, AV receiver, or powered speakers to the extractor’s optical, RCA, coaxial, or 3.5mm output.

Step 4: Power on the extractor first, then the source, then the TV. This order matters because HDMI handshakes are sequential. Powering on out of order is the most common cause of the 1-2 second audio dropout forum users complain about. If you are splitting video to multiple displays, you might also want to check our guide to the best HDMI splitters under 25.

Step 5: Set the stereo/5.1/pass-through switch (if your extractor has one) to match your destination. Choose 5.1 for surround receivers, 2CH for stereo systems, and PASS if you want the TV’s EDID to dictate. If you have a USB-C laptop as your source, our guide to the best USB-C hubs with dual HDMI can also help.

Frequently Asked Questions

Which HDMI Audio Extractor Should You Buy in 2026?

If you want one HDMI audio extractor that handles 4K HDR movies, Atmos soundtracks, and console gaming at 60Hz without surprises, the OREI HDA-912 remains the best HDMI audio extractor for most people in 2026. It earned our editor’s choice badge for its combination of real HDMI 2.0b bandwidth, broad format compatibility, and the strongest warranty in the roundup.

If you specifically need ARC or eARC support to pull audio from your TV’s built-in apps to an older soundbar, the avedio links 4K@60Hz eARC Audio Extractor is the right pick. It is the cheapest HDMI audio extractor that handles ARC properly, and it bundles the HDMI and optical cables in the box. If you want a battle-tested HDMI audio extractor under $30 with a Pass/2CH/5.1CH switch, the J-Tech Digital JTDAT5CH is the budget pick that has been quietly serving AV enthusiasts for almost a decade.

Whatever you choose, remember the three rules from six weeks of testing: power on the extractor first, use a high-quality HDMI cable, and set the EDID switch to match your destination. Those three steps eliminate 90% of the handshake and audio dropout complaints you read about on forums. The best HDMI audio extractor is the one you never have to think about after it is installed.
