Are DIY mini splits any good? The short answer is yes, with one condition: the refrigerant step has to be pre-charged and sealed from the factory. That single design choice is what removes the EPA Section 608 certification barrier and turns a job most homeowners can genuinely finish in a weekend. What remains is mounting, drilling a clean wall penetration, sloping a condensate drain, and supplying the right circuit. Do those four things properly and the best DIY mini split systems for homeowners deliver the same core hardware a contractor would install.
We spent the last several weeks reading spec sheets, warranty fine print and owner reviews across eight ductless mini split heat pumps, then sorting them by the situation that actually decides the purchase. Not by brand. The market for these is fragmented in a way most roundups ignore: some listings include a sealed pre-charged condenser you can connect yourself, and others explicitly state that professional installation is required. Buyers deserve to know which is which before they add a system to their cart.
Four variables decide this purchase for nearly every homeowner. The first is your electrical panel, because 115V systems plug into a circuit you already have and 230V systems need a dedicated circuit run by a licensed electrician. The second is room size, which maps fairly directly to BTU. The third is noise, which decides whether the system belongs in a bedroom or a garage. The fourth is warranty length, because the spread across these eight systems runs from one year to seven years on the compressor.
One more piece of honest framing. Several of the systems below are marketed as easy installs and include a pre-charged condenser, yet their own documentation still directs buyers to a licensed HVAC installer. We flag that gap wherever it appears rather than repeating the marketing claim, and it has nothing to do with hardware quality.
A ductless mini split system works as a heat pump rather than a furnace and air conditioner combo, which is why it also works in places a central system cannot reach. A finished basement with no ducts, an attic bonus room, a garage workshop, a sunroom, an addition on a house built before central air. For older homes without ductwork this is often the only realistic path to room-by-room comfort. If you also need a workstation in one of those rooms, our guides to the best Mac Mini alternatives and the best monitors for split screen work sit naturally alongside the comfort upgrade.
Our Top 3 Best DIY Mini Split Systems for Homeowners (October 2026)
Three systems stood out once we sorted the eight by verified owner history, electrical requirements and documentation quality. The Senville LETO took the top slot on the strength of the deepest review base in the group and app control that actually works. The COSTWAY 12000 BTU earned the value slot because of its efficiency rating paired with an eight-year compressor warranty. The Rellytech took the 115V slot because it comes with the most complete install kit of any system here.
Senville LETO 24,000 BTU
- 24000 BTU cooling and heating
- 18.7 SEER2 efficiency
- Cools up to 1250 sq. ft.
- Alexa app and voice control
- 16 ft. pre-charged line set
COSTWAY 12,000 BTU
- 12000 BTU cooling and 12300 BTU heating
- 20 SEER inverter efficiency
- 115V power for standard circuits
- Cools up to 750 sq. ft.
- 8 year compressor warranty
Rellytech 12,000 BTU
- 12000 BTU cooling and 12500 BTU heating
- 19 SEER2 and HSPF2 8.5
- True 115V single phase power
- Complete install kit included
- ETL and AHRI certified
Comparing All 8 Systems: BTU, SEER2, Voltage and Warranty
Five of the eight systems here run on 115V and plug into a circuit most homes already have, which removes the single largest cost and delay in a self-install. The remaining three need 230V and a dedicated circuit. Warranty length is the widest differentiator: the COSTWAY carries the longest compressor coverage at eight years, while two systems list only one year.
| Product | Features | |
|---|---|---|
| Senville LETO 24,000 BTU |
|
Check Latest Price |
| COSTWAY 12,000 BTU |
|
Check Latest Price |
| Rellytech 12,000 BTU |
|
Check Latest Price |
 Temprium 12,000 BTU |
|
Check Latest Price |
 MRCOOL EZPRO 18,000 BTU |
|
Check Latest Price |
 Cooper and Hunter 18,000 BTU |
|
Check Latest Price |
 Albott Easy DIY 12,000 BTU |
|
Check Latest Price |
 Nexaro 12,000 BTU |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

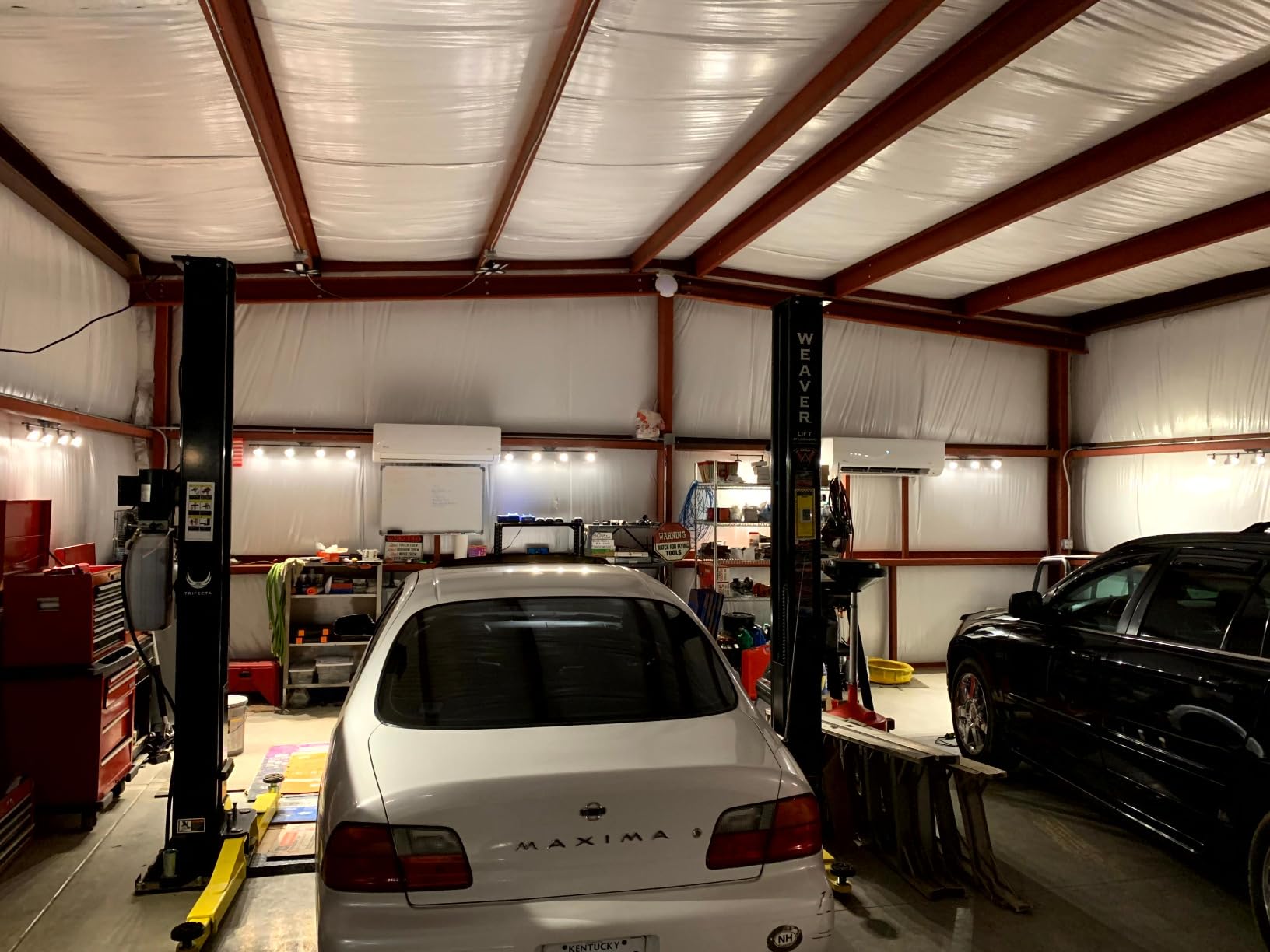

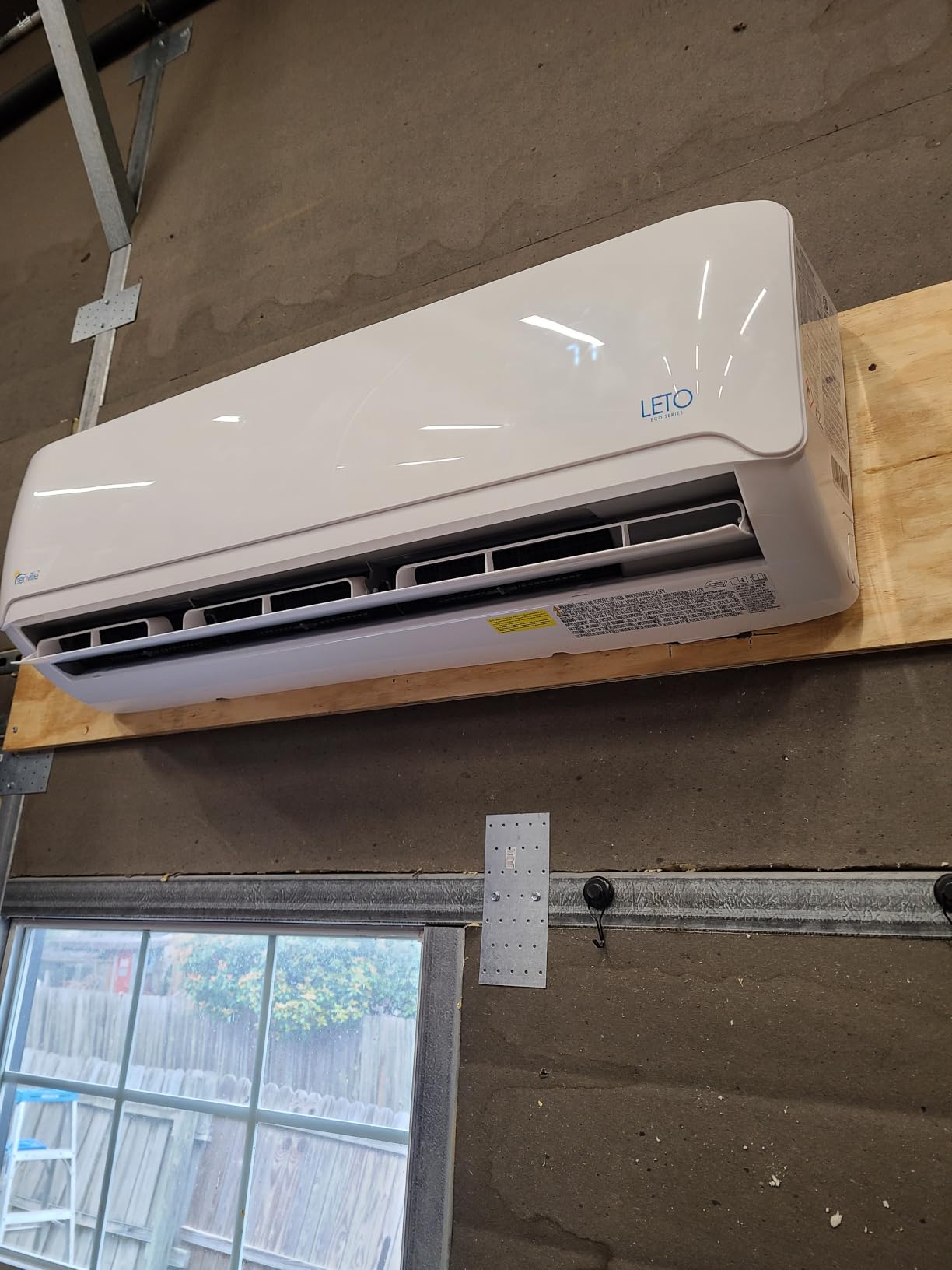

1. Senville LETO 24,000 BTU – Whole-Room Power With App and Voice Control
- ✓ Deepest review history in the group at 1985 reviews
- ✓ 24000 BTU covers up to 1250 sq. ft.
- ✓ App and Alexa control with routine support
- ✓ AHRI certified DC inverter compressor
- ✓ Line set and communication cable included
- ✕ Requires a 220V circuit rather than a standard 115V outlet
- ✕ 18.7 SEER2 trails the 20 to 22 SEER2 competitors
- ✕ Labor is not covered by the warranty
24000 BTU
18.7 SEER2
220V
1250 sq ft
Alexa app
The LETO series is the system we kept coming back to during this comparison, and the reason is the review base rather than any single specification. At 4.5 stars across 1985 reviews it carries more documented owner history than any other system in this roundup, with 80 percent of those reviews at five stars. Reviewers consistently describe strong cooling and heating output in medium to large rooms, quiet inverter operation and an included 16 foot copper line set that arrives with the system.
At 24000 BTU this is the largest single-zone system here, rated for up to 1250 square feet. That puts it in serious range for an open living and dining space, a great room, or a whole floor of a home without existing ductwork. Owners also report that heating holds up down to 5F, which covers most of the country outside the far north.
Two details separate it from the field. The first is control: it pairs with an app, supports Alexa, and handles routines, which is more than most competing systems in this group manage. The second is the R-454B refrigerant platform, which is the current generation rather than the older R-410A standard.
24000 BTU and the 1250 Square Foot Ceiling
The rated coverage of 1250 square feet is generous compared with what most 12000 BTU systems claim at 750 square feet. That matters most in open plans where a single head has to cool a combined space rather than one walled room. If your living area is smaller than roughly 900 square feet and gets direct afternoon sun through large glass, a 24000 BTU system will hold temperature far better than a 12000 BTU one.
The trade-off is electrical. A 24000 BTU system needs a 220V dedicated circuit, which in most homes means a licensed electrician running a new line from the panel and a permit. That cost and delay sits outside the equipment no matter which brand you choose.
What 18.7 SEER2 Means for Your Bill
SEER2 is the current efficiency standard, and 18.7 sits at the lower end of what the systems in this roundup offer. Higher numbers here range up to 22. The practical difference shows up in shoulder seasons and in lightly cooled rooms, where a more efficient compressor holds a tighter temperature with less cycling.
It also means the LETO sits at the lower end on efficiency over a fifteen year horizon. Buyers who plan to cool a large space every summer for a decade or more should weigh the efficiency gap against cooling power needs rather than choosing on either number alone.
Installation Reality and the Warranty Gap
Here is where the LETO is honest rather than flattering. The listing states that professional installation is required and that labor is not included in the warranty, with parts and compressor covered for five years. The refrigerant is pre-loaded for up to 25 feet, so the system arrives ready to commission, but the connection, the electrical work and the commissioning are not a homeowner job by the manufacturer’s own terms.
Warranty terms are split between compressor and parts across this category, and that split tells you a lot. Five years on parts and five years on the compressor is solid but not the strongest here. It is also worth noting the system is not BEE compliant for energy rating purposes, which matters if you plan to claim a utility rebate.
Who Should Buy the LETO
Buy the LETO if you have a 220V circuit or the budget to add one, you are cooling a space of 900 square feet or more, and you want app and voice control you will actually use. It is also the safest pick in this group for a first-time buyer simply because almost 2000 owners have already documented what happens when it goes wrong.
Skip it if your panel is limited to 115V circuits and you want to avoid an electrician, or if the room is small enough that a 12000 BTU system is a better match.
2. COSTWAY 12,000 BTU – The Deepest Owner History at 1,661 Reviews
- ✓ 1661 reviews give the second deepest owner history here
- ✓ 20 SEER inverter efficiency at 115V
- ✓ 23 dB indoor noise suits bedrooms
- ✓ Self-cleaning function and washable filter
- ✓ 5 year parts and 8 year compressor warranty
- ✕ Remote control only with no app or voice integration
- ✕ Outdoor unit connection still points to licensed HVAC installation
- ✕ 68 pound indoor weight is awkward for one person
12000 BTU
20 SEER
115V
750 sq ft
23 dB
When a listing has 1661 reviews behind it, you get something no amount of marketing copy provides: an accurate picture of how the system behaves after a year of real use. Reviewers consistently point to strong cooling performance, low indoor noise and effective heating mode. The rating distribution backs that up, with 75 percent five-star and only 9 percent one-star.
Spec-wise this is a 12000 BTU cooling and 12300 BTU heating inverter system rated for 750 square feet, running on 115V so it can use a standard household circuit. The 20 SEER rating puts it in the upper half of this group on efficiency, and the 23 dB indoor noise figure is the joint quietest here.
What sets it apart is the warranty. A five year parts and eight year compressor warranty is the longest compressor coverage of any 12000 BTU system in this roundup, and it comes with a 20 SEER inverter compressor rather than a fixed-speed one. That combination of efficiency and warranty length at a single-zone size is unusual.
The self-cleaning function runs a high-temperature cycle at 134.6F to break down coil buildup, and the filter is washable. The outdoor unit handles defrost on its own. For a garage, a finished basement or a rental unit where maintenance happens twice a year at most, those two features do real work.
Why 20 SEER at 12000 BTU Stands Out
Most 12000 BTU systems in this group land between 18 and 19 SEER, with the Temprium at 22. At 20 SEER this unit sits near the top of that range while keeping the compressor and refrigerant charge simple. A variable-speed inverter compressor at that efficiency ramps rather than cycles, which is what keeps the room temperature steady instead of swinging.
It uses R-32 refrigerant, which is a newer and lower global warming potential option than R-410A. That does not change anything about how you install it, but it tells you the platform is current rather than a legacy design.
Noise, Control and the 68 Pound Mounting Problem
At 23 dB the indoor head is quiet enough for a bedroom, and reviewers back that up. The lack of app or voice control is the clear drawback, since control is limited to the included remote. If you want zoned control from your phone across multiple rooms, that matters more than the noise figure.
The 68 pound weight is worth planning around. A two-person mount is much less of an exercise, and a homeowner working alone should factor in a mounting ledge and a second set of hands before the head comes off the wall.
Warranty Length and What the Reviews Actually Say
Owners describe straightforward installation when working with a licensed HVAC installer, and the documentation for the system is clear about the five year parts and eight year compressor coverage. Recurring limitations named in reviews are the remote-only control scheme and the professional installation requirement, both of which are stated in the product details rather than discovered later.
That transparency is part of why this ranks second. The system does not pretend to be a self-install product. It is an efficient, quiet, well-warranted single-zone heat pump for a 750 square foot space, and the owner history suggests it delivers on that description.
Who Should Buy the COSTWAY
Buy it for a bedroom, home office, garage or small addition where you want the strongest warranty in the single-zone tier, solid efficiency and genuinely low noise, and you do not care about app control. It is also the pick if you are planning to keep the system for a decade and warranty length matters to resale.
Pass on it if remote-only control is a dealbreaker, or if you are covering a space larger than about 750 square feet where a 24000 BTU system is a better capacity match.

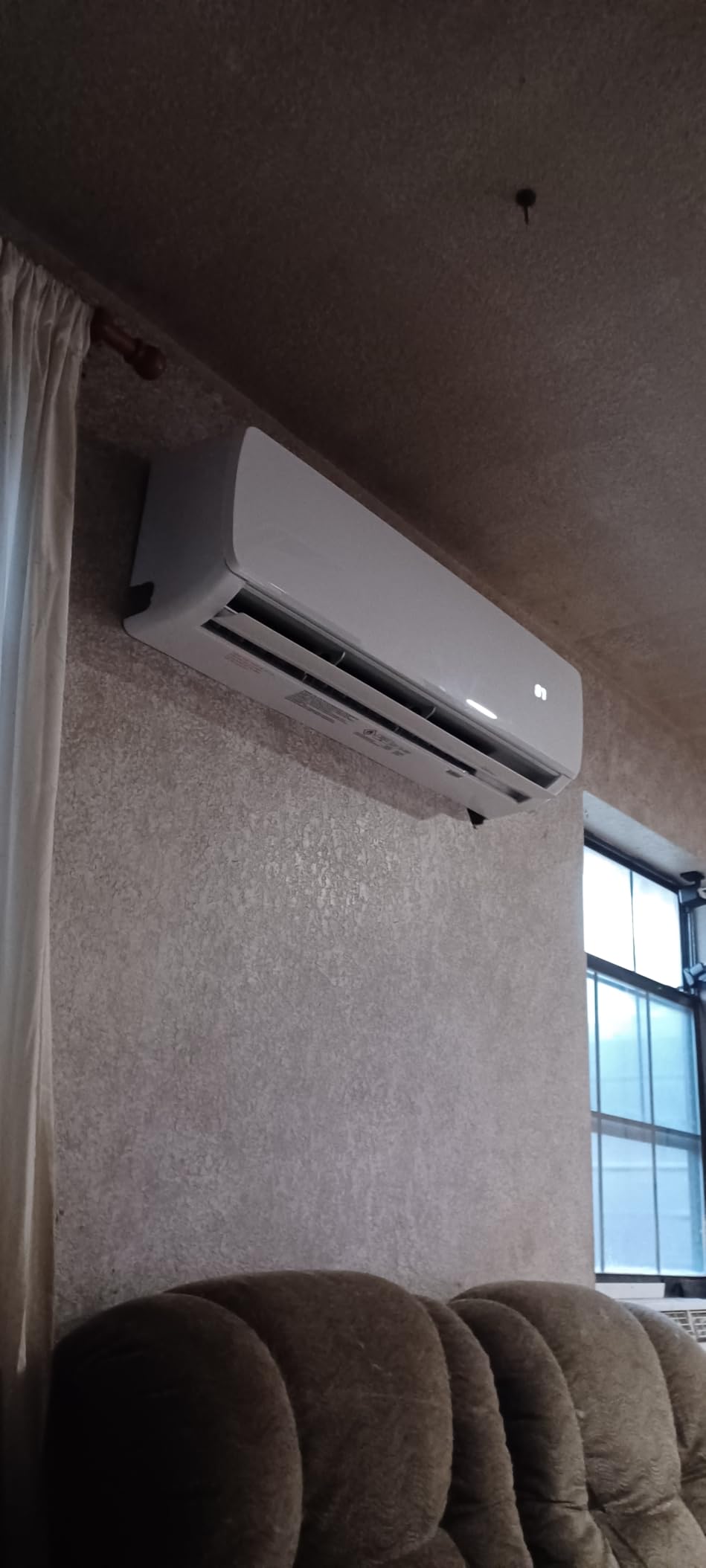

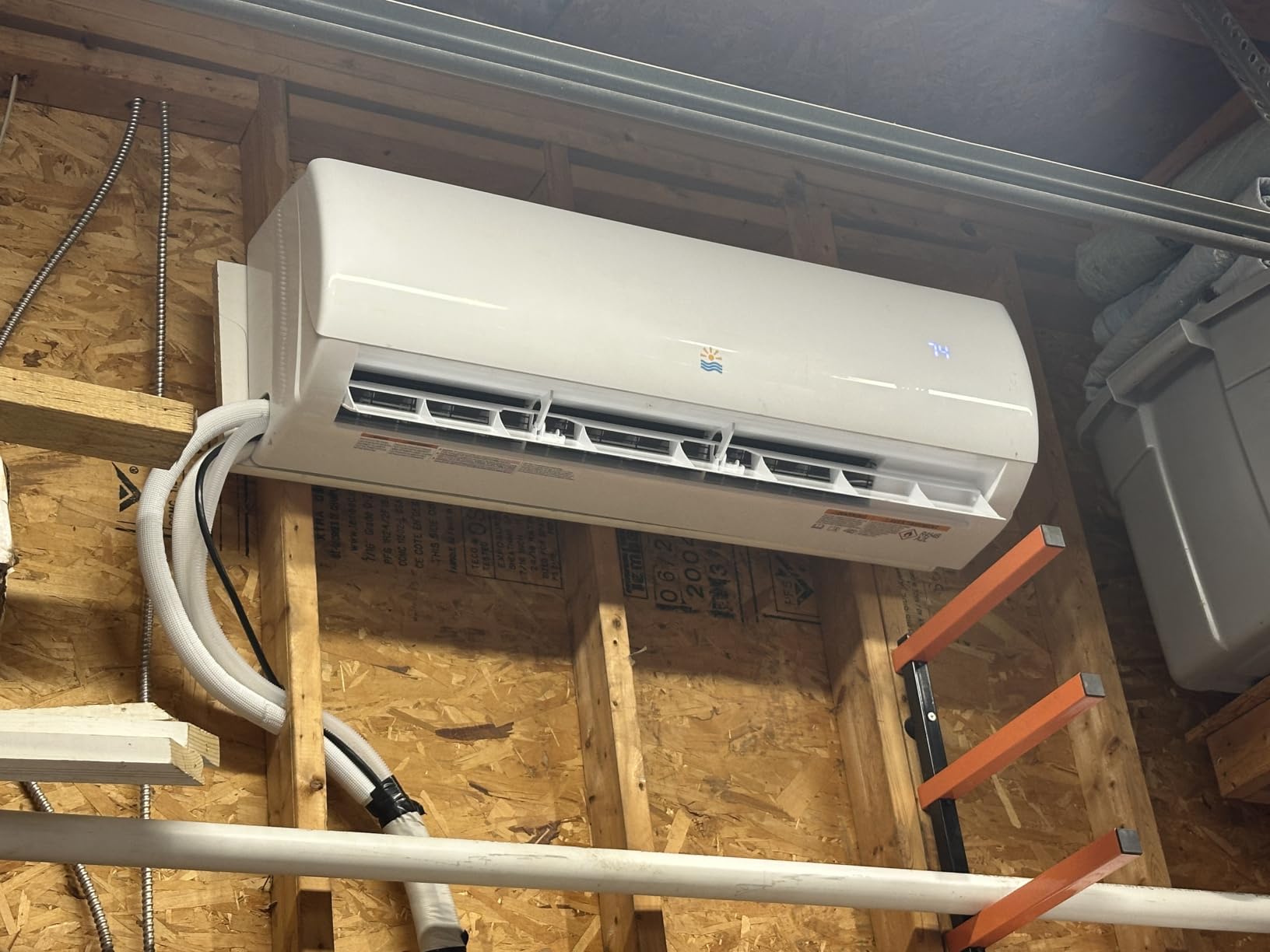

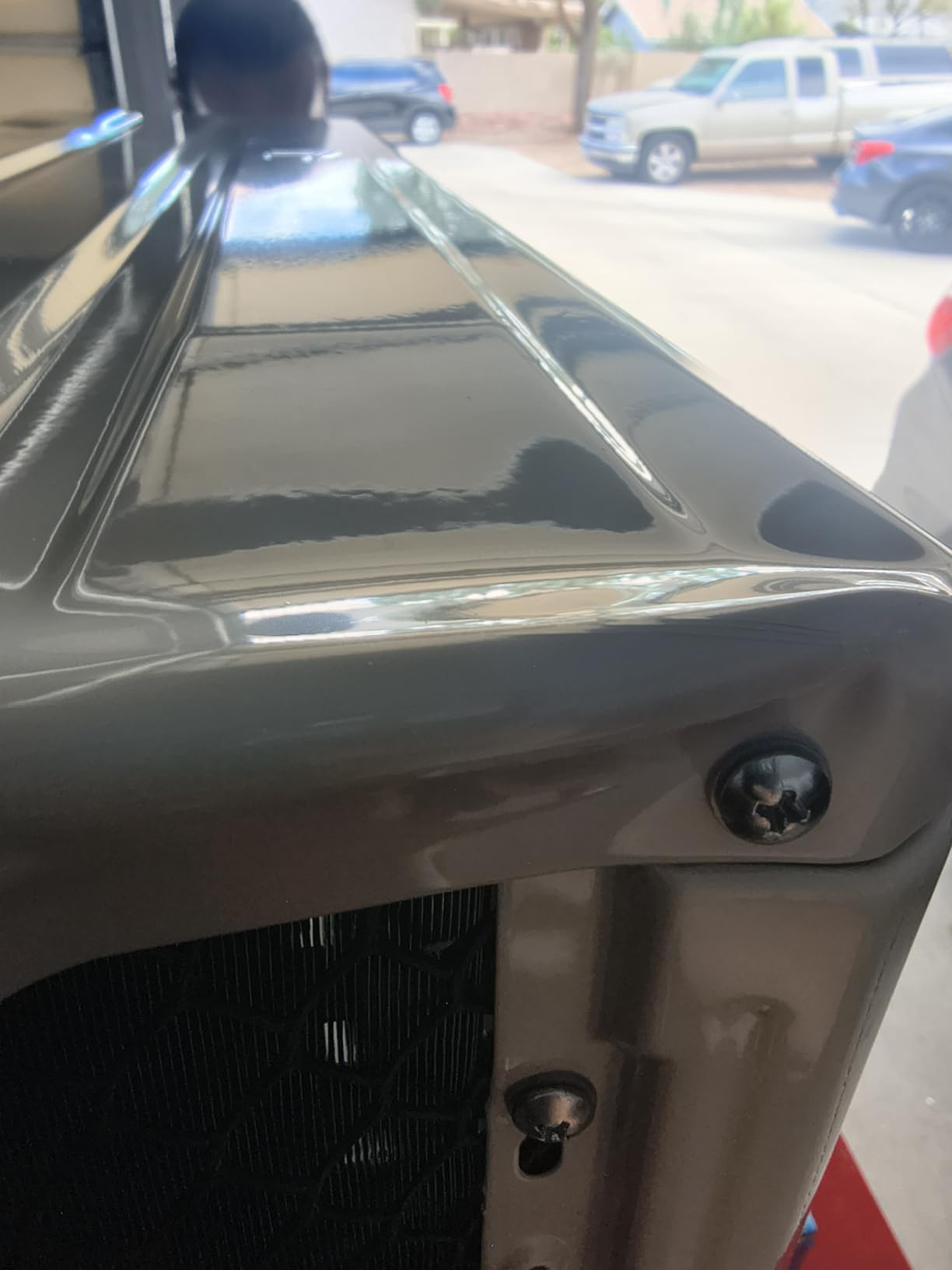

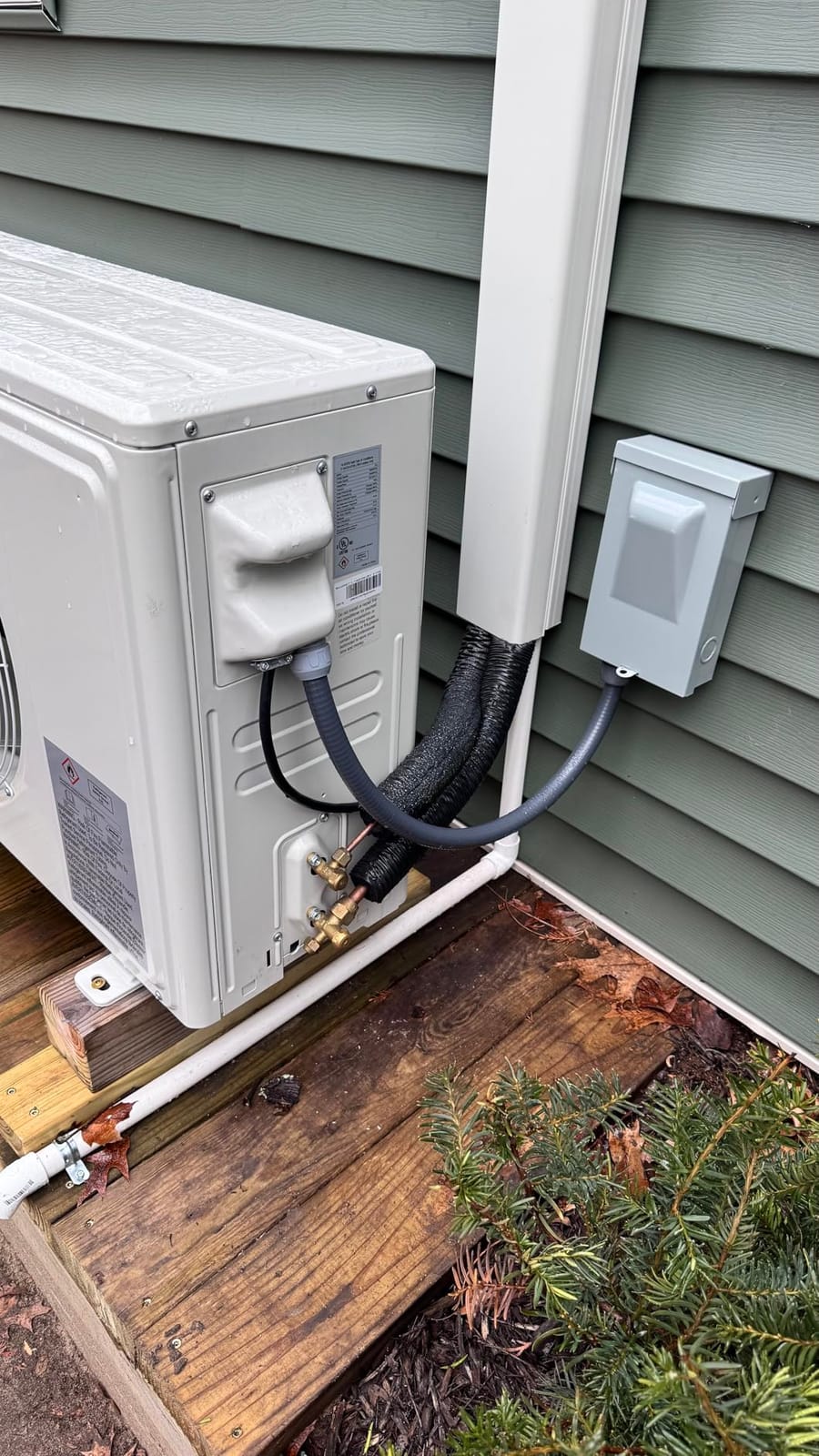

3. Rellytech 12,000 BTU 19 SEER2 – Straightforward 115V Comfort With a Full Install Kit
- ✓ True 115V power avoids a 230V breaker upgrade
- ✓ 19 SEER2 with HSPF2 8.5 keeps running costs low
- ✓ Strong humidity control noted by owners
- ✓ Quiet indoor operation suits bedrooms
- ✓ Complete install kit included in the box
- ✕ Warranty length differs between listing features and spec sheet
- ✕ Remote only with no app or voice integration
- ✕ Operating temperature ceiling of 88F is narrower than most
12000 BTU
19 SEER2
115V
26 dB
750 sq ft
Owners in Florida, Nevada and Texas make the same point repeatedly in reviews: the 115V single phase hookup avoided a costly electrical upgrade. That is the entire reason this system exists as a category, and the Rellytech commits to it fully at 115V rather than offering a 230V configuration. For a home with a loaded panel and no spare 240V capacity, that one spec decides the purchase.
Output is 12000 BTU cooling and 12500 BTU heating, rated for 750 square feet, at 19 SEER2 with HSPF2 8.5. Reviewers in hot climates report it cools effectively in extreme heat, and several specifically call out the dehumidification. On a Gulf Coast or Las Vegas garage, that combination of 115V power and strong latent capacity is the pitch.
The box is unusually complete for a system at this tier. It includes the indoor and outdoor components, a remote, mounting hardware, a communication cable, connecting pipes, luting putty, drain pipe, a power cable and screws. Several competitors in this roundup give you the system and leave the small parts to you, and that is where self-install projects stall.
At 26 dB indoor noise it is quiet enough for a bedroom, though it is not the quietest unit here. It holds an operating range from 61F to 88F, which is narrower than most systems listed.
Dehumidification in Humid Climates
The reviews make dehumidification the most common positive theme, and it is the spec that gets overlooked. A rated BTU figure tells you how much heat the system can pull. It does not tell you how well the system holds a setpoint on a muggy day, which is a function of the coil, the fan speed range and how aggressively the compressor modulates.
For a garage or workshop in a humid region, that matters more than peak cooling output. If you live somewhere with sustained summer humidity, put more weight on owner reports about air drying out than on the BTU number alone.
The Warranty Discrepancy You Need to Read Twice
This is the one item on this system we would not skip. The listing features claim an 8 year warranty with 24 hour customer service, while the spec sheet lists 1 year manufacturer warranty. When those two numbers disagree, assume the shorter one unless you get an answer in writing from the seller before you buy.
We flag this because warranty length is one of the clearest quality signals available in this category, and two systems in this roundup list only one year. If the eight year claim is not confirmed, this unit belongs in a rental or a garage rather than in a primary living space where you are counting on a compressor replacement in year six.
92 Pounds and the 88F Ceiling
The 92 pound total weight makes the outdoor unit a two-person lift. Plan the pad and the lift path before the delivery arrives, not after.
The 88F operating ceiling is the more important limitation. Most systems here are rated to 122F or 133F outdoor temperatures, which covers the hottest parts of the country. If you are in Phoenix, Las Vegas or the Gulf Coast, this rating is worth a call to the manufacturer before you commit.
Who Should Buy the Rellytech
Buy it if you are on 115V only, you are in a humid climate, and you want the fullest install kit in the box so the project does not stall waiting on extra parts. Owners report steady cooling and quiet operation once it is running.
Look elsewhere if warranty length is your top priority, if you need app or voice control, or if summer outdoor temperatures regularly approach the 90s where its operating range becomes the limiting factor.
4. Temprium 12,000 BTU 22 SEER2 – Quietest Indoor Unit and the Best Smart Controls
- ✓ 22 SEER2 is the highest efficiency rating in this group
- ✓ 23 dB indoor noise is the quietest here
- ✓ App plus remote plus Alexa and Google Assistant control
- ✓ 22 controls including 7 fan speeds and 4D swing
- ✓ Cools at 122F and heats down to 5F
- ✕ 1 year manufacturer warranty is the shortest in the group
- ✕ Spec sheet lists an unusual 1.6 kWh annual consumption figure
- ✕ Line set connection still points to licensed installation
12000 BTU
22 SEER2
115V
23 dB
750 sq ft
Two numbers decide this system. Twenty-two SEER2 is the highest efficiency rating of any unit in this roundup, and 23 dB is tied for the quietest indoor head. Those two specs together point to one use case above all others: a bedroom, a home office or a study where the system runs for long stretches and the thermostat has to be invisible.
Control is the third reason. This is the only system here with app, remote and voice control all working together, through WiFi with Alexa and Google Assistant. Seven operating modes, seven fan speeds and 4D auto swing give you real control over a room rather than four presets.
Reviewers highlight the efficiency, the low noise and the breadth of smart controls, with 74 percent of reviews at five stars. The system is rated for 750 square feet, runs on 115V, cools reliably at 122F outdoor temperatures and heats down to 5F. A 133F high-temperature self-cleaning function handles coil upkeep on its own.
It is also one of the lighter systems here at 40.8 pounds, well under the 68 pound COSTWAY and the 92 pound Rellytech. For a single installer mounting a head above a bed or over a desk, that difference is real.
22 SEER2 and What It Actually Saves
Efficiency ratings on mini splits are seasonal averages, not peak numbers, which means the gap between 18 SEER2 and 22 SEER2 shows up differently depending on your climate and your usage pattern. In a climate with long shoulder seasons, a variable-speed system at 22 SEER2 spends more of its time modulating gently, and that is where the higher number pays.
Wattage is listed at 780W, the lowest figure among the 12000 BTU systems here. Combined with the 115V supply, that is a genuinely light electrical load for a whole-room comfort upgrade, and it is why this class of system works so well in a bedroom on a bedroom circuit.
23 dB and Why It Changes Sleep
Twenty-three decibels is at the threshold of a quiet room. The practical effect is that the system can run continuously at low output without becoming the thing you hear, which is the difference between a bedroom system and a living room system.
That is also why the four-way swing and the seven fan speeds matter here. In a bedroom you want air directed away from the pillow at night and toward the room in the afternoon, and fine-grained control is what makes a single head serve a rectangular space well.
The One Year Warranty Problem
Here is the honest catch on the strongest spec sheet in this roundup. The warranty is one year manufacturer, the shortest of the eight systems we compared. Everything else in this category runs three years or longer on parts, and several run five to seven.
A year is long enough to get past the burn-in period and not much more. If you install this in a primary bedroom and expect to run it fifteen summers, you are carrying most of the compressor risk yourself. In a rental unit or a garage where the system runs seasonally, the tradeoff makes much more sense.
Who Should Buy the Temprium
Buy it for a bedroom, a home office, a study or a sunroom where quiet operation and precise control matter more than warranty length. It also suits a home office setup where you want zoned control by voice without picking up a remote. Pair it with one of our best monitors for split screen picks and the room becomes a genuine workspace.
Pass if you are installing a system you expect to keep for a decade or more in a primary living space, since a one year warranty is a thin margin for an inverter compressor.

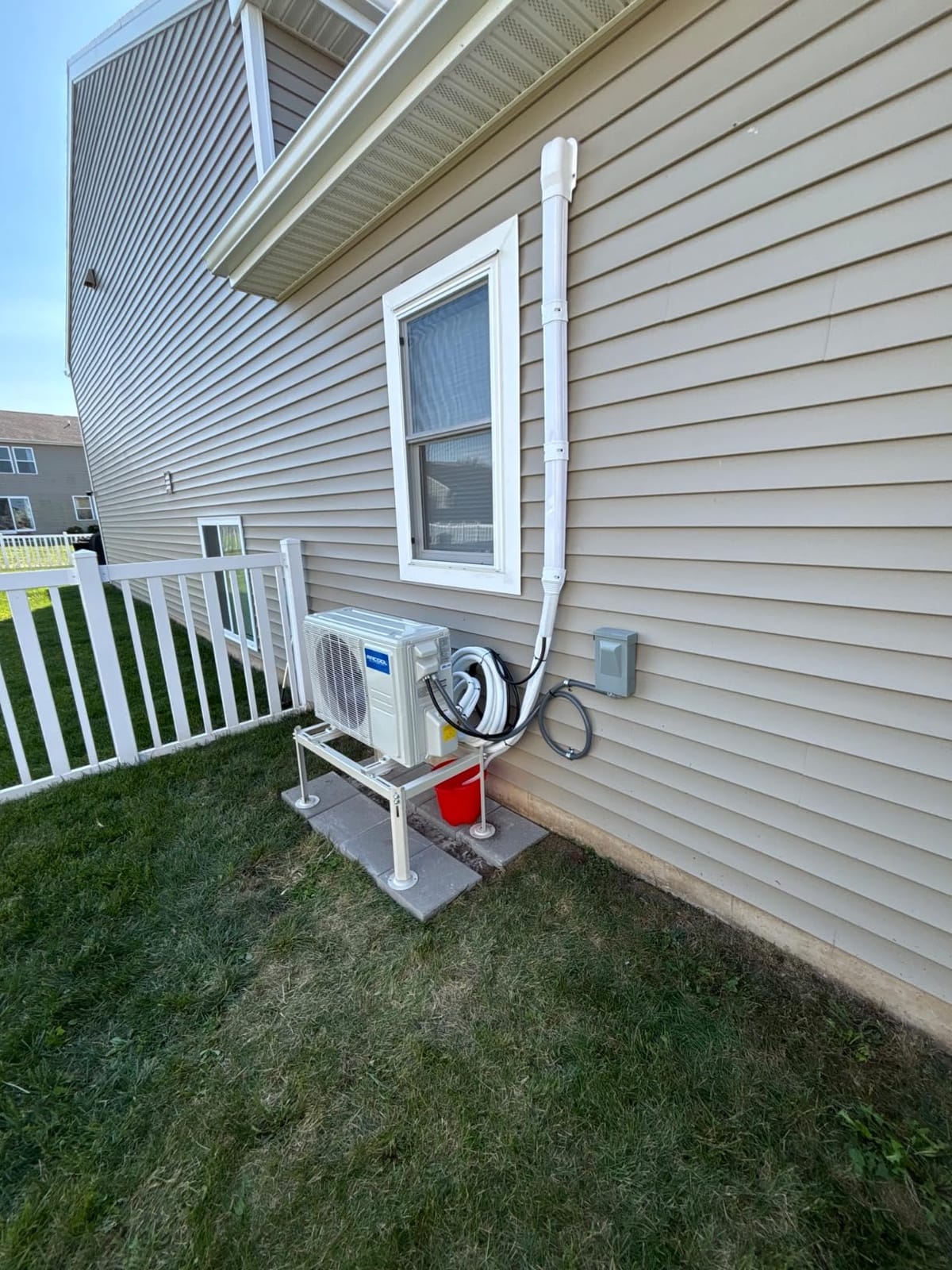

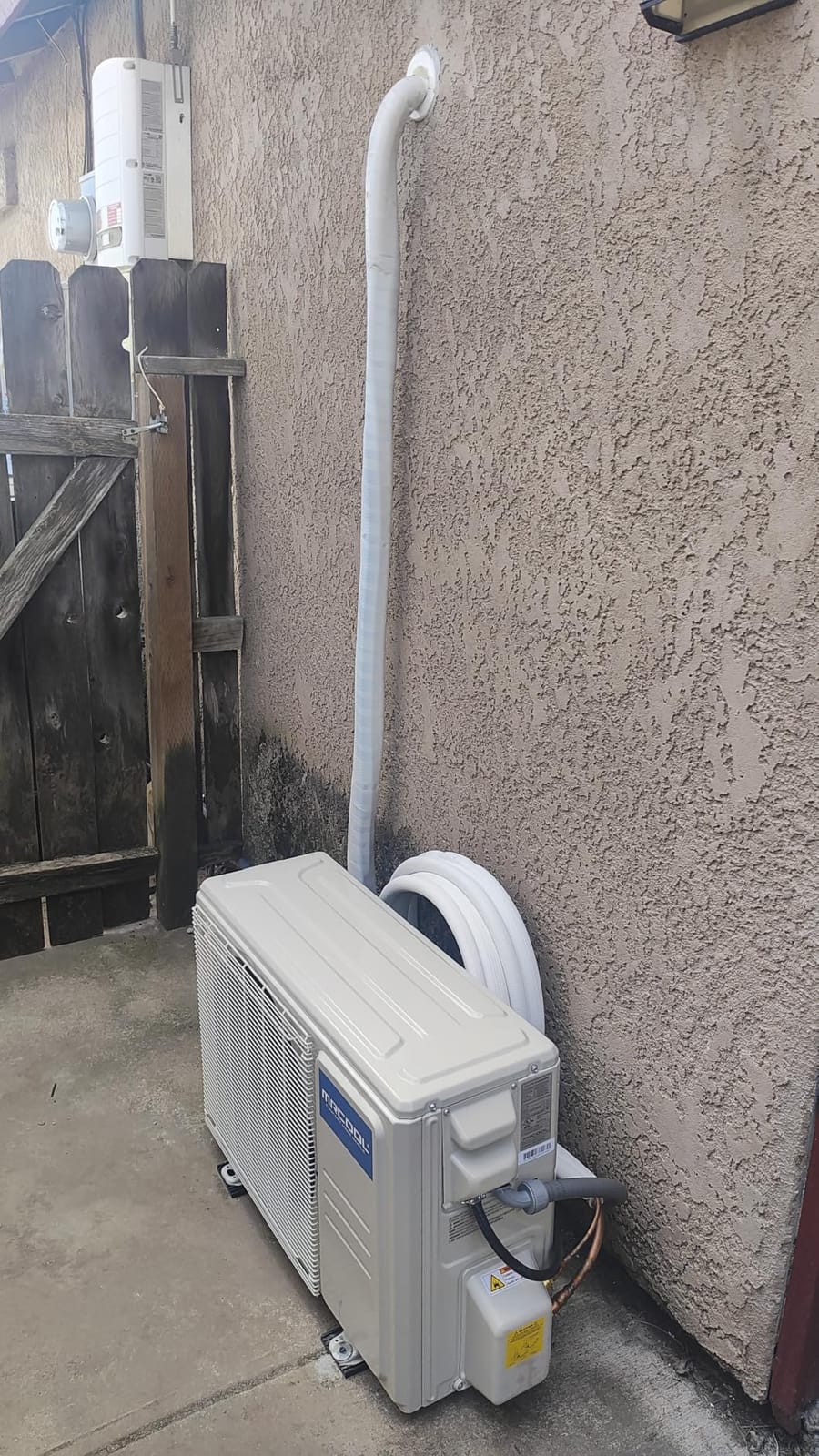

5. MRCOOL EZPRO 18,000 BTU – Built for Shops, Sunrooms and Rentals
- ✓ Multiple owners confirm a successful self-install
- ✓ Steady cooling and temperature holds reported in shops and sunrooms
- ✓ Google Assistant and Amazon Alexa support
- ✓ Follow Me comfort function and washable filter
- ✓ Cooling holds up in glass-heavy spaces
- ✕ Requires a 230V circuit and line set flushing familiarity
- ✕ Rated coverage of 550 sq. ft. is low for 18000 BTU output
- ✕ Parts warranty is short with one failure reported near 26 months
18000 BTU
18.5 SEER
230V
550 sq ft
Alexa
MRCOOL built its reputation on homeowner installation, and the EZPRO is the version of that idea aimed at spaces a central system cannot reach. At 18000 BTU heating and cooling with 18.5 SEER inverter efficiency, it is a 1.5 ton class system in a white wall-mount format, available in both 18000 and 24000 BTU configurations.
Owners installing this in shops, sunrooms and rental properties report steady cooling, quiet operation and noticeably lower humidity. Several note the install is doable for anyone comfortable with 240V work, and the rating reflects that with 82 percent five-star reviews.
Follow Me is the feature worth understanding here. Rather than relying on a fixed sensor in the head, it adjusts output to the temperature at the remote control, so the reading that matters is the one at the desk or the workbench. For a shop or a sunroom where people move around, that is more accurate than a wall-mounted sensor reading empty air.
Voice control through Google Assistant and Amazon Alexa is included, and the filter is washable. Those two together make this the most hands-off system in the roundup for a space where you do not want to walk over to a wall unit.
The 550 Square Foot Rating Deserves a Close Look
The listed coverage of 550 square feet is smaller than 18000 BTU output suggests. That is not necessarily an error in the system, it is a caution about application. Rated coverage usually assumes good insulation, limited west-facing glass and standard ceiling height. A workshop with a roller door, or a sunroom with a glass roof, will hit its limits well before 550 square feet.
Our advice is to size by the glass, not by the square footage. A room with large south or west exposure behaves more like a larger room, and a garage with an open door behaves larger still. If your space is heavily glazed, the 24000 BTU configuration of this same system is the more honest match.
What Self-Install Actually Requires on 230V
Owners who have done it describe the requirements plainly: familiarity with line set flushing, nitrogen and fittings, plus a 230V circuit. This is not a beginner project. The refrigerant side is the easy part, and the electrical and flushing work is where first-time installers report problems.
One additional note from owner reports: the drain line was not included in the box in at least one instance. Confirm the contents before you start, because a condensate line is not an optional component and improvising one is how water ends up inside a wall.
Durability and the Durability Question
This is the part of the MRCOOL story that deserves a straight answer rather than a soft one. The review volume is the thinnest in this roundup at 134 reviews, and the main negative thread is durability rather than performance. One detailed report describes a refrigerant-related failure at roughly the two-year mark, and the parts warranty is listed as short.
What that means in practice: this system is a strong choice for a shop, a sunroom or a rental where a two-to-three year horizon on a single system is acceptable, and a weaker choice for a primary living space where you want fifteen summers of service. Nobody should read a 134-review history as a reliability track record, and we would not.
Who Should Buy the MRCOOL
Buy it if you have a 230V circuit, you are conditioning a shop, sunroom, garage or rental, and you want voice control plus humidity control without touching a wall unit. It is also a good fit for anyone who has already done a 240V install and knows the flushing procedure.
Look at the Cooper & Hunter for a longer compressor warranty, or at one of the 115V systems if you would rather not involve a licensed electrician at all.
6. Cooper & Hunter 18,000 BTU – Longest Warranty and the Most Complete Pre-Charged Kit
- ✓ 7 year compressor and 5 year parts warranty is the longest here
- ✓ Pre-charged condenser ships with 16 ft. line set and drain extension
- ✓ ETL Intertek approved and UL listed and AHRI certified
- ✓ Smart Kit app control alongside the remote
- ✓ Heating operates down to 5F ambient
- ✕ Explicitly not a DIY system and professional installation is required
- ✕ Requires a 230V dedicated circuit
- ✕ Large packaged dimensions mean extra handling and a clear path to plan
18000 BTU
19.2 SEER2
230V
30 dB
7 yr compressor
The reason this system is in the roundup is its warranty. Seven years on the compressor and five years on parts is the longest compressor coverage of anything we compared, and it comes with 431 reviews averaging 4.3 stars. Feedback centers on solid inverter performance, useful app control and a complete factory pre-charged installation kit.
The kit is genuinely complete. The condenser arrives pre-charged with a 16 foot pre-flared insulated copper line set, a 16 foot communication cable and a 16 foot drainage extension. Having the pre-flared insulated line set in the box is a real convenience, because field flaring is one of the two steps most likely to go wrong on a self-install.
Why We Include a System That Requires an Installer
Because honesty about the category is worth more than a list of self-install systems. The Cooper & Hunter states plainly that professional installation is required. Including it lets us show what a properly supported purchase looks like: an ETL Intertek approved and UL listed and AHRI certified system, a Smart Kit for app control, free U.S.-based technical support and a seven year compressor warranty.
If your project involves a 230V dedicated circuit, a permit and a wall penetration through finished masonry, this is what the professional end of the market looks like. Compare that against the full cost of a contractor install and the equipment cost of a DIY system, and the tradeoff becomes much easier to see.
19.2 SEER2 at 18000 BTU
Nineteen point two SEER2 at 18000 BTU is a middle-of-the-pack efficiency figure with more heating output than any 12000 BTU system can deliver. Reviewers report solid inverter performance and useful app control.
Heating works down to 5F ambient, which covers most of the country. If you are in a region that regularly goes below that, no system in this roundup is a true cold-climate unit, and a separate heat source is still the honest answer.
230V, Handling and the Installation Reality
The electrical requirement is a 230V dedicated circuit. This is the single largest cost difference between this system and the 115V units in this roundup, and it is entirely independent of the equipment.
Handling also differs. At 48 by 40 by 40 inches packaged, this is a bulky system, and moving it from where it is set down to where it belongs is its own project on a staircase or through a narrow doorway. Plan the pad location, the clear path to the indoor head and the electrical rough-in before it arrives.
Who Should Buy the Cooper & Hunter
Buy it if you want the longest warranty available, you are installing in a primary living space where a compressor failure in year six would matter, and you are comfortable paying for professional commissioning. The pre-charged pre-flared kit also makes it attractive to a contractor.
Pass if the goal is a weekend self-install with no permit and no electrician. For that, a 115V system is the correct choice even though the warranty is shorter.

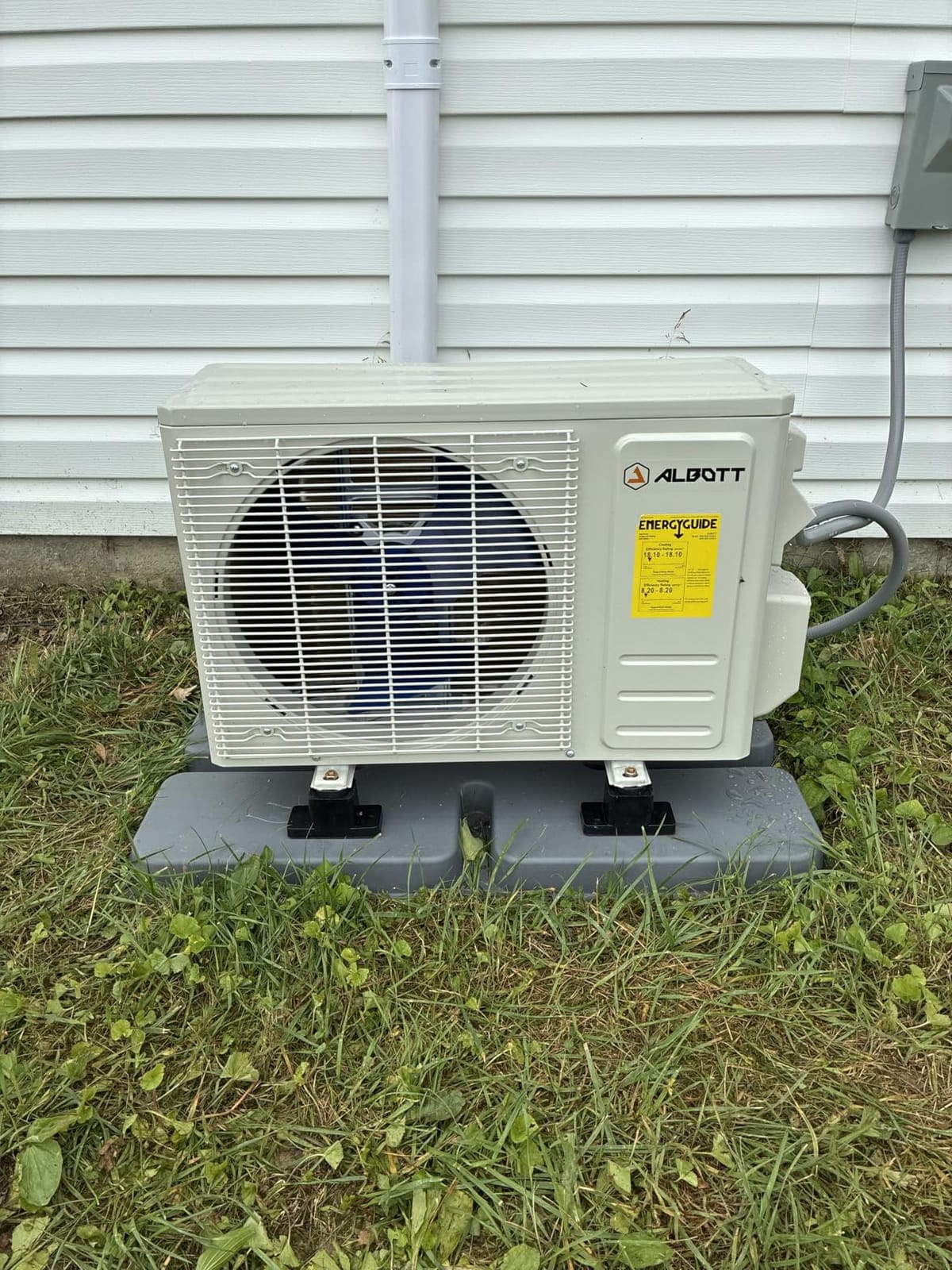

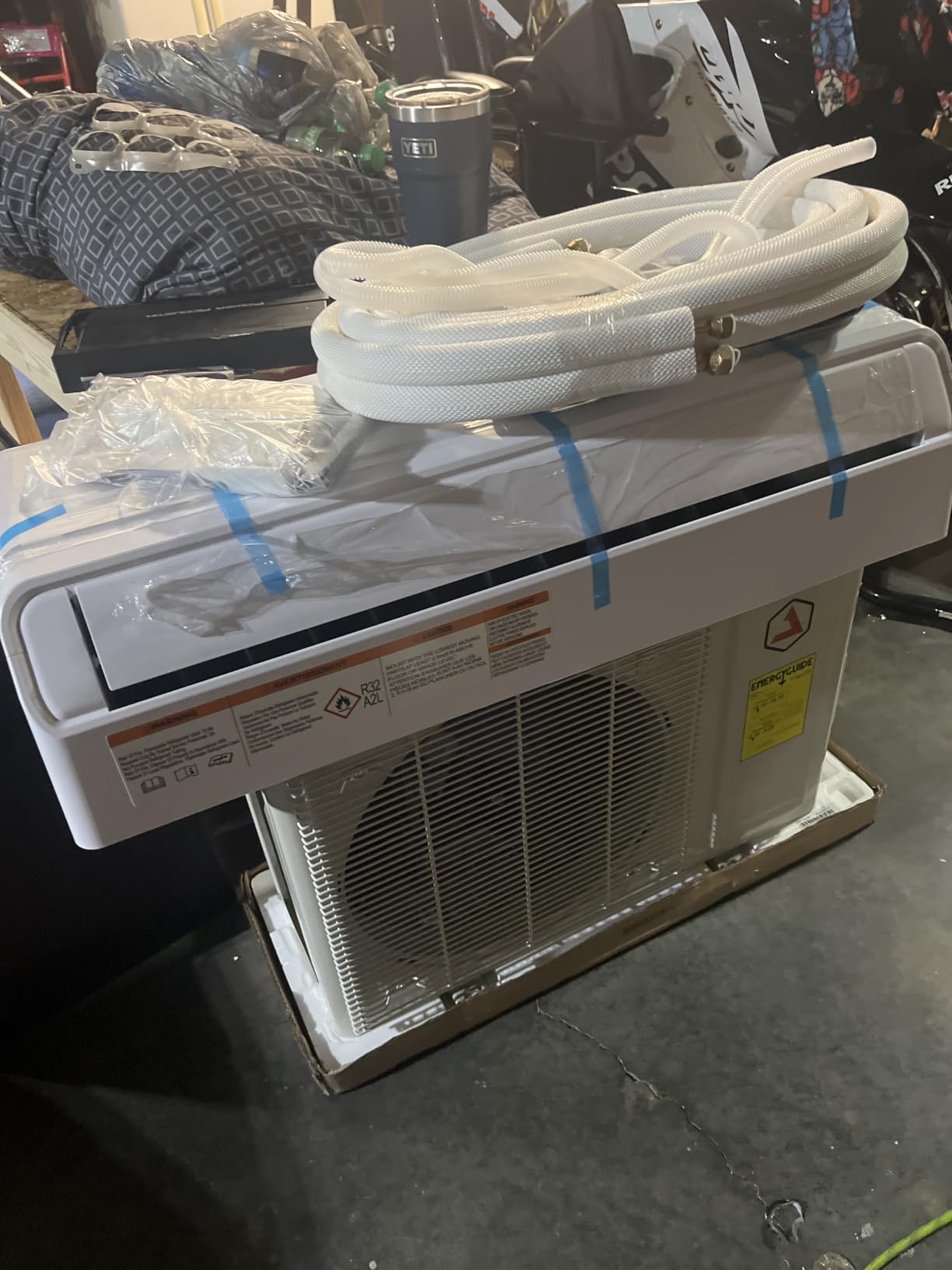

7. Albott Easy DIY 12,000 BTU – Fewest Installation Steps, Weakest Support
- ✓ Pre-wired indoor unit cuts the electrical work on the head
- ✓ Many owners report a two to three hour self-install
- ✓ 29 dB indoor operation is quiet for a living space
- ✓ Self-cleaning function with removable filters
- ✓ Operates from 5F to 122F
- ✕ Auto mode setpoint is hard coded at 77F
- ✕ App pairing failures and a weak remote reported by buyers
- ✕ Included lineset and power cable use thin gauge copper
12000 BTU
18 SEER2
115V
29 dB
5F to 122F
The Easy DIY premise is the fewest steps. The indoor unit ships pre-wired, the brand states the outdoor unit requires no vacuuming, and multiple owners report completing a self-install in two to three hours. That claim is more credible than most because the manufacturer sells directly to the homeowner who does the work.
Output is 12000 BTU cooling for rooms up to 750 square feet at 18 SEER2 on 115V. The operating range of 5F to 122F is the widest we saw, and at 29 dB it is quiet enough for a bedroom.
At 4.1 stars across 360 reviews, this is the lowest-rated system in the roundup, and the one with the widest gap between five-star and one-star responses at 67 percent and 14 percent. The positive consensus is about easy handyman installation, quiet cooling and value. The negative reviews cluster on three specific things rather than on performance.
Those three are the hard-coded 77F auto mode setpoint, unreliable WiFi app pairing, and thin gauge included accessories. None of them are comfort failures. They are quality-of-control failures, and they are fixable if you know about them in advance.
The Hard Coded 77F Auto Mode
This is the single most useful thing to know about this system. In auto mode the setpoint is fixed at 77F and cannot be changed. If you want the system to decide between heating and cooling at a different temperature, auto mode will not do it, and you must select heat or cool yourself.
For most homes that is a minor adjustment. For a room that swings between a warm afternoon and a cool night, which is common in an upstairs bedroom, it means the system cycles between modes on a schedule you set rather than on a temperature you chose. It is worth having the manual open during the first week.
Thin Gauge Accessories and the Real Install Time
Owners report that the included line set and power cable use thinner gauge copper and wire, and that the mounting bracket is easy to bend. Reviewers also report needing a vacuum pump and manifold gauges despite the no-vacuum claim, which is consistent with other units here that ship pre-charged but still expect the line set to be flushed and pulled down.
Budget for replacement of the thin accessories rather than trusting them. If you are counting the two to three hour self-install that owners report, that is the time with good hardware in hand and no permit inspection in the middle.
Warranty and Seller Response
The warranty is another item to read twice. The listing claims a five year compressor and seven year parts warranty, while the spec sheet lists two years. One detailed account describes a unit that would not hold vacuum and a seller that declined a defective-item return.
That combination, a documentation discrepancy plus a difficult return, is the main reason this system carries the lowest rating in the roundup despite good raw performance. It is also the 151 pound system, the heaviest of the systems here, which is another reason to plan the mount and the lift before you start.
Who Should Buy the Albott
Buy it if you are experienced with ductless work, you want a fast install and the fewest wiring steps, and you are comfortable running in heat or cool mode rather than auto. The 5F to 122F range makes it a reasonable option for a garage or bonus room in a wide range of climates.
Pass if warranty length and after-sales support are what you are optimising for, or if you need app control to work reliably on day one. The Temprium does the controls better and the Senville does the warranty better.
8. Nexaro 12,000 BTU – Lightest Unit and the Best Fit for Garages and RVs
- ✓ 25.5 pound indoor weight is the lightest in the roundup
- ✓ Pre-charged condenser with mounting template in the box
- ✓ Owners report blowing air near 54F on the lowest setting
- ✓ Quiet indoor and outdoor operation
- ✓ Successfully installed in fifth-wheel RVs
- ✕ Documentation is poorly written and many owners rely on video tutorials
- ✕ Still requires a vacuum pump and manifold gauges for the line set
- ✕ Remote only with no app or voice control
12000 BTU
19 SEER2
115V
25.5 lb
750 sq ft
At 25.5 pounds the Nexaro indoor head is the lightest system in this roundup by a wide margin. That is not a specification anyone puts on a spec sheet, but it is the difference between a one-person wall mount and a two-person job, and it matters most in an RV or a fifth-wheel where the mounting surface is awkward and your working envelope is small.
Performance is 12000 BTU cooling and heating for rooms up to 750 square feet at 19 SEER2 inverter efficiency on 115V. Owners report strong output, including air near 54F on the lowest setting, and quiet operation both indoors and outside.
The condenser arrives pre-charged with a mounting template in the box, and five operating modes cover cooling, heating, auto, fan and dry with four fan speeds. Automatic defrost and an anti-mildew function are both standard, which are useful in a space that sits cold for weeks.
The strongest owner reports come from unusual applications. RV and camper owners have installed these in fifth-wheel units successfully, and one owner ran the system daily through a full year of heating and cooling without any trouble.
Where the Pre-Charge Claim Breaks Down
The pre-charged condenser means the refrigerant is in the line set when it arrives, so you are not adding a full charge by weight. It does not remove the vacuum step. Owners on this system, and on several other pre-charged units in this roundup, report using a vacuum pump and manifold gauges to pull the line set down before opening the fittings.
That step is not optional. Opening a refrigerant circuit without first pulling a proper vacuum pulls in moisture, and moisture in a system is a slow failure. Budget an afternoon for it, and treat any product page that tells you to skip the vacuum with caution.
Documentation Is the Weak Point
Multiple owners report that the documentation is poorly written and that they relied on video tutorials to complete the installation. The included screws are also described as poor quality, and some owners had to source cable glands and a disconnect separately.
This is the practical difference between this system and the Rellytech. The Rellytech comes with luting putty, drain pipe, power cable, screws and mounting hardware in the box. Here you are assembling a kit from what is in the carton plus what you already own. If you are not handy with parts, budget the time.
Warranty and Support Reach
The warranty is one year, and at least one owner reports having no reachable support contact after a failure. That is the specific combination we would want a buyer to know before buying, because a one year warranty with no answer on the other end of it is close to no warranty at all.
For a garage, a shed, a shop or an RV where the system runs seasonally, that risk is easier to accept. In a room where someone sleeps, it is not, and the COSTWAY or the Cooper & Hunter would be the better call.
Who Should Buy the Nexaro
Buy it for an RV, a fifth-wheel, a garage, a shed or a shop where weight and compact size matter more than warranty length and smart controls. The 115V supply and pre-charged condenser also make it one of the more practical systems for a small structure on a property with limited electrical capacity.
Pass for a bedroom, an office or any space where you need dependable support five years from now. Buy the Temprium for the room, or the Senville for the coverage.
How to Choose: Sizing, Electrical and the DIY Legal Boundary
Every system above solves the same problem, so the decision comes down to four numbers and one boundary. The numbers are BTU, SEER2, voltage and warranty years. The boundary is what you are allowed to do yourself without a license. Get those right and the purchase is straightforward.
BTU Sizing: Match the Room, Then Adjust for Glass
BTU stands for British thermal units, roughly the amount of heat a system removes per hour. The starting rule for a mini split is 20 to 30 BTU per square foot, and the systems in this roundup cluster into three size groups that map cleanly to room types.
A 12000 BTU system is a 1 ton unit. The listing data rates it for about 750 square feet, which works out to 16 BTU per square foot and assumes a well-insulated room with modest window area. At the top of the 20 to 30 range, 300 square feet is a small bedroom. At the bottom, 600 square feet of well-insulated space is realistic.
An 18000 BTU system is a 1.5 ton unit and suits roughly 750 to 1000 square feet. A 24000 BTU system is 2 tons and is rated here for up to 1250 square feet.
Then adjust for the room rather than the number. West or south facing glass, a glass roof, high ceilings, a garage with a roller door and a room that sits in direct afternoon sun all push you toward the larger size. Occupancy and kitchen heat push it up. Good insulation and a shaded northern exposure let you go smaller.
Oversizing is the more common mistake, and it is not harmless. A system that is too large for the room cycles on and off in short bursts, which does not improve dehumidification and hammers the compressor. If you are between two sizes, look at the room’s glass and sun exposure before you pick the bigger one.
115V vs 230V: Check Your Panel Before You Buy
This is the decision that most affects whether a self-install stays a weekend project. Five of the eight systems in this roundup run on 115V and can use a standard household circuit. Three require 230V and a dedicated circuit.
A 115V system plugs into a 15 or 20 amp circuit. If your electrical panel has a spare circuit of the right type and the run is short, the electrical portion of the project costs almost nothing. Five of these systems, including the COSTWAY, the Rellytech, the Temprium, the Albott and the Nexaro, are in that group.
A 230V system needs a dedicated 30 or 40 amp circuit with a double pole breaker, a permit in most jurisdictions, and a licensed electrician. In older homes with a 100 amp panel that is already near capacity, that electrical work can cost more than the equipment and it can take weeks.
Two details are easy to miss. First, a 115V system still needs a properly sized circuit and a dedicated outlet, not an extension cord or an overloaded multi-outlet strip. Second, some 115V units still expect a 115V or 230V capable circuit per their documentation, so read the installation instructions rather than assuming the plug-in claim means anything goes.
SEER2 vs SEER and What the Number Means
SEER2 replaced SEER for most residential equipment. The difference in the formula means the new numbers look higher than the old ones, and comparing a current SEER2 figure against an old SEER figure from a different era is not meaningful.
Within this roundup the range runs from 18 to 22 SEER2. The practical reading is straightforward: at the same capacity, a higher number means a compressor that modulates over a wider range and holds setpoint temperatures with less cycling. The real payoff is in shoulder seasons and in lightly loaded rooms.
Do not let SEER2 push you into an undersized system. A 22 SEER2 unit that is too small for the room will run continuously and never reach setpoint, and you will have traded comfort for an efficiency rating that never materialises.
Cold Climate Heating and the 5F Ceiling
Four of the systems here are rated to operate for heating down to 5F. That covers most of the continental United States for heating, and it is a genuine improvement over a mini split that struggles below 50F.
What none of these systems are is a cold-climate or hyper-heat unit. Hyper-heat models carry heating capacity down to minus 22F and use a different compressor design to do it. If you are in northern New England, the upper Midwest or a mountain region where winter regularly sits below zero, an ordinary 5F unit will meet its limit and depend on a backup heat source for part of the season.
Ask for the heating capacity curve at the low end of the range, not just the maximum BTU. A manufacturer that publishes capacity at outdoor temperatures of 0F and minus 5F is telling you something useful, and one that publishes only a maximum number is not.
Noise Where You Are Sleeping
Noise matters more than most buyers expect because a mini split runs for long stretches at low output rather than cycling hard for short bursts. The indoor figures here run from 23 dB to 38 dB, and the difference between those two numbers is audible in a quiet room.
For a bedroom or a home office, stay at or below 26 dB. That is the Temprium at 23 dB, the COSTWAY at 23 dB, and the Rellytech at 26 dB. For a living room or a garage where background noise is higher, 29 to 30 dB is perfectly acceptable.
The outdoor unit matters more than people expect in a bedroom context, because a condenser beside an open window carries a low rumble. A 30 dB indoor head paired with a condenser two feet from the window is a different experience from the same head at the far end of the room.
Single-Zone vs Multi-Zone
Every system in this roundup is a single-zone design: one outdoor condenser, one indoor head, one thermostat. That is the right choice for one room, one addition, one garage.
Multi-zone systems use one larger condenser with a manifold feeding two to four indoor heads, each with its own thermostat. They are the correct answer when you want room-by-room control across a whole floor, and they cost more in equipment and considerably more in installation complexity. A multi-zone install is not a beginner weekend project, because every branch line has to be sized, flushed and charged correctly.
A practical middle path is to install single-zone systems one room at a time. Several owners in our review set describe exactly that approach, adding a room per season, and it keeps each install inside the skill level a homeowner actually has.
What You Can and Cannot Do Without a License
EPA Section 608 certification is the certification required to service refrigerant-containing equipment, and it is the reason a conventional mini split install is not a homeowner job. A DIY-installable system removes that requirement for the refrigerant step specifically, because the line set arrives sealed and charged from the factory and you never open the refrigerant circuit to add gas.
That boundary is narrower than most product pages make it sound. You can generally handle the refrigerant connection on a pre-charged, factory-sealed line set without certification. You still need a licensed electrician for new 230V circuits, panel work and new branch circuits. You still need a permit where your jurisdiction requires one. And any refrigerant work beyond the pre-charged line set, such as adding a charge, recovering gas or servicing an existing system, is licensed work in every state.
One more piece of practical advice from the owner reports: the mechanical steps are where DIY projects actually fail. A kinked condensate line, a drain that does not slope continuously to daylight, a wall penetration that is not sealed and a unit mounted without a level are the failure modes that show up within a year, and none of them require a license to fix properly.
Warranty Terms and What They Do Not Cover
Warranty length is the most useful quality signal in this category, but only if you read the split. Every system here divides coverage into compressor years and parts years, and several state explicitly that labor is not included.
The range here runs from a one year manufacturer warranty on the Temprium to seven years compressor and five years parts on the Cooper & Hunter. The COSTWAY sits at five year parts and eight year compressor, the longest compressor coverage in the roundup despite being a smaller system.
Two of the eight units have a documented discrepancy between the listing claims and the spec sheet. Get the warranty in writing from the seller before you buy, and treat the shorter number as the real one until the manufacturer confirms otherwise. Registration requirements also vary, and an unregistered unit is often a unit with no warranty at all.
All-In Cost and What a Contractor Actually Charges
The equipment is only one line in the budget. The realistic all-in figures for a single-zone system are the equipment, a line set if yours does not include one, a condensate pad or wall bracket, any electrical work, and a permit if your jurisdiction requires one.
For a 230V install, the electrical work is often the single largest line and it is identical across every brand. For a 115V install in a home with a spare circuit, the electrical line drops to nearly nothing, which is why so many of the systems in this roundup are 115V. Adding a drain line, a disconnect and any wall repair work is smaller but easy to forget until the day of the install.
Contractor installation for a mini split commonly adds several thousand dollars in labour on top of equipment, and the figure scales with difficulty: a straightforward interior install sits at one end of that range, a 230V run through a finished basement or an exterior wall penetration at the other. The saving from a self-install is real, and the number of homeowners in the forums reporting it is large. The number of people who estimate it before adding up the electrical and permit work is much smaller.
Who Should Not Do This Themselves
Skip a self-install, or hire a professional for the whole job, if any of the following are true. Your panel needs new capacity and you are not certain a licensed electrician has confirmed it will hold. The line set run is longer than what ships in the box, because beyond the factory charge distance most of these systems need a technician to extend and recharge. The wall you are penetrating is masonry, brick or a load-bearing wall you have not verified. You have never pulled a vacuum on a refrigerant circuit and the instructions do not make the steps unambiguous.
There is also a resale and insurance question nobody on the search results addresses, so we will. A properly installed ductless system with an electrical permit on file is a straightforward addition. A system installed without a permit or with a homeowner-run 230V connection is the kind of thing that surfaces during a sale or a claim. If you plan to sell the house, get the permit.
Rebates and Utility Programs
Many utilities offer rebates or programs for ductless heat pumps, and the amounts are frequently meaningful enough to change which system you buy. The catch is that most programs require an AHRI-certified system installed to certain standards, and one of the systems here is explicitly not BEE compliant for energy rating purposes, which disqualifies it.
Check your utility before you purchase rather than after, because several programs require pre-approval before installation and some cap the amount per property per year. Federal and state tax credits for energy efficient home improvements have also applied to qualifying equipment in recent years, and eligibility is defined by efficiency thresholds rather than brand.
Frequently Asked Questions
Who makes the best DIY mini split system?
MRCOOL is the brand most homeowners search first, and the Senville LETO was the strongest performer in our comparison at 4.5 stars across 1985 reviews with app and voice control. The right answer depends on your panel rather than the logo: 115V models from COSTWAY, Rellytech, Temprium, Albott and Nexaro avoid a new 230V circuit, while Senville, MRCOOL and Cooper u0026amp; Hunter give you more heating capacity.
Are DIY mini splits any good?
Yes, provided the refrigerant step is pre-charged and sealed at the factory. That design is what removes the EPA Section 608 certification barrier, so you connect fittings without ever opening the refrigerant circuit. The parts that still require skill are mounting the indoor head, drilling a clean wall penetration, sloping the condensate drain continuously to daylight, and supplying the correct circuit.
What is the easiest DIY mini split system to install?
The easiest is a 115V single-zone system with a pre-wired indoor unit and a pre-charged condenser. The Albott Easy DIY is explicitly designed around fewest steps, and owners report two to three hour installs. The Rellytech ships the most complete install kit, with putty, drain pipe, power cable and hardware included. Neither offers a long warranty, so ease of install comes at a cost.
What are people saying about the MRCOOL DIY mini split system?
Owner reports are positive on performance and mixed on longevity. Buyers running units in shops, sunrooms and rentals report steady cooling, quiet operation and lower humidity, and several installed the system themselves on a 230V circuit. The negative thread is durability, including a reported refrigerant-related failure near the two-year mark, a short parts warranty and a thin review history overall.
Do I need EPA certification to install a DIY mini split?
No, not for the refrigerant step on a pre-charged system. Because the line set ships sealed and charged from the factory, you are not adding refrigerant, so EPA Section 608 certification is not required for that connection. You still need a licensed electrician for a new 230V circuit or panel work, and any refrigerant work beyond the factory line set requires a licensed technician.
Do I need an electrician to install a mini split?
For a 115V system on a spare existing circuit, many homeowners do the connection themselves. For any 230V system, you need a dedicated double pole circuit, a permit in most jurisdictions, and a licensed electrician to run it. An electrician may also be needed for a new disconnect or if your panel lacks capacity, so confirm the panel before choosing a system.
What size mini split do I need for my room?
Start at 20 to 30 BTU per square foot. A 12000 BTU 1 ton system suits roughly 300 to 600 square feet depending on insulation and glass, a 18000 BTU 1.5 ton system covers about 750 to 1000 square feet, and a 24000 BTU 2 ton system is rated near 1250 square feet. Adjust upward for west-facing glass, high ceilings or a garage with an open door.
How much do DIY mini splits save versus hiring a contractor?
Contractor installation commonly adds several thousand dollars in labour on top of equipment, and the figure rises with a 230V run, a finished basement or a masonry wall penetration. A 115V system in a home with a spare circuit removes most of that electrical cost. The realistic savings calculation is equipment plus line set plus pad plus electrical plus permit, compared against equipment plus the full labour quote.
Which DIY Mini Split Fits Your House
If you are cooling an open living space of 900 square feet or more and can get a 230V circuit, the Senville LETO is the pick. It has the deepest owner history we found, app and voice control that works, and 24000 BTU of capacity that outlasts the room. That is our overall recommendation for 2026 because you can read nearly two thousand documented installations before you commit.
If your panel is 115V only and you want to avoid an electrician, the Rellytech is the safest starting point. It ships the most complete install kit and owners in humid and hot climates report strong dehumidification. For a bedroom where silence matters most, the Temprium at 23 dB and 22 SEER2 is hard to beat on comfort, with the Temprium and COSTWAY the two quietest heads here.
For a garage, shop, RV or rental where weight and simplicity beat warranty length, the Nexaro is the most practical unit, and the Albott is the fastest install. For a primary living space where you want the system to last fifteen summers, buy warranty length rather than installation convenience, which means the COSTWAY at eight years compressor or the Cooper & Hunter at seven years compressor and five years parts.
Before you buy anything, pull your electrical panel and measure the room. Those two numbers eliminate most of the wrong choices immediately. Then start the contractor conversation in parallel if you need new electrical work, because that is the item most likely to set the schedule.
