What is the best desktop for engineering simulations? It is a tower built around three things: a many-core CPU, a large-capacity ECC memory pool, and fast NVMe scratch storage. Those three decide whether a five million degree-of-freedom model solves in an afternoon or over a weekend. This roundup ranks ten desktop towers by how they handle that workload.
I have spent the last few months assembling simulation machines and reading the owner threads that follow them, from quiet consulting offices to university labs where overnight batch runs are the norm. The recurring lesson is that most engineers lose more time to a machine that pages to swap than to one that is simply slow. Memory capacity and memory bandwidth decide the outcome far more often than the badge on the processor.
That is why this list is not simply a spec sheet parade. Every machine below is judged on four questions: how much mesh it can hold in RAM, whether it can sustain clocks for a full day, whether the storage keeps up with solver I/O, and whether the graphics card is one your solver actually talks to. Specifications below come from vendor-published sheets and owner reviews, and I have flagged where the owner evidence is thin so you do not mistake a good spec sheet for a proven machine.
One more note before we start. Retail listings mix certified professional workstations with rebranded gaming and AI desktops, and the two groups behave very differently under a solver. We use the term workstation in the strict sense: ECC-capable memory, professional drivers or a memory configuration that can grow, and a service warranty. Where a machine is a performance build wearing a workstation badge, we say so plainly. If your daily driver is still geometry and assembly work rather than solver runs, our best desktop computers for CAD guide covers the lighter end.
Our Top 3 Simulation Workstations in 2026
Three machines stand above the rest for engineering simulation. The first wins on owner evidence and GPU headroom, the second on professional certification and memory expansion, the third on raw parallel throughput for very large models.
STORMCRAFT Phantom RTX 5080
- RTX 5080 16GB GDDR7 on a 256-bit bus
- 32GB DDR5 expandable to 256GB
- 850W gold PSU with 360mm AIO cooling
- Three-year labour warranty
Lenovo ThinkStation P3 Tower
- Intel Core Ultra 9 285 vPro at 5.4 GHz
- 64GB DDR5 expandable to 256GB
- RTX 2000 Ada 16GB professional graphics
PCSP ThinkStation P920 Dual Xeon
- 48 cores and 96 threads across two sockets
- 256GB DDR4 configurable to 1TB
- 1400W 80+ Platinum power supply
The Phantom takes the top slot because it carries the largest owner review base of any highly rated machine in this roundup at 25 reviews averaging 4.7 stars, and because its RTX 5080 16GB GDDR7 card is the tier of GPU that GPU-accelerated solvers actually reward. The ThinkStation P3 is the pick for engineers who need certified professional drivers and a clean four-slot memory path to 256GB. The dual-Xeon P920 is the only machine here that can hold a genuinely enormous mesh without argument, at the cost of a refurbished warranty and 2017-era memory.
All Best Desktop Computers for Engineering Simulations in 2026
| Product | Features | |
|---|---|---|
| STORMCRAFT Phantom RTX 5080 |
|
Check Latest Price |
| Lenovo ThinkStation P3 Tower |
|
Check Latest Price |
| PCSP ThinkStation P920 Dual Xeon |
|
Check Latest Price |
 Dell Precision 3660 Tower |
|
Check Latest Price |
 HP Z2 G1i Small Form Factor |
|
Check Latest Price |
 Lenovo Legion Tower 7i RTX 5080 |
|
Check Latest Price |
 MSI Aegis ZS2 Ryzen 9 RTX 5080 |
|
Check Latest Price |
 ASUS ROG Strix G700 |
|
Check Latest Price |
 Empowered PC Panorama XL RTX 5080 |
|
Check Latest Price |

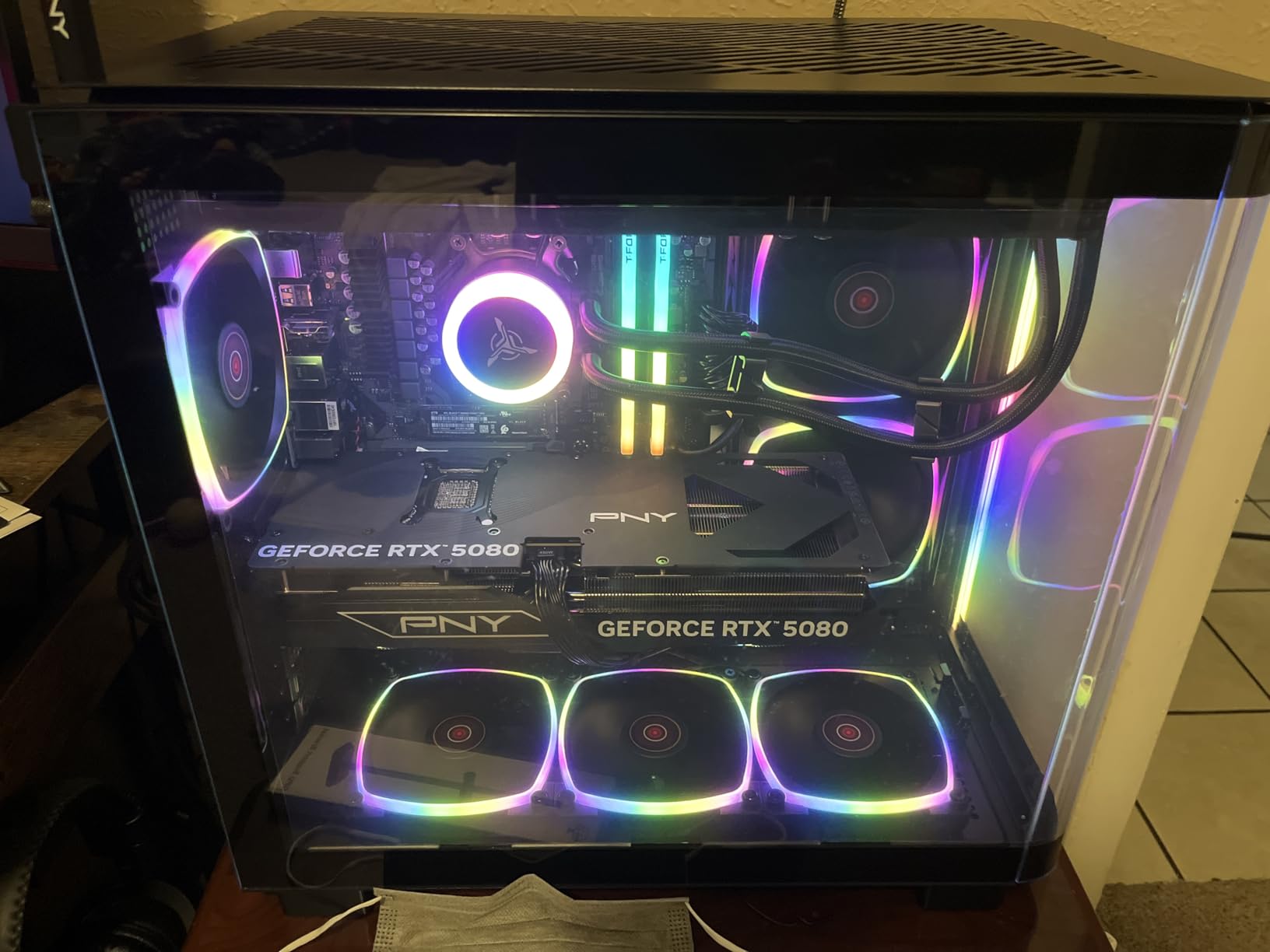

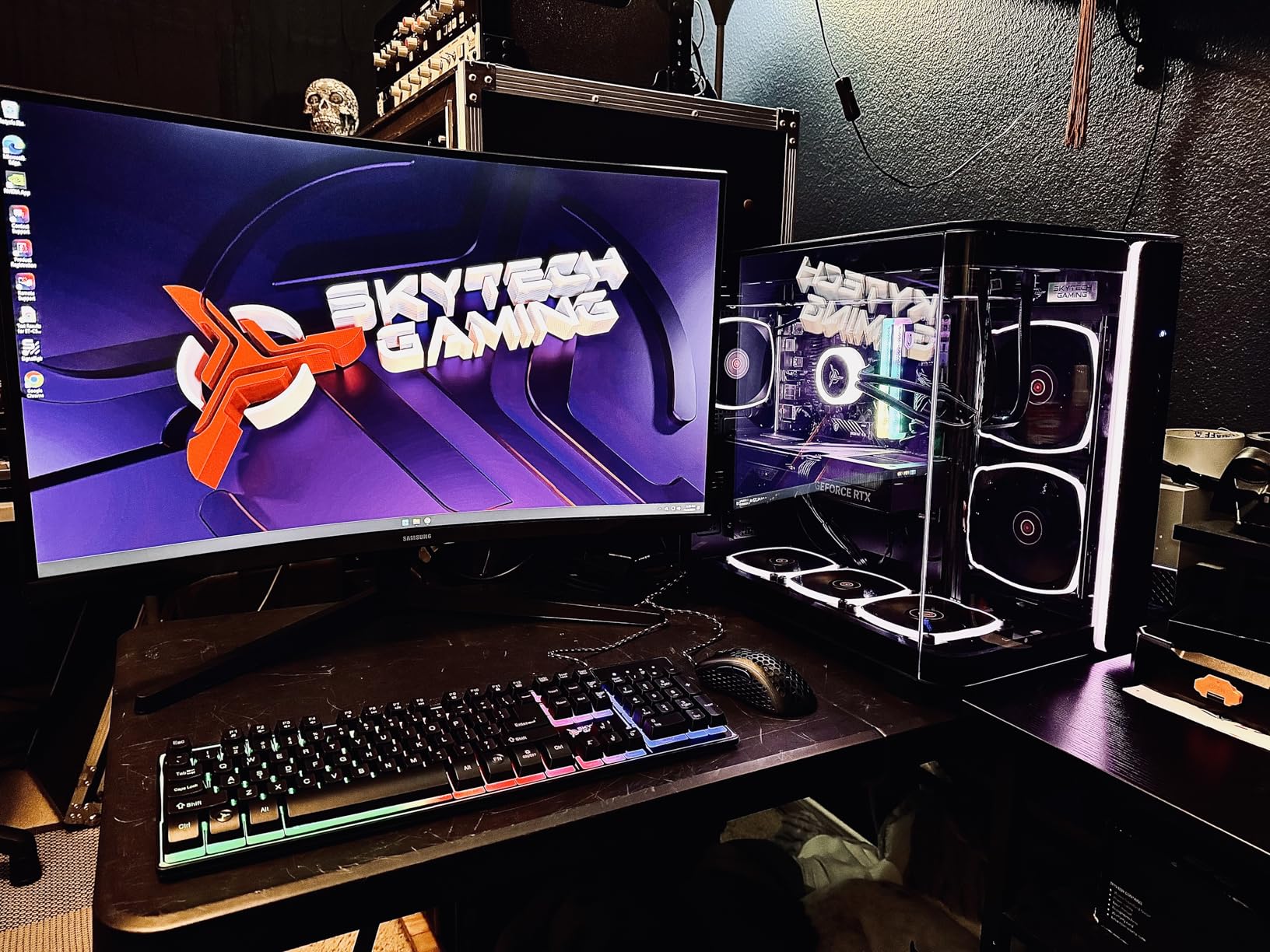

 Skytech King 95 RTX 5080 |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Two patterns stand out. The professional towers here cluster around 64GB of memory with a documented path to 256GB, while the performance builds ship anywhere from 32GB to 128GB and often have more VRAM. And every machine on this list, including the certified workstations, sits well short of what a large structural model wants, which is why the memory section of the buying guide matters more than the CPU section.
1. STORMCRAFT Phantom RTX 5080 – Best Owner Record for GPU-Accelerated Solvers
- ✓ 4.7 stars across 25 owner reviews
- ✓ Largest review base of any highly rated machine here
- ✓ RTX 5080 16GB GDDR7 for GPU-accelerated solvers
- ✓ 850W gold PSU with 360mm AIO cooling
- ✓ Three-year labour warranty with lifetime support
- ✕ Only 32GB DDR5 as configured
- ✕ 8-core CPU limits CPU-bound solver scaling
- ✕ Windows 11 Home rather than Pro
Ryzen 7 9800X3D 8 cores and 16 threads
RTX 5080 16GB GDDR7 on a 256-bit bus
32GB DDR5 expandable to 256GB
The Phantom is the machine I recommend first, and the reason is evidence rather than silicon. It is the best-reviewed desktop in this roundup: 4.7 stars across 25 owner reviews, with 84 percent of owners handing out five stars. That sample size matters on a topic where most listings have two or three reviews, because it means the rating reflects a real owner population rather than a launch-week sample.
Under the side panels you get a Ryzen 7 9800X3D with 96 MB of cache, which is superb for the single-threaded half of simulation work such as geometry creation, mesh refinement and pre-processing, and an RTX 5080 with 16 GB of GDDR7 on a 256-bit bus. That card is the part that matters for CFD and for any solver with a CUDA or OpenCL path, where memory bandwidth on the card is often the limiting factor rather than raw compute.
Be clear-eyed about the compromise, though. Eight physical cores will not scale a shared memory parallel structural solve the way sixteen or twenty-four cores will, and 32GB of memory is thin by simulation standards. The board accepts far more memory than that, so treat the upgrade path as part of the purchase decision rather than an afterthought.
Where the RTX 5080 Earns Its Keep
GPU acceleration in simulation is solver-specific, and this is the machine to buy if your work lives in the accelerated camp. Fluid solvers with GPU solvers enabled, ray-traced visualisation of large result sets, and photorealistic pre-processing all benefit from the 16 GB of GDDR7 and the wide 256-bit bus. A professional card with 5 or 8 GB would cap you far sooner.
For structural finite element analysis, the picture is different. Most direct and iterative CPU solvers do not touch the GPU at all, so on that machine the card is doing display duty and post-processing only. If your models are structural, the memory capacity and core count matter more, and the ThinkStation P3 or the dual-Xeon P920 serve you better.
Thermals and Sustained Load
The 360 mm all-in-one liquid cooler with seven adjustable fans and the 850W gold-certified supply give this build the headroom for long unattended runs, which is the workload that matters here. Solve jobs do not spike and drop; they hold a steady load for hours, and a tower that throttles in the third hour of an overnight batch is worse than a slower tower that never drops clocks.
The owner reviews describe the machine as strong on power and configuration. With only 25 reviews, that is a reasonable read but not a multi-year reliability record, so plan on a support path rather than assuming the unit will outlive your laptop.
Who Should Buy It and Who Should Not
Buy the Phantom if your time is split between meshing, post-processing and GPU-accelerated CFD, if you want the strongest owner record available in this class, and if you are willing to add memory in year one. The expandable to 256GB specification and the three-year labour warranty make it the most upgrade-tolerant machine here.
Skip it if your day is spent on large static structural models with material and geometric nonlinearity. In that case the eight-core CPU and 32GB starting point will push you into an upgrade immediately, and a workstation with 64GB standard and a documented path to 256GB is the shorter road.
2. Lenovo ThinkStation P3 Tower – The Balanced Pick for Finite Element Analysis
- ✓ Professional RTX 2000 Ada 16GB with certified drivers
- ✓ 64GB DDR5 with a clean path to 256GB
- ✓ Tool-less access for easy serviceability
- ✓ On-site warranty extendable to five years
- ✓ vPro manageability with TPM 2.0 and ThinkShield
- ✕ Only three owner reviews on record
- ✕ Full tower footprint with a 750W power supply
Intel Core Ultra 9 285 vPro at 5.4 GHz
64GB DDR5-5600 across 4 slots, up to 256GB
NVIDIA RTX 2000 Ada 16GB GDDR6
The ThinkStation P3 is the machine I would put in front of a structural or mechanical engineer who runs finite element analysis every day and has to justify the purchase to a manager. It is not the fastest box on this list, and it is not a top-of-stack specification. It is the one where the parts that cause overnight failures are the parts that were specified properly.
Sixty-four gigabytes of DDR5-5600 across four memory slots is the starting point, with support for up to 256GB. Four slots matters more than raw capacity here, because it means you can add memory later without replacing what you already own, and a populated quad-channel configuration moves far more bandwidth than a two-module laptop or compact system ever will. That bandwidth is what keeps a large sparse matrix solve from stalling.
The RTX 2000 Ada Generation card with 16 GB of GDDR6 is a professional part with an ISV-certified driver stack, which is exactly what you want when the visualisation step matters as much as the solve. Owners who reviewed the machine praised smooth SolidWorks performance and fast storage, though with only three reviews that is thin evidence for long-term dependability.
Clock Speed Where It Actually Counts
The Core Ultra 9 285 vPro runs at 5.4 GHz, and that figure matters more in simulation than most spec sheets admit. A large share of engineering time is not spent in the solver at all. It is spent in mesh generation, contact definition, result evaluation, and CAD assembly work, all of which are largely single-threaded. High clock speed is what keeps those steps from becoming the bottleneck that ruins an otherwise fast machine.
The 40 MB cache also helps with the pre-processing stage, where a solver repeatedly re-reads element connectivity and node data. It will not rescue a solve that is memory-bound, but it shortens the parts of the workflow where the processor is idling waiting on data.
Memory That Can Grow
The single most common question from engineers on hardware forums is how much RAM they actually need, and the most useful answer we found came from a practitioner running geotechnical and structural models up to roughly two million degrees of freedom. Their working rule was that 64GB of memory was sufficient to hold a two million DOF model, and they moved to ECC specifically because non-ECC had been a crash risk in the final stages of long solves.
That is the argument for buying a workstation rather than a performance desktop. If your typical model is under two million degrees of freedom, 64GB holds it. If it is larger, the four slots here let you climb toward 256GB without replacing the machine, which is the difference between a three-year asset and a three-month fix.
Serviceability and the Warranty Question
Tool-less access and a front panel carrying USB-C at 20Gbps, two USB-A at 5Gbps and two at 10Gbps mean you can move data to and from result files without crawling behind the machine. The one-year on-site warranty can be extended to five years of Premier Onsite Support, which matters when the machine is the only solver in a small office and a failed board means a week of stopped work.
The honest weakness is evidence. Three owner reviews, all five stars, confirms fitness for CAD and heavy assembly work. It does not tell you how the chassis behaves after two years of 24/7 duty, so treat it as a well-specified machine rather than a proven one.
3. PCSP ThinkStation P920 Dual Xeon – Built for Multi-Million DOF Meshes
- ✓ 48 cores and 96 threads for parallel solvers
- ✓ 256GB DDR4 holds very large meshes
- ✓ Onboard RAID controller with extra drive bays
- ✓ Dual Gigabit Ethernet and eight USB 3.1 ports
- ✓ 4.8 stars from seven owner reviews
- ✕ Renewed condition with a 90-day warranty
- ✕ 2017-era DDR4 platform
- ✕ Quadro P2000 offers only 5GB of VRAM
- ✕ 24.4 inch deep chassis drawing 1400W
Dual Intel Xeon Platinum 8160, 48 cores total
256GB DDR4 configurable to 1TB
1400W 80+ Platinum power supply
When a model stops fitting in memory, the honest answer is a machine with more memory, and this is the machine with the most memory here. Two Xeon Platinum 8160 processors give 48 physical cores and 96 threads, backed by 256GB of DDR4 that the seller lists as configurable to as much as 1TB. Nothing else in this roundup comes close on capacity.
That matters because a model that pages to swap does not run slower, it collapses. A solve that would take hours on an under-provisioned machine can take days once the solver starts writing to disk mid-iteration, and the failure mode practitioners describe most often is a long unattended run dying near completion. Capacity is the cheapest insurance in simulation computing.
Owners rate it 4.8 stars across seven reviews, with no one- or two-star ratings, and describe quiet, dependable operation. The caveat is unavoidable: this is a renewed 2017 platform on a 90-day warranty, so you are buying capacity and core count on the secondary market, not a new-machine support contract.
Forty-Eight Cores and the Diminishing Returns Curve
More cores is not automatically better, and this machine proves the point. Benchmarking work on solver scaling has consistently found a sweet spot somewhere in the region of sixteen cores, past which returns flatten, because sparse matrix operations run out of independent work and begin contending for memory bandwidth. Two sockets double the core count but also halve the effective bandwidth per core relative to a single high-channel-count platform.
So who benefits from 48 cores? Shared memory parallel jobs that are large enough to keep every core busy, and distributed memory parallel runs where the model is deliberately split across sockets. Who does not? Anyone running a mesh that fits in 128GB, who would see nearly identical solve times on a much cheaper single-socket tower.
Storage Architecture for Results Archives
The onboard RAID controller, two 3.5-inch drive bays and 1TB NVMe PCIe M.2 drive give you the pieces to separate workloads properly, and that separation is a real practice point rather than a spec-sheet nicety. The rule from experienced forum builders is to keep archive drives out of the simulation chassis entirely and offload results to network storage, because spinning disks sharing a controller with active solver I/O drag down the whole system.
For a machine of this class, the sensible layout is the NVMe drive for boot and scratch, a mirrored pair for active project files, and everything historical on a NAS. If you do buy this, do not use an optane-style cache in front of an array and expect it to behave as advertised; the same forum discussion flags that it does not work as hoped.
Where the Refurbished Platform Hurts
DDR4 is the memory generation to plan around, and a 1400W power draw in a 24.4 inch deep chassis is a machine you place on the floor rather than under a desk. The Quadro P2000 with 5GB of VRAM is also dated, which rules it out for GPU-accelerated fluid work and limits it to display and light post-processing duty.
What you get in exchange is the ability to hold a mesh that no other machine here can hold. If your work involves whole-vehicle scale models, large geotechnical meshes, or time-history analyses with millions of elements and many load steps, this capacity is the whole point, and a few missing modern features is a fair trade.
4. Dell Precision 3660 Tower – The Neat Middle of the Market
- ✓ Quadro T1000 certified for professional CAD
- ✓ 64GB DDR5 and 2TB NVMe as standard
- ✓ Three expansion slots for added cards
- ✓ Supports 7680x4320 multi-monitor output
- ✓ Every owner who reviewed rated it five stars
- ✕ 2022 model year on an older platform
- ✕ Quadro T1000 carries only 8GB of VRAM
- ✕ Only six owner reviews
Intel Core i7-13700 16 cores boosting to 5.2 GHz
64GB DDR5 across 4 slots
2TB NVMe SSD and Quadro T1000 8GB
The Precision 3660 is the pick when a team needs a machine that looks and behaves like a workstation without the top-of-stack specification. Sixteen cores at up to 5.2 GHz boost, 64GB of DDR5 across four slots, and a 2TB NVMe drive cover the majority of day-to-day finite element work without an immediate upgrade conversation.
The Quadro T1000 is the quiet hero of the specification. It is a certified professional card, which means the driver stack is validated against engineering applications, and it handles multi-monitor setups through six component outputs including DisplayPort, HDMI and USB-C, with a stated maximum resolution of 7680×4320. For a CAD-heavy station driving three or four panels, that display flexibility is a genuine advantage.
Three expansion slots and six USB ports leave room for additional cards or controllers as needs grow. All six owners who reviewed rated it five stars, describing painless setup and long-standing loyalty to the Precision line, which is the kind of feedback that suggests the platform is doing what it should.
Why Sixteen Cores Is the Practical Target
This is the machine that most closely matches the sixteen-core sweet spot that solver scaling studies keep pointing to. Sixteen cores is enough to keep a moderately large static structural solve busy, and the 5.2 GHz boost keeps the single-threaded stages of the workflow from becoming the new bottleneck.
If your meshes grow past what 64GB holds, the four memory slots are the escape route. If your work is heavily explicit dynamics, the core count is a reasonable starting point but explicit solvers scale differently, and time-history analyses often reward memory capacity and storage throughput more than raw parallelism.
Storage and the Mesh Workflow
A 2TB NVMe drive is the minimum that makes sense for simulation, and it clears the bar for a single user working in one or two projects. The model file, the mesh, and the result database for a large analysis can run to tens of gigabytes on their own, and a slow drive turns every post-processing step into a wait.
Controlled comparisons in engineering benchmarking have shown that once a model is forced to page, moving from a spinning disk to an NVMe drive cuts solve time dramatically, and even a SATA SSD improves on a hard drive by a wide margin. Storage is not a luxury when the model exceeds available memory, and the 2TB NVMe here removes that bottleneck for most single-user workloads.
Who This Machine Is Not For
It is not for large geotechnical or whole-vehicle models that need hundreds of gigabytes of memory, and the 2022 model year puts it a generation behind on platform features. The Quadro T1000 with 8GB of VRAM is also a modest card, so heavy GPU-accelerated CFD or high-resolution ray-traced visualisation will outrun it quickly.
For a working engineer doing structural analysis, thermal work and CAD on one machine, it is a genuinely competent daily driver, and the six unanimous five-star reviews are the most consistent owner signal in the professional group.
5. HP Z2 G1i Small Form Factor – Full Workstation Class in a Bench-Sized Box
- ✓ 8.8 pound small form factor chassis
- ✓ 20 cores for parallel solver workloads
- ✓ Eleven USB ports including two USB-C at 20Gbps
- ✓ HP 320K keyboard and 320M mouse included
- ✓ Energy Star specification met
- ✕ No owner ratings posted for this configuration
- ✕ 8GB of VRAM is modest for large meshes
- ✕ 32GB base memory is small for multi-solver work
- ✕ Stated maximum display resolution of 1920x1080
Intel Core Ultra 7 265 with 20 cores
NVIDIA RTX A1000 8GB GDDR6
32GB DDR5 expandable to 128GB
The Z2 G1i solves a specific problem well: you need a certified workstation, but the lab bench or the shared office has no room for a full tower. At 8.8 pounds and 16 by 20 by 8 inches, it is a genuinely compact box, and the twenty-core Ultra 7 265 inside it is not a paper specification.
Twenty cores is a meaningful number for solver work, sitting right in the range where shared memory parallel scaling is still productive. The 500W power supply suits office infrastructure that will not accept a 750W or 1400W draw, and the machine bundles a keyboard, mouse and Wolf Pro Security Edition for managed environments.
I want to be straight about the evidence here. No customer rating or review count is published for this configuration, so thermals, acoustics and sustained-load behaviour are unverified. You are buying a specification sheet, and that is a different proposition from the other machines in this roundup.
Twenty Cores in a Small Enclosure
The engineering question with a small form factor workstation is always thermals. Smaller enclosures have less surface area for heat rejection, and a twenty-core chip at sustained load will throttle if the cooling cannot keep up. The published 500W figure suggests a more modest power envelope than the full towers, which helps, but sustained behaviour is exactly what the missing reviews would have told us.
For overnight batch runs, the practical advice from people who maintain small form factor workstations is to confirm the acoustics before committing. A compact box running a twenty-core part at full tilt can be louder than a large tower with slower-moving fans, and in a shared office or a quiet lab that becomes a real complaint.
Memory Is the Weak Point Here
Thirty-two gigabytes of DDR5 expandable to 128GB is the trade you make for the small footprint. For assembly work, CAD and moderate structural analysis, 32GB is workable. For anything touching multi-million degree-of-freedom models, or for running two solvers at once, you will be upgrading out of the box.
Plan the upgrade into the purchase rather than after the first failed solve. Memory is the one component where buying the maximum supported capacity at order time costs less than buying it later, and a small form factor machine is already going to the bench twice for other reasons.
Where It Beats the Towers
The RTX A1000 with 8GB of GDDR6 is a certified professional card with dual display output, which is enough for driving two panels of geometry review, and the eleven USB ports including two USB-C at 20Gbps make transferring result files painless. Where it loses is graphics memory for large mesh visualisation, and the stated 1920×1080 maximum display resolution is a genuine limit for anyone running high-resolution colour-critical displays.
Buy it if your bench space is the binding constraint and your models are moderate. For heavy GPU-accelerated CFD or large mesh post-processing, a full tower with 16GB of VRAM is the better tool.
6. Lenovo Legion Tower 7i RTX 5080 – The Strongest CFD Acceleration Here
- ✓ RTX 5080 16GB GDDR7 compute headroom
- ✓ 24-core processor for meshing and solves
- ✓ 360mm liquid cooling sustains clocks
- ✓ 2.5GbE Ethernet and Thunderbolt connectivity
- ✓ Windows 11 Pro with keyboard mouse and USB hub
- ✕ 64GB memory is modest for large fleets
- ✕ GeForce-class driver stack rather than ISV certified
- ✕ Only four owner reviews
NVIDIA GeForce RTX 5080 with 16GB GDDR7
Intel Core Ultra 9 285K 24 cores
64GB DDR5-5600 and 2TB SSD
If your engineering is fluid rather than structural, this is the machine to look at first. Twenty-four cores of Core Ultra 9 285K handling meshing, preconditioning and CPU-side solver work, paired with an RTX 5080 carrying 16GB of GDDR7 for the accelerated part. That combination covers the full CFD pipeline rather than just the GPU stage.
The 360mm Legion Coldfront liquid cooling with a 250W radiator, plus rear and top fans, is the detail that decides whether this box holds its clock through a long fluid solve. Fluid models are long-running, and sustained-load behaviour is the whole game. All four owners who reviewed rated it five stars, though that is a very small sample.
The connectivity is also unusually good for a performance build: 2.5GbE for pulling large field data off a network share quickly, Wi-Fi 6E, Thunderbolt, eleven USB ports, and keyboard and mouse included.
Why 16GB of VRAM Is the Real Threshold
Fluid simulations with fine near-wall mesh resolution generate enormous result files, and the GPU-side step is where that data lands. Sixteen gigabytes of GDDR7 is the practical threshold for comfortable CFD work on a single card, and it is why several machines in this roundup carry that exact configuration regardless of what their marketing says about gaming.
Double precision is the specification nobody on a retail listing quotes, and it is the one that decides whether a card helps a structural or fluid solver. Consumer GeForce parts are heavily rate-limited for double-precision work, while professional cards are built for it. On a structural FEA solve that stays on the CPU, this makes no difference. On a GPU-accelerated fluid solver, it is the whole story.
The GeForce Driver Question
ISV certification means the graphics driver is validated against specific engineering applications, so vendor support will engage when something misbehaves. A GeForce-class driver stack gives you the same silicon performance in most cases but a different support path, and for a machine someone depends on to finish a job, that difference is worth weighing.
The 64GB of DDR5-5600 is the honest limitation here. It is fine for a single large fluid case and comfortable for multi-solver sessions at moderate size, but it is not a machine for multi-million degree-of-freedom structural meshes, and there is no published path to add more in the specification.
Choosing Between the RTX 5080 Boxes
Five machines in this roundup carry an RTX 5080 with 16GB. The differences are in the processor, the memory, the storage and the warranty. This one wins on cooling specification and network hardware, loses on memory expansion, and sits mid-pack on owner evidence with four reviews.
For pure CFD throughput this is the pick. For multiphysics work where memory headroom drives iteration speed, the MSI Aegis and the Empowered PC Panorama give you more balanced configurations.
7. MSI Aegis ZS2 – A Balanced Core-and-GPU Rig for Multiphysics
- ✓ 16 cores plus RTX 5080 balance CPU and GPU
- ✓ 360mm liquid cooling for sustained compute
- ✓ 850W power supply with USB Type-C
- ✓ Standardised components ease future upgrades
- ✕ Includes Windows 11 Home rather than Pro
- ✕ Memory limited to 96GB across two slots
- ✕ Only two owner reviews
- ✕ GeForce-class drivers
AMD Ryzen 9 9900X 16 cores at 5.6 GHz
NVIDIA GeForce RTX 5080 16GB
64GB DDR5-6000 expandable to 96GB
Multiphysics work is the hardest thing to buy for, because coupled models bounce between solvers and neither the CPU side nor the GPU side can be starved. The Aegis ZS2 is the most deliberately balanced machine in this roundup: sixteen Ryzen 9 9900X cores at up to 5.6 GHz, an RTX 5080 with 16GB, and 64GB of DDR5-6000.
Sixteen cores sits exactly on the sweet spot that solver scaling work points to, and the 5.6 GHz boost keeps the pre- and post-processing halves of a coupled analysis from becoming the bottleneck. The RTX 5080 handles the accelerated solvers and the visualisation, so neither side sits idle waiting for the other.
Two verified owners both gave five stars with no recorded complaints, and the 360mm liquid CPU cooler plus 850W power supply support the sustained loads a coupled model imposes. That is a small sample, but MSI’s standardised component approach is genuinely useful if you plan to upgrade later.
Two Memory Slots Is the Limitation
The 64GB is DDR5-6000 across two slots, expandable to 96GB. That is the tightest memory ceiling in this roundup and it is the reason this machine is not higher on the list, despite a good specification sheet. If your coupled model grows past what 64GB holds, you are replacing both modules rather than adding to them.
Memory bandwidth on a two-module DDR5-6000 configuration is respectable, and for coupled work that fits in memory the two-slot layout is not obviously slower. The problem is the ceiling, not the floor. Check the largest expected model against 96GB before you commit.
The Windows 11 Home Question
This machine bundles Windows 11 Home, and MSI’s own listing notes that Home is not recommended for business use. That is a real operational consideration for corporate environments: domain join, group policy, BitLocker management and remote administration are all Pro features, and they are the features a shared engineering workstation depends on.
If this is a personal machine, Home is fine and you can upgrade the licence later. If it joins a company network, budget for the Pro upgrade as part of the cost rather than discovering the limitation after deployment.
Where Multiphysics Actually Needs Headroom
Coupled thermal-structural or fluid-structure analyses are where memory pressure bites hardest, because each solver wants the full mesh resident and the coupling data has nowhere to go if RAM runs out. The realistic sizing rule is that your peak memory use sits close to the sum of the field and mesh data across the coupled domains, not the largest single domain.
For that reason, memory expandability is worth more than an extra GPU. The MSI is a good machine when 64GB is enough, and the wrong machine when it is not.
8. ASUS ROG Strix G700 – Local Storage for Years of Mesh and Result Data
- ✓ 128GB DDR5 for large multi-solver sessions
- ✓ 11TB of local SSD plus HDD capacity
- ✓ 24-core processor boosting to 6.00 GHz
- ✓ Wi-Fi 6E and Windows 11 Pro standard
- ✕ RTX 4060 Ti carries only 8GB of VRAM
- ✕ GeForce rather than professional certification
- ✕ 33 pound chassis needs desk space
- ✕ Only two owner reviews
Intel Core Ultra 9 285K 24 cores up to 6.00 GHz
128GB DDR5 expandable to 192GB
11TB combined SSD and HDD storage
The G700 is the machine in this roundup with the largest installed memory allocation that is not a dual-socket box: 128GB of DDR5, expandable to 192GB, on a twenty-four core Core Ultra 9 285K that boosts to 6.00 GHz. For anyone running several solvers at once, or a large model plus CAD and post-processing, that starting capacity is the differentiator.
Then there is the storage. Eleven terabytes total, one terabyte SSD plus ten terabytes of hard drive, keeps years of mesh, geometry and result data on the local machine. That is not a specification you should let drive a purchase, because the same experienced builders we keep citing warn against archive drives sharing a chassis with active simulation I/O.
Both verified owners rated it five stars, describing exceptional processor throughput. With two reviews that confirms the configuration, not the longevity.
128GB Changes What You Can Attempt
The rule of thumb circulating among practitioners is that 64GB of memory holds a model around two million degrees of freedom, and that going past that is where the cheap machines start failing. One hundred and twenty-eight gigabytes roughly doubles that working envelope, which is the difference between running a study and running a design iteration sweep.
For parametric studies, where you solve a family of related models overnight, capacity is the whole constraint. A machine that holds one variant comfortably will start swapping on variant four, and the entire sweep slows to the speed of your disk. Machines with 128GB standard let a batch run unattended without babysitting.
Why the GPU Is the Weak Link
The GeForce RTX 4060 Ti with 8GB of GDDR6 is the constraint on an otherwise strong specification. Eight gigabytes is enough for display and light post-processing, and it will cap you on any GPU-accelerated solver that wants the full mesh on the card.
Pair this machine with the right expectation: it is a CPU-bound workhorse with enormous memory and storage, not a GPU-accelerated CFD platform. If your work is structural or thermal with large memory footprints, it is well matched. If it is fluid with GPU solvers enabled, the Legion Tower 7i is the better purchase.
Managing the Storage Properly
Having ten terabytes locally is a convenience until it becomes a problem. The consensus advice from engineers who maintain their own hardware is to separate the roles: a fast SSD for boot and scratch, a fast SSD for the active project, and archival data on network storage that is not sharing a controller with the solver.
When you set this machine up, put your active project on the SSD and treat the terabytes of spinning storage as cold storage that you touch during archiving, not during solving. That keeps the fast path fast and avoids the exact failure the forums keep describing, where a single busy archive spindle slows an otherwise healthy solve.
9. Empowered PC Panorama XL – The Most Headroom for Future Upgrades
- ✓ 20 cores and RTX 5080 in one tower
- ✓ 2TB PCIe Gen5 NVMe throughput
- ✓ Ten PWM fans for thermal headroom
- ✓ Windows 11 Pro with three-year warranty
- ✓ Memory expands to 256GB
- ✕ Only two owner reviews
- ✕ Sparse USB port listing in the specification
- ✕ Ten ARGB fans add acoustic output
- ✕ GeForce-class drivers
Intel Core Ultra 7 265KF 20 cores up to 5.5 GHz
NVIDIA GeForce RTX 5080 16GB GDDR7
64GB DDR5 expandable to 256GB plus 2TB Gen5 NVMe
The Panorama XL is the machine I would buy if I expected to change my mind about the workload. Twenty cores of Ultra 7 265KF at up to 5.5 GHz, an RTX 5080 with 16GB of GDDR7, 64GB of DDR5 that expands to 256GB, and a 2TB PCIe Gen5 NVMe drive. Every major axis of the specification can grow.
Memory is the one that matters most in simulation, and the path to 256GB from this starting point is the best in the performance-build group on this list. The storage is next: a Gen5 NVMe drive has more sequential throughput than any consumer spinning disk or SATA drive by a wide margin, which matters most in the moment a solve starts paging.
Windows 11 Pro, a three-year limited hardware warranty and lifetime technical and diagnostic support are included, and the machine is assembled in the USA and stress-tested before it leaves the bench. Two verified owners rated it five stars with no substantive criticism recorded.
Twenty Cores Plus a Modern Card
Twenty physical cores puts this machine in the productive part of the scaling curve rather than past it. It is enough parallelism for a shared memory parallel solve to stay busy, and the 5.5 GHz boost handles the serial work of mesh generation and result evaluation that a solver spends a surprising share of its wall-clock time inside.
The RTX 5080 with 16GB of GDDR7 covers the GPU-accelerated side. Between the two, this is a configuration that handles structural, thermal and fluid work in one box, which is exactly what a generalist engineer needs when the project list is not one discipline.
Acoustics and the Ten-Fan Chassis
Ten ARGB PWM fans in a full front and side tempered glass case is a deliberate thermal posture, and it works in your favour on long runs. The cost is acoustic output, which matters in a shared office, a teaching lab or a home study where a machine runs overnight next to where people sleep.
If your solves are interactive, shorter and spread through the day, the cooling margin is worth the noise. If you run unattended overnight batches in a quiet space, look at the ASUS G700 or a workstation tower with a larger and slower fan array instead.
What to Confirm Before You Order
The specification listing for this machine mentions only two USB ports, which is unusually sparse for a tower of this class. Confirm the full port list with the seller, because your result file workflow may depend on fast external connections.
Second, confirm which memory is populated and in how many modules. The 256GB ceiling assumes the board has four slots and the kit uses two of them, leaving room to add a second matched pair. Check how the machine is populated out of the box.
10. Skytech King 95 – The Best Documented Owner Record, and Its Limits
- ✓ Largest owner review pool here at 40 reviews
- ✓ 4TB Gen4 NVMe for local datasets
- ✓ Quiet fans and solid airflow reported by owners
- ✓ BIOS pre-tuned with EXPO or XMP enabled
- ✓ US assembly with lifetime technical support
- ✕ 9800X3D is only 8 cores for parallel solves
- ✕ Mixed reports on component quality
- ✕ One owner cited an undersized power supply
- ✕ Large 18.7 inch wide case
AMD Ryzen 7 9800X3D 8 cores and 16 threads
NVIDIA GeForce RTX 5080 16GB GDDR7
64GB DDR5-6000 and 4TB Gen4 NVMe
The King 95 has by far the largest owner review base in this roundup at 40 reviews, which makes it the best-documented machine here and the one where the negatives are visible rather than hidden. At 4.4 stars it is also the lowest-rated, and understanding why is more useful than the average itself.
Positive feedback clusters around performance, packaging and quiet fans with solid airflow even under load. The negative reviews cluster on component quality: one detailed one-star review cites a faulty onboard Ethernet controller and weak parts selection, and another owner reported a system that arrived with an unstable GPU that black-screened until drivers and PCIe generation settings were rolled back. The vendor’s support team eventually resolved these, which is a fair summary of a forty-review sample.
The specification itself is a Ryzen 7 9800X3D with 96MB of cache, an RTX 5080 with 16GB of GDDR7, 64GB of DDR5-6000 across four slots, and 4TB of Gen4 NVMe. The BIOS arrives pre-configured with EXPO or XMP enabled, which saves an afternoon of memory tuning.
Where the 9800X3D Shines and Where It Stops
That 96MB of cache is why this machine is a genuinely good CAD and 3D modelling box. Assembly modelling, geometry-heavy work and single-threaded pre-processing are exactly what large cache and high clock speed serve, and at up to 5.2 GHz the processor is quick in the parts of the workflow that are not solver-bound. Our rendering and content creation desktop guide covers this class of workload in more detail.
Eight physical cores is the limit. Shared memory parallel structural and CFD solvers scale well past eight cores, so a large model will leave this processor idle while memory waits. The large cache cannot compensate, because the bottleneck is the number of independent work items available to run at once.
Reading the Forty Reviews Properly
Forty reviews is enough to see failure modes. Seventy-three percent of owners gave five stars, but ten percent gave one star, and those reviews name specific components rather than vague dissatisfaction, which is what a real hardware fault looks like in a review.
The practical reading is that this is a well-performing machine with a small but real early-component reliability question, and that support did resolve the issues that arose. For a workstation you depend on, that is a risk you would price differently than for a home gaming box, and our recommendation is to buy it with the intention of testing storage and networking on day one.
Why It Still Makes the List
Documentation is worth something. When forty owners have described how a machine behaves under load, you know more about its thermals and acoustics than you do about a machine with two reviews, and the quiet-fan feedback here is directly useful to anyone planning overnight runs.
The four-terabyte NVMe drive, 64GB of memory and the RTX 5080 make this a strong hybrid machine for an engineer whose work is modelling-heavy rather than solve-heavy. Buy it for 3D modelling and mid-size analysis. For heavy structural FEA, look up the list.
How to Choose a Workstation for Engineering Simulation
The fastest way to waste money on a simulation machine is to start with the processor. Work through this sequence instead, and the specification writes itself.
Start With the Model, Not the Spec Sheet
Before anything else, find out how large your models actually are in degrees of freedom, and how large they are likely to be in three years. A DOF count is the single most useful number in simulation computing because it correlates directly with memory demand, and most solvers will report it in the output log after a run.
If you have never run the model, start small. Solve a coarse version first and read the memory footprint before you commit to hardware. A machine that is two steps beyond your current workload is right; a machine three steps beyond is money spent on capability you will not exercise.
CPU: Core Count Has a Sweet Spot Near Sixteen
Most published solver scaling work points to a plateau somewhere around sixteen cores, past which improvements flatten sharply and can reverse. Sparse matrix operations need independent work to stay busy, and once the matrix decomposes into pieces that do not fit comfortably in cache, the bottleneck shifts to memory bandwidth rather than core count.
Two consequences follow. First, do not buy a top-bin processor on the assumption that it is always faster; a well-specified mid-range chip with a stronger memory subsystem will beat a flagship on many structural solves. Second, the question of whether to disable simultaneous multithreading is genuinely disputed in practice, with experienced builders on the Tom’s Hardware forum thread arguing that most simulation software does not exploit it well and can perform better with it off. Test both on your own model rather than trusting folklore.
Clock speed still earns its place. Pre-processing, mesh generation, contact definition and result evaluation are largely serial, and on a typical project they account for a real share of elapsed time.
Memory: Size by Degrees of Freedom and Buy ECC
This is the section that matters most. The working rule from practitioners running models around two million degrees of freedom is that 64GB holds them, with 128GB for comfortably larger work and 256GB when your projects are genuinely large. Beyond that, model a server rather than a desktop.
Buy ECC wherever you possibly can. The single most repeated real-world claim we found in engineering hardware discussions is that non-ECC memory becomes a crash risk in the final stages of long unattended solves, and engineers have reported losing multi-day batch runs that failed near completion. ECC memory detects and corrects errors before they corrupt results, and for a machine solving overnight while nobody is watching, that is the difference between a completed analysis and a repeated one.
Count memory channels next. Quad-channel memory moves roughly twice the bandwidth of dual-channel, and since bandwidth is usually the true bottleneck, a machine with four populated DIMM slots beats a cheaper one with two large sticks. If you are weighing a build, that comparison matters more than the processor tier.
Storage: NVMe for Scratch, Separate Storage for Archive
Storage stops being interesting right up until the moment your model exceeds available memory. Then it becomes the only thing that matters, because the solver starts writing to disk between iterations.
Controlled testing has shown the gap clearly. With memory deliberately constrained to force paging, moving from a hard disk to a SATA SSD improved solve times substantially, and moving from SATA to NVMe improved them again by a meaningful margin, closing most of the gap to solving entirely in RAM. So use NVMe for boot and scratch space, without exception.
Keep archive drives out of the simulation chassis. Practitioners who maintain their own hardware consistently advise moving bulk storage to a network device rather than sharing a controller with active solver I/O, and they specifically warn against using optane-style caching in front of a RAID array, which does not deliver what the marketing implies.
GPU: Double Precision and Driver Certification Decide It
Here is the point retail listings never make for you. Not every solver uses a GPU, and buying graphics capacity for a structural FEA workload is wasted money. GPU acceleration is solver-specific: some fluid solvers have a CUDA or OpenCL path, some electromagnetic tools use it, and most structural direct and iterative solvers stay on the CPU entirely.
When a GPU does help, two specifications decide the outcome. Double-precision throughput is the first, because engineering physics is computed in double precision and consumer GeForce parts are heavily rate-limited for it. Professional Quadro and RTX professional cards are built for double precision; gaming cards are not. The second is ISV certification, which means the driver is validated against named engineering applications and vendor support will engage when something breaks.
On graphics memory, sixteen gigabytes is the practical threshold for comfortable CFD work on a single card, and eight gigabytes is enough for display and light post-processing. The RTX 5080 machines in this roundup sit at that sixteen gigabyte mark for exactly this reason.
Cooling, Power and the Case You Actually Own
A simulation machine’s job is to hold a steady load for hours, which makes sustained thermals the specification that matters. A tower that boosts hard and throttles in the third hour of an overnight batch is worse than a slower machine that holds its clock, so look for substantial cooling hardware, a 360mm liquid option or a large air tower, and fans that move air without screaming.
Power supply headroom follows the same logic. Multiple accelerators, a 24-core processor and sustained full-load draws make a marginal supply the least reliable part in the machine, and a system that trips under a combined CPU and GPU load will do it at the worst possible moment.
Finally, measure the case. Several machines here are close to 20 inches deep and weigh over 30 pounds. If it is going under a desk, into a rack, or through a doorway you measured once, check before you order.
Laptop or Desktop Tower for Long Solves
Every competitor on this search results page answers with a laptop, and the honest answer is more nuanced. Laptops are the right answer for a student or an engineer who needs one machine for CAD, travel and moderate analysis. They are the wrong answer for sustained multi-hour solves, because a laptop processor throttles once the chassis hits its thermal limit, and the difference between peak boost clock and sustained clock is where a long solve actually lives.
Our position is that a laptop can pre-process, mesh, post-process and run small to medium models perfectly well. The moment you start running large batches unattended, you want a tower with the cooling mass to hold clocks and the memory capacity to hold the model.
If you are still deciding, our engineering student desktop guide covers the lighter end of the market, and it is worth reading before you commit either way.
When a Shared Server or Cluster Beats a Private Tower
A desktop is not always the right shape. One small civil engineering firm described a working model where each workstation had a dedicated GPU and USB hub, with RAM and CPU cores shared from a central server as needed, rather than buying a few very large machines. That approach keeps per-user hardware cheap and moves genuinely large models to hardware that can actually hold them.
For individual engineers and small teams, the rule is simple. If your largest model fits comfortably in a tower you own, a tower is faster, simpler and cheaper per solve hour. If it does not, distributed memory parallel runs across a shared server or a cloud cluster will beat a machine you cannot afford to build.
Do not forget licensing in that decision. Simulation software is often licensed per core or per socket, and the licence cost can exceed the hardware. A larger machine with fewer cores running more efficiently may be cheaper overall than a smaller machine with more cores, which is one more reason the sixteen-core sweet spot is worth taking seriously.
Frequently Asked Questions
What is the best PC for engineers?
The best PC for engineers is a tower built around a many-core processor, 64GB or more of ECC memory, and an NVMe scratch drive. Those three parts decide whether a large model solves in an afternoon or over a weekend. Add a professional graphics card with 16GB of VRAM if your work includes CFD or electromagnetic analysis.
What is the best desktop computer for engineers?
Look for four memory slots so you can expand to 256GB later, a 750W or larger power supply, a certified workstation driver stack, and a three-year on-site warranty. Four slots matter more than processor tier, because most solves are limited by memory capacity and bandwidth rather than raw core count.
How much RAM do I need for finite element analysis?
Practitioners working models around two million degrees of freedom report 64GB of RAM as sufficient to hold them. Plan 128GB for comfortably larger meshes and parameter sweeps, and 256GB when your models are genuinely large. Check the memory footprint in your solver output logs to size accurately.
Do I need ECC RAM for engineering simulation?
Yes, if you run long unattended solves. Engineers consistently report non-ECC memory becoming a crash risk in the final stages of long runs, and losing a multi-day batch job near completion. ECC detects and corrects errors before they corrupt results, which is cheap insurance for overnight work.
Which laptop is best for Ansys simulation?
Laptops handle meshing, pre-processing, post-processing and small to medium models well. For sustained multi-hour solves, a desktop tower is better, because laptop processors throttle once the chassis reaches its thermal limit. Use the laptop for interactive work and move large batches to a tower or shared server.
Is a workstation better than a gaming PC for simulation?
For structural and thermal FEA, a performance build with enough memory often wins on value, because the GPU is barely used. For CFD, look at double-precision throughput rather than gaming benchmarks. A certified workstation adds ISV-validated drivers, ECC memory and on-site warranty, which matter when the machine runs unattended overnight.
How many CPU cores do I need for ANSYS Mechanical?
Around sixteen physical cores is the practical target for most structural and thermal work, because solver scaling flattens beyond that point. More cores help very large shared-memory-parallel jobs, but memory bandwidth becomes the bottleneck first. Spend leftover budget on memory capacity rather than extra cores.
What kind of computer is best for 3D modelling and simulation?
High clock speed and large cache for the modelling side, plenty of memory for the solve side, and a professional graphics card with at least 16GB of VRAM for visualisation. A processor with a large cache such as the Ryzen 7 9800X3D class is well suited to geometry-heavy work, paired with a bigger memory allocation.
Which Machine Should You Buy?
If your models sit under two million degrees of freedom and you want the best-documented machine with real GPU headroom, the STORMCRAFT Phantom is our pick for 2026, with one instruction: add memory before you start your first batch job. If you run structural finite element analysis every day and need certified drivers plus a clean path to 256GB, the Lenovo ThinkStation P3 is the machine to buy. If your meshes are genuinely large, the dual-Xeon P920 holds what nothing else here can.
For GPU-accelerated CFD, the Legion Tower 7i and the Empowered PC Panorama XL both carry the 16GB of graphics memory that fluid work needs. For overnight parameter sweeps, the ASUS ROG Strix G700’s 128GB starting capacity is the difference between one run and a batch.
Whatever you choose, validate it against your own models before you commit the whole budget. Solve a representative model, watch the memory footprint and the sustained clock behaviour, and confirm the solver actually uses the hardware you paid for. Our data science desktop guide covers the GPU-heavy comparison if you are weighing compute options more broadly.
